Description
1200VA/600W/120V Battery Backup for PCs, Home Theater or Digital Signage
This 120V UPS system with AVR provides reliable battery backup and AC power protection against blackouts, brownouts, overvoltages, surges and line noise that can destroy data or damage valuable electronics. It is ideal for protecting home office, media center or commerce components, including computers, routers, printers, HDTVs, Blu-ray players, game consoles, ATMs, security systems and digital signage equipment.
Allows Time to Back Up Critical Files During a Blackout
Battery backup allows you to work through short power failures and gives you time to save files and shut down your system in case of a prolonged blackout. Backup time varies according to load, but this line-interactive UPS system can keep an energy-efficient desktop computer with small LCD monitor powered as long as 88 minutes. During normal operation, incoming utility power keeps the replaceable internal battery fully charged, so backup power is always available.
Restarts Automatically After a Long Outage
Once utility power is restored after a prolonged outage, the UPS will automatically power up, even if the battery is expired and requires replacement. This battery independent restart feature eliminates the need to turn on the UPS manually after a blackout.

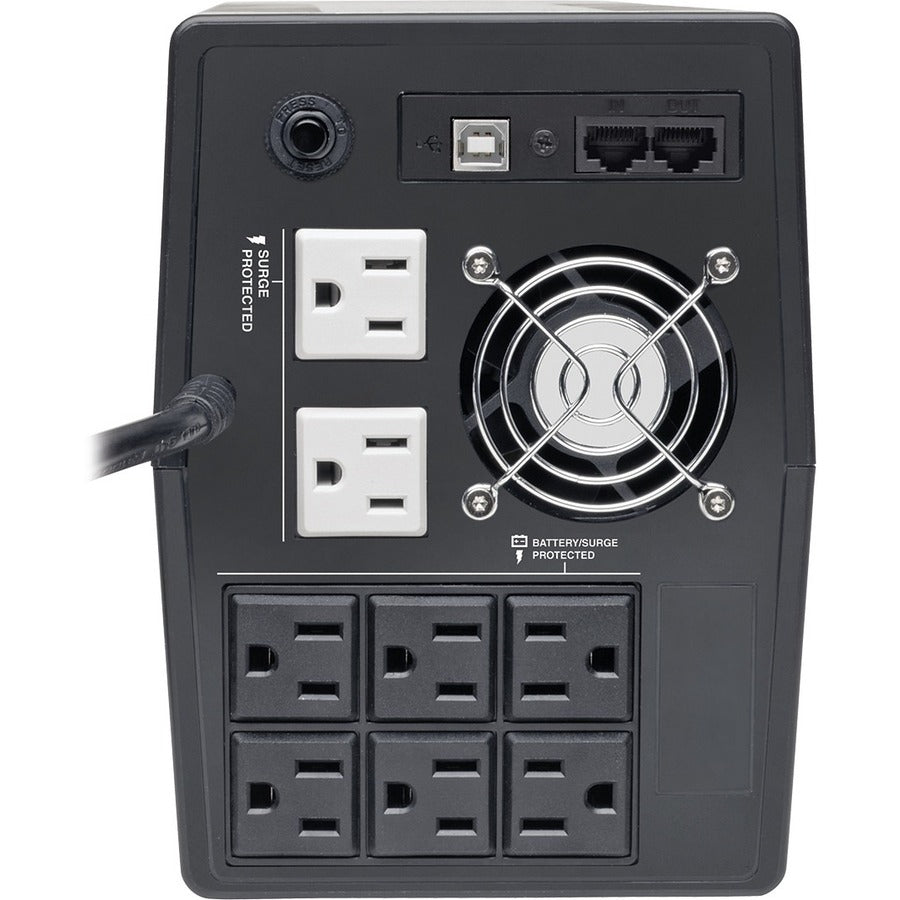

Connects Your Equipment to 8 Protected NEMA 5-15R Outlets
Six battery/surge-protected outlets provide battery backup and surge suppression for your computer, monitor and other critical equipment. Two additional surge-protected outlets provide surge suppression for peripherals that do not require battery backup, such as printers and speakers. A high >95% line mode efficiency rating reduces BTU emissions, energy consumption and, ultimately, your energy costs.
Automatic Voltage Regulation (AVR) Corrects Low- and High-Voltage Conditions
AVR protects your equipment from incremental hardware damage, data loss and performance problems caused by brownouts and overvoltages. The OMNIVS1200LCD corrects brownouts as low as 89V and overvoltages as high as 145V back to nominal 120V power continuously, all while keeping the battery fully charged.
Surge Suppression Protects AC and Tel/DSL/Ethernet Lines
Rated to 316 joules, this UPS system protects equipment connected to the outlets and RJ45 jacks (1 in/1 out) from the harmful effects of power surges that can occur over AC and telephone/network lines. The RJ45 jacks are not compatible with Power over Ethernet (PoE) applications.
Combats Line Noise That Can Harm Equipment
EMI (electromagnetic interference) and RFI (radio frequency interference) are common causes of performance problems for electronics and can lead to incremental hardware damage, data corruption and audio/video transmission interruptions. The OMNIVS1200LCD filters out this disruptive line noise on the AC line to protect your equipment.

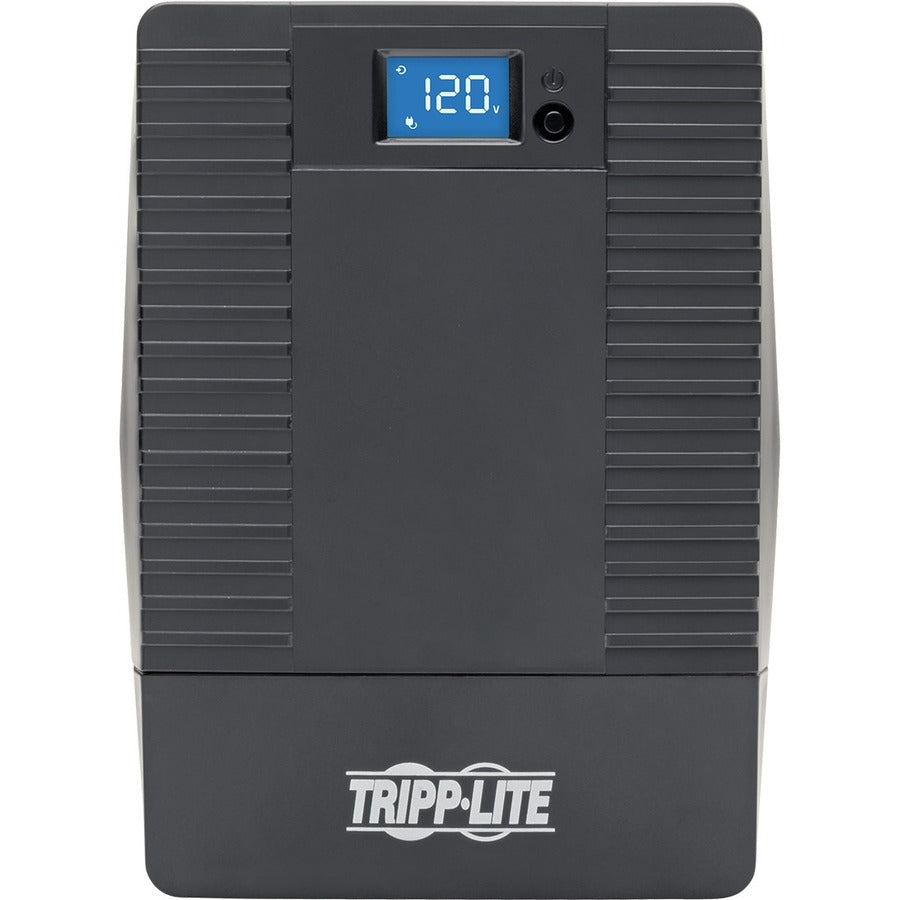

Easy-to-Read LCD Touchscreen Reports Real-Time UPS and Power Status
The LCD touchscreen offers five screens of UPS and site power information when the UPS is operating in either on-line or battery power mode. It displays vital voltage, load and battery data, as well as critical fault status. An audible alarm indicates low battery, excessive load or fault condition.
- Experience higher efficiency with lower energy cost
- Up to 2 minute runtime on full load to preserve critical data from power shortage interruptions
- Receptacle Detail : 8 x NEMA 5-15R
- Phase : Single Phase
- Number of Surge-only Outlets : 2
- Number of Battery & Surge Outlets : 6
- Form Factor : Tower
- Package Contents :
- OMNIVS1200LCD 1200VA Tower UPS
- USB Cable
- Owner's Manual
- Backup/Run Time (Full Load) : 2 Minute
- Load Capacity : 1.20 kVA/600 W
- Manufacturer : Tripp Lite by Eaton
- Product Model : OMNIVS1200LCD
- Backup/Run Time (Half Load) : 12 Minute
- Receptacle Type : NEMA 5-15R
- Environmentally Friendly : Yes
- Input Voltage : 120 V AC
- Transfer Time : 6 ms
- Limited Warranty : 3 Year
- Typical Battery Recharge Time : 8 Hour
- Waveform Type : Pulse-width Modulated Sine Wave
- Plug/Connector Type : NEMA 5-15P
- Product Type : Line-interactive UPS
- Replaceable Battery : Yes
- Application/Usage : Digital Signage,Security System,Home Theater,Home/Office,Media Center,Commercial,Computer,Router,Printer,TV,Blu-ray Player,Gaming Console,ATM,Speaker,Desktop Computer,Monitor
- Output Voltage : 120 V AC,110 V AC,115 V AC
- AVR : Yes
- Country of Origin : China
- Product Line : OmniVS
- DC System Voltage : 12 V DC
- Maximum Operating Elevation : 32808.40 ft (10000000 mm)
- Energy Saving : Greater than 95% efficiency - GREEN UPS
- Thermal Dissipation : 25.30 BTU/h
- Maximum Operating Temperature : 104°F (40°C)
- Output Frequency : 60 Hz
- Storage Temperature : 5°F (-15°C) - 113°F (45°C)
- EMI/RFI Noise Filter : Yes
- Input Frequency : 60 Hz
- Surge Energy Rating : 316 J
- Dataline Protection : RJ-11,RJ-45
- Alarm : Low Battery,Fault,Overload,Replace Battery
- USB (HID Compliant) Port : Yes
- Status Indicators :
Front Panel LCD Display:
- Input voltage
- Output voltage
- Load percentage
- Battery charge percentage
- Overload status
- Manufacturer Website Address : https://tripplite.eaton.com/
