Description
Protect Your Electronics with Voltage Regulation, Surge Suppression and Battery Backup

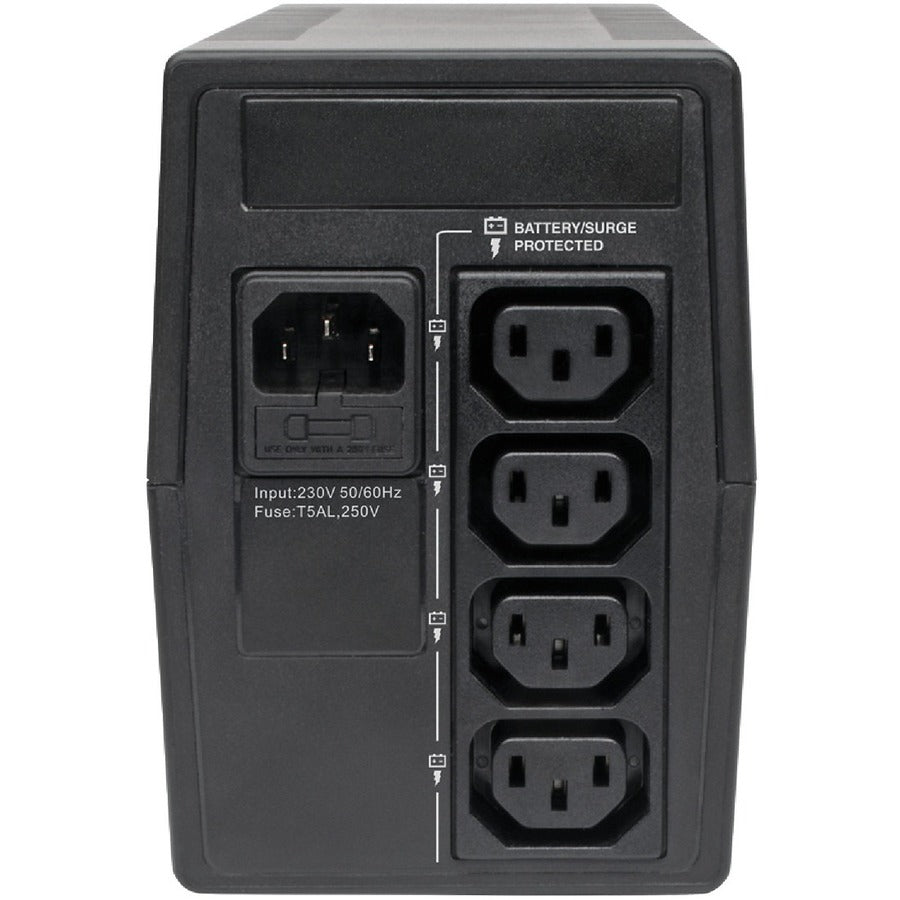

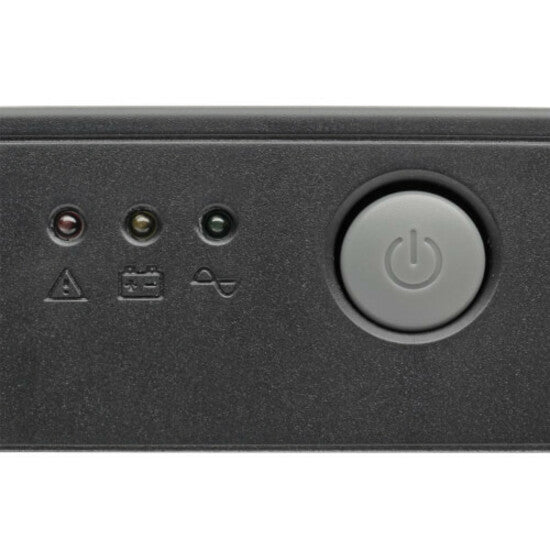

Line-interactive UPS offers voltage regulation, surge suppression and battery backup support. It regulates brownouts as low as 170V and overvoltages as high as 280V back to usable levels without using battery power. All four IEC320 C13 UPS outlets offer battery backup, automatic voltage regulation and AC surge suppression. Three front panel LEDs and audible alarm combine to indicate off/on power status, line power availability, battery mode operation, low battery, overload, battery replacement and fault mode.
Operate Your Connected Equipment During Short-Term Outages
This UPS supports an entry-level PC consuming 60W continuous up to 42 minutes during power failure condition and a 50% load of 180W for 6 minutes. It also enables users to operate connected equipment during short-duration outages without interruption and shut down without data loss during longer outages. All the UPS C13 outlets receive battery backup.
Two-Year Limited Warranty
This UPS is backed by a two-year limited warranty, ensuring reliability and performance.
. .- Phase : Single Phase
- Number of Battery & Surge Outlets : 4
- Transfer Time : 6 ms
- Typical Battery Recharge Time : 8 Hour
- Waveform Type : Sine Wave,Pulse-width Modulated Sine Wave
- Form Factor : Tower
- Product Type : Line-interactive UPS
- Load Capacity : 650 VA/360 W
- Replaceable Battery : Yes
- Application/Usage : Computer System,Electronic Device,Telephone System,POS Terminal,Kiosk,ATM,Power Equipment,Network Device,Desktop
- Manufacturer : Tripp Lite by Eaton
- Product Model : OMNIVSX650
- Output Voltage : 220 V AC,230 V AC,240 V AC
- Backup/Run Time (Half Load) : 6 Minute
- AVR : Yes
- Country of Origin : China
- Product Line : OmniVS
- DC System Voltage : 12 V DC
- Battery Size : 12V
- Maximum Operating Elevation : 6561.68 ft (2000000 mm)
- Number of Batteries : 1
- Thermal Dissipation : 26 BTU/h
- Maximum Operating Temperature : 104°F (40°C)
- Output Frequency : 60 Hz
- Storage Temperature : 5°F (-15°C) - 113°F (45°C)
- EMI/RFI Noise Filter : Yes
- Input Frequency : 50 Hz
- Battery Capacity : 7200 mAh
- Alarm : Low Battery,Overload,Replace Battery,Fault
- Storage Relative Humidity : 90%
- Status Indicators :
- Power Status
- Line Power Availability
- Battery Mode Operation
- Overload
- Replace-battery
- Fault-mode
- Manufacturer Website Address : https://tripplite.eaton.com/
