Tripp Lite by Eaton PDU121506 13-Outlets PDU PDU121506

Single-Phase 120V PDU Distributes Network-Grade Power to Multiple Loads

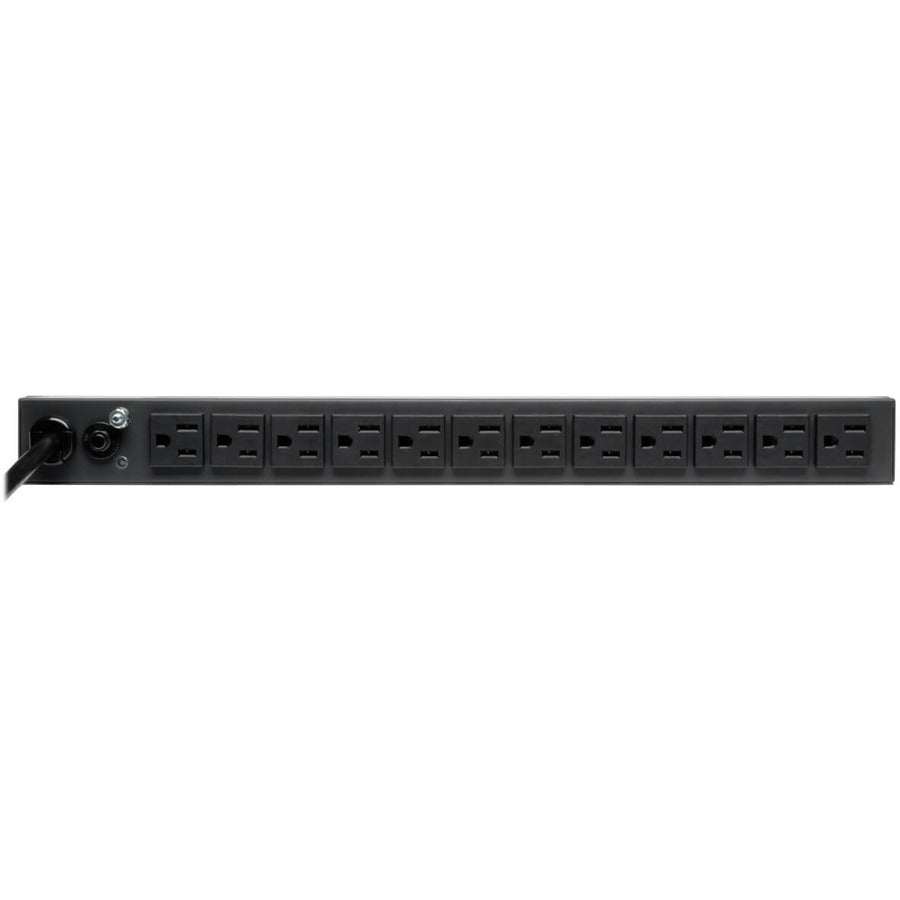

This basic PDU is an ideal no-frills unit for networking, telecom, security, audio/video and sound reinforcement applications. Recommended for high-density IT environments, the PDU121506 features a single breakered load bank with 13 NEMA 5-15R outlets - 12 in the rear and one in front. A six-foot cord with NEMA 5-15P input plug connects to your facility's AC power source, generator or protected UPS system to distribute power to connected loads.

Up-to-Date Safety Features Protect Your Vital Equipment

The switchless design helps prevent an accidental shutdown, which could lead to costly downtime. A 15A circuit breaker protects connected components from dangerous overloads.

Versatile Installation Options Give You Plenty of Choices

The reversible all-metal housing comes with mounting brackets for installation in 1U of space in an EIA-standard 19-inch rack. You can also reorient the brackets for permanent mounting under a counter or on a wall with user-supplied hardware. With a compatible rack and Tripp Lite's PDUSIDEBRKT accessory (sold separately), you can adapt the PDU121506 for vertical 0U rack-mounting as well.

• A device fitted with multiple outputs for the distribution of electric power
• Basic PDU is the space-saving and cost-effective way to deliver power

• Receptacle Type : NEMA 5-15R
• Receptacle Detail : 13 x NEMA 5-15R
• Phase : Single Phase
• Environmentally Friendly : Yes
• PDU Type : Basic
• Power Rating (Watt) : 1.90 kW
• Input Voltage : 120 V AC
• Limited Warranty : 5 Year
• Package Contents :
  • PDU121506 13-Outlets PDU
  • Rack-mounting hardware
  • Owner's Manual
• Plug/Connector Type : NEMA 5-15P
• Product Type : PDU
• Mount Type : Rack-mountable
• Protection Type : Overload Protection
• Manufacturer : Tripp Lite by Eaton
• Product Model : PDU121506
• Output Voltage : 100 V AC,120 V AC,127 V AC
• Mounting Orientation : Horizontal
• Input Current : 15 A
• Rack Height : 1U
• Country of Origin : China
• Manufacturer Website Address : https://tripplite.eaton.com/
• Cord Length : 6 ft
