Description
Single-Phase 120V PDU Distributes Network-Grade Power to Multiple Loads

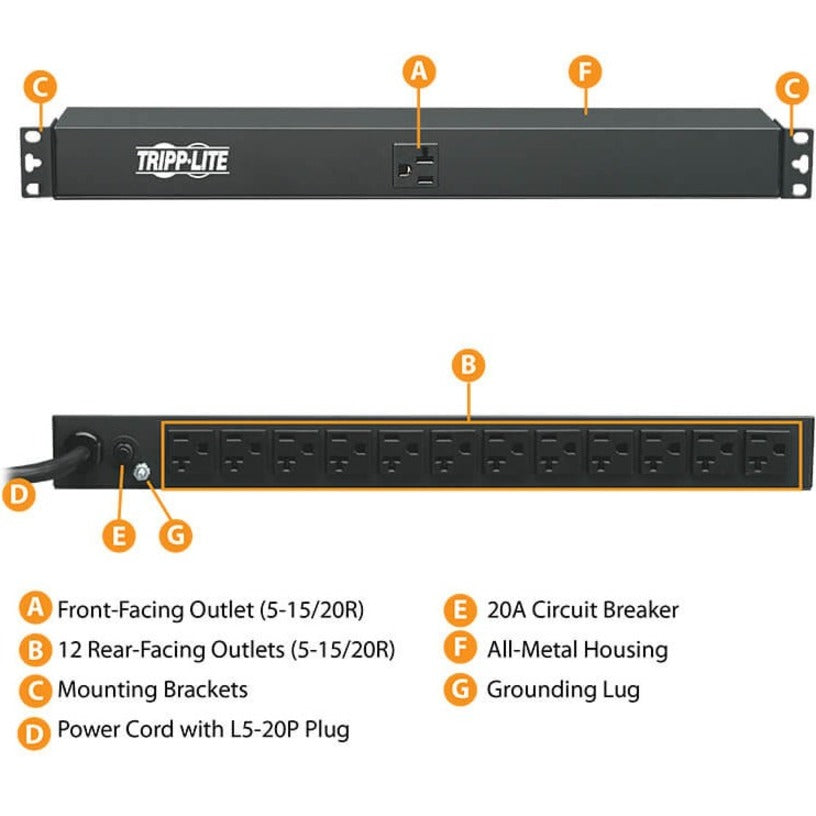

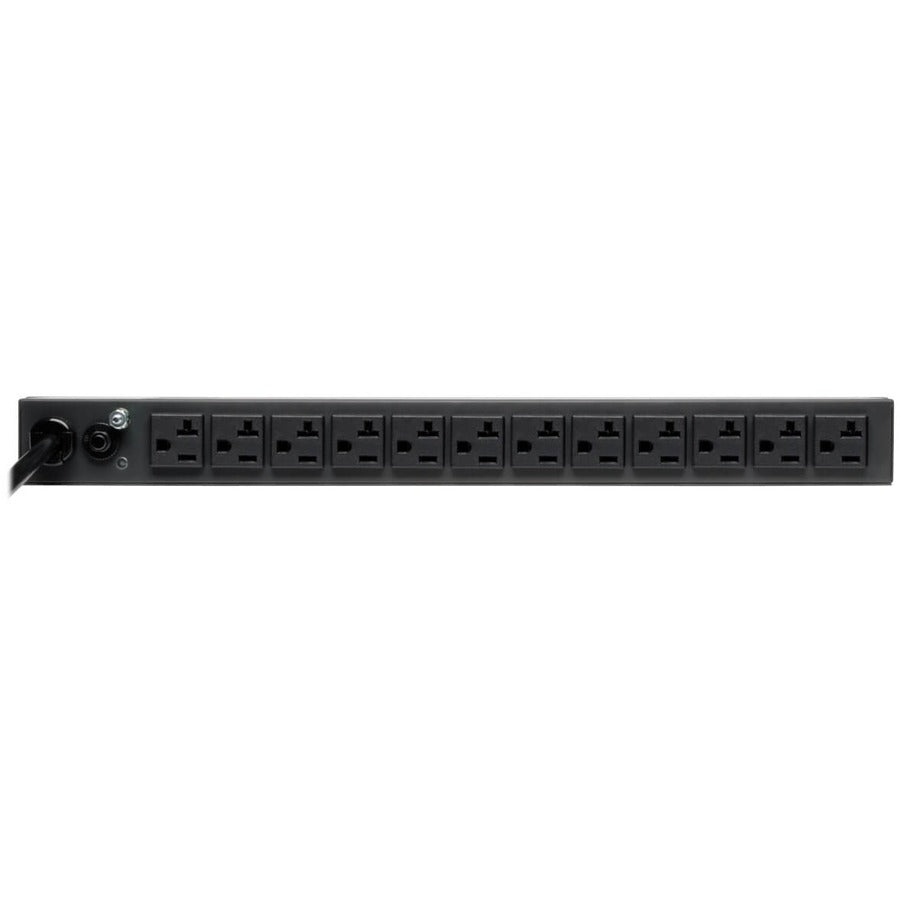

This basic PDU is an ideal no-frills unit for networking, telecom, security, audio/video and sound reinforcement applications. Recommended for high-density IT environments, the PDU1220T6 features a single breakered load bank with 13 NEMA 5-15/20R outlets - 12 in the rear and one in front. A 6-ft. (1.83 m) cord with NEMA L5-20P input plug connects to your facility's AC power source, generator or protected UPS system to distribute power to connected loads.
Up-to-Date Safety Features Protect Your Vital Equipment
The switchless design helps prevent an accidental shutdown, which could lead to costly downtime. A 20A circuit breaker protects connected components from dangerous overloads.
Versatile Installation Options Give You Plenty of Choices

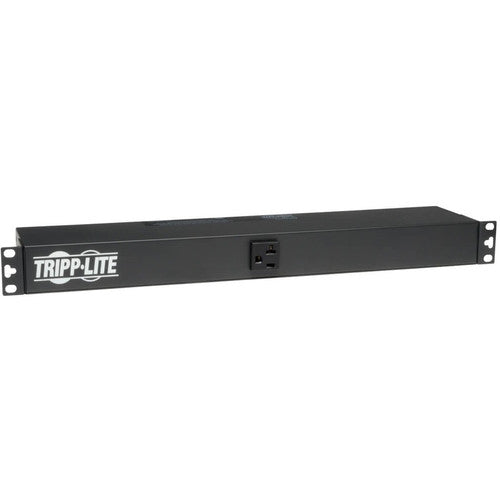

The reversible all-metal housing comes with mounting brackets for installation in 1U or 0U of space in an EIA-standard 19-inch rack. You can also reorient the brackets for permanent mounting under a counter or on a wall with user-supplied hardware.
- Receptacle Type : NEMA 5-15/20R
- Receptacle Detail : 13 x NEMA 5-15/20R
- Phase : Single Phase
- Environmentally Friendly : Yes
- PDU Type : Basic
- Power Rating (Watt) : 2.50 kW
- Input Voltage : 120 V AC
- Limited Warranty : 5 Year
- Package Contents :
- PDU1220T6 13-Outlets PDU
- Rack-mounting Hardware
- Owner's Manual
- Plug/Connector Type : NEMA L5-20P
- Product Type : PDU
- Mount Type : Rack-mountable,Wall-mountable
- Protection Type : Accidental Power Shutdown,Overload Protection,Circuit Protection
- Manufacturer : Tripp Lite by Eaton
- Product Model : PDU1220T6
- Output Voltage : 100 V AC,120 V AC,127 V AC
- Mounting Orientation : Horizontal/Vertical
- Input Current : 20 A
- Rack Height : 1U
- Country of Origin : China
- Manufacturer Website Address : https://tripplite.eaton.com/
