Tripp Lite by Eaton PDU1226 13-Outlets PDU PDU1226

Single-Phase 120V PDU Distributes Network-Grade Power to Multiple Loads

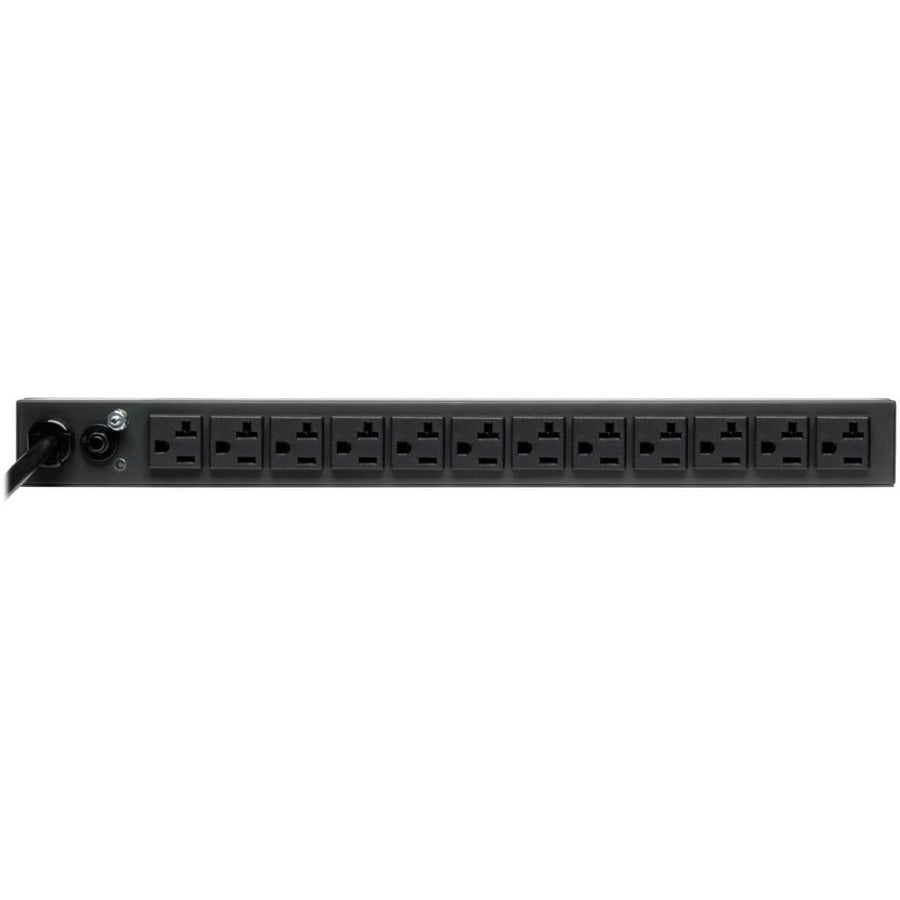

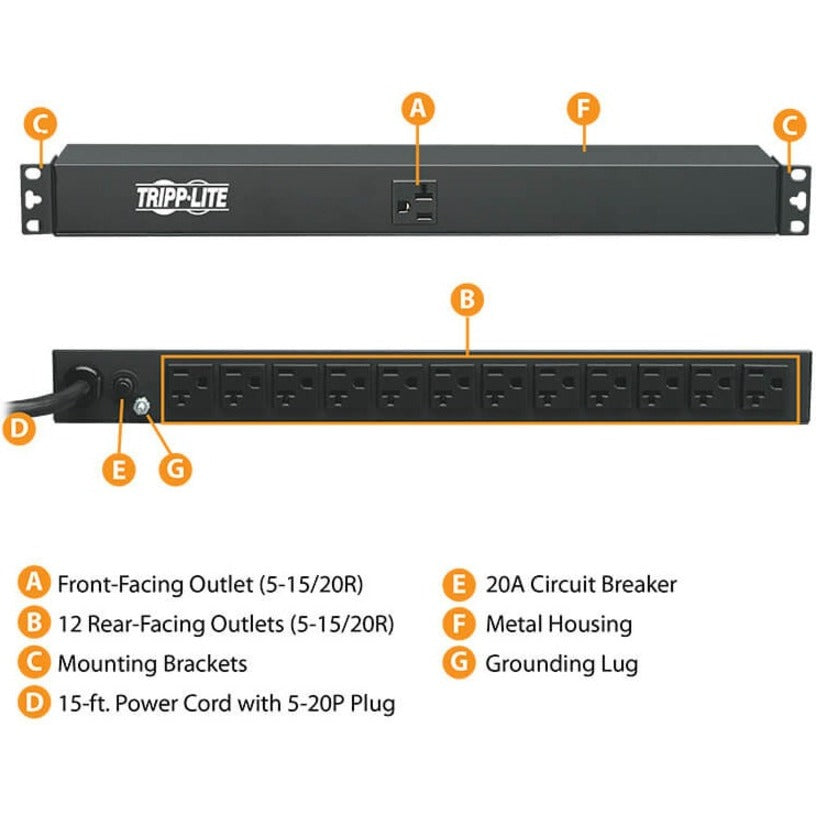

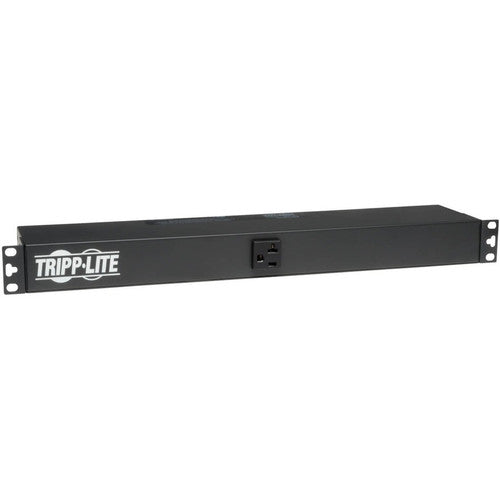

This basic PDU is an ideal no-frills unit for networking, telecom, security, audio/video and sound reinforcement applications. Recommended for high-density IT environments, the PDU1226 features a single breakered load bank with 13 NEMA 5-15/20R outlets - 12 in the rear and one in front. A six-foot cord with NEMA 5-20P input plug connects to your facility's AC power source, generator or protected UPS system to distribute power to connected loads.

Up-to-Date Safety Features Protect Your Vital Equipment

The switchless design helps prevent an accidental shutdown, which could lead to costly downtime. A 20A circuit breaker protects connected components from dangerous overloads.

Versatile Installation Options Give You Plenty of Choices

The reversible all-metal housing comes with mounting brackets for installation in 1U or 0U of space in an EIA-standard 19-inch rack. You can also reorient the brackets for permanent mounting under a counter or on a wall with user-supplied hardware.

• Receptacle Type : NEMA 5-15/20R
• Receptacle Detail : 13 x NEMA 5-15/20R
• Phase : Single Phase
• Environmentally Friendly : Yes
• PDU Type : Basic
• Power Rating (Watt) : 2.50 kW
• Input Voltage : 120 V AC
• Limited Warranty : 5 Year
• Package Contents :
  • PDU1226 13-Outlets PDU
  • Rack-mounting Hardware
  • Owner's Manual
• Plug/Connector Type : NEMA 5-20P
• Product Type : PDU
• Mount Type : Rack-mountable,Wall-mountable
• Protection Type : Overload Protection,Circuit Protection,Accidental Power Shutdown
• Manufacturer : Tripp Lite by Eaton
• Product Model : PDU1226
• Output Voltage : 100 V AC,120 V AC,127 V AC
• Mounting Orientation : Horizontal/Vertical
• Input Current : 20 A
• Rack Height : 1U
• Country of Origin : China
• Manufacturer Website Address : https://tripplite.eaton.com/
