Description
The PDU3EVN10L1530B 10kW 3-Phase Monitored PDU provides real-time remote monitoring of voltage, frequency and load levels via built-in network connection. These advanced remote capabilities can save you money and reduce downtime.

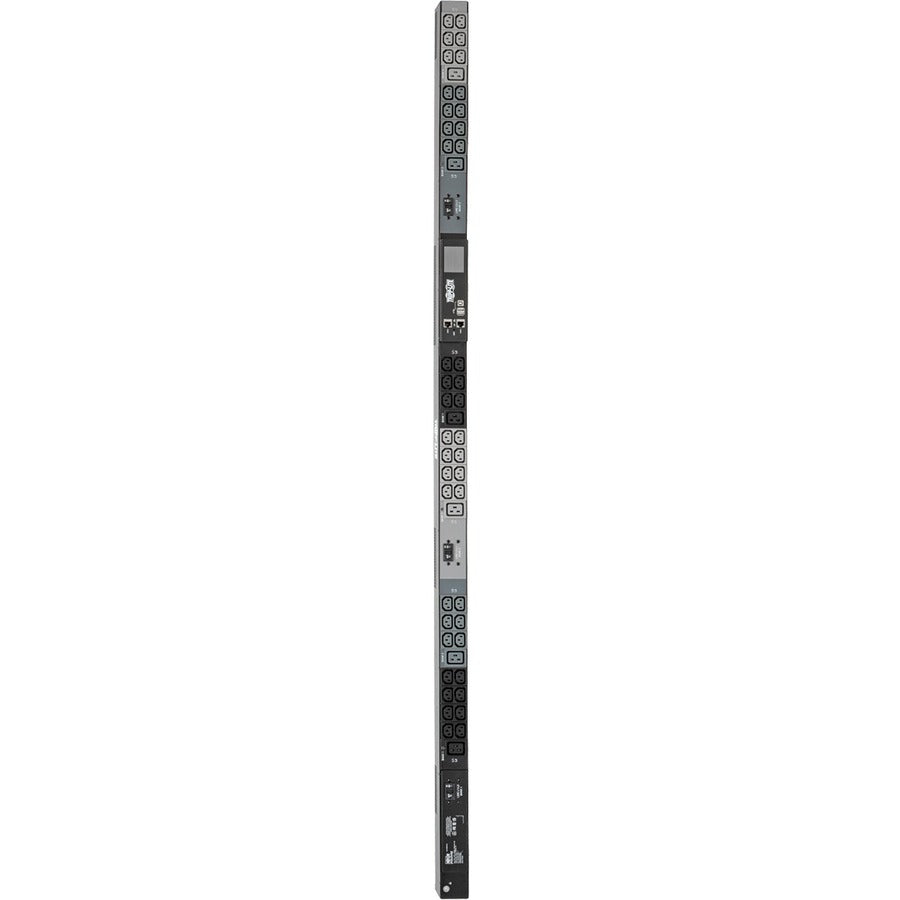

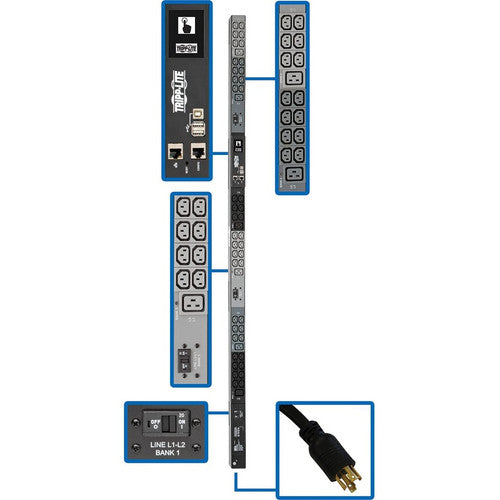

Recommended for your IT or industrial application, the monitored PDU features 48 outlets-42 C13, 6 C19-with included plug-lock insert sleeves to prevent cables from becoming accidentally disconnected. A 10-foot cord with NEMA L15-30P input plug connects the 3-phase PDU to a compatible AC power source, generator or protected UPS.
The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.

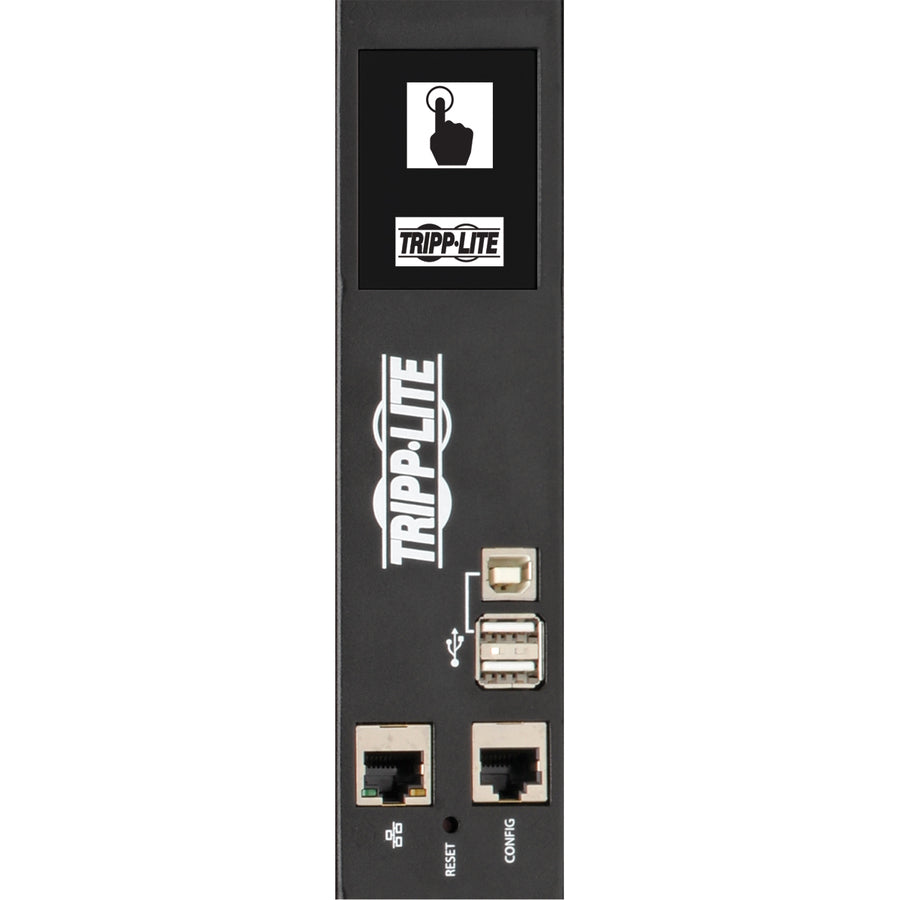

A color touchscreen LCD lets you toggle between menus to monitor input current level per phase and output current per load bank with ±1% billing-grade accuracy, environmental sensor data and network information. It also generates a unique QR code to allow access to the PDU through a mobile device. .
Recommended for your IT or industrial application, the monitored PDU features 48 outlets-42 C13, 6 C19-with included plug-lock insert sleeves to prevent cables from becoming accidentally disconnected. A 10-foot cord with NEMA L15-30P input plug connects the 3-phase PDU to a compatible AC power source, generator or protected UPS.
The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.
A color touchscreen LCD lets you toggle between menus to monitor input current level per phase and output current per load bank with ±1% billing-grade accuracy, environmental sensor data and network information. It also generates a unique QR code to allow access to the PDU through a mobile device. .
- Receptacle Type : IEC 60320 C19,IEC 60320 C13
- Receptacle Detail : 6 x IEC 60320 C19,42 x IEC 60320 C13
- TAA Compliant : Yes
- Phase : Three Phase
- Environmentally Friendly : Yes
- PDU Type : Monitored
- Power Rating (Watt) : 10 kW
- Input Voltage : 230 V AC
- Management : Protocols:
- IPv4
- IPv6
- HTTP
- HTTPS
- SMTP
- SNMPv1
- SNMPv2
- SNMPv3
- telnet
- SSH
- FTP
- DHCP
- NTP
- Limited Warranty : 2 Year

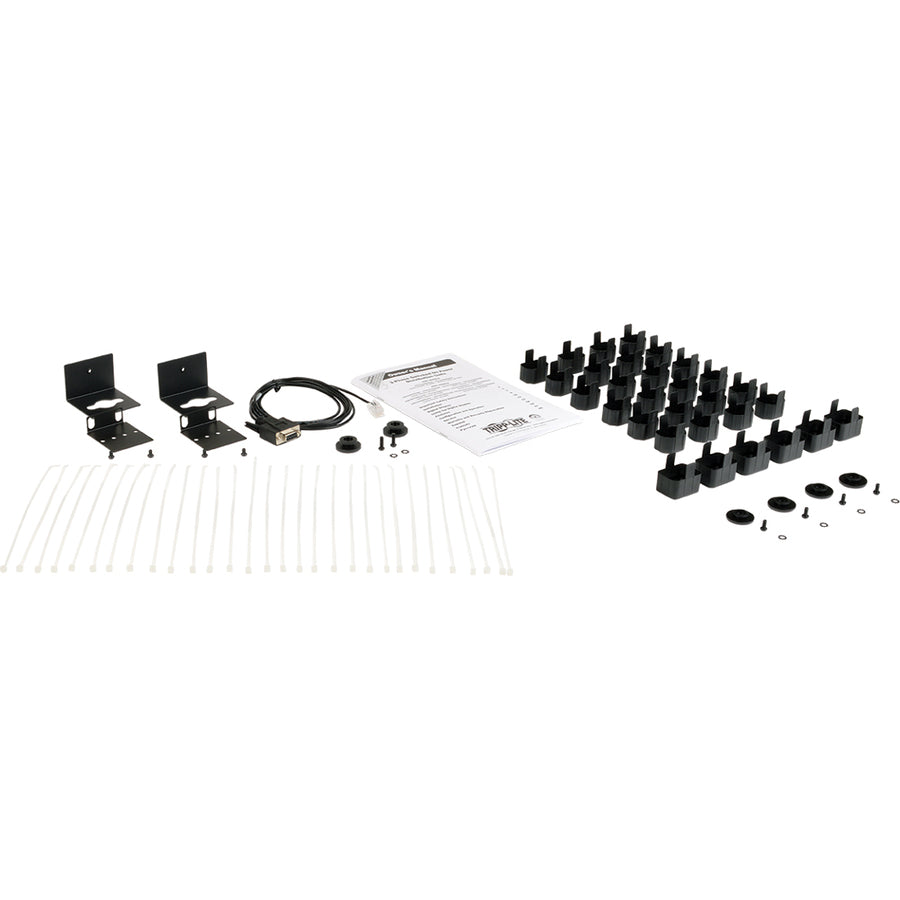

- Package Contents :
- PDU3EVN10l1530B 48-Outlet PDU
- Built-in LX Platform Interface
- Configuration Cable
- 48 x Plug-lock Insert Sleeves
- Rack-mounting Hardware
- Mounting Bracket Accessory
- Owner's Manual

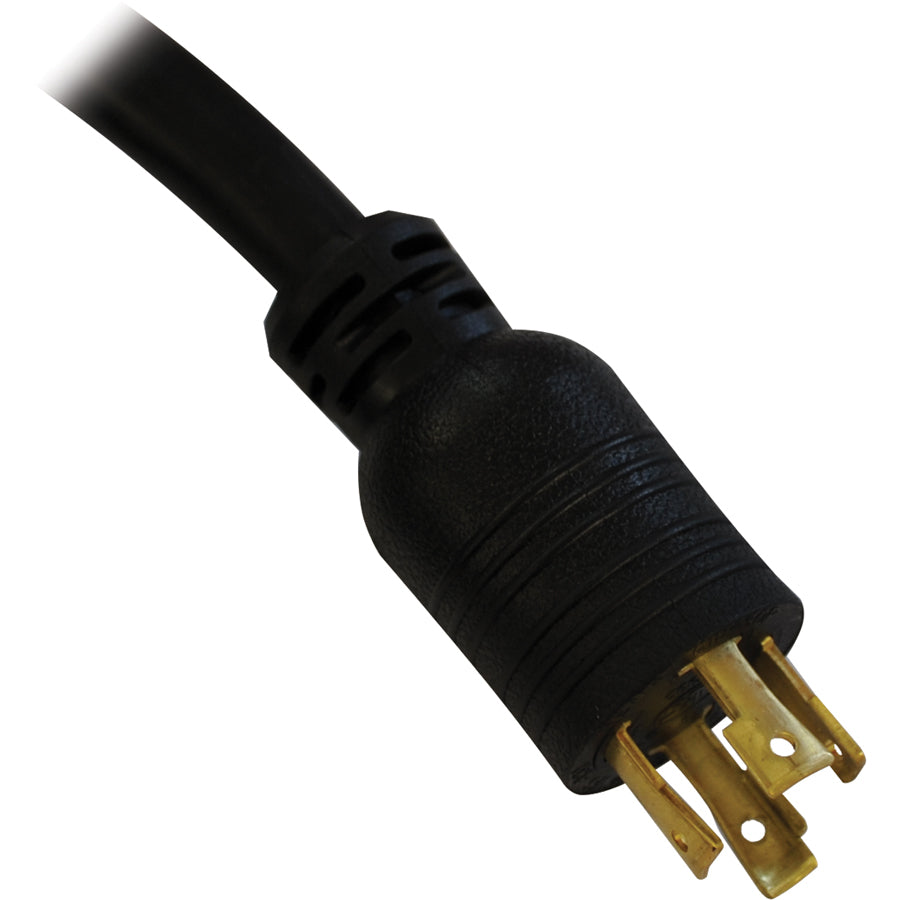

- Plug/Connector Type : NEMA L15-30P
- Product Type : PDU

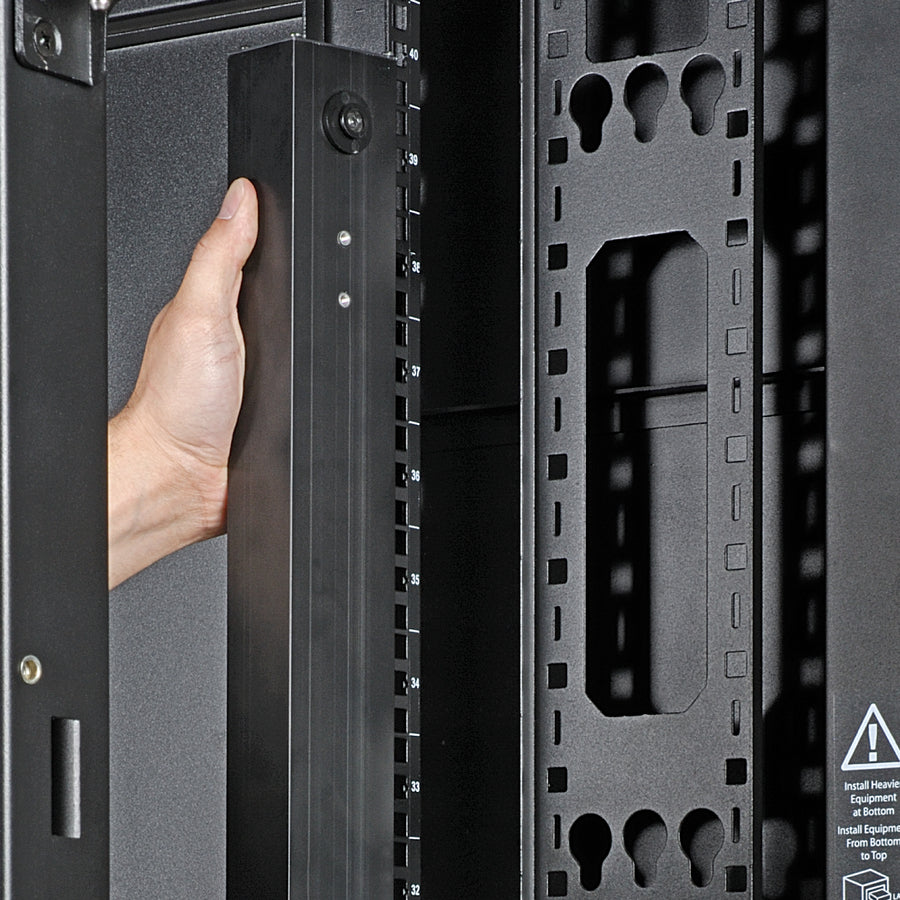

- Mount Type : Rack-mountable
- Protection Type : Overload Protection
- Manufacturer : Tripp Lite by Eaton
- Product Model : PDU3EVN10l1530B
- Output Voltage : 200 V AC,208 V AC,240 V AC
- Mounting Orientation : Vertical
- Input Current : 24 A
- Rack Height : 0U
- Country of Origin : Taiwan
- Manufacturer Website Address : https://tripplite.eaton.com/
