Description
14.5kW 3-Phase PDU Distributes and Monitors Network-Grade Power
This monitored PDU provides real-time remote monitoring of voltage and load levels via its built-in network interface. Ideal for your data center, computer room or high-density network closet, the PDU3EVNR6H50 features 24 C13 and six C19 208/240V outlets in three breakered load banks, which distribute AC power to rack equipment. Plug-lock insert sleeves are included to prevent equipment cables from becoming accidentally dislodged.
Monitored Per-Outlet PDU Lets You Keep Track of Power Consumption in Real Time
Not only can you remotely monitor voltage and frequency, but the PDU3EVNR6H50 also allows metering of per-phase input current, as well as output current per bank and per outlet. Banks can be individually monitored to ensure proper load balance and prevent downtime. Monitoring each outlet allows you to study power consumption trends for each connected device. This helps you detect hardware problems and network traffic bottlenecks, as well as compare power usage among various devices.
Built-In LX Platform Network Management Card Allows Remote Access 24/7
The Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, Telnet or SSH. Full 10/100/1000 Mbps auto-sensing enables optimal communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, FTP, DHCP and NTP.
Color Touchscreen LCD Gives You Important Data at a Glance
An easy-to-navigate color touchscreen LCD reports network data, including IP address, input current level per phase, and output current per load bank and per outlet with ±1% billing-grade accuracy. It also generates a unique QR code to allow read-only access to the PDU via PowerAlert® Device Manager. If an EnviroSense2 module is connected, the LCD also displays status and environmental data, including temperature and humidity.
Easy to Install Vertically in an EIA-Standard 19 in. Rack

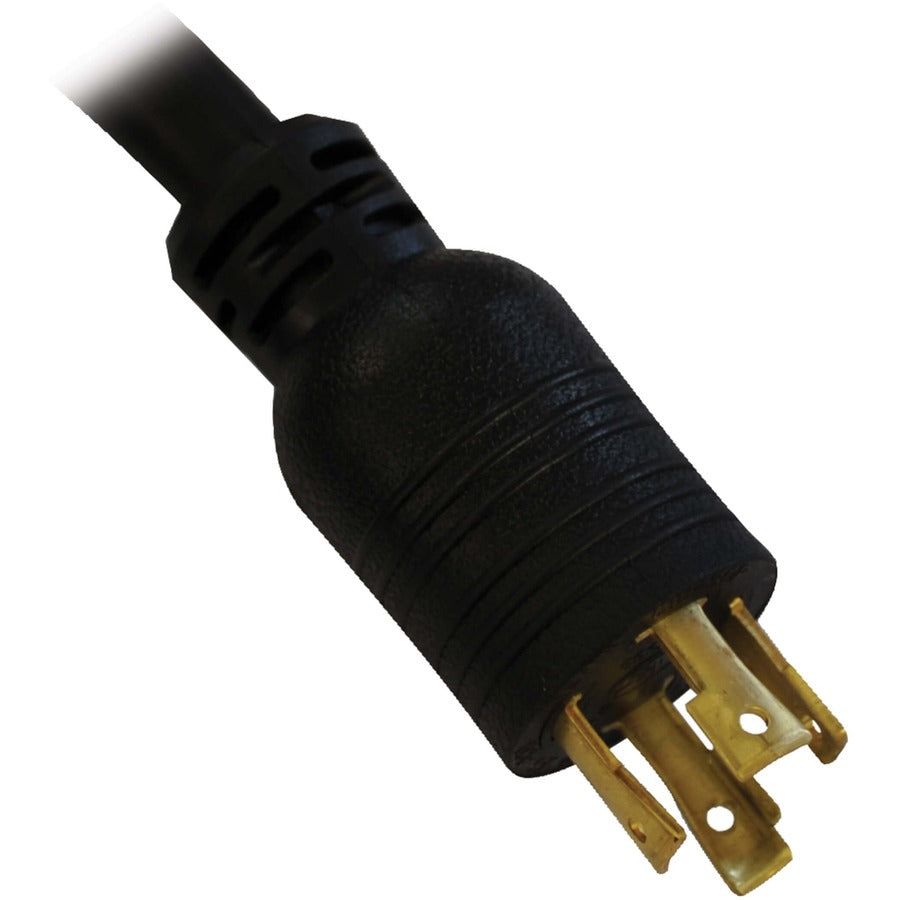

The 70-inch 0U PDU mounts vertically using the included toolless mounting buttons or the included rack-mounting brackets. Spare buttons are also included. Use the included PDUMVROTATEBRKT kit to install the PDU with outlets facing the rear for better airflow or equipment access. A six-foot cord with a Hubbell 50A CS8365C input connects the PDU to a compatible AC power source, generator or protected UPS.
TAA-Compliant for GSA Schedule Purchases
The PDU3EVNR6H50 is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
- Advanced remote capabilities include outlet-level current monitoring in real time
- 24 C13 and 6 C19 208/240V outlets distribute AC power to connected equipment
- Built-in Java-free HTML5-based LX Platform interface allows you 24/7 remote access
- Color touchscreen LCD provides current levels, environmental data and network info
- Installs in 0U of rack space in standard 19 in. racks using included mounting hardware
- 2-year limited warranty
- Receptacle Detail : 24 x IEC 60320 C13,6 x IEC 60320 C19
- Phase : Three Phase
- PDU Type : Monitored
- Plug/Connector Detail : 1 x Hubbel CS8365C 50A

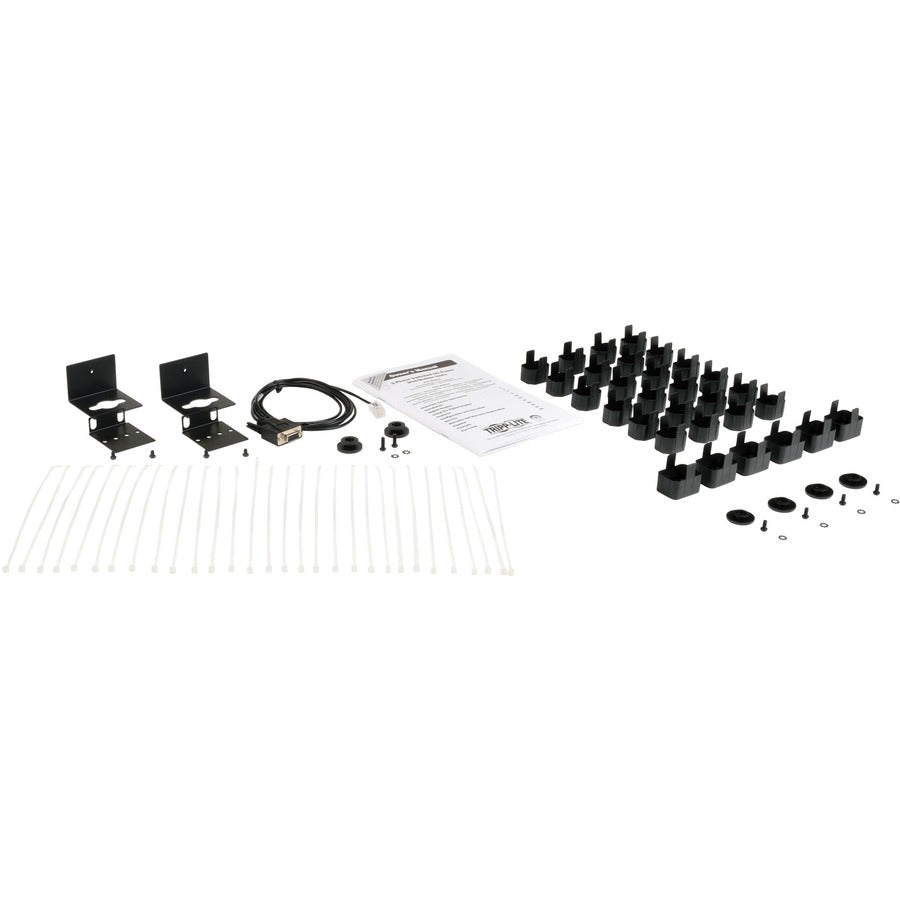

- Package Contents :
- PDU3EVNR6H50 30-Outlets PDU
- Built-in LX Platform interface
- Configuration cable
- 30 x Plug-lock insert sleeves
- Rack-mounting hardware
- Spare mounting buttons
- PDUMVROTATEBRKT mounting bracket accessory
- Owner's manual
- Mount Type : Rack-mountable
- Manufacturer : Tripp Lite by Eaton
- Product Model : PDU3EVNR6H50
- Rack Height : 0U
- Receptacle Type : IEC 60320 C13,IEC 60320 C19
- TAA Compliant : Yes
- Environmentally Friendly : Yes
- Power Rating (Watt) : 14.50 kW
- Input Voltage : 230 V AC
- Management :
- HTTP
- HTTPS
- SMTP
- FTP
- DHCP
- NTP
SNMP:
- v1
- v2
- v3
- v2c
- Limited Warranty : 2 Year
- Network (RJ-45) : Yes
- Plug/Connector Type : Hubbel CS8365C 50A
- Product Type : PDU
- Protection Type : Overload Protection
- Output Voltage : 208 V AC,240 V AC
- Mounting Orientation : Vertical/Toolless
- Input Current : 35 A
- Country of Origin : Taiwan
- Manufacturer Website Address : https://tripplite.eaton.com/
