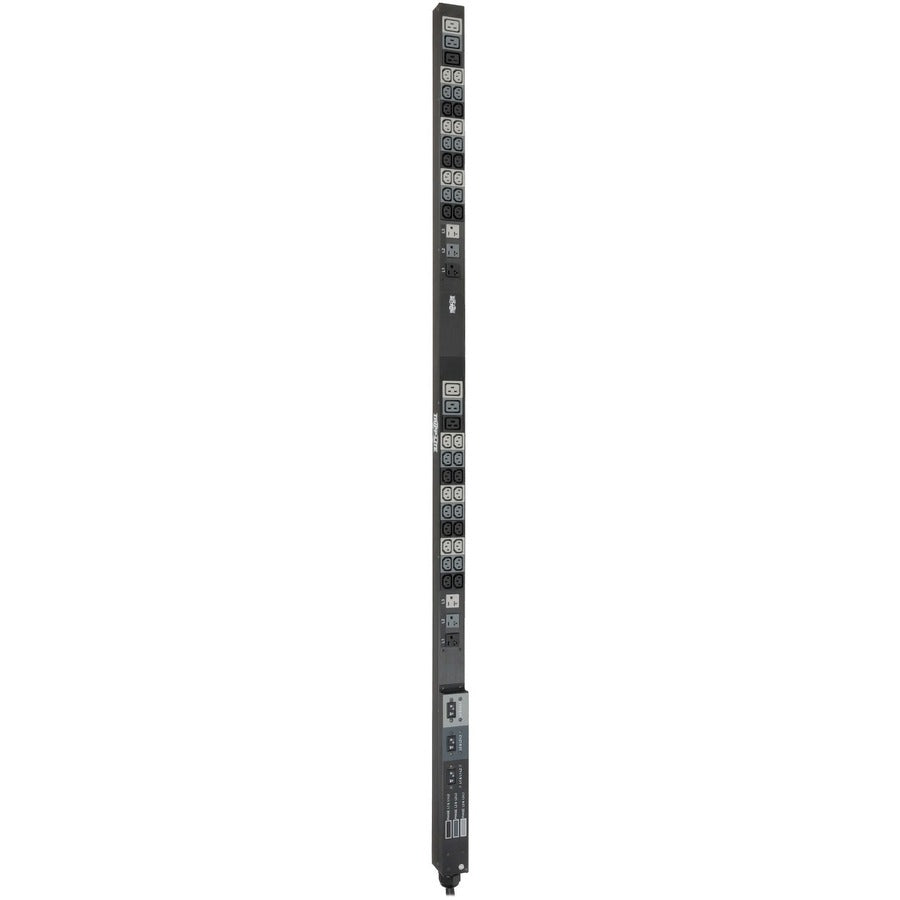

Tripp Lite by Eaton PDU3V6L2130 48-Outlets PDU PDU3V6L2130

Save $662.88
Tripp Lite by EatonSKU: PDU3V6L2130

Price:
Sale price$1,004.99 Regular price$1,667.87
Stock:
Sold out

Description

Three-Phase 208/120V PDU Distributes Network-Grade Power to Multiple Loads
This basic PDU is an ideal no-frills unit for networking, telecom, security, audio/video and sound reinforcement applications. Recommended for small to mid-sized data centers, computer rooms and network closets, the PDU3V6L2130 features 36 C13 (208V), six C19 (208V) and six NEMA 5-15/20R (120V) outlets in three breakered load banks for connecting equipment. A six-foot cord with L21-30P input plug connects to your facility's AC power source, generator or protected UPS system to distribute power to connected loads.

Up-to-Date Safety Features Protect Your Vital Equipment

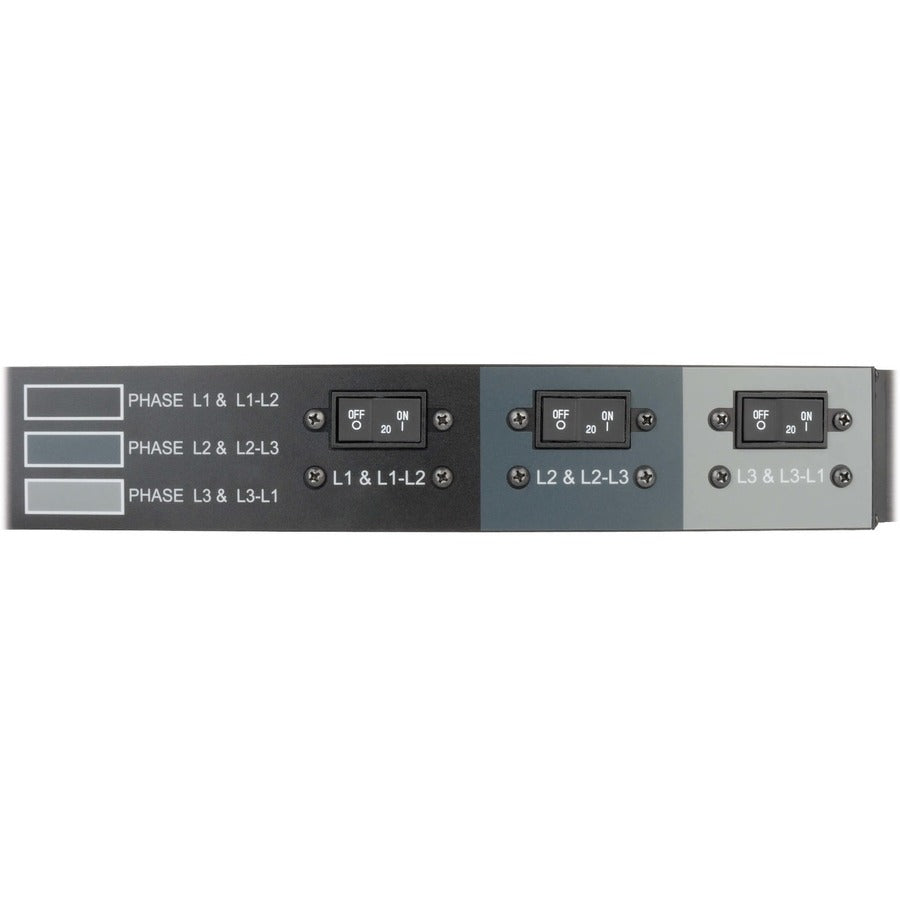

The switchless design helps prevent an accidental shutdown, which could lead to costly downtime. Three 20A circuit breakers, one per output phase, protect connected components from dangerous overloads.

Easy to Install Vertically in an EIA-Standard 19 in. Rack

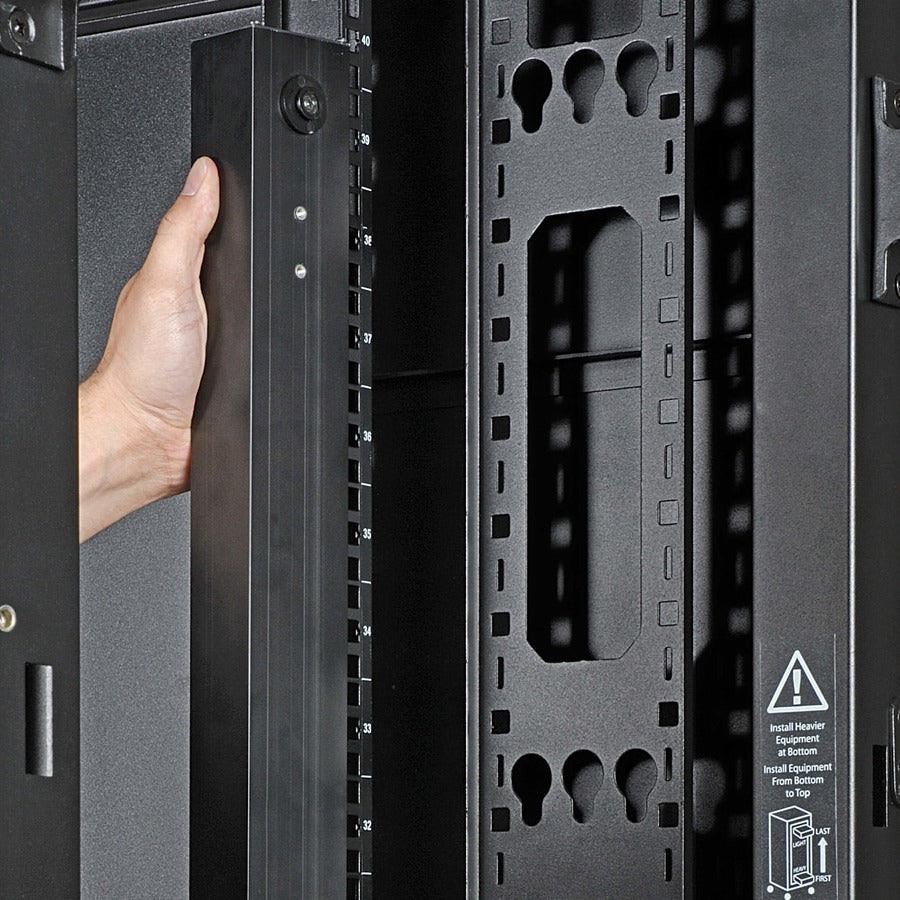

The 70-inch 0U PDU's all-metal housing mounts vertically using the pre-installed toolless mounting buttons or the included brackets. Spare buttons are also included. Use the included PDUMVROTATEBRKT kit to install the PDU with outlets facing the rear for better airflow or equipment access. Cable retention brackets keep power cords organized and your rack free of clutter.

TAA-Compliant for GSA Schedule Purchases
The PDU3V6L2130 is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

  • Ideal no-frills PDU for telecom, security, audio/video and other network applications

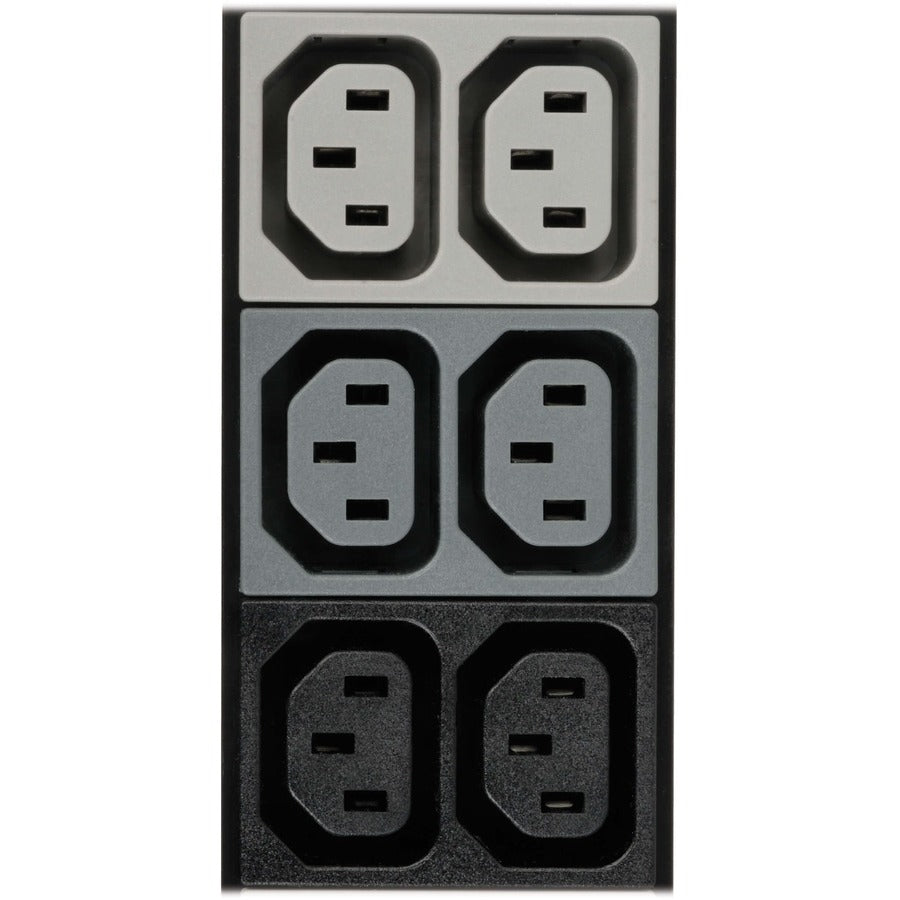

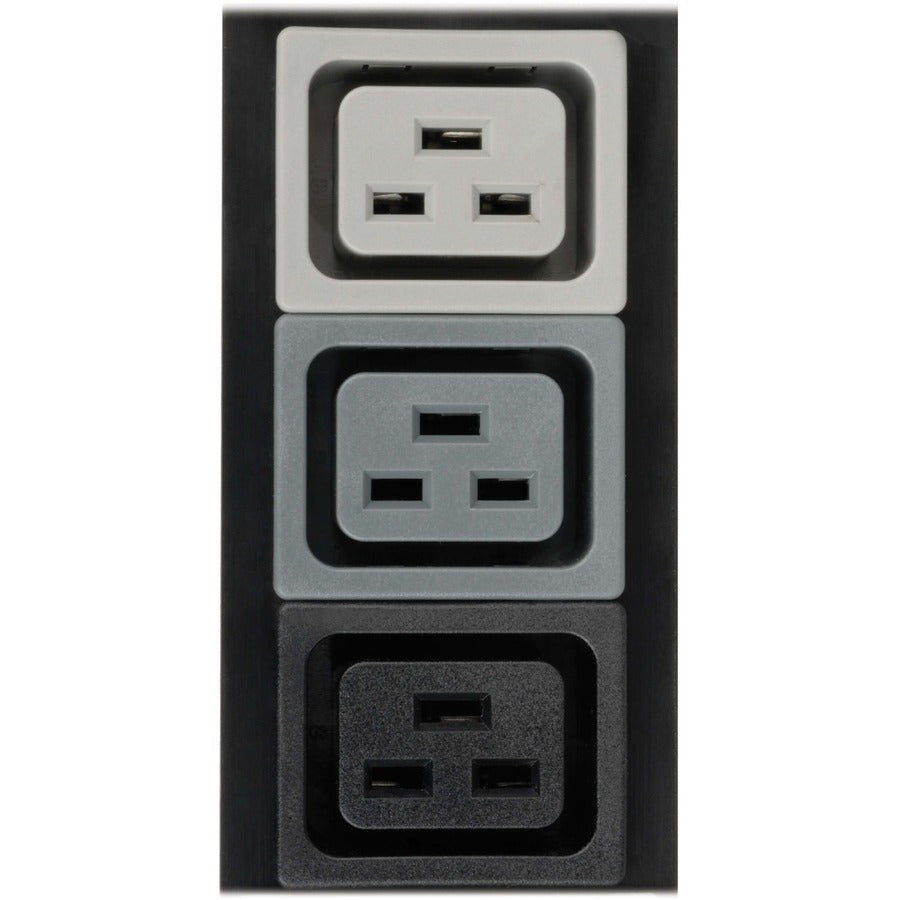

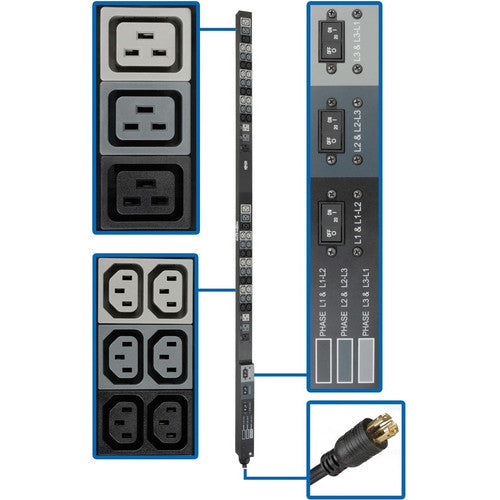

  • 36 C13, 6 C19 and 6 5-15/20R outlets distribute AC power to connected equipment
  • Switchless design helps prevent accidental shutdowns that can lead to costly downtime
  • 6 ft. power cord with NEMA L21-30P input connects to compatible AC source
  • Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
  • 2-year limited warranty
. .
  • Receptacle Type : IEC 60320 C13,IEC 60320 C19,NEMA 5-15/20R
  • Receptacle Detail : 36 x IEC 60320 C13,6 x IEC 60320 C19,6 x NEMA 5-15/20R
  • TAA Compliant : Yes
  • Phase : Three Phase
  • Environmentally Friendly : Yes
  • PDU Type : Basic
  • Power Rating (Watt) : 8.60 kW
  • Locking Receptacles : Cord Retention Bracket
  • Input Voltage : 230 V AC
  • Limited Warranty : 2 Year

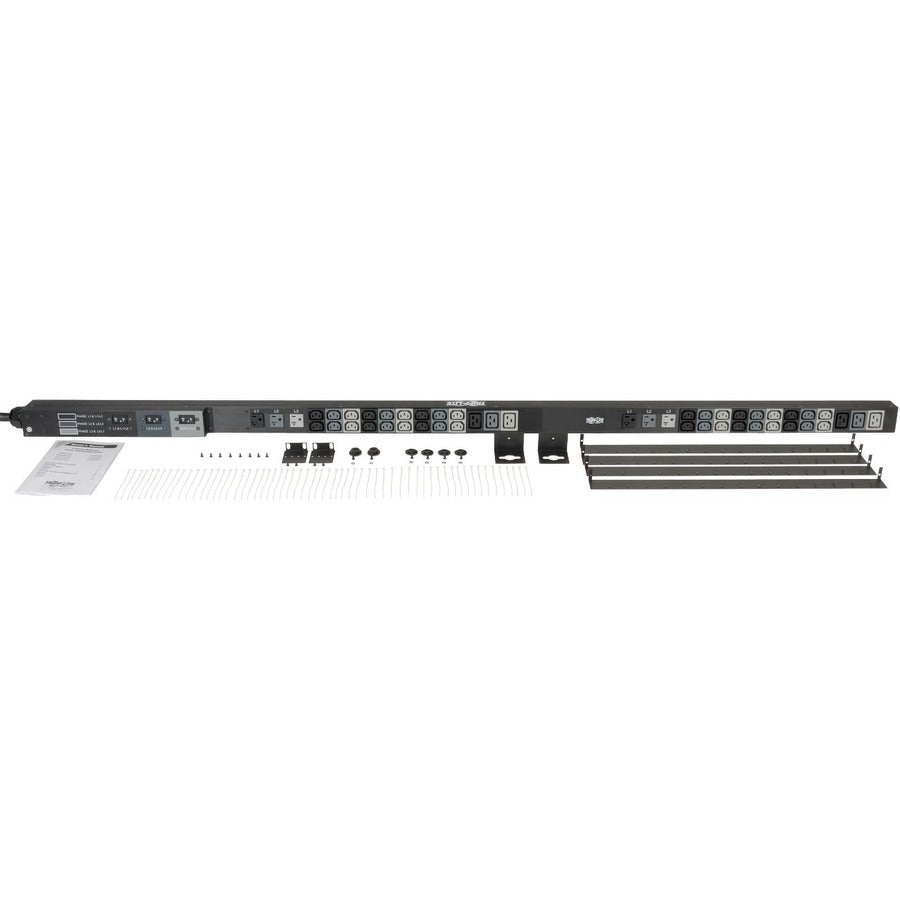

  • Package Contents :
    • PDU3V6L2130 48-Outlets PDU
    • Plug Retention Brackets With Installation Hardware
    • Rack-mounting Hardware
    • Owner's Manual
  • Plug/Connector Type : NEMA L21-30P
  • Product Type : PDU
  • Mount Type : Rack-mountable
  • Protection Type : Accidental Power Shutdown,Overload Protection,Circuit Protection
  • Manufacturer : Tripp Lite by Eaton
  • Product Model : PDU3V6L2130
  • Output Voltage : 208 V AC,120 V AC
  • Mounting Orientation : Vertical/Toolless
  • Input Current : 24 A
  • Rack Height : 0U
  • Country of Origin : Taiwan
  • Manufacturer Website Address : https://tripplite.eaton.com/
