Description
The PDU3XEVSR6G60B 25.2kW 3-Phase Switched Power Distribution Unit provides advanced network control and remote power monitoring with the ability to turn on, turn off, reboot or lock out power to each outlet. By reducing the frequency of on-site visits, these advanced remote capabilities can save you money and reduce downtime.
The 0U PDU features 30 switched 240V outlets (24 C13 and 6 C19) with included plug-lock insert sleeves to prevent cables from becoming accidentally disconnected. A 1.8-meter (six-foot) cord with IEC 309 60A Red 415V plug connects the PDU to a compatible AC power source, generator or protected UPS.
The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.
A color touchscreen LCD lets you toggle between menus to monitor input current level per phase, output current per load bank and per outlet with ±1% billing-grade accuracy, environmental sensor data and network information. It also generates a unique QR code to allow access to the switchable PDU through a mobile device.
Features
Distributes, Monitors and Manages Network-Grade AC Power
- 25.2kW 415/240V switched PDU with 3-phase input
- Recommended for network applications requiring individual outlet control, load shedding and remote monitoring of critical network components

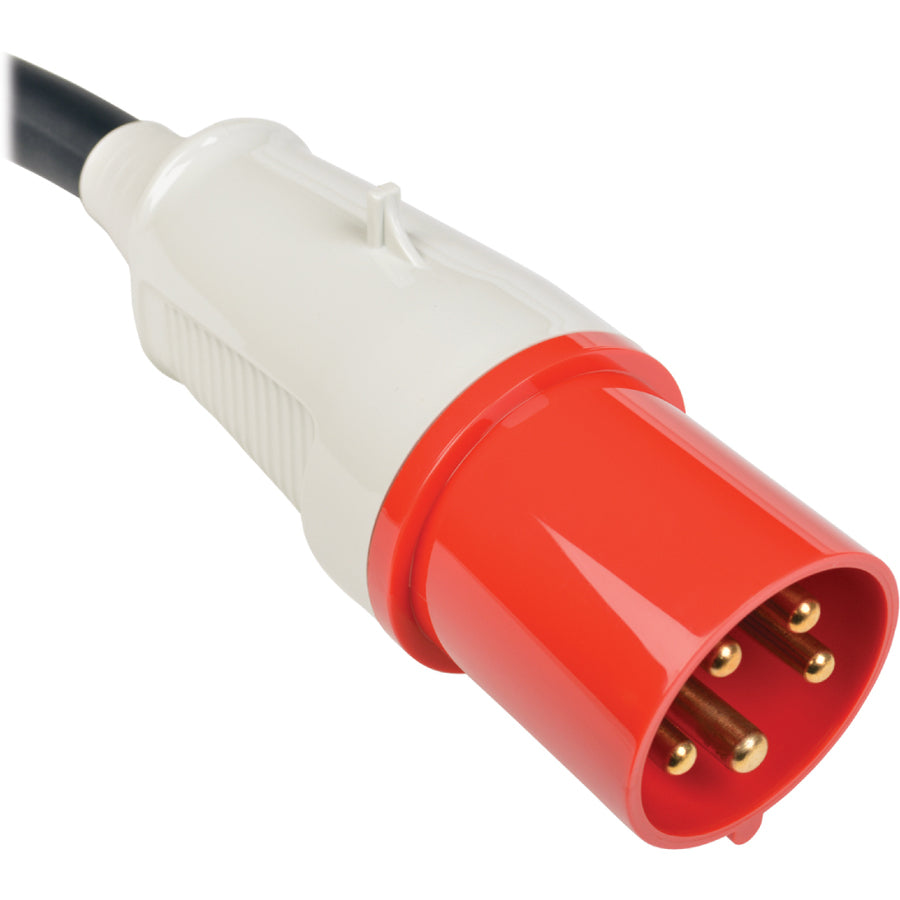

- IEC 309 60A Red 415V plug with 1.8m (6 ft.) cord connects to compatible AC power source
- Firmware upgrades support future product enhancements
30 Switched 240V Outlets Distribute AC Power

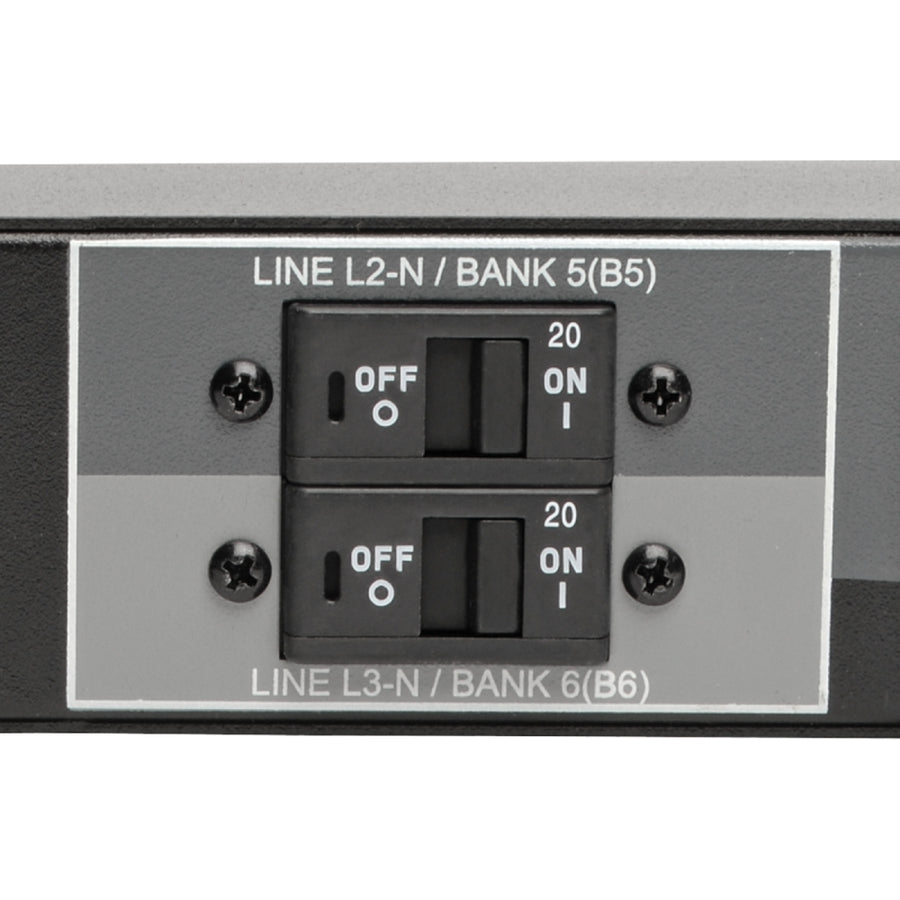

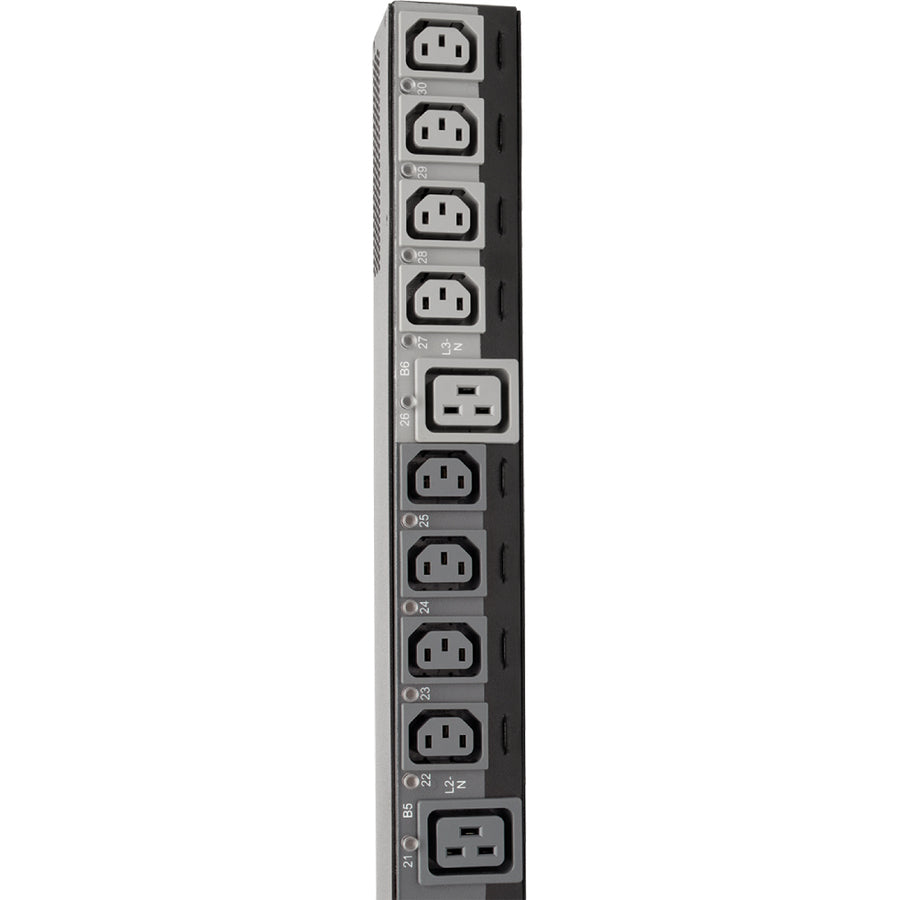

- 24 C13 and 6 C19 outlets split into 6 separately breakered load banks
- Individual outlets can be remotely controlled to power up, power down, reboot or lock out devices
- Plug-lock insert sleeves prevent cables from becoming accidentally disconnected

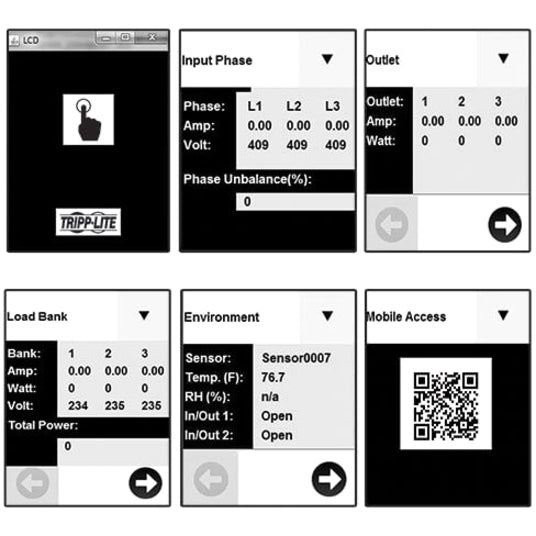

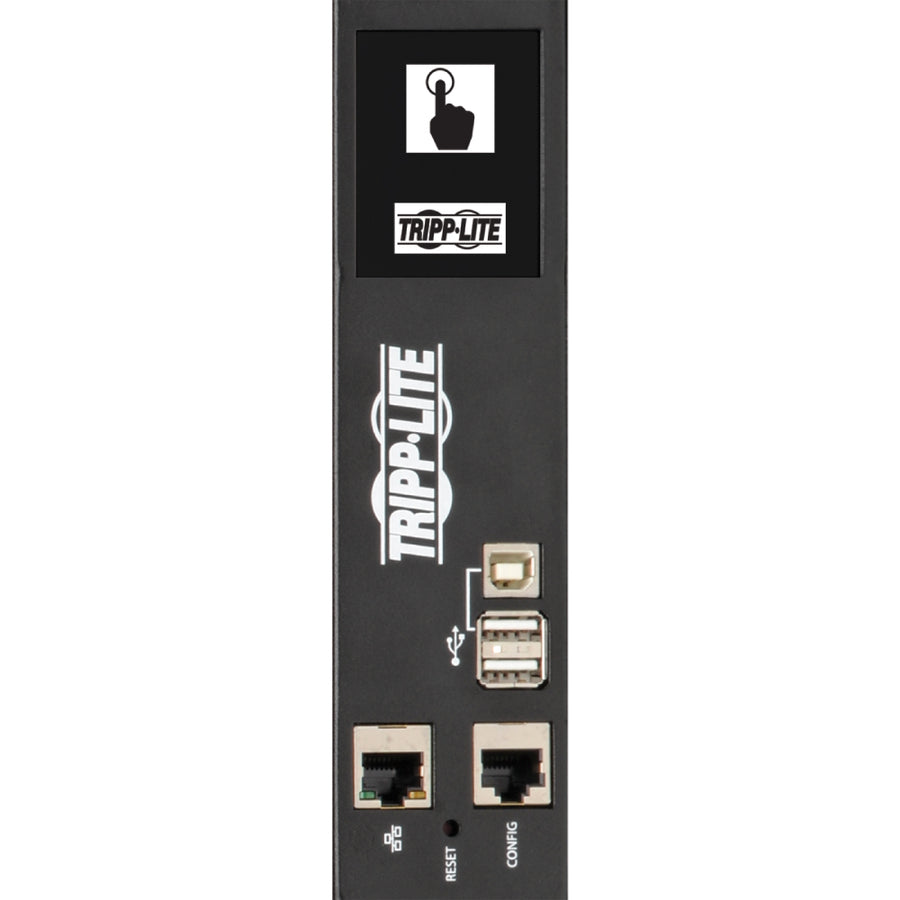

Color Touchscreen LCD
- Reports network data, including IP address, input current level per phase, and output current per load bank and per outlet with ±1% billing-grade accuracy
- Generates unique QR code for read-only access to PowerAlert® Device Manager via mobile device
- Full access available by logging into PowerAlert Device Manager via browser as user with read/write credentials
Built-In LX Platform Interface
- Allows full remote access for power monitoring with email notifications via secure web browser, SNMP, telnet or SSH
- Supports 10/100 Mbps auto-sensing for communication with an Ethernet network
- Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities
- No Java required
Broad Communications Compatibility
- Supports IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP
- Supports automatic and manual assignment of IP address
- A device fitted with multiple outputs for the distribution of electric power
- With a built-in digital current meter avoid potential overloads via switched PDUs
- Receptacle Detail : 24 x IEC 60320 C13,6 x IEC 60320 C19
- Phase : Three Phase
- PDU Type : Switched

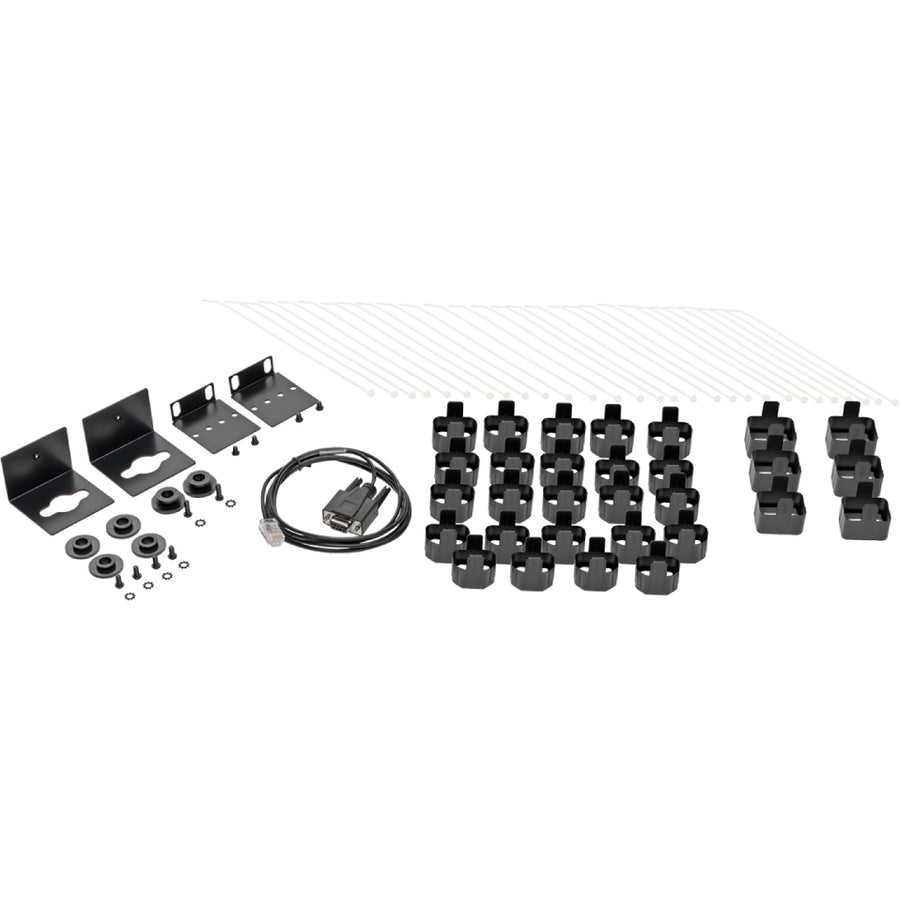

- Package Contents :
- PDU3XEVSR6G60B 30-Outlets PDU
- Built-in LX Platform Interface
- Configuration Cable
- 30 x Plug-lock Insert Sleeves
- Rack-mounting Hardware
- PDUMVROTATEBRKT Mounting Bracket Accessory
- Owner's Manual
- Mount Type : Rack-mountable
- Manufacturer : Tripp Lite by Eaton
- Product Model : PDU3XEVSR6G60B
- Rack Height : 0U
- Receptacle Type : IEC 60320 C13,IEC 60320 C19
- TAA Compliant : Yes
- Environmentally Friendly : Yes
- Power Rating (Watt) : 25.20 kW
- Input Voltage : 415 V AC
- Management :
- IPv4
- IPv6
- HTTP
- HTTPS
- SMTP
- SNMPv1
- SNMPv2
- SNMPv3
- telnet
- SSH
- FTP
- DHCP
- NTP
- Limited Warranty : 2 Year
- Network (RJ-45) : Yes
- Plug/Connector Type : IEC 60309 60A Red 3P+N+E
- Product Type : PDU
- Protection Type : Overcurrent Protection
- Output Voltage : 240 V AC
- Mounting Orientation : Vertical
- Input Current : 35 A
- Country of Origin : Taiwan
- Manufacturer Website Address : https://tripplite.eaton.com/
