Tripp Lite by Eaton PDUBHV20D 4-Outlets PDU PDUBHV20D

Save $106.43
Tripp Lite by EatonSKU: PDUBHV20D

Sale price$178.99 Regular price$285.42
Sold out


Bypass PDU Recommended for Maintaining Continuous Power During UPS Maintenance

Keeping mission-critical data center equipment operating at its optimal level often means scheduled maintenance. But what if you are unable to afford the costly downtime involved in powering down for regular upkeep? This 200-240V 16A single-phase hot-swap PDU works in conjunction with your UPS system to keep everything running 24/7/365. It allows you to manually transfer connected equipment to utility power via the PDU's bypass switch, permitting maintenance or equipment replacement with no interruption of performance.

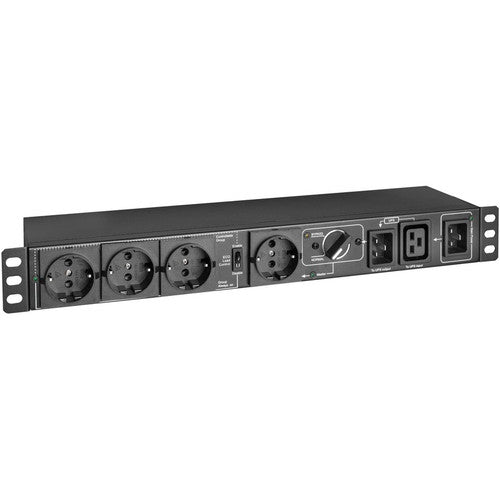

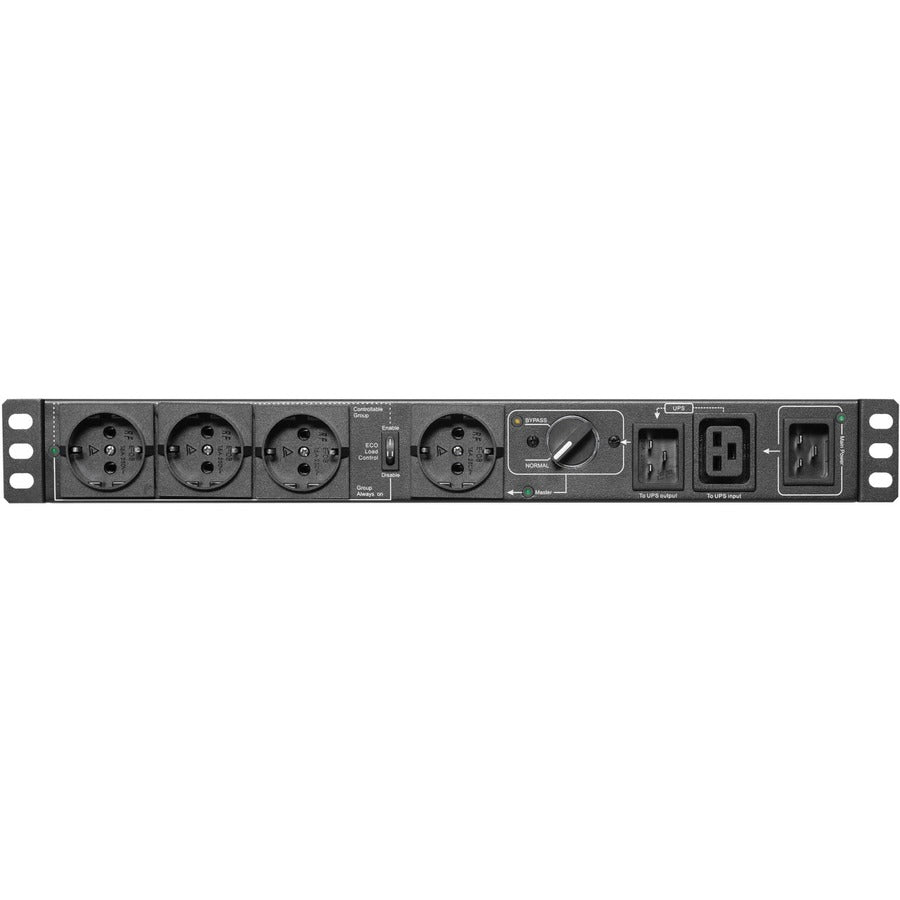

Features Dual Inputs and a Manual Transfer Switch for Uninterrupted Operation

The PDUBHV20D features two C20 inlets that connect to separate UPS and utility input power sources with user-supplied power cables or the included cables. The manual transfer switch allows PDU output power to flow from either input. Flip the switch to Bypass to replace the UPS and flip back to Normal once the maintenance or UPS replacement is complete. Equipment connected to the four Schuko outlets will continue to operate without interruption.

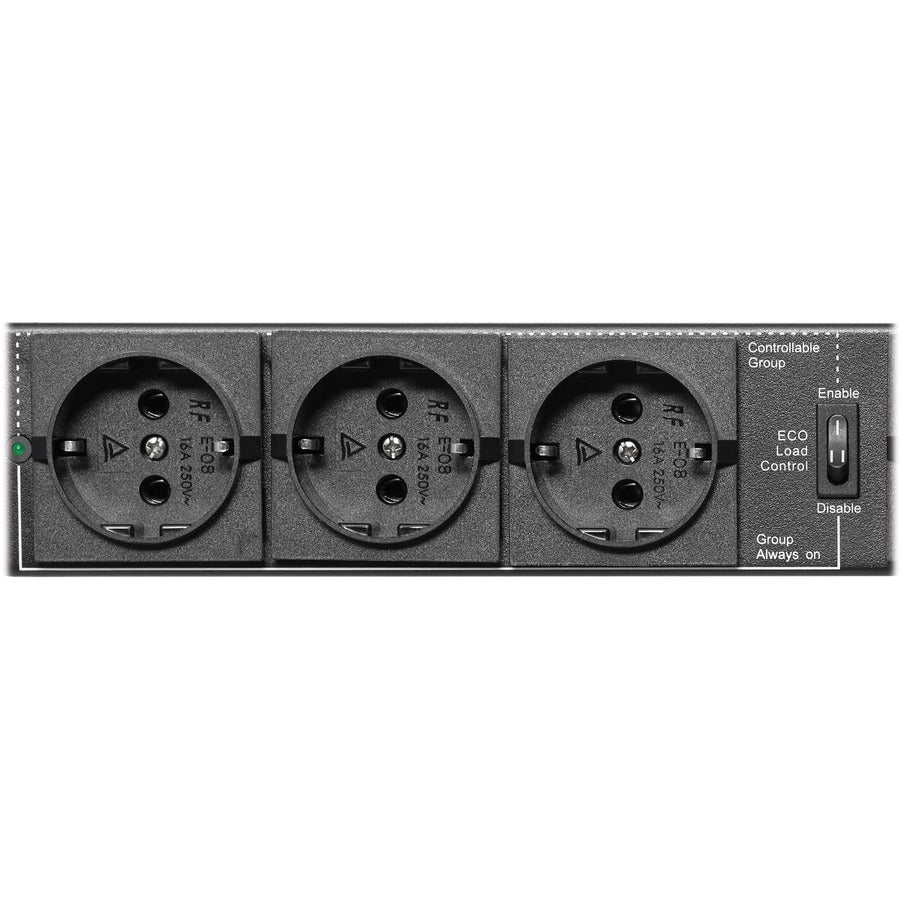

Optional ECO Switching Feature Enables Cost-Cutting Power Savings

By enabling the ECO power saving feature, you can power off a single bank of three controlled Schuko outlets all at once when the device connected to the master Schuko outlet is powered off or goes into a low-power consumption mode.

Mounts into 2U of Rack Space or on a Wall

Use the included mounting hardware to install the PDUBHV20D's all-metal housing inside a 19-inch rack. Because the PDU's 56.1-millimeter height is larger than 1U in an EIA-standard rack, you will need to mount the unit into 2U of space. You may also use the mounting brackets to secure the PDU to a wall.

. .
  • Receptacle Type : Schuko CEE 7/7
  • Receptacle Detail : 4 x Schuko CEE 7/7
  • Phase : Single Phase
  • Environmentally Friendly : Yes
  • PDU Type : Manual Bypass
  • Power Rating (Watt) : 3.80 kW
  • Input Voltage : 230 V AC
  • Limited Warranty : 2 Year
  • Form Factor : Hot-swappable
  • Plug/Connector Detail : 2 x IEC 60320 C20,1 x CEE 7/4 (Schuko)

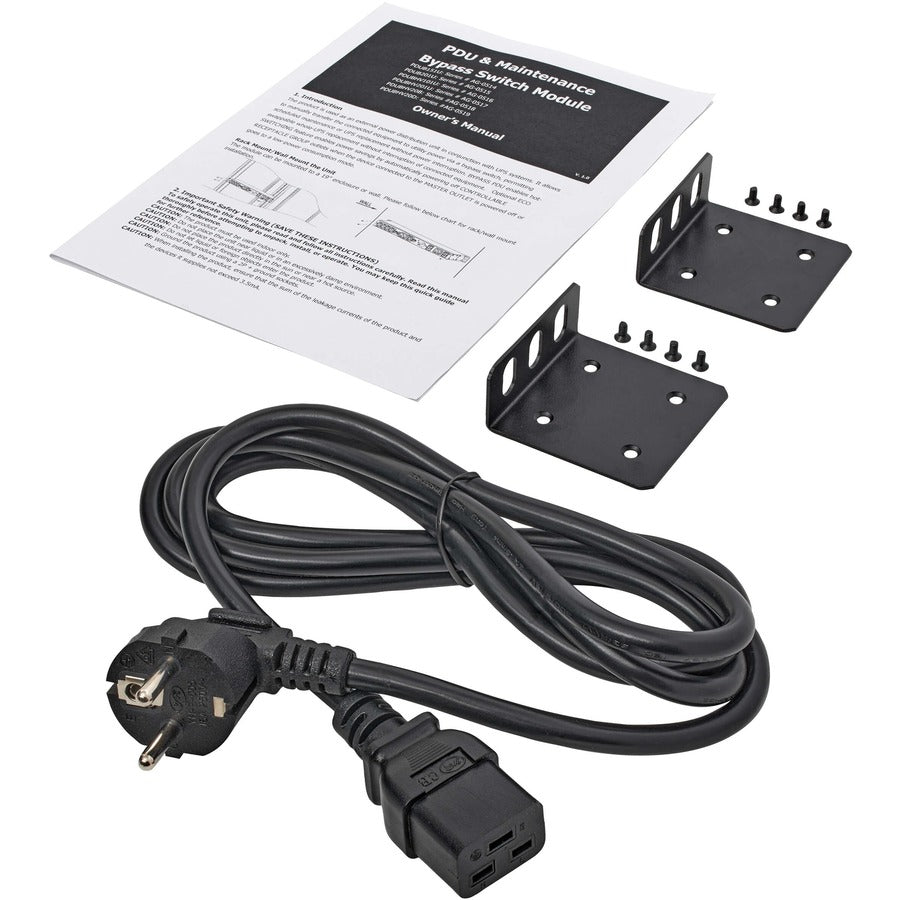

  • Package Contents :
    • PDUBHV20D 4-Outlets PDU
    • 2 x C19-to-C20 Power Cables
    • C19-to-Schuko Power Cable
    • Mounting Hardware
    • Owner's Manual
  • Plug/Connector Type : IEC 60320 C20,CEE 7/4 (Schuko)
  • Product Type : PDU
  • Mount Type : Wall-mountable,Rack-mountable
  • Manufacturer : Tripp Lite by Eaton
  • Product Model : PDUBHV20D
  • Input Voltage Range : 200 V AC - 240 V AC
  • Output Voltage : 220 V AC,230 V AC,240 V AC
  • Mounting Orientation : Horizontal
  • Input Current : 16 A
  • Rack Height : 2U
  • Country of Origin : China
  • Manufacturer Website Address :
