Description

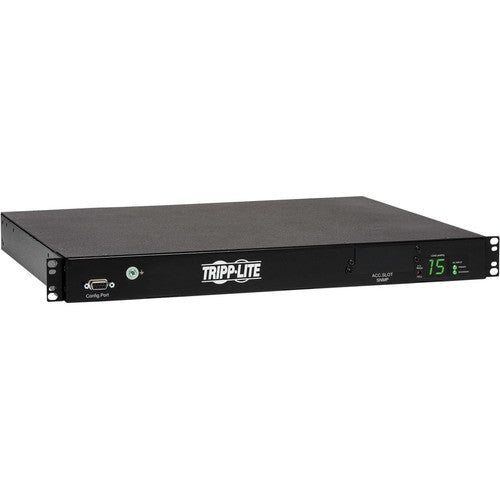

The PDUMH15HVAT 2-2.4kW Single-Phase 200-240V ATS/Metered PDU enables redundant power for network devices with non-redundant power supply configurations. Ideal for data centers and server rooms, it mounts in 1U of space in EIA-standard 19-inch racks and features 10 C13 outlets.
Dual 3.6-meter input cords with IEC-320 C14 plugs connect to separate primary and secondary single-phase power sources in a nominal voltage range from 200-240V. Plug lock inserts prevent cords from accidental disconnection. The PDUMH15HVAT constantly evaluates the power quality of both input sources. Dynamic solid-state (TRIAC) automatic transfer switching allows the PDU to switch to the secondary source within 2-5 milliseconds should the primary source fail or become unstable to ensure your connected equipment operates without interruption.

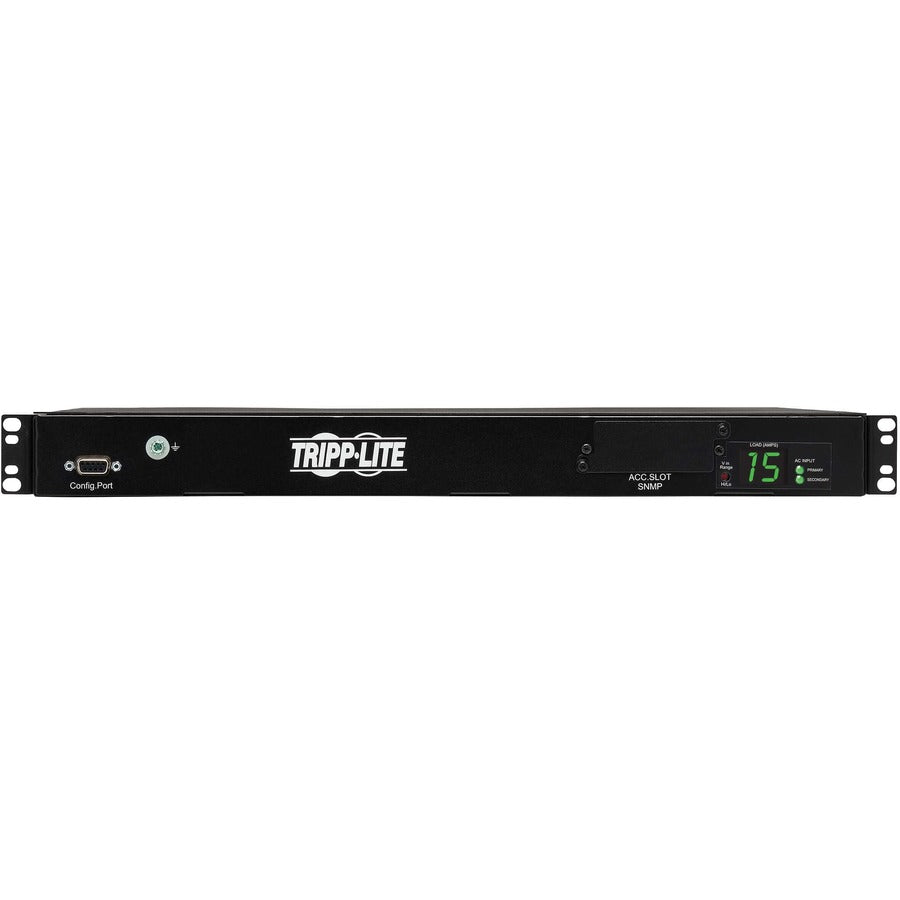

Built-in slot supports the optional SNMPWEBCARD and WEBCARDLX (sold separately), which turn the PDUMH15HVAT into a switched PDU by allowing remote access to the PDU for power monitoring, configuration, outlet control and notifications via web browser, SSH, telnet or SNMP. Digital ammeter monitors total output current. LEDs display outlet on/off status and input power status on primary and secondary inputs. .
Dual 3.6-meter input cords with IEC-320 C14 plugs connect to separate primary and secondary single-phase power sources in a nominal voltage range from 200-240V. Plug lock inserts prevent cords from accidental disconnection. The PDUMH15HVAT constantly evaluates the power quality of both input sources. Dynamic solid-state (TRIAC) automatic transfer switching allows the PDU to switch to the secondary source within 2-5 milliseconds should the primary source fail or become unstable to ensure your connected equipment operates without interruption.
Built-in slot supports the optional SNMPWEBCARD and WEBCARDLX (sold separately), which turn the PDUMH15HVAT into a switched PDU by allowing remote access to the PDU for power monitoring, configuration, outlet control and notifications via web browser, SSH, telnet or SNMP. Digital ammeter monitors total output current. LEDs display outlet on/off status and input power status on primary and secondary inputs. .

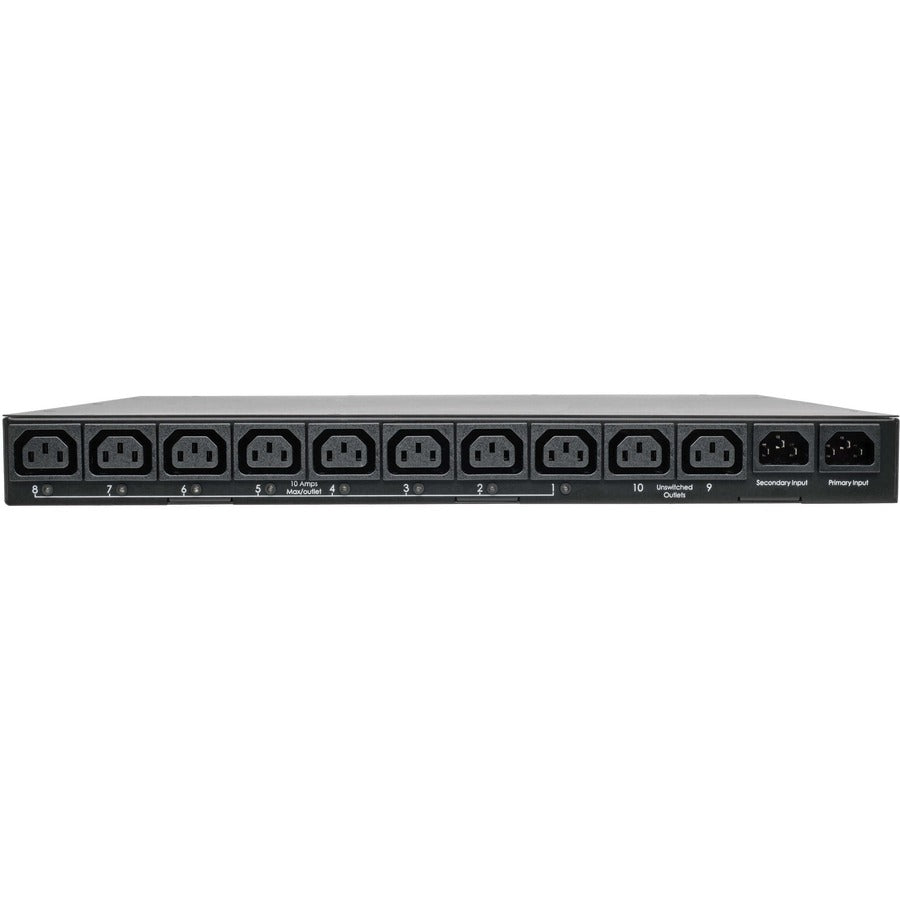

- Receptacle Type : IEC 60320 C13
- Receptacle Detail : 10 x IEC 60320 C13
- TAA Compliant : Yes
- Environmentally Friendly : Yes
- Power Rating (Watt) : 2.40 kW
- Input Voltage : 230 V AC
- Limited Warranty : 2 Year
- Packaged Quantity : 1
- Plug/Connector Detail : 2 x IEC 60320 C14
- Package Contents :
- PDUMH15HVAT 10-Outlet PDU
- 10 x C14 plug lock inserts
- 2 x C13 to C14 power cords, 3.6 m (11.8 ft.)
- 2 x Mounting brackets, horizontal
- 2 x Mounting brackets, vertical
- 6 x Screws
- Owner's manual
- Plug/Connector Type : IEC 60320 C14
- Product Type : PDU
- Mount Type : Rack-mountable
- Protection Type : Overload Protection
- Manufacturer : Tripp Lite by Eaton
- Product Model : PDUMH15HVAT
- Input Voltage Range : 200 V AC - 240 V AC
- Output Voltage : 200 V AC,208 V AC,220 V AC,230 V AC,240 V AC
- Mounting Orientation : Horizontal
- Input Current : 10 A
- Rack Height : 1U/2U
- Country of Origin : Taiwan
- Manufacturer Website Address : https://tripplite.eaton.com/
