Description
The PDUMNH30HVAT 5.8kW Single-Phase 208/240V ATS/Monitored PDU provides remote power monitoring and enables redundant power for network devices with non-redundant power supply configurations. Ideal for data centers and server rooms, it mounts in 1U of space in EIA-standard 19-inch racks and features one L6-30R outlet-perfect for connecting a single device or a 0U 208/240V PDU with an L6-30P plug.
Dual 10-foot input cords with L6-30P plugs connect to separate primary and secondary single-phase power sources. The PDU constantly evaluates the power quality of both input sources. Dynamic solid-state (TRIAC) automatic transfer switching allows the PDU to switch to the secondary source within 1-5 milliseconds should the primary source fail or become unstable to ensure your connected equipment operates without interruption.
Built-in LX Platform network management interface card. The Java-free LX Platform HTML5-based network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Automated alerts help prevent accidental overloads, power loss and downtime. Digital display indicates power availability, voltage, source A/B input status, output load and power factor, as well as temperature and humidity conditions with the optional ENVIROSENSE module (sold separately).
Dual 10-foot input cords with L6-30P plugs connect to separate primary and secondary single-phase power sources. The PDU constantly evaluates the power quality of both input sources. Dynamic solid-state (TRIAC) automatic transfer switching allows the PDU to switch to the secondary source within 1-5 milliseconds should the primary source fail or become unstable to ensure your connected equipment operates without interruption.
Built-in LX Platform network management interface card. The Java-free LX Platform HTML5-based network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Automated alerts help prevent accidental overloads, power loss and downtime. Digital display indicates power availability, voltage, source A/B input status, output load and power factor, as well as temperature and humidity conditions with the optional ENVIROSENSE module (sold separately).

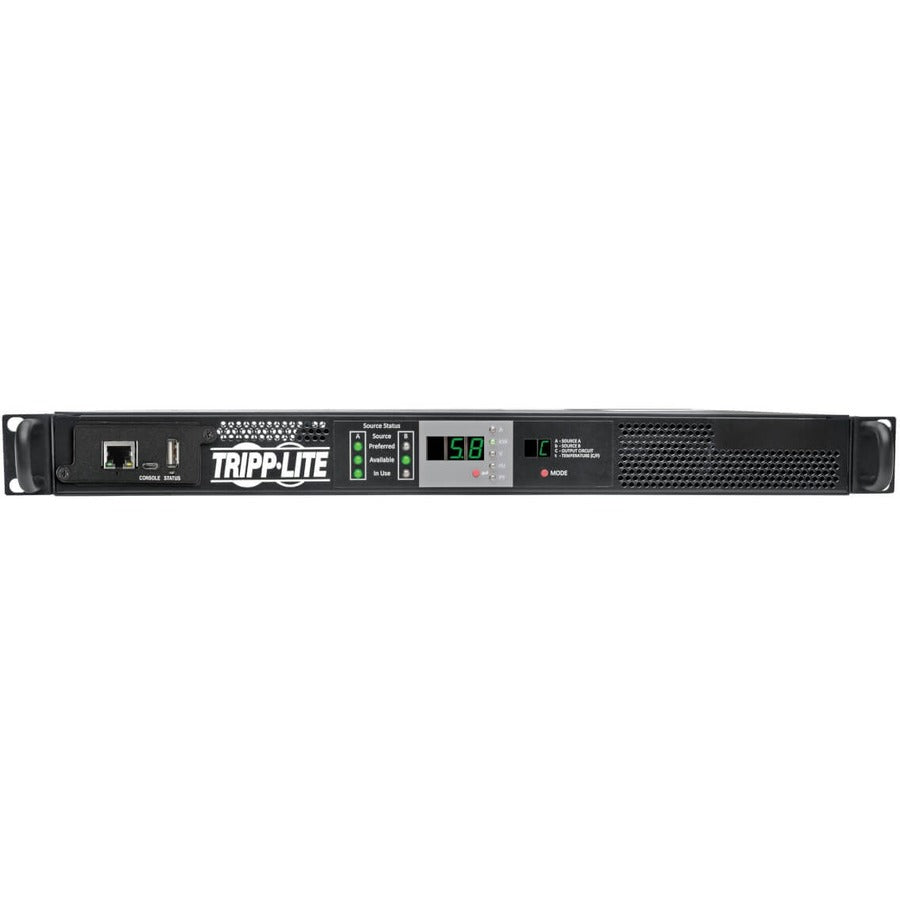

- Digital LED display for real-time status monitoring
- Built-in LX Platform Network Interface
- Automatic transfer switching within 1-5 ms
- L6-30R outlet for connecting single device or 0U vertical PDU

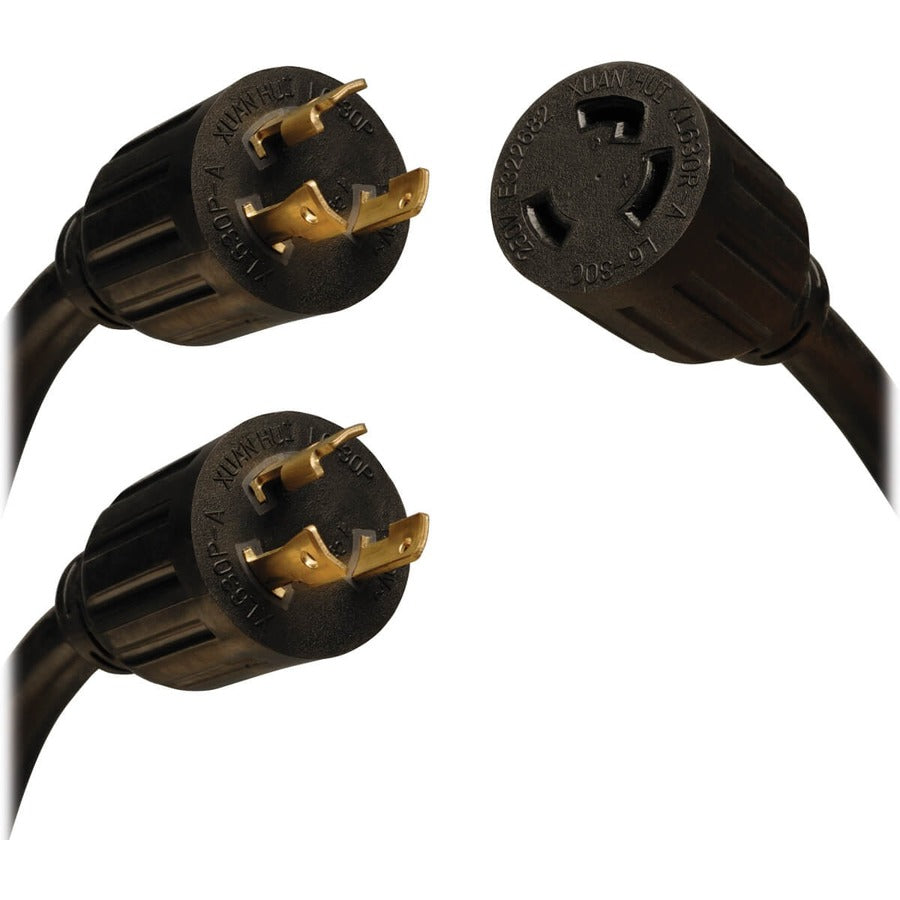

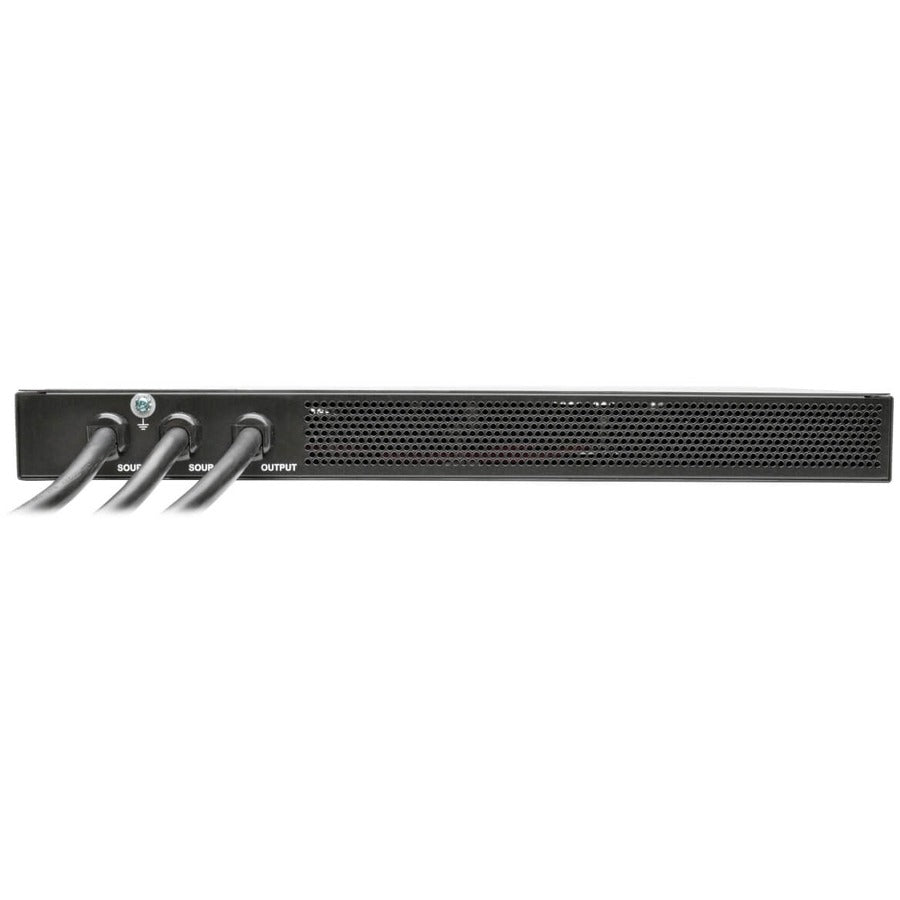

- Two single-phase L6-30P inputs with 10 ft. cords
- Receptacle Type : NEMA L6-30R
- Receptacle Detail : 1 x NEMA L6-30R
- Phase : Single Phase
- Environmentally Friendly : Yes
- PDU Type : Monitored
- Power Rating (Watt) : 5.80 kW
- Input Voltage : 230 V AC
- Product Series : Monitored
- Management : Protocols:
- HTTP
- HTTPS
- SMTP
- SNMPv1
- SNMPv2
- SNMPv3
- Telnet
- SSH
- FTP
- DHCP
- BOOTP
- NTP
- Limited Warranty : 2 Year
- Plug/Connector Detail : 2 x NEMA L6-30P
- Package Contents :
- PDUMNH30HVAT 5.8kW Single-Phase 208/240V ATS/Monitored PDU
- Rack-Mounting Brackets
- Owner's Manual
- Plug/Connector Type : NEMA L6-30P
- Product Type : PDU
- Mount Type : Rack-mountable
- Manufacturer : Tripp Lite by Eaton
- Product Model : PDUMNH30HVAT
- Output Voltage : 230 V AC
- Input Current : 30 A
- Rack Height : 1U
- Country of Origin : China
- Manufacturer Website Address : https://tripplite.eaton.com/
