Tripp Lite by Eaton PDUV20-60 28-Outlet PDU PDUV20-60

Single-Phase 120V PDU Distributes Network-Grade Power to Multiple Loads

This basic PDU is an ideal no-frills unit for networking, telecom, security, audio/video and sound reinforcement applications. Recommended for small to mid-sized data centers, computer rooms and network closets, the PDUV20-60 features 28 NEMA 5-15/20R outlets for connecting equipment. A 15-foot cord with L5-20P input plug (and included 5-20P adapter) connects to your facility's AC power source, generator or protected UPS system to distribute power to connected loads.

Up-to-Date Safety Features Protect Your Vital Equipment

A lighted on/off switch is protected by a transparent plastic cover to help prevent an accidental shutdown that could lead to costly downtime. A 20A circuit breaker protects connected components from dangerous overloads.

Versatile Installation Options Give You Plenty of Choices

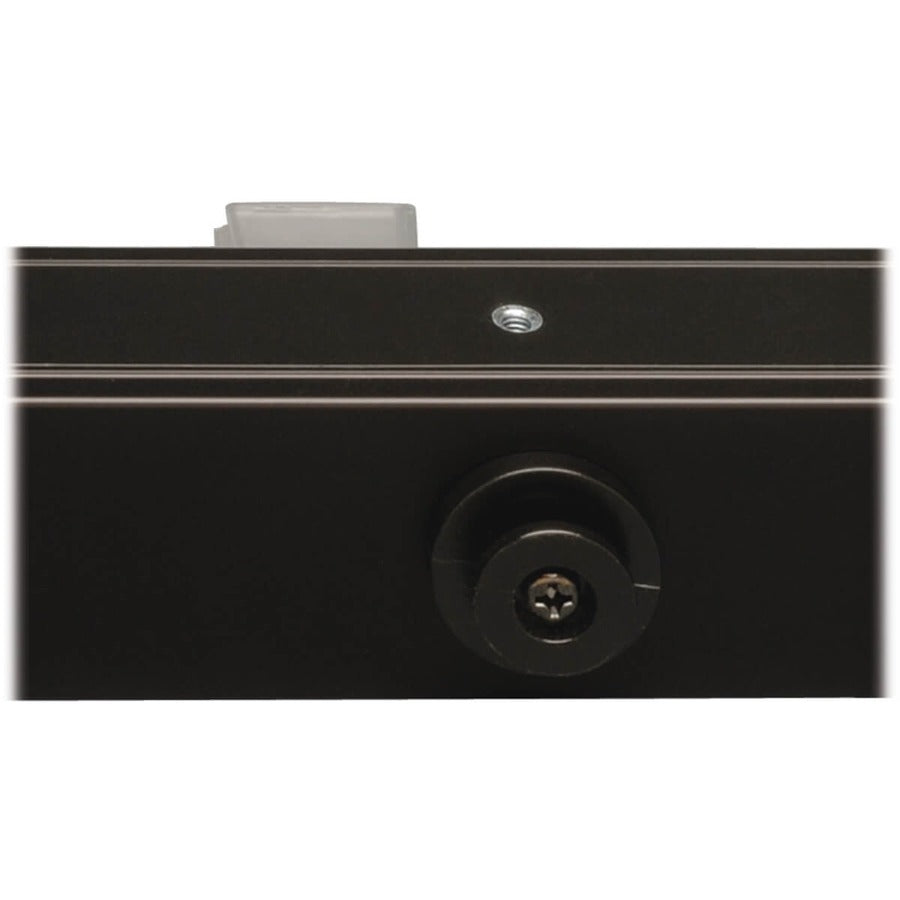

The 60-inch 0U PDU mounts vertically in an EIA-standard 19-inch rack using the included toolless mounting buttons or the included mounting clips and hardware. You may also use the clips to secure the PDU to a wall, counter or other flat, secure surface. Bolt-down retention brackets keep power cords organized and your rack free of clutter.

Typical Applications

Deliver network-grade power to high-density equipment in networking, telecom, security, audio/video and sound reinforcement applications

• Ideal no-frills PDU for telecom, security, audio/video and other network applications
• 28 NEMA 5-15/20R outlets distribute AC power to connected equipment
• Lighted power switch with protective cover helps prevent accidental shutdowns

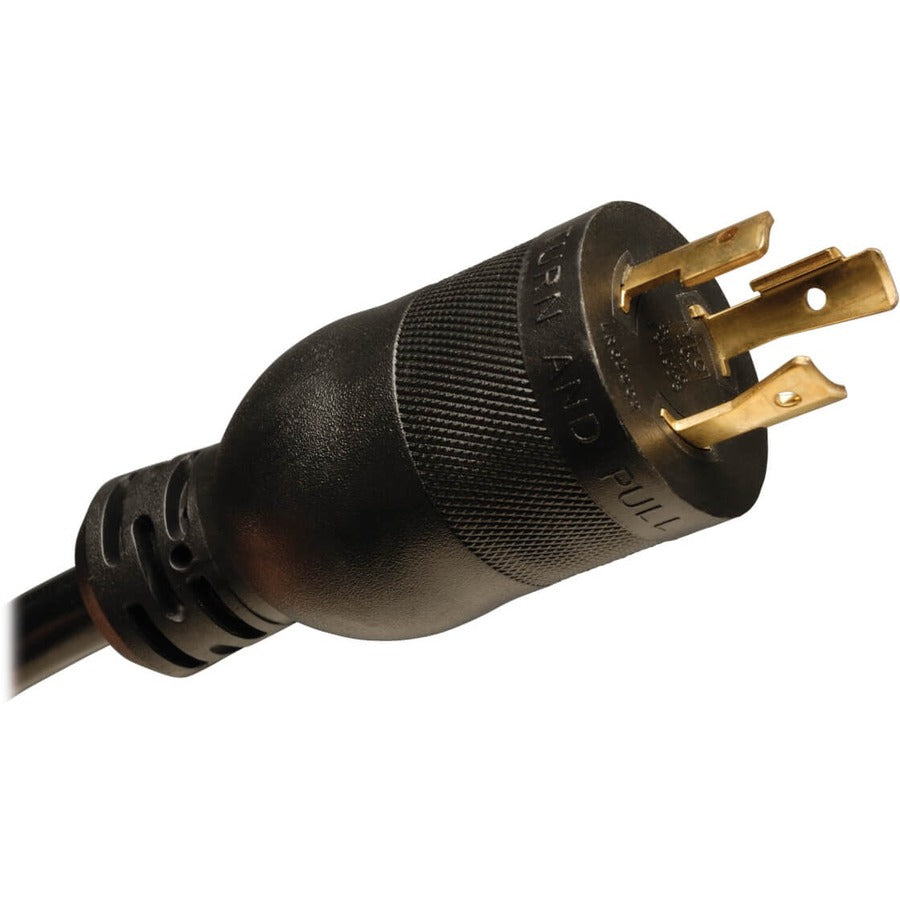

• 15 ft. cord with L5-20P input (and 5-20P adapter) connects to AC power source
• 60 in. 0U PDU with included mounting brackets installs in rack or under counter
• 2-year limited warranty

• Receptacle Type : NEMA 5-15/20R
• Receptacle Detail : 28 x NEMA 5-15/20R
• Phase : Single Phase
• Environmentally Friendly : Yes
• PDU Type : Basic
• Power Rating (Watt) : 2.03 kW
• Input Voltage : 120 V AC
• Limited Warranty : 2 Year

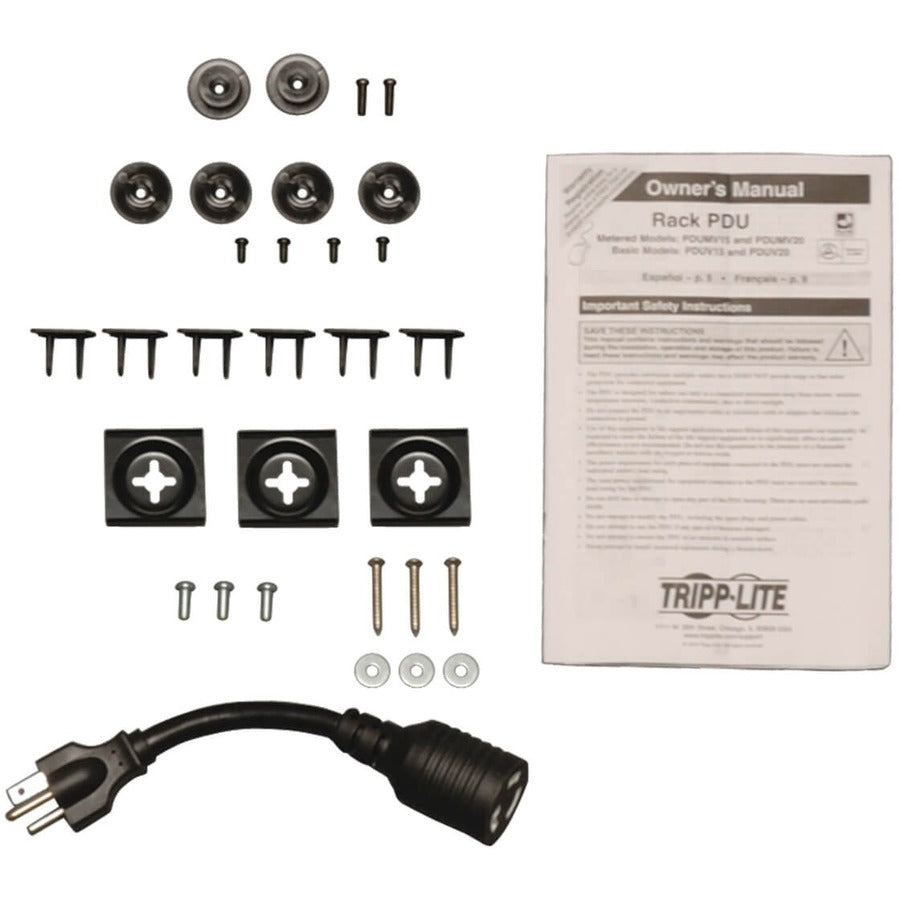

• Package Contents :
  • PDUV20-60 28-Outlet PDU
  • L5-20P to 5-20P Input Plug Adapter
  • Plug Retention Brackets with Installation Hardware
  • Rack-Mounting Hardware
  • Owner's Manual
• Plug/Connector Type : NEMA 5-20P,NEMA L5-20P
• Product Type : PDU
• Mount Type : Rack-mountable
• Protection Type : Overload Protection
• Manufacturer : Tripp Lite by Eaton
• Product Model : PDUV20-60
• Output Voltage : 100 V AC,120 V AC,127 V AC
• Mounting Orientation : Vertical
• Input Current : 20 A
• Rack Height : 0U
• Country of Origin : China
• Manufacturer Website Address : https://tripplite.eaton.com/
