Description
Single-Phase 208/240V PDU Distributes Network-Grade Power to Multiple Loads
This basic PDU is an ideal no-frills unit for networking, telecom, security, audio/video and sound reinforcement applications. Recommended for small to mid-sized data centers, computer rooms and network closets, the PDUV20HVL6-72 features 32 C13 and six C19 outlets for connecting equipment. A 10-foot cord with NEMA L6-20P input plug connects to your facility's AC power source, generator or protected UPS system to distribute power to connected loads. The switchless design helps prevent an accidental shutdown, which could lead to costly downtime.
Versatile Installation Options Give You Plenty of Choices

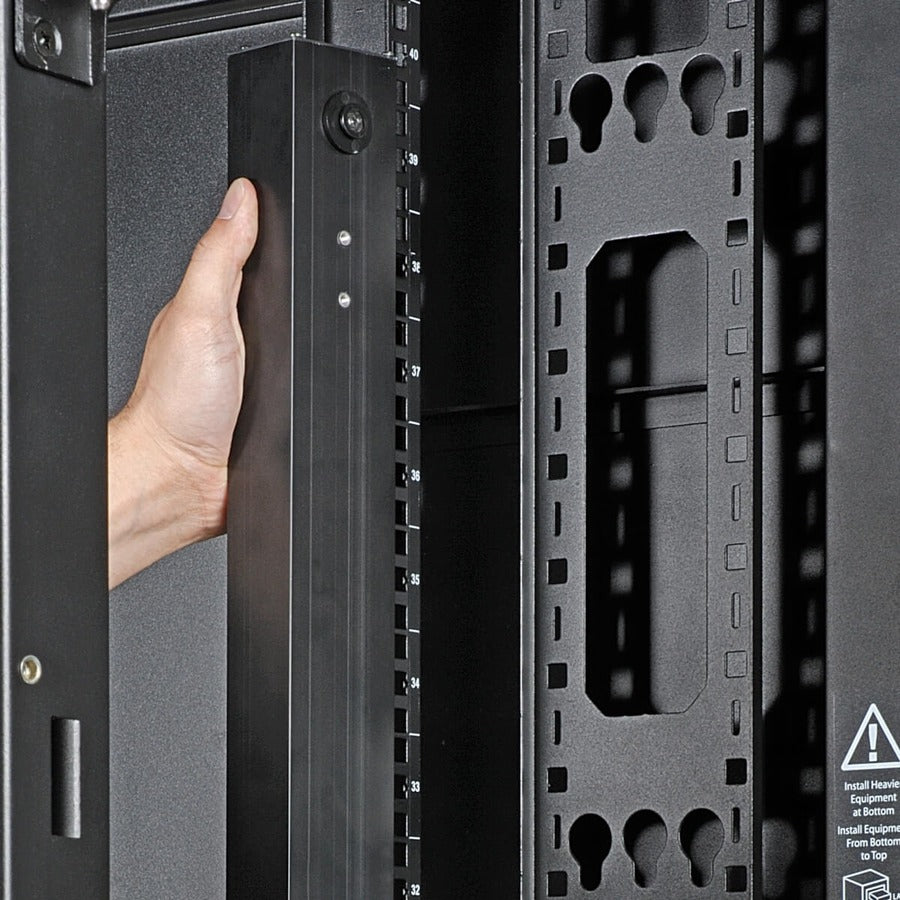

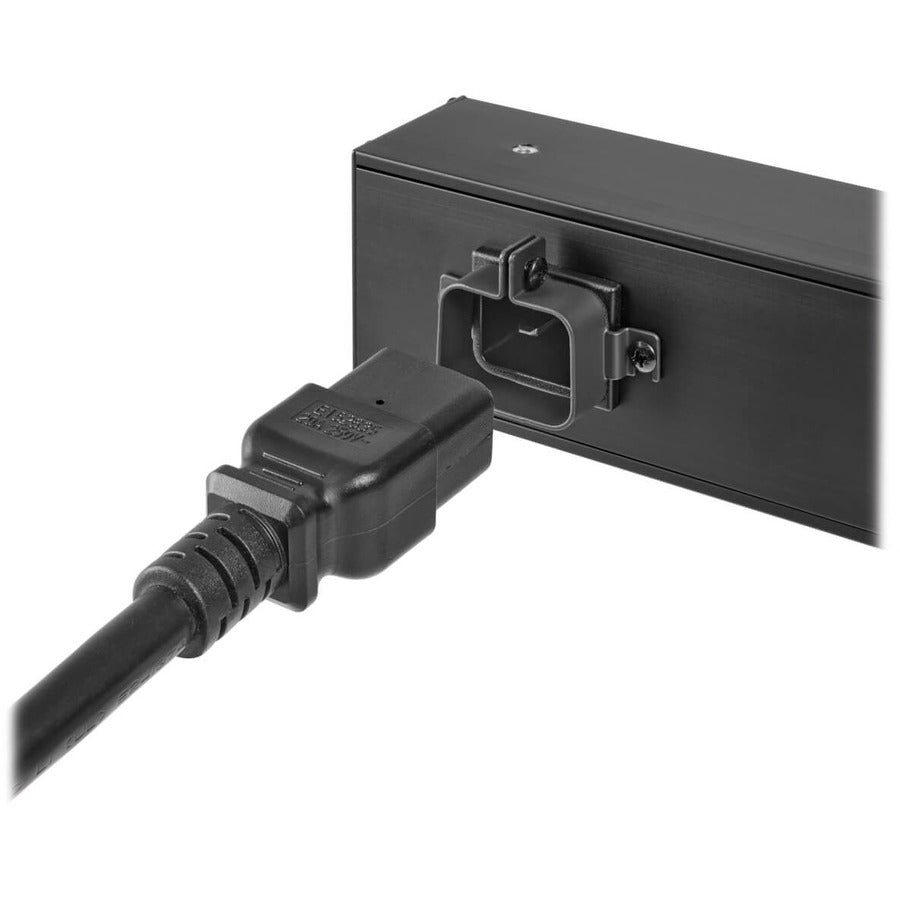

The 63.75-inch all-metal housing supports 0U vertical mounting in an EIA-standard 19-inch rack using the included toolless mounting buttons or the included mounting clips and hardware. You may also use the clips to secure the PDU to a wall, counter or other flat, secure surface. Included C20 and C14 plug-lock inserts attach to the connected components' plugs to keep them connected and the devices continuously powered.
Typical Applications
Deliver network-grade power to high-density equipment in networking, telecom, security, audio/video and sound reinforcement applications

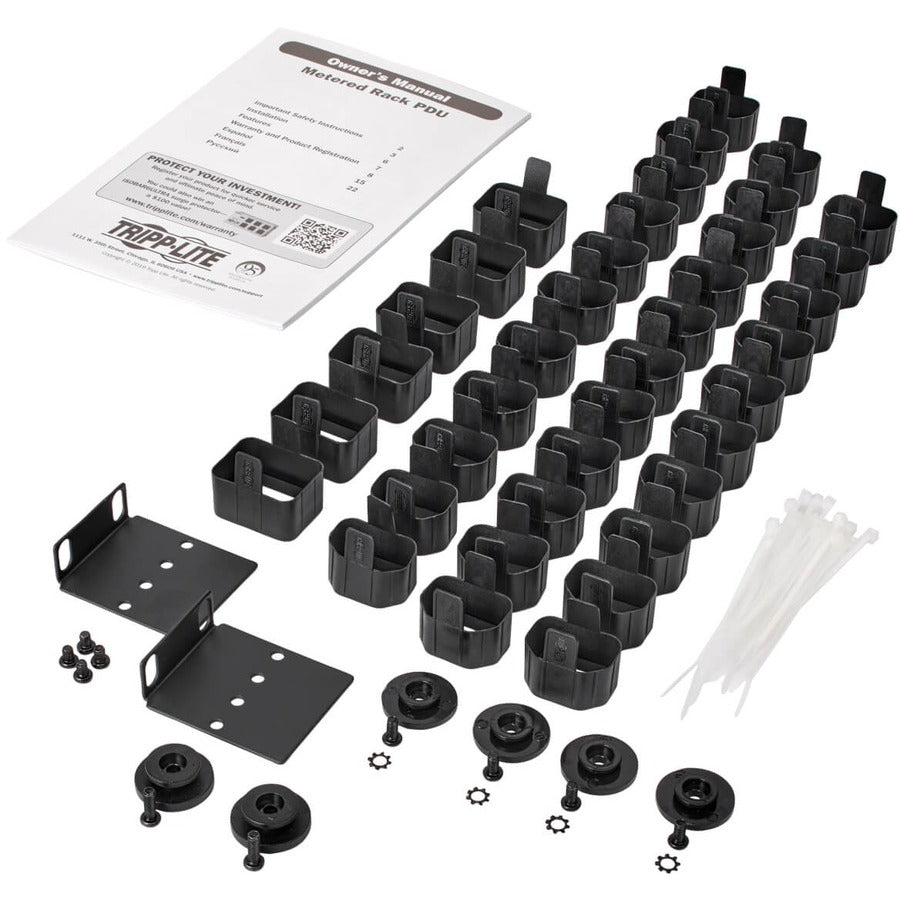

Package Includes
- PDUV20HVL6-72 3.3/3.8kW 208/240V Single-Phase Basic PDU
- (38) Plug-lock inserts
- Mounting hardware
- Owner's manual
- PDU provides active metering enabling energy optimization and circuit protection
- Basic PDU deliver power to wiring closets, server rooms & equipment racks in a cost-effective way

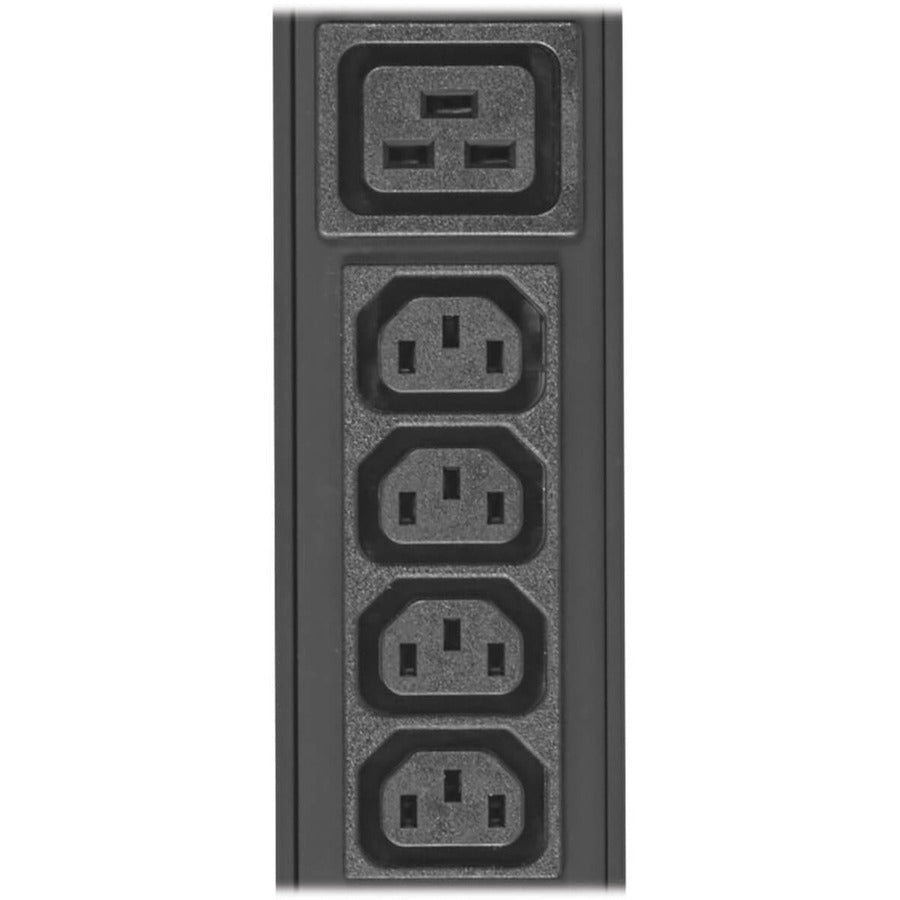

- Receptacle Type : IEC 60320 C13,IEC 60320 C19
- Receptacle Detail : 32 x IEC 60320 C13,6 x IEC 60320 C19
- Phase : Single Phase
- Environmentally Friendly : Yes
- PDU Type : Basic
- Power Rating (Watt) : 3.84 kW
- Input Voltage : 230 V AC
- Limited Warranty : 5 Year
- Package Contents :
- PDUV20HVL6-72 38-Outlets PDU
- 38 x Plug-lock Inserts
- Mounting Hardware
- Owner's Manual

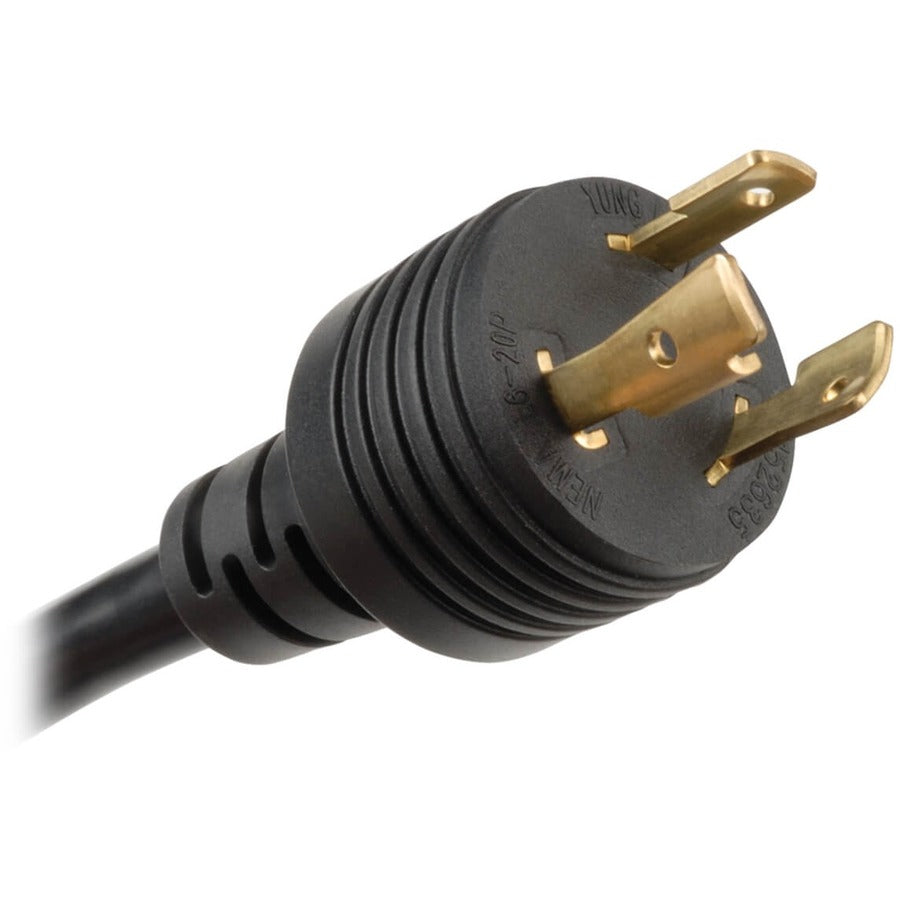

- Plug/Connector Type : NEMA L6-20P
- Product Type : PDU
- Mount Type : Wall-mountable,Rack-mountable
- Protection Type : Accidental Power Shutdown
- Manufacturer : Tripp Lite by Eaton
- Product Model : PDUV20HVL6-72
- Output Voltage : 200 V AC,208 V AC,240 V AC
- Mounting Orientation : Vertical/Toolless
- Input Current : 20 A
- Rack Height : 0U
- Country of Origin : China
- Manufacturer Website Address : https://tripplite.eaton.com/
- Cord Length : 10 ft
- Placement : Under-counter
