Description
QSFP28 Cable Connects Network Equipment at Speeds up to 100 Gbps

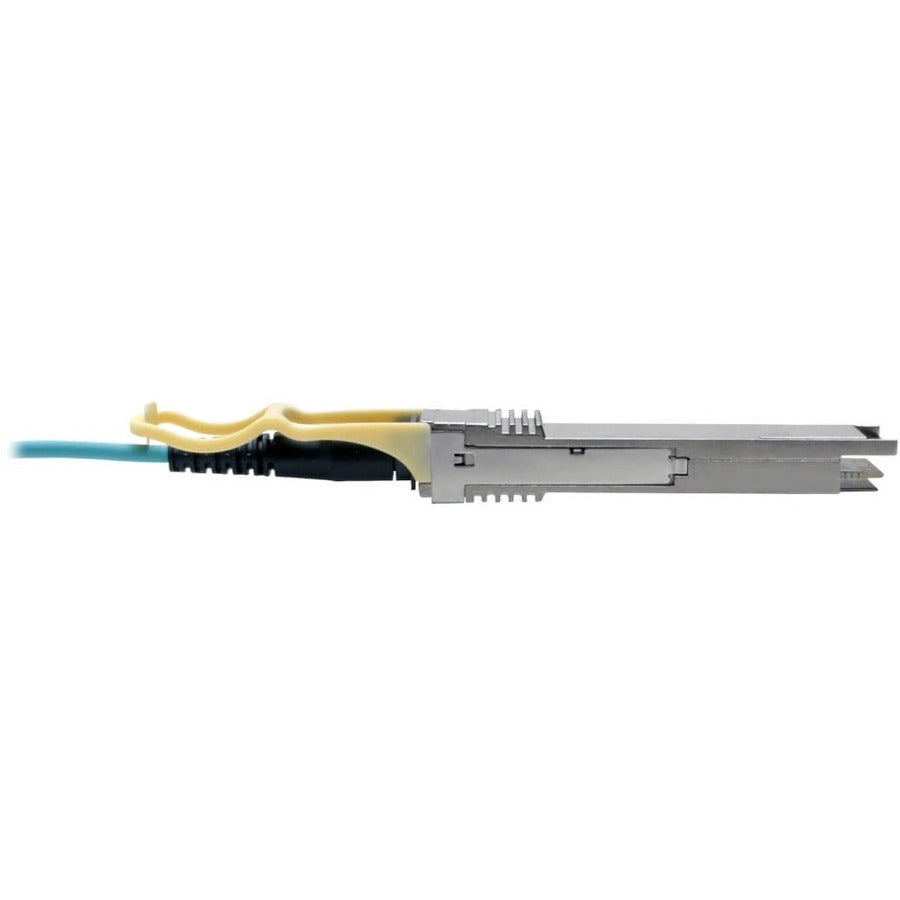

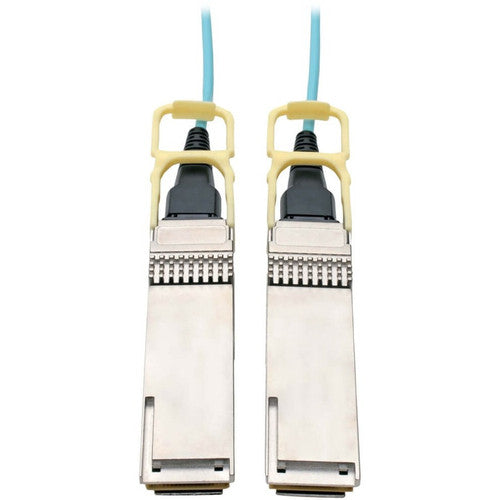

This one-meter (three-foot) QSFP28 Active Optical Cable (AOC) provides next-generation performance by combining four full-duplex 25 Gbps SFP channels into one affordable high-density package. Each male connector contains four independent 850 nm VCSEL-based transmitters and four independent receivers using PIN photo detectors inside. Each lane supports data transfer speeds up to 25 Gbps. Together, the N28H-01M-AQ provides an aggregated speed up to 100 Gbps, making it ideal for switches, servers, routers and other high-end networking equipment.

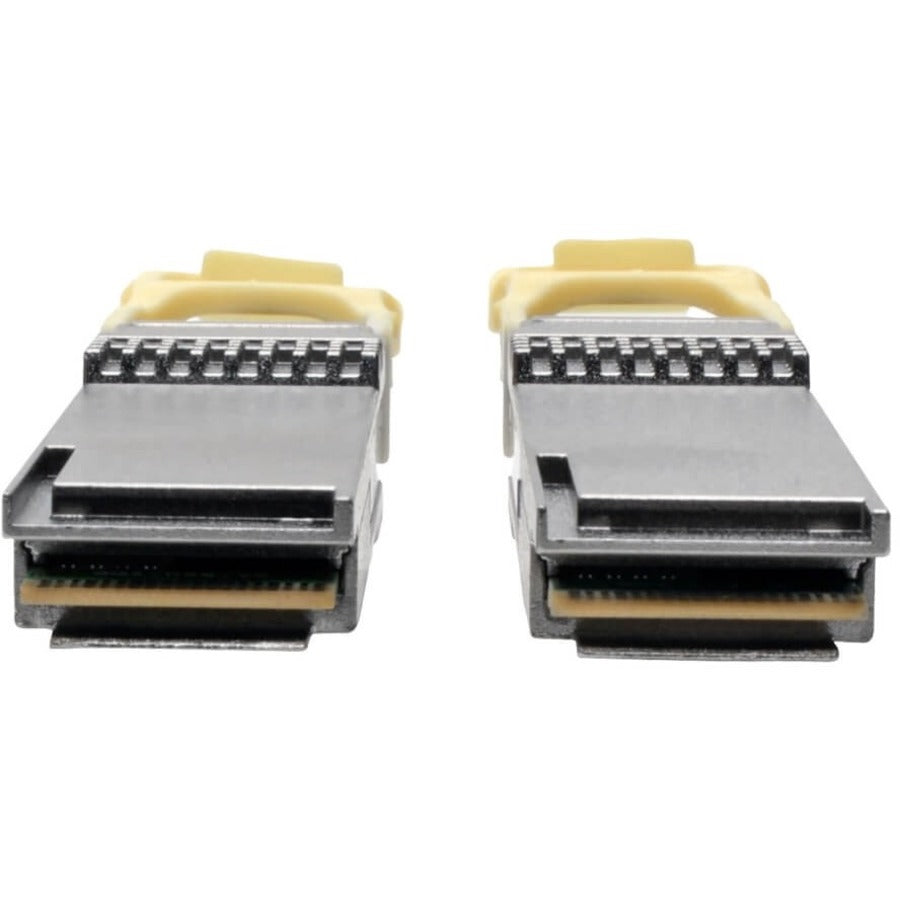

The hot-pluggable QSFP28 connectors include ergonomic push/pull tabs, which are easily accessible in high-density applications and make the cable easy to install and remove with just one hand.
This QSFP28 active optical cable integrates a 100 Gbps Ethernet-optimized 38-position "board as connector" design. Die-cast zinc connectors offer superior EMI (electromagnetic interference) resistance and reduced crosstalk. The connectors have also been tested to meet stringent insertion loss standards. The cable is suitable for high-speed, short-reach dense data connections, such as 100GBASE-SR4 Ethernet, PCIe, Fibre Channel and InfiniBand applications. The plenum-rated OFNP jacket is designed for connecting network components in drop ceiling, walls and ducts.
This cable is fully compliant with the latest QSFP28 Multi-Source Agreement (MSA), IEEE 802.3bm standards and industry-standard SFF-8636 specifications. It is compatible with all QSFP and QSFP+ ports.
Key features
- Features Fiber Optic cable type
- Features Active
- Push/Pull Tab Connectors Provide Quick, Easy Connections
- Engineered and Optimized for Bandwidth-Intense Applications
- Fully Compliant and Compatible with the Latest Standards
Specifications
- Data Transfer Rate: 100 Gbit/s
- Cable Type: Fiber Optic
- Connector on First End Details: 1 x QSFP28 Network - Male
- Environmentally Friendly: Yes
- Product Color: Aqua
- Device Supported: Switch,Server,Router,Network Device
- Limited Warranty: 1 Year
- Connector on Second End Details: 1 x QSFP28 Network - Male
- Connector Type on First End: QSFP28 Network - Male
- Connector Type on Second End: QSFP28 Network - Male
- Product Type: Network Cable
- Manufacturer: Tripp Lite by Eaton
- Product Model: N28H-01M-AQ
- Cable Length: 3.3 ft
- Features: Active,EMI Protection
- Core/Cladding Diameter: 50/125 µm
- Country of Origin: China
- Fiber Optic Mode: Multi-mode
- Color Family: Green
