Description
±120VDC External Batteries Give Your Compatible 3-Phase UPS Extended Runtime
This external battery pack connects to a compatible SmartOnline® S3M-Series 3-phase UPS system to provide long-lasting battery backup for data centers, telecommunications, networks, industrial facilities, security, emergency systems and other mission-critical applications that require high capacity, high availability and extended runtime. In addition to battery backup and extended runtime, the BP240V65L can also be daisy-chained to other external battery cabinets for even longer extended-run operation.
Rugged Steel Construction Designed to Last in Demanding IT Applications

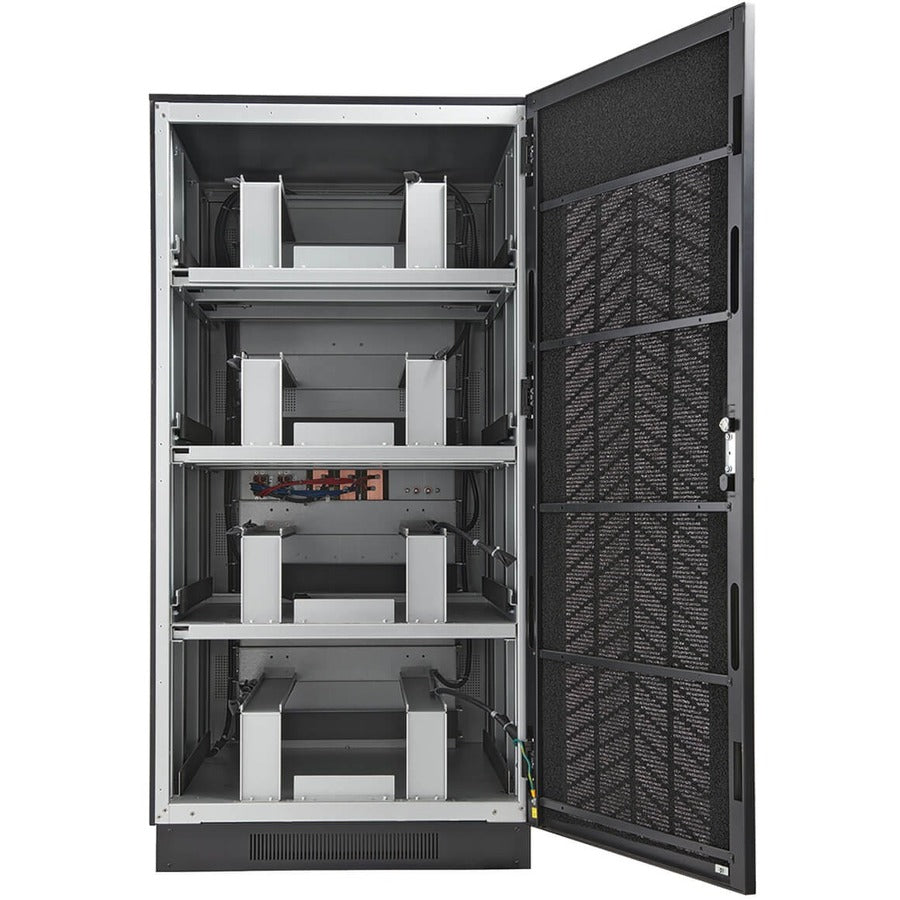

The cabinet is made from heavy-gauge steel with a baked powder-coated finish that helps prevent chipping and corrosion. The hinged front door provides easy access to the recyclable internal batteries. The door locks securely to help prevent damage, tampering or theft. Fuses and output breaker protect against potentially hazardous overcurrent.
Ships Ready for Immediate Deployment
Includes heavy-gauge cabling with high-current DC connectors for simple installation with 10-20K UPS models. Also includes input/output terminal blocks for hardwire installation with larger UPS models. Battery cables feed into the cabinet through conduit knockouts built into the bottom panel.
- Ideal for IT applications requiring high capacity, high availability and longer runtime
- Supports daisy-chaining to additional battery packs of same model for even more runtime

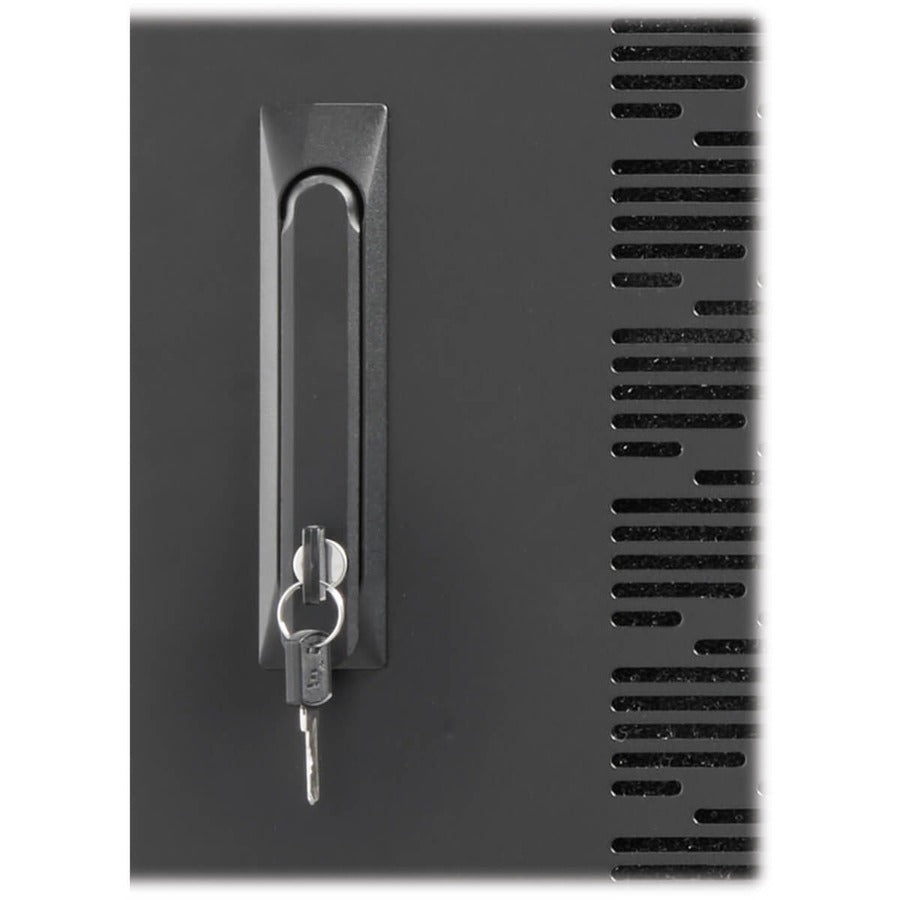

- Steel cabinet with locking front door for easy access to recyclable VRLA (AGM) batteries

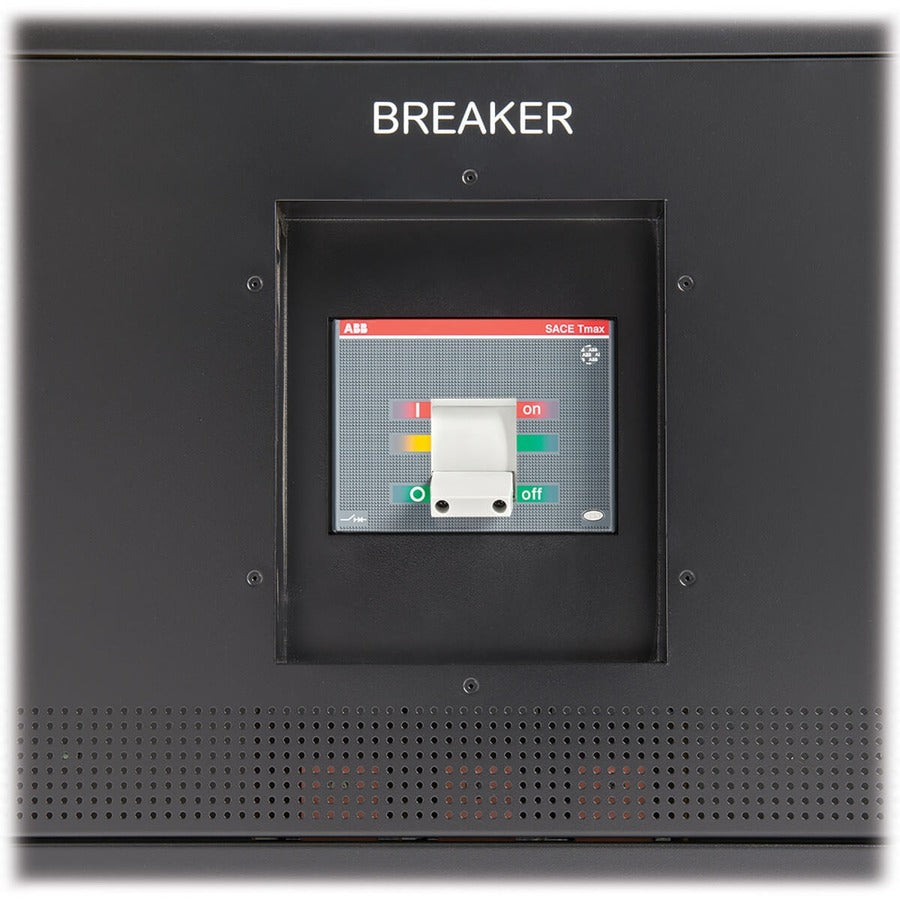

- Fuses and output breaker protect against potentially hazardous overcurrent
- Industrial design matches UPS cabinets for a clean, professional appearance
- 1-year limited warranty
- Environmentally Friendly : Yes
- Limited Warranty : 1 Year
- Package Contents :
- SmartOnline S3M BP240V65L Battery Cabinet
- 2 x Battery Cables, 3 m
- 4 x Cabinet Bottom Side Metal Skirts
- Owner's Manual
- Battery Capacity : 65000 mAh
- Product Type : Battery Cabinet
- Battery Chemistry : Lead Acid
- Manufacturer : Tripp Lite by Eaton
- Product Model : BP240V65L
- Compatibility :
Tripp Lite SmartOnline S3M 3-Phase 208V UPS Models:
- S3M10K-NIB
- S3M15K-NIB
- S3M20K-NIB
- S3M25K
- S3M30K
- S3M50K
- S3M60K
- S3M80K
- S3M100K
- Output Voltage : 120 V DC
- Country of Origin : China
- Battery Characteristics : Valve-regulated
- Manufacturer Website Address : https://tripplite.eaton.com/
