Description
Battery Backup and VFI Operation Protect Critical Loads

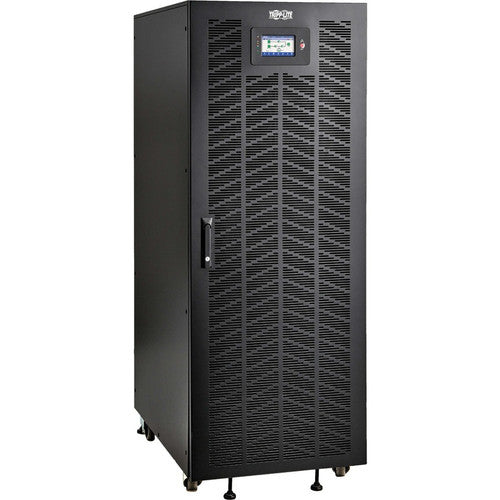

The SmartOnline® S3M80K IGBT UPS supports the continuous availability of your most important operational and IT equipment loads through all power conditions, providing a compact backup power platform that's easy to manage and inexpensive to operate. Sophisticated voltage- and frequency-independent (VFI) operation and advanced IGBT rectifier technology with DSP control deliver reliable output power quality. Providing up to 80kVA/kW of clean, continuous power, this 3-phase UPS system is ideally suited for critical applications in banking, education, healthcare, government and manufacturing sectors.
Best-in-Class Footprint for Easy Integration into Your Network Application

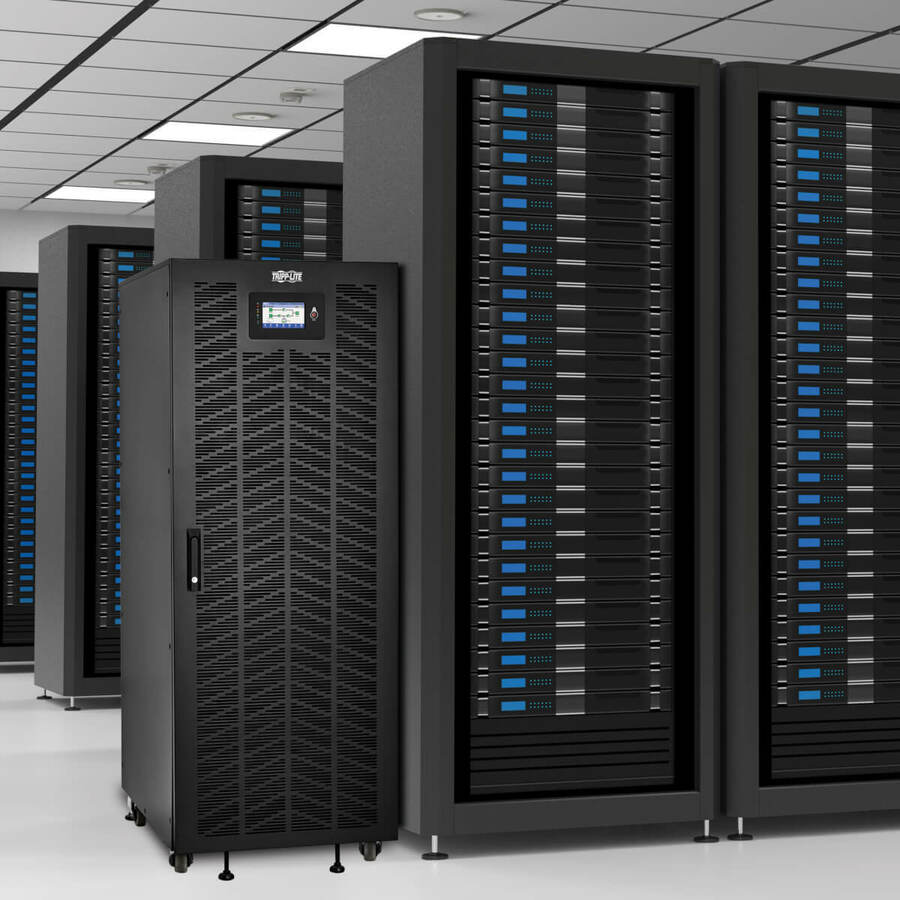

The UPS market's smallest footprint for 3-phase 208V systems lets you install the S3M80K in spaces that would otherwise have required expensive retrofitting. By achieving its compact size without compromising runtime, reliability or functionality, the S3M80K is recommended for data centers, colocation facilities and edge computing environments that require high efficiency, high performance and clean, reliable power protection, while preserving as much space as possible for revenue-generating server racks.
Efficient Operation and Design Reduces Cost of Ownership

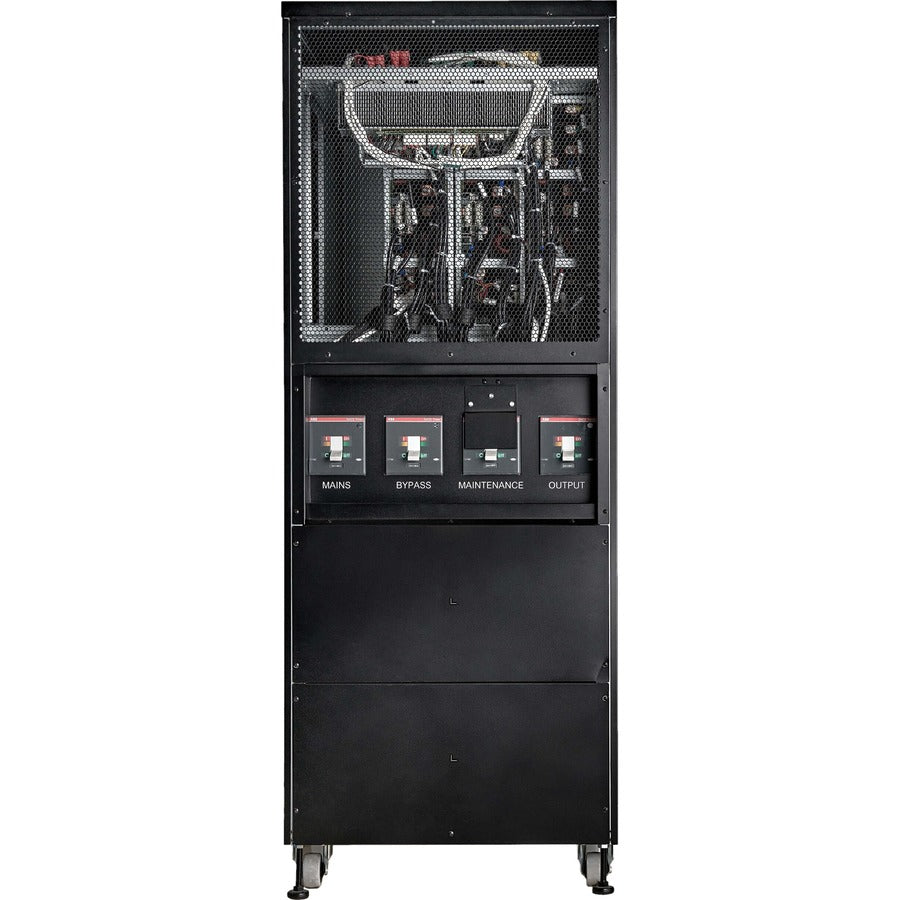

ENERGY STAR 2.0-certified technology provides high operational efficiency to save on utility and cooling costs, as well as protect the environment. This UPS achieves up to 94% efficiency in double-conversion mode and up to 98% in ECO mode, reducing your power and cooling costs. Unity output power factor (1.0) lets you support more equipment. A low THDi (<3%) improves generator compatibility. A low THDv (?2%) and active power factor correction with DSP control improve output performance. The hardware and firmware platform design reduces the number of unique boards, improving mean time to repair (MTTR) and resulting in reduced downtime. Automatic and maintenance bypass transfer UPS load to utility power during faults, overloads and maintenance, which also avoids costly system downtime.
External Batteries Supply Reliable Backup with Expandable Runtime Options
The S3M80K uses external battery cabinets, including BP240V65L and BP240V100L (sold separately), to provide backup support in case of a power failure. These cabinets are available with or without internal batteries. No internal batteries are included with the S3M80K. A one-touch cold-start button powers up the UPS with battery power only.
Intuitive LCD Interface Delivers Important Performance Information at a Glance

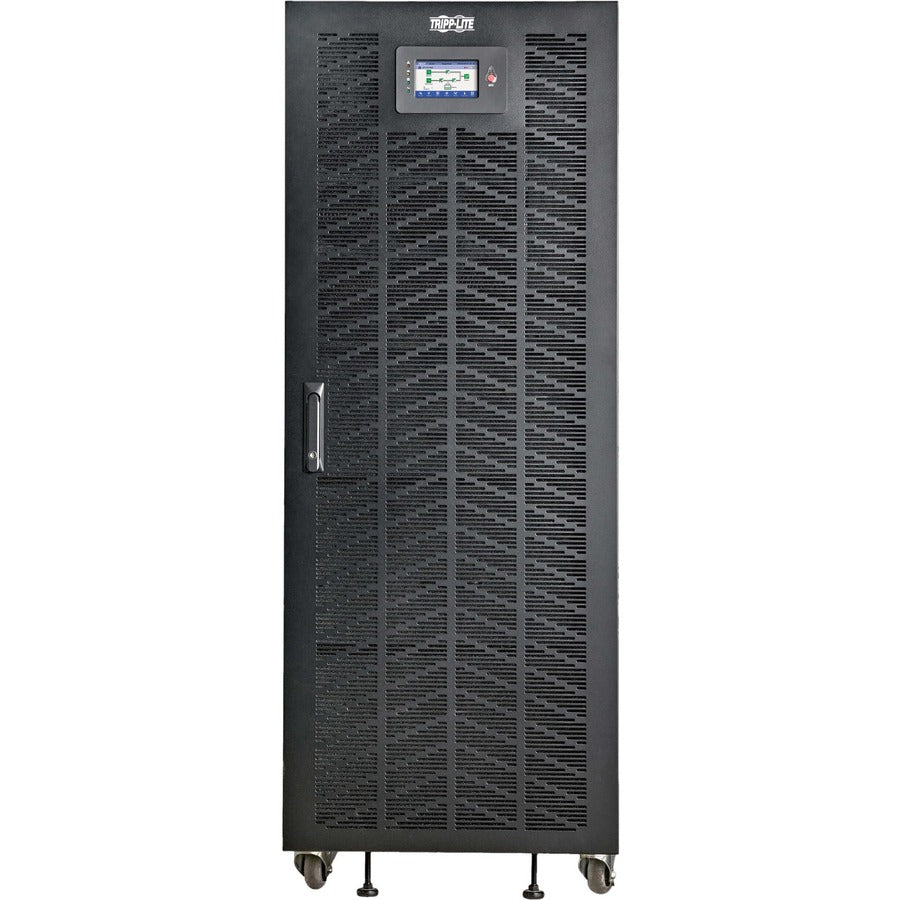

The large five-inch touchscreen LCD panel displays critical operating conditions and diagnostic data, including battery and load status. Four LEDs provide information about AC, bypass, battery and fault status.
Remote Network Monitoring and Control Available 24 Hours a Day
The optional Java-free WEBCARDLXMINI network management card (sold separately) enables remote management through embedded HTML5 web, SSH/telnet and SNMP interfaces, as well as integration with a wide range of network management systems and DCIM platforms. WEBCARDLXMINI also supports EnviroSense2 (sold separately), which monitors temperature, humidity and other environmental factors. Three MODBUS ports (RS-485, USB, RS-232) may also be used to monitor and manage the UPS. A Remote Emergency Power Off (REPO) port allows shutdown from a safe distance during emergencies.
- Best-in-class footprint saves space in server rooms, colocations and small data centers for revenue-generating equipment
- ENERGY STAR 2.0-certified efficiency up to 98% ECO and up to 94% Online Mode helps reduce utility and cooling costs
- Unity output power factor (1.0) allows support of more equipment without overloading
- Optional WEBCARDLXMINI network card allows cost-effective remote management 24/7
- Parallel capability provides increased capacity and redundancy up to 6 units
- 2-year limited warranty
- Receptacle Type : Hard Wire (3-PH)
- Phase : Three Phase
- Environmentally Friendly : Yes
- Network Management : SNMP Manageable,SSH,Telnet
- Input Voltage : 120 V AC,230 V AC
- Product Series : S3M
- Limited Warranty : 2 Year
- Waveform Type : Pure Sine Wave
- Form Factor : Tower
- Package Contents :
- SmartOnline S3M80K 80kVA Tower UPS
- RS-232 Cable (Male/Female), 5 ft. (1.5 m)
- Parallel Cable (Male/Female), 5 ft. (1.5 m)
- USB Cable, 5 ft. (1.5 m)
- Dry Contact Connector (Green)
- Owner's Manual
- Plug/Connector Type : Hardwired
- Product Type : Double Conversion Online UPS
- Load Capacity : 80 kVA
- Energy Star : Yes
- Application/Usage : IT Equipment,Network,Telecommunication,Finance,Industrial,Data Center,Server Room,Critical System,Banking,Education,Healthcare,Government,Manufacturing Facility,Edge Computing
- Manufacturer : Tripp Lite by Eaton
- Product Model : S3M80K
- Output Voltage : 120 V AC,208 V AC
- Country of Origin : China
- Product Line : SmartOnline
- DC System Voltage : 120 V DC
- Serial Port : Yes
- Maximum Operating Elevation : 3280 ft (999744 mm)
- Energy Saving : High efficiency economy mode operation; Schedulable daily hours of economy mode operation
- Thermal Dissipation : 19932 BTU/h
- Maximum Operating Temperature : 104°F (40°C)
- Output Frequency : 60 Hz
- Storage Temperature : 32°F (0°C) - 95°F (35°C)
- EMI/RFI Noise Filter : Yes
- EPO Port : Yes
- Transfer Time : 0 ns
- Overload Protection : Yes
- Alarm : Low Battery,Overload,Shutdown,Bypass Mode
- USB (HID Compliant) Port : Yes
- Status Indicators :
Front Panel LCD Display:
- Large touchscreen color LCD display (5in/ 12.7cm) enables comprehensive local monitoring
- Diagnostics and control
- Intuitive and user-friendly interface
- Home
- Status
- Alarm
- Setting
- Maint
- Common
- About
LED Indicators:
- Four LEDs indicate AC mode (Green)
- Bypass (Yellow)
- Battery (Yellow)
- Fault (Red) Modes
- Manufacturer Website Address : https://tripplite.eaton.com/
