Description
Battery Backup and VFI Operation Protect Critical Loads

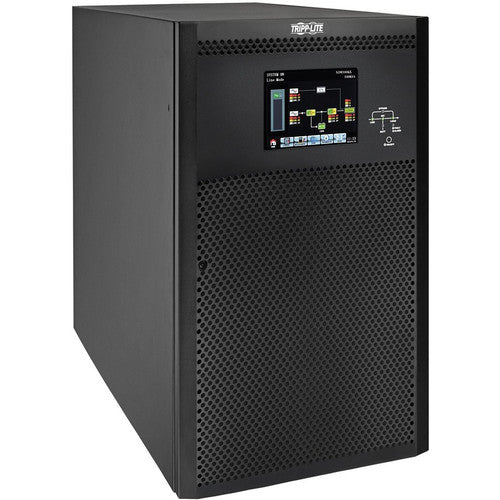

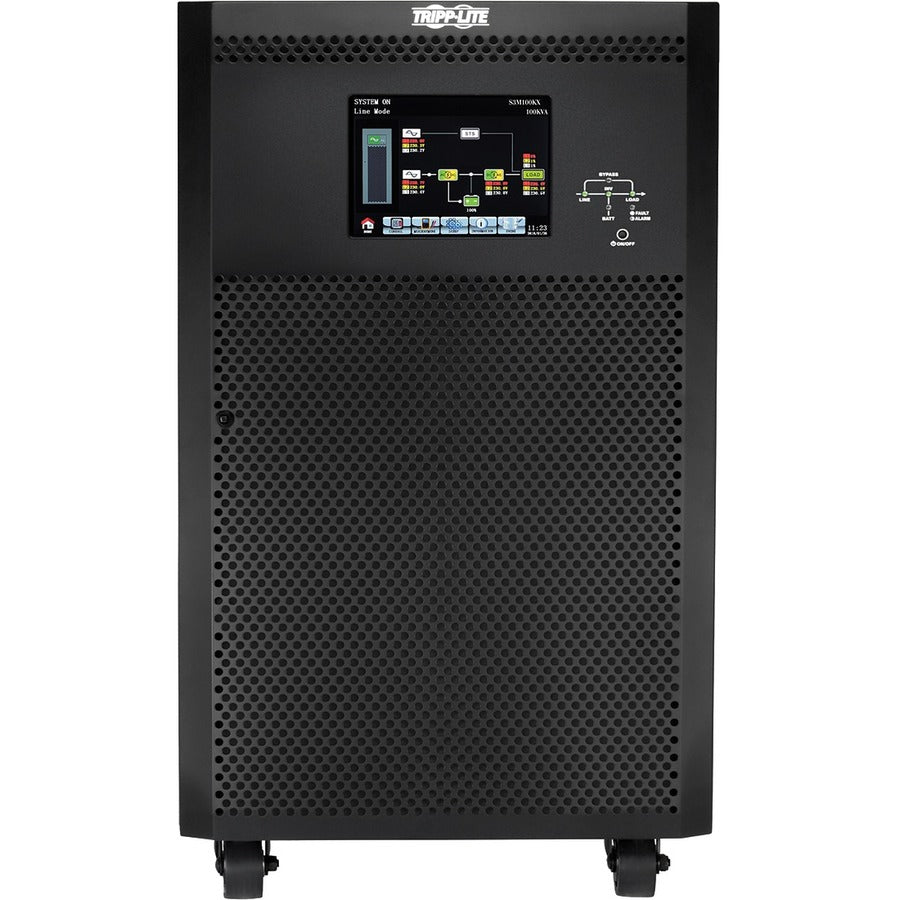

The SmartOnline® S3M120KXD IGBT UPS supports the continuous availability of your most important loads through all power conditions, providing a compact backup power platform that's easy to manage and inexpensive to operate. Sophisticated voltage and frequency independent (VFI) operation and advanced IGBT rectifier technology with DSP control deliver reliable output power quality. Providing up to 120kVA of clean, continuous power, this 3-phase UPS system is perfect for critical applications in IT, communications, corporate, commercial, retail, financial, security, transportation, emergency and edge infrastructure environments.
Best-in-Class Footprint for Easy Integration into Your Network Application
This on-line double-conversion UPS system has a very small footprint of just 0.54 square meters. It requires less valuable space in your data center, and you can install the UPS system in spaces that would previously have required expensive retrofitting.
Efficient Operation and Design Reduces Cost of Ownership

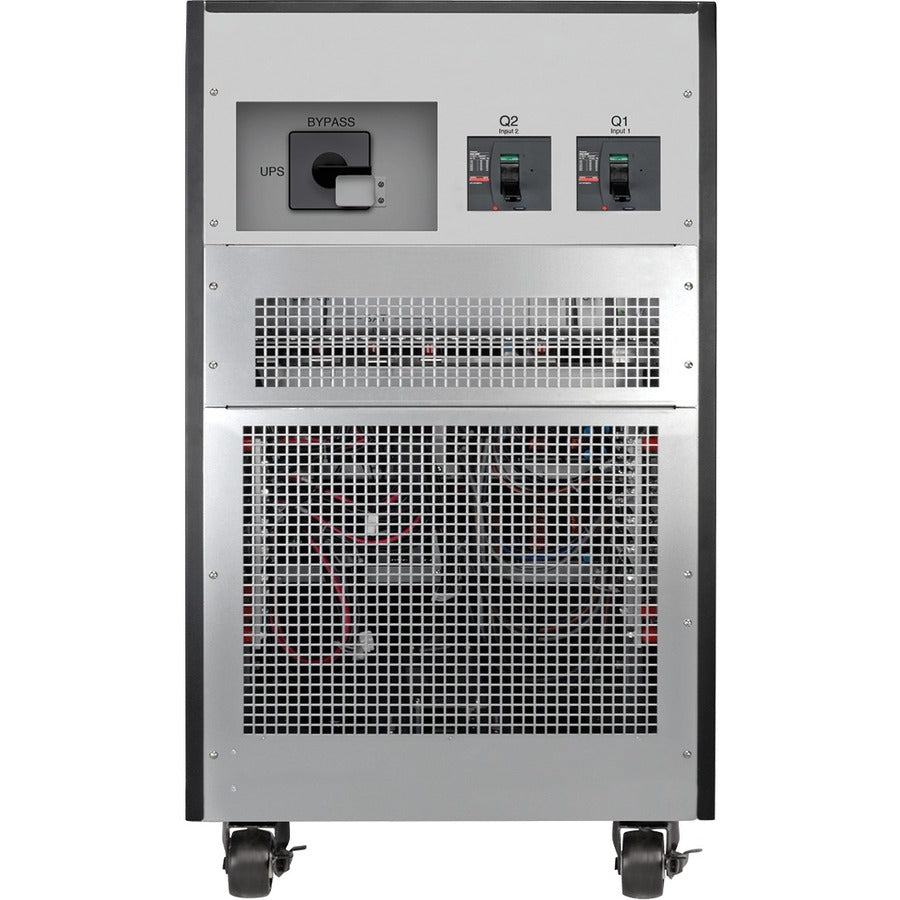

This UPS benefits from highly efficient transformer-free double-conversion technology that delivers operating cost savings. It achieves 94% efficiency in double-conversion mode and up to 98% in ECO mode, reducing your power and cooling costs. A low THDi (<3%) improves generator compatibility. A low THDv (?2%) and active power factor correction improve output performance. The hardware and firmware platform design reduces the number of unique boards, improving mean time to repair (MTTR) and resulting in reduced downtime. Built-in static and maintenance bypass transfer UPS load to utility power during faults, overloads and maintenance, which also avoids costly system downtime.
External Batteries Supply Reliable Backup with Expandable Runtime Options
The S3M120KXD uses external scalable battery cabinets, such as BP480V40, BP480V65 and BP480V100 (sold separately), to provide up to three hours of backup support in case of a power failure. Add the optional TEMPC100200 thermostat kit to enable temperature-compensated charging for optimized battery lifespan. The UPS system automatically restarts after a lengthy power outage.

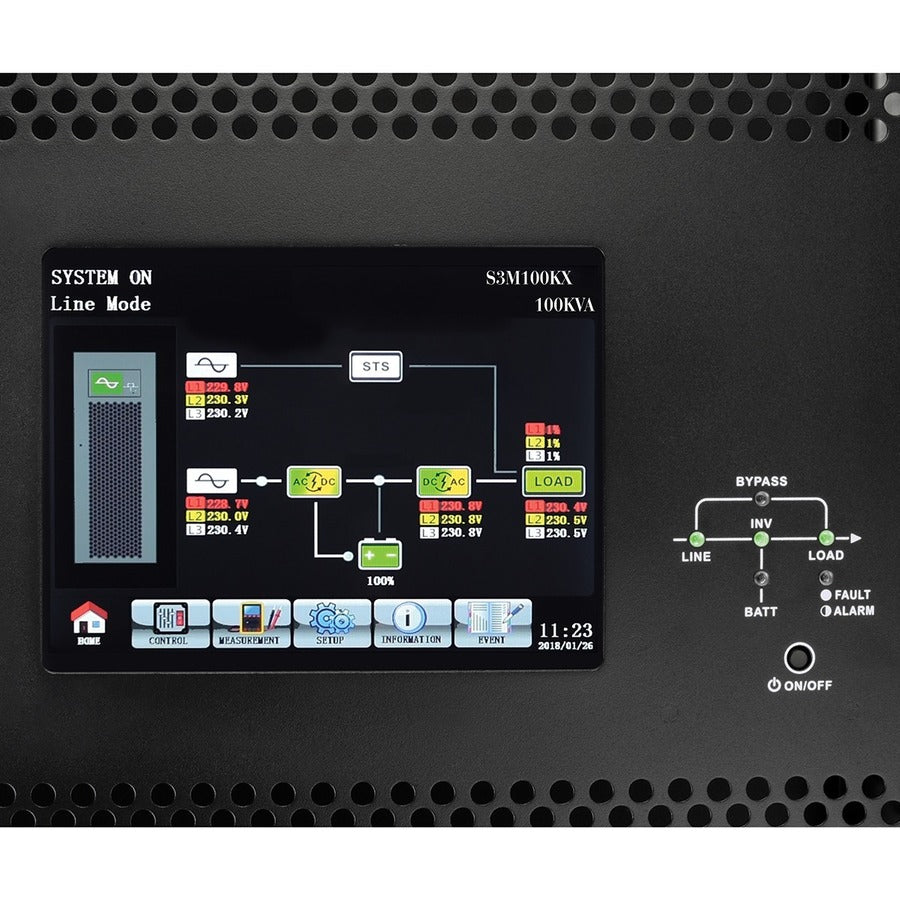

Intuitive Color Touchscreen Display Delivers Important Performance Information at a Glance
The large (25.4 cm/10 inches) front-panel color interface enables comprehensive local monitoring and control capability. It displays critical operating conditions and diagnostic data, such as phase load levels, available runtime, alarm status, battery charge, and voltage and frequency values. Six LEDs indicate bypass, on-line, inverter, battery, load and alarm/fault modes.
Network Management Card Offers Remote Monitoring and Control

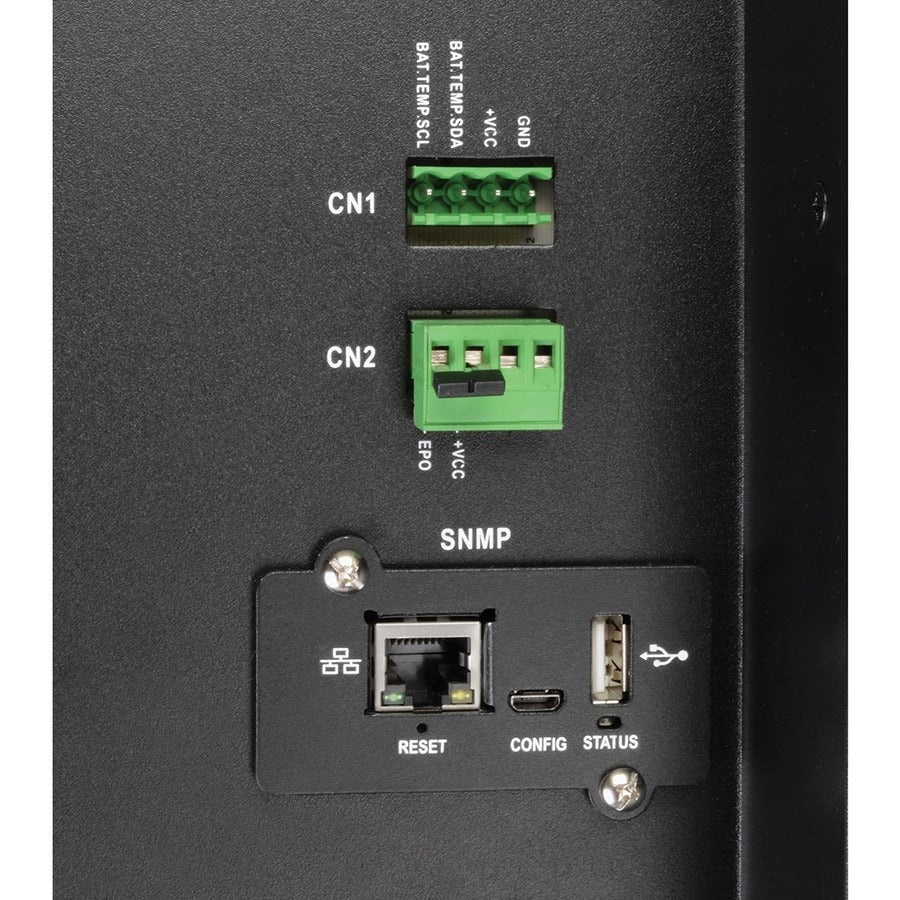

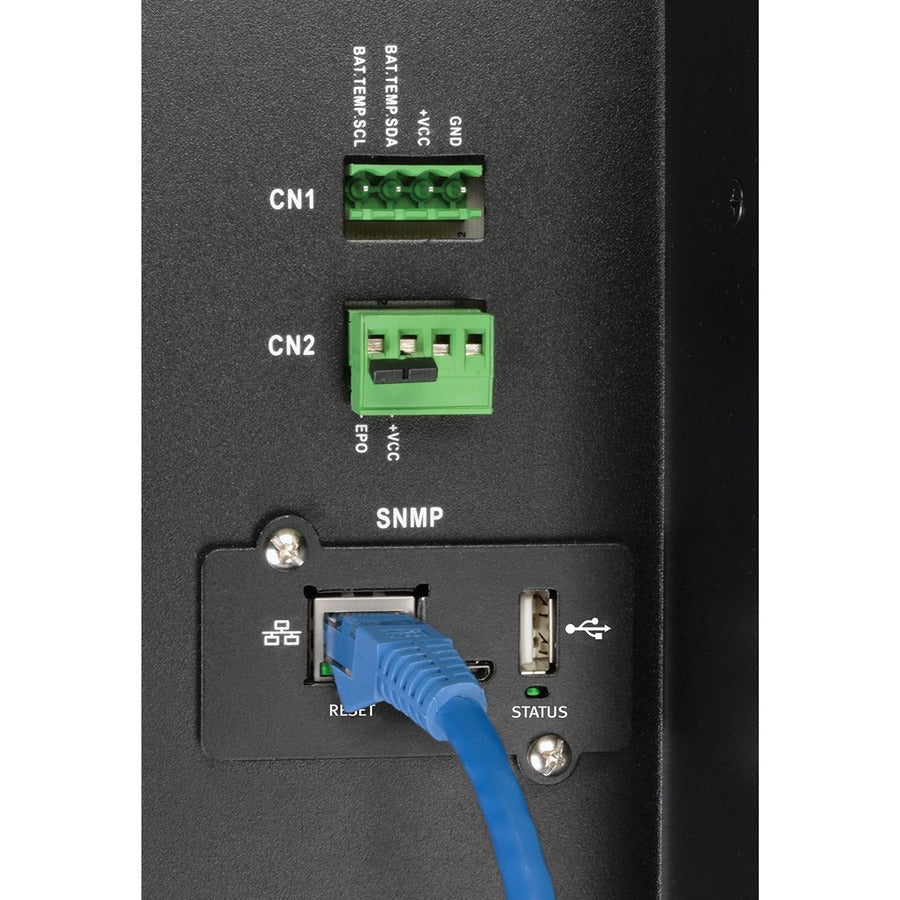

The optional Java-free WEBCARDLX network management card (sold separately) enables remote management through embedded HTML5 web, SSH/telnet and SNMP interfaces, as well as integration with a wide range of network management systems and DCIM platforms. A Remote Emergency Power Off (REPO) port allows shutdown from a safe distance during emergencies.
Parallel Capability Provides Additional Capacity
Connect two S3M120KXD units in parallel using separate/shared battery cabinets for increased capacity and fault tolerance (N+1 redundancy).
2-Year Warranty Provides Peace of Mind
The S3M120KXD is backed by a 2-year warranty, ensuring reliability and performance.
. .- Phase : Three Phase
- Network Management : SNMP/HTTP Remote Monitoring
- Product Series : S3MX
- Limited Warranty : 2 Year
- Typical Battery Recharge Time : 9 Hour
- Waveform Type : Pure Sine Wave
- Form Factor : Tower
- Product Type : Double Conversion Online UPS
- Load Capacity : 120 kVA
- Application/Usage : Mission Critical Equipment,IT System,Communication System,Commercial,Corporate,Retail & Wholesale,Finance,Security,Transportation,Emergency,Network,Data Center,Edge Infrastructure Environment
- Manufacturer : Tripp Lite by Eaton
- Product Model : S3M120KXD
- Input Voltage Range : 220 V AC - 415 V AC
- Output Voltage : 220 V AC,230 V AC,240 V AC,380 V AC,400 V AC,415 V AC
- Country of Origin : China
- Product Line : SmartOnline
- DC System Voltage : 240 V DC
- Serial Port : Yes
- Maximum Operating Elevation : 3280.84 ft (1000000 mm)
- Energy Saving : Green Energy-Saving
- Maximum Operating Temperature : 104°F (40°C)
- Output Frequency : 60 Hz
- Storage Temperature : 5°F (-15°C) - 140°F (60°C)
- Sound Emission : 70 dB
- EPO Port : Yes
- Transfer Time : 0 ns
- Input Frequency : 60 Hz
- Alarm : Battery Mode,Low Battery,Bypass Mode,UPS Fault,UPS Alarm
- Storage Relative Humidity : 5% - 95%
- Status Indicators : 6 LED Indicators:
- Bypass
- Line
- Inverter
- Battery
- Alarm
- Fault
Front Panel LCD Display:
- Input and output phase loads
- Voltages
- Frequencies
- Battery charge status
- System operating mode (online, standby, eco, battery, fault) status
- Specific measurement in every operating mode
- Current and event history of up to 500 events to enable diagnostics
- System fault troubleshooting
- Manufacturer Website Address : https://tripplite.eaton.com/
