Description
5kVA/4.5kW/208V Battery Backup for IT Installations and Edge Networks
This SmartOnline® rack-mount online double-conversion UPS system provides uninterrupted battery backup and AC power protection against blackouts, brownouts, surges and line noise that can damage valuable IT equipment or destroy data. The SU5000RT is reliable power management for education, commercial, financial or healthcare networking components, including Cisco switches and servers.
Expandable Internal Battery Backup Keeps You Operational Through Power Outages
The field-replaceable, hot-swappable valve regulated lead acid (VRLA) battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. Automatic restart after power outages reduces costly on-site visits. You can also connect up to four extended battery modules (BP180RT, sold separately) for hours of extended runtime.
Pre-Installed Network Interface Offers 24/7 Remote Access
The WEBCARDLXE network interface turns the SU5000RT into a managed device on your network. It enables full remote configuration and SNMP-based UPS management, including load shedding, safe shutdowns and automated alerts. The IP-based Auto Probe feature ensures continuous network uptime by communicating with other network devices, detecting lost connectivity and automatically rebooting IT equipment without an on-site visit. Optional EnviroSense2 modules (E2MT, E2MTDO and E2MTHDI, all sold separately) provide a variety of environmental monitoring and control options.
NEMA Outlets Protect Your Connected Components

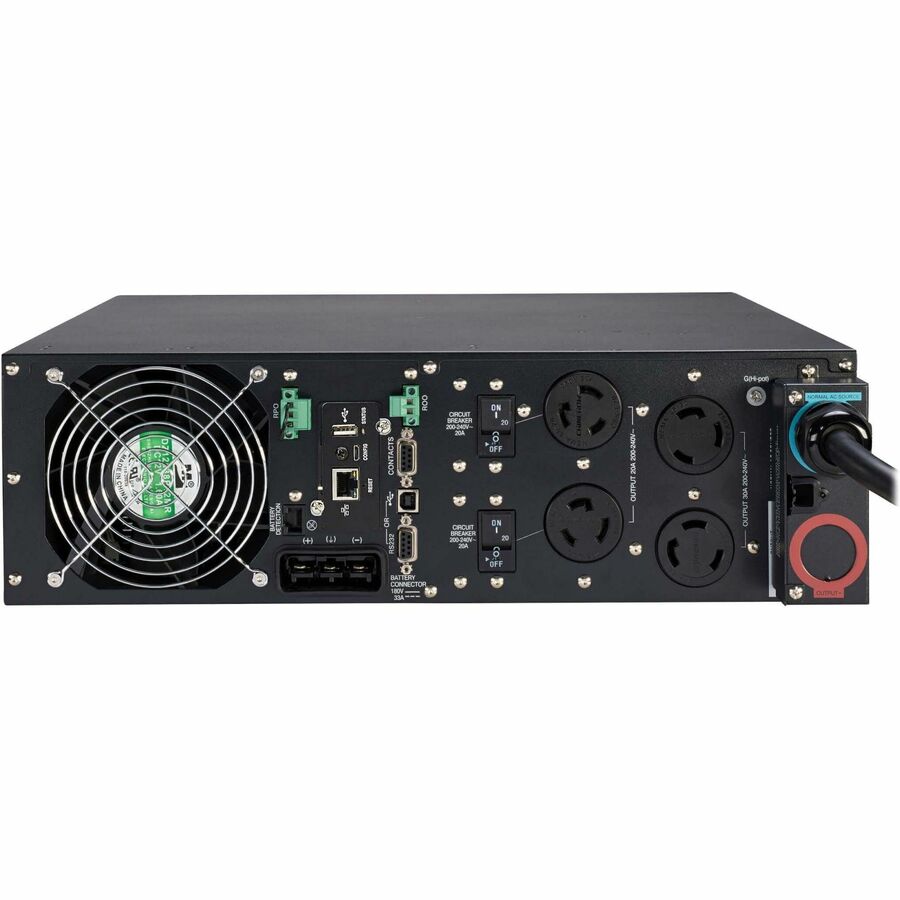

Two L6-20R and two L6-30R managed outlets provide connected equipment with pure sine wave AC output and allow you to manage power consumption down to the outlet group level. Power provided by these outlets is filtered to protect connected equipment against damaging surges and line noise. The SU5000RT also supports hardwired output.
Intuitive LCD Interface Keeps You Informed at a Glance

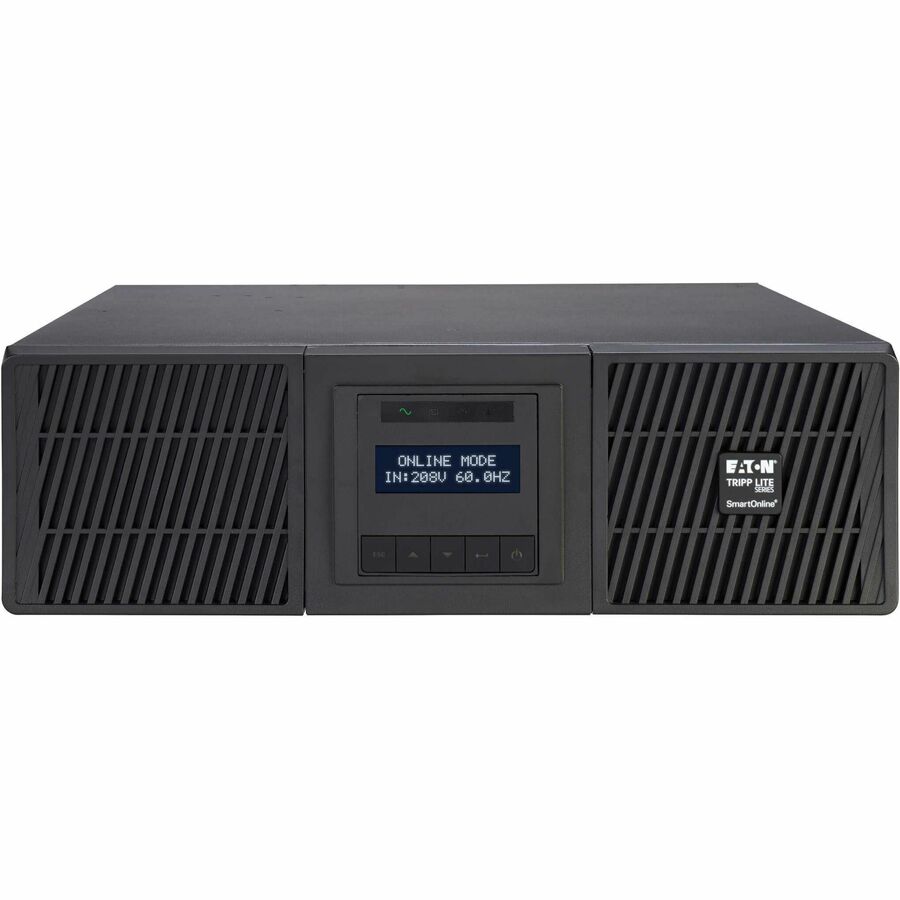

The menu-driven LCD provides control settings and critical information to help diagnose any issues, including alarm and fault notifications. The interface rotates to accommodate both rack-mount and tower configurations, and it tilts up to 45 degrees for more comfortable viewing.
Advanced Communications Ports Allow for Automatic Saves and Shutdowns
RS-232 and USB ports connect to a serial-enabled device for a variety of communication options (cables are included). A dry-contact relay port can be programmed through the LCD to provide reliable communications to automation and industrial components. The RPO/ROO connectors permit emergency shutdown or remote restart of all connected equipment.
Versatile Installation Options

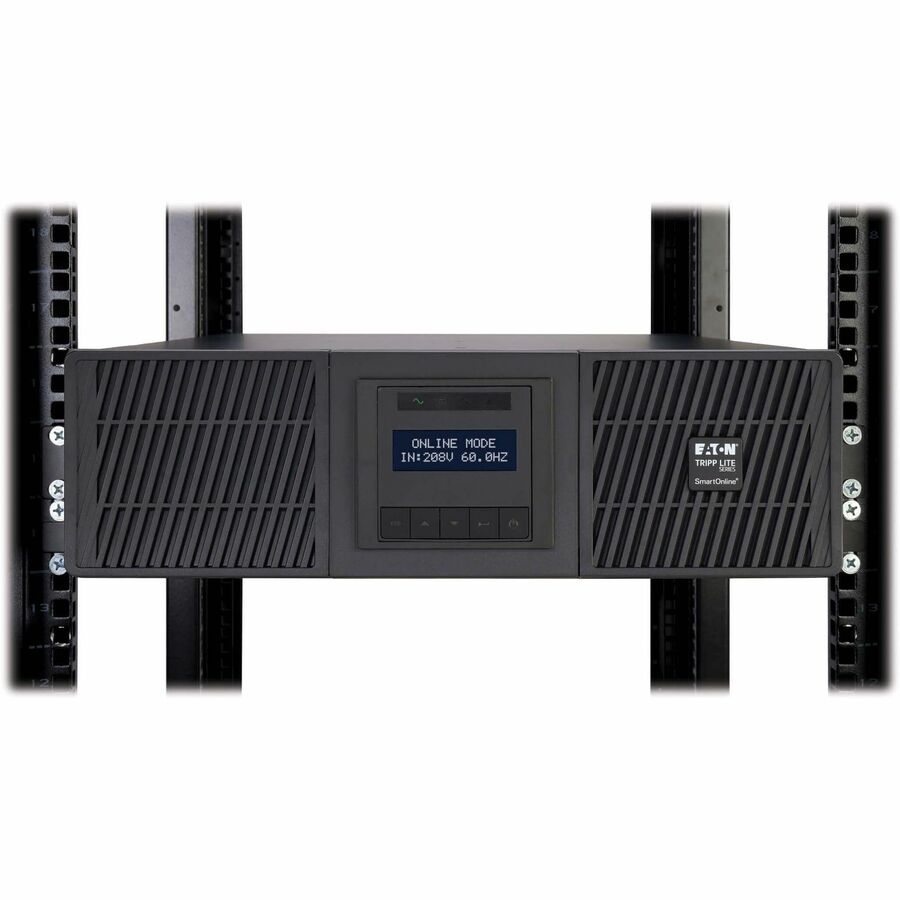

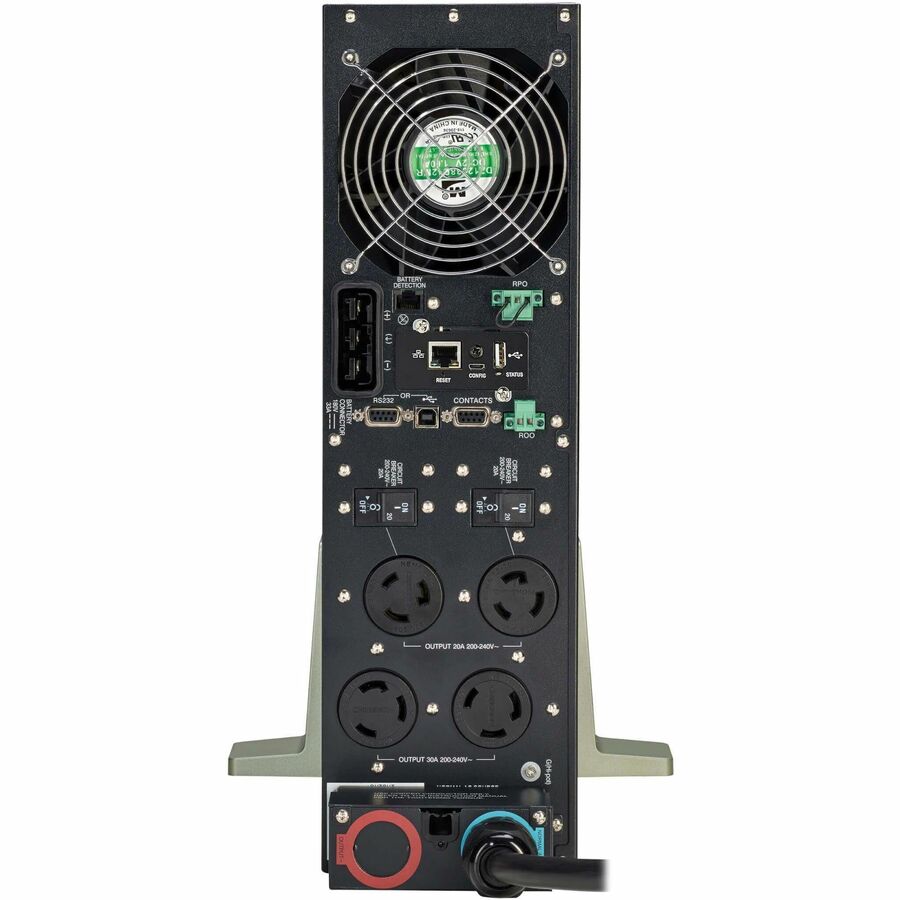

You can mount the SU5000RT in just 3U of space in an EIA-standard 19-inch rack using the included 4-post rail kit or an optional 2-post rail kit (RK2PC, sold separately). You can also adapt it for tower installation using the included support stands. The 10-foot power cord with NEMA L6-30P plug connects to a compatible AC outlet. A cable gland is included for alternate hardwire input.
. .- DC System Voltage : 180 V DC
- Backup/Run Time (Full Load) : 3 Minute
- Load Capacity : 5 kVA/4.50 kW
- Energy Star : Yes
- Manufacturer : Tripp Lite by Eaton
- Rack Height : 3U
- Output Frequency : 50 Hz,60 Hz
- Output Power Factor : 0.9
- Environmental Certification : RoHS
- Environmentally Friendly : Yes
- Additional Warranty Information :
$250,000 Ultimate Lifetime Insurance
- Input Voltage : 230 V AC
- Circuit Breaker : Yes
- Surge Suppression : Yes
- Limited Warranty : 2 Year
- Waveform Type : Pure Sine Wave
- Product Type : Double Conversion Online UPS
- Replaceable Battery : Yes
- Output Voltage : 230 V AC,240 V AC,220 V AC,208 V AC,200 V AC,250 V AC
- AVR : Yes
- Input Current : 23.30 A
- Receptacle Detail : 2 x NEMA L6-20R,2 x NEMA L6-30R
- Phase : Single Phase
- Network Management : Network Card,DB-9 RS-232,Dry Contact,USB,SNMP
- Serial Port : Yes
- Form Factor : Rack/Tower

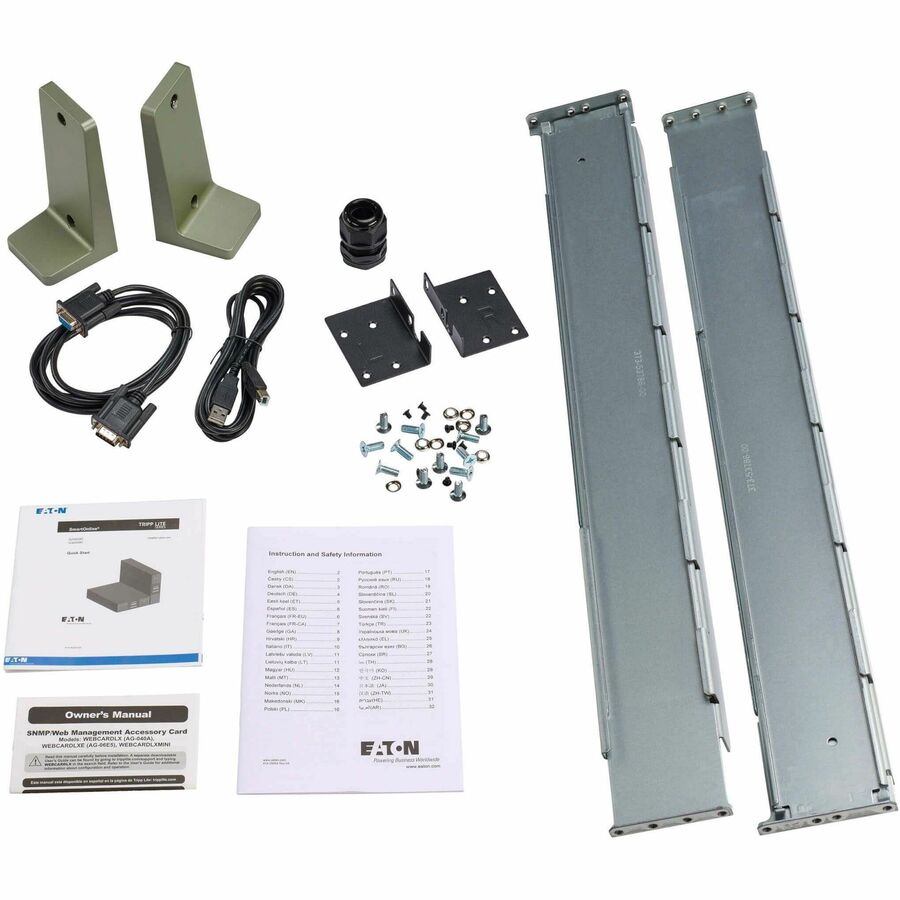

- Package Contents :
- SmartOnline SU5000RT 5000VA Rack/tower UPS
- WEBCARDLXE Network Card
- USB Cable
- RS-232 Cable
- Tower Support Stands
- Cable Gland for Hardwire Connection
- Rack-mounting Hardware
- Quick Start Guide
- DB9 Cable
- Manufacturer Website Address : https://tripplite.eaton.com/
- Thermal Dissipation : 1560 BTU/h
- Battery Chemistry : Lead Acid
- Product Model : SU5000RT
- Features : Audible Alarm,Cold Start Function,Green Energy Saving
- Maximum Operating Temperature : 104°F (40°C)
- Backup/Run Time (Half Load) : 11 Minute
- Battery Characteristics : Valve-regulated
- Receptacle Type : NEMA L6-20R,NEMA L6-30R,Hardwired
- USB : Yes
- EMI/RFI Noise Filter : Yes
- Transfer Time : 0 ns
- Minimum Operating Temperature : 32°F (0°C)
- Efficiency Detail : 98% (ECO Mode)
- Plug/Connector Type : NEMA L6-30P,Hardwired
- Cord Length : 10 ft
- Alarm : Utility Power Failure,Low Battery,Overload,Battery Fault,Remote Shutdown
- Application/Usage : Mission Critical Equipment,IT Equipment,Network Device,Education,Commercial,Financial,Healthcare,Switch,Server
- Hot Swappable : Yes
- Display : LCD
- Status Indicators :
LED Indicators:
? 4 status-indicating LEDs
- Product Line : SmartOnline
