Description
750VA 675W 120V Battery Backup Protects Equipment against Damage, Downtime and Data Loss
This on-line double-conversion UPS system maintains perfect output by converting AC input to DC, then reconverting UPS output to fully regulated sine wave AC. Constant on-line operation completely isolates sensitive equipment from every power problem on the AC line. The SmartOnline® SU750RTXLCD2U provides the highest level of power protection and battery backup for education, healthcare, military, government and other mission-critical IT applications where space is limited, but premium power reliability is essential.
Reliable, Expandable Battery Backup Keeps You Operational Through Power Outages
The field-replaceable, hot-swappable battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. Zero transfer time between on-line and battery modes maintains continuous operation of connected equipment without interruption or rebooting. Extra runtime is available by connecting up to four optional extended battery modules (BP36RT, sold separately).
Optional LX Platform Network Management Card Allows Remote Access 24/7
The WEBCARDLXE network interface (sold separately) enables full remote configuration and management, including load shedding, reboots of connected equipment and safe shutdowns. The IP-based Auto Probe feature ensures continuous network uptime by communicating with other network devices, detecting lost connectivity and automatically rebooting IT equipment. Optional EnviroSense2 modules (E2MT, E2MTDO and E2MTHDI, all sold separately) provide a variety of environmental monitoring and control options.
NEMA 5-15R Outlets Protect Your Connected Components

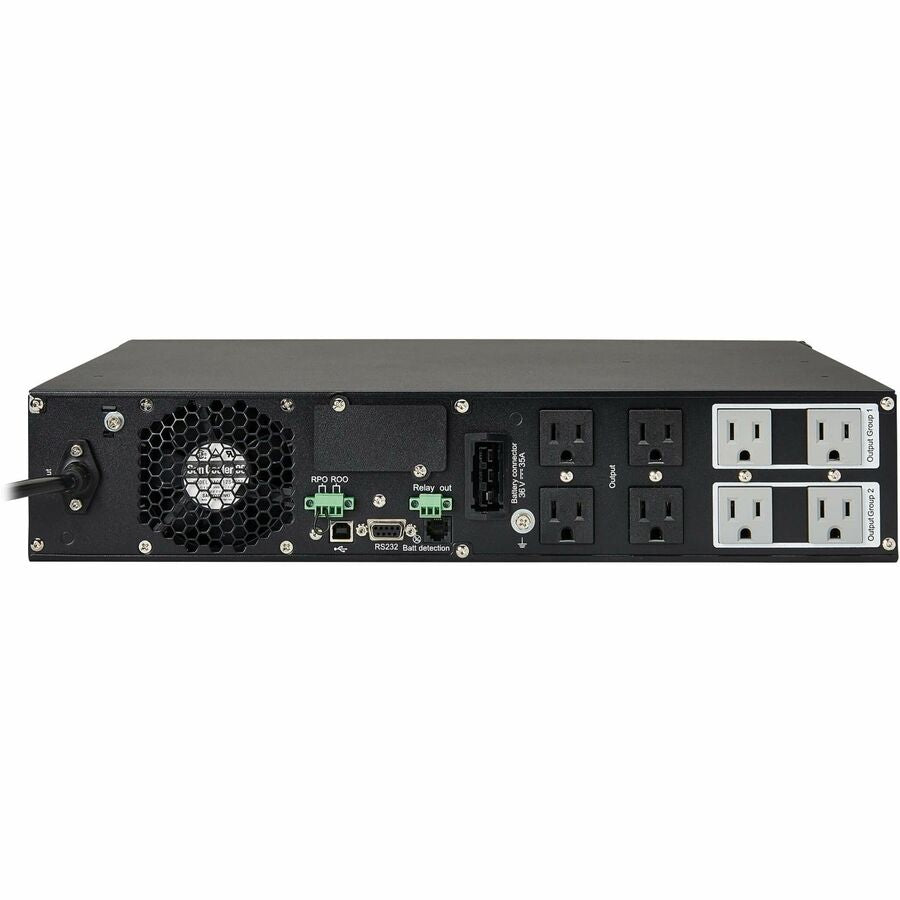

Eight managed 5-15R outlets provide connected equipment with pure sine wave AC output and allow you to monitor power consumption down to the outlet group level. Power provided by these outlets is filtered to protect connected equipment against damaging surges and line noise. Four outlets are grouped into two programmable load banks that let you shed non-critical loads to extend runtime for critical loads. A cooling fan helps protect equipment from overheating.
Premium Protection from EMI/RFI Line Noise Helps Your Equipment Perform Better
This UPS system filters out disruptive electromagnetic and radio frequency interference that can inflict hardware damage or data loss. This EMI/RFI filtering also helps your connected components perform better and last longer.
Intuitive Front-Panel Interface for Convenient UPS Operation and Monitoring

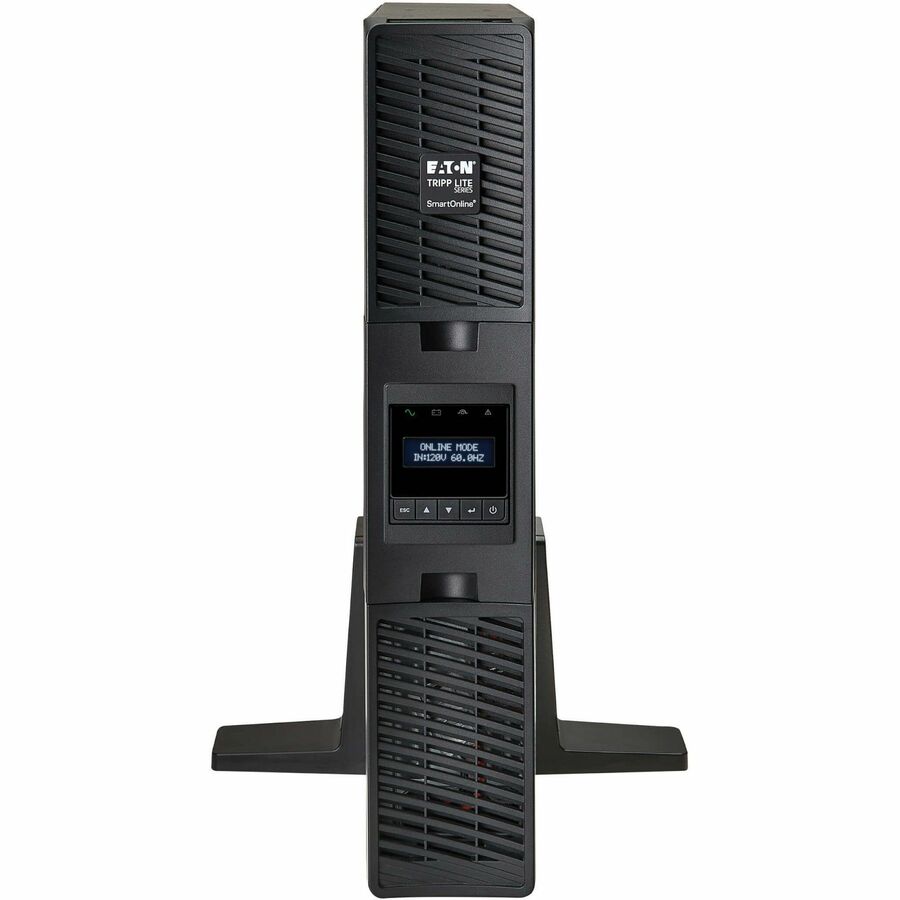

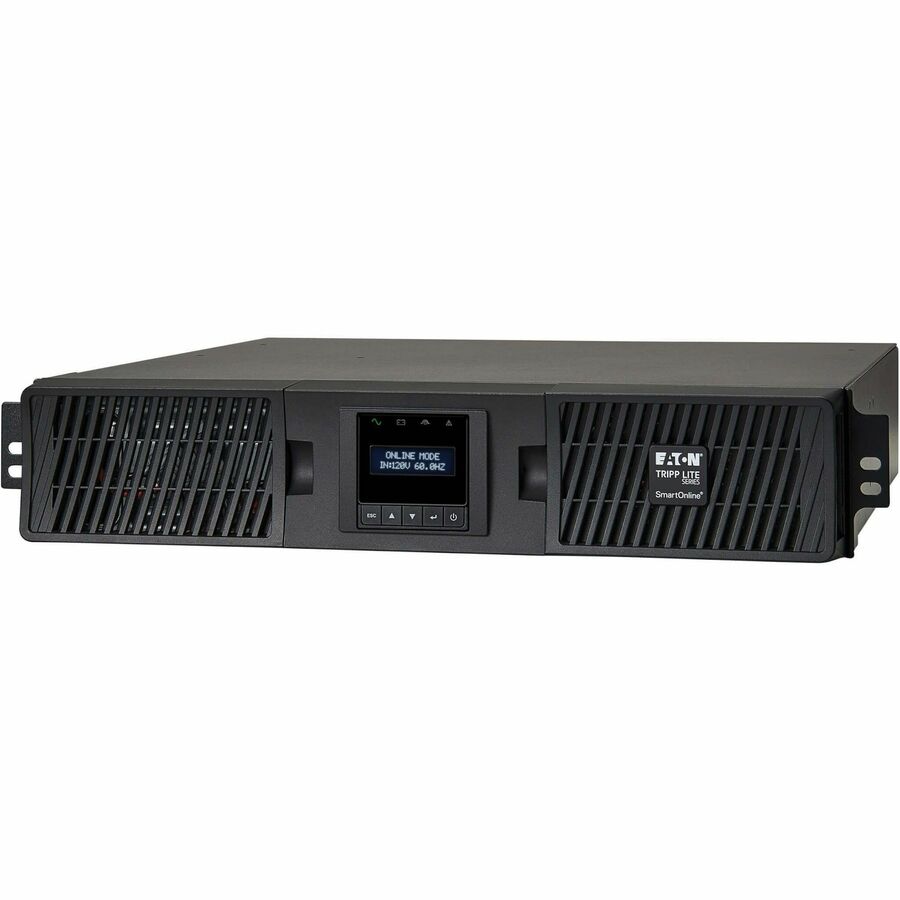

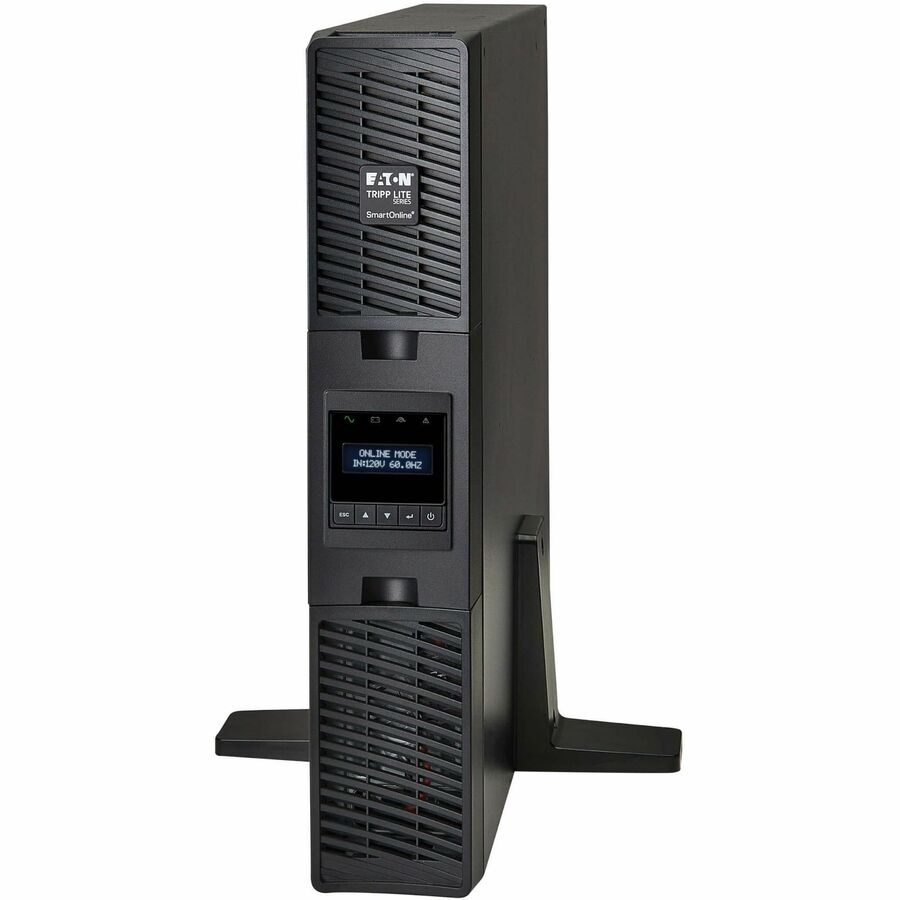

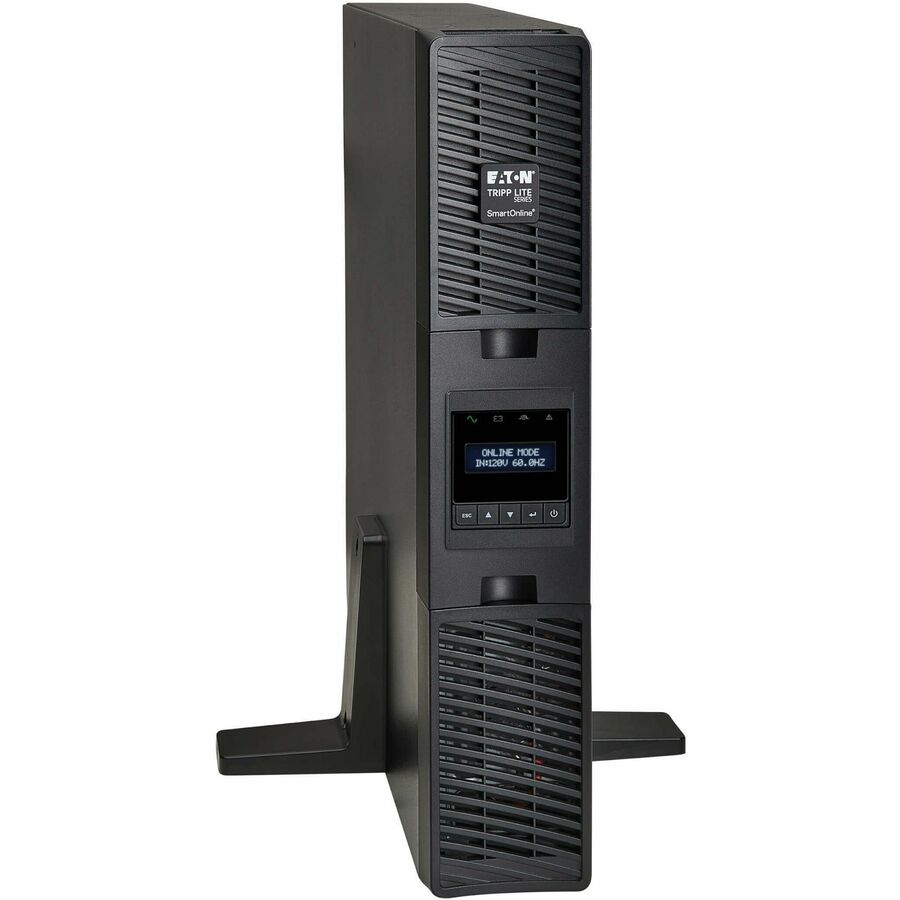

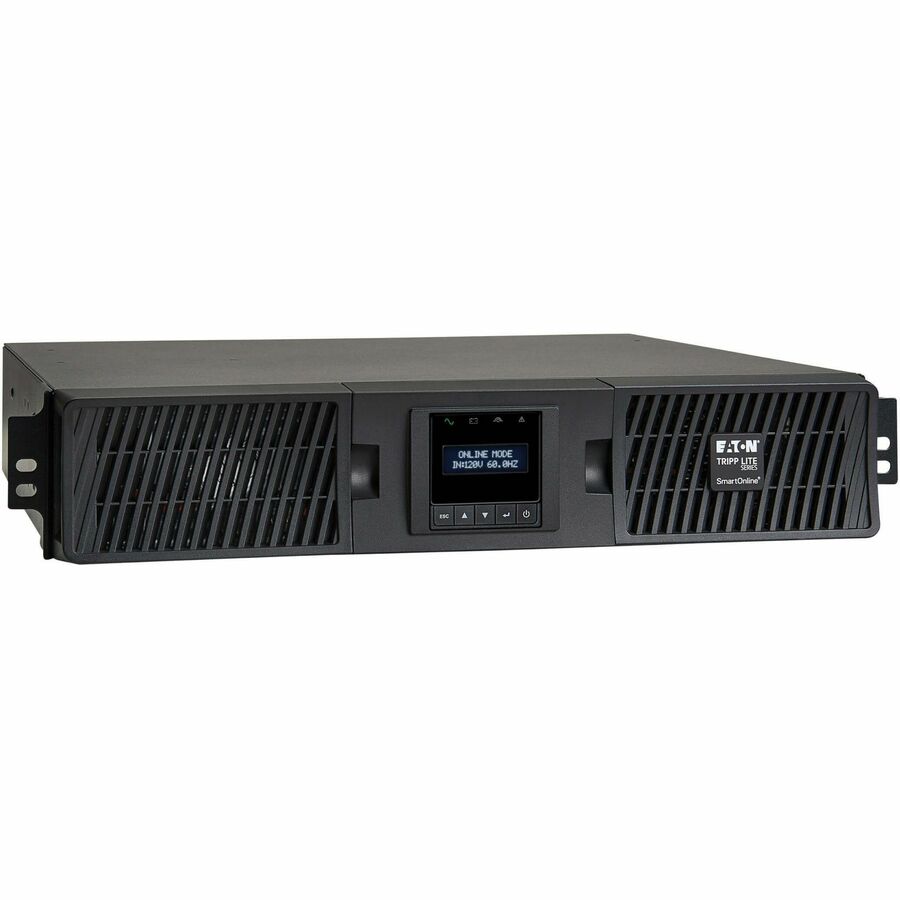

The two-line front-panel LCD monitoring screen features 10 selectable screens that allow quick access to a wide range of detailed UPS and site power information. LEDs show UPS status: a green light means utility power is on, an orange light means the UPS is in battery or bypass mode and a red light indicates an active alarm or fault. The control panel rotates to accommodate both rack-mount and tower configurations.
- 2-line front-panel LCD with 10 selectable screens reports detailed UPS and site power info
- Optional WEBCARDLXE network card enables full remote access and control
- Zero transfer time between on-line and battery modes for uninterrupted operation
- Keeps equipment running during outages to allow time for file saves and safe shutdown
- Updated design for 2023
- Offers network-grade protection against power failures and voltage fluctuations
- Receptacle Type : NEMA 5-15R
- Environmentally Friendly : Yes
- Transfer Time : 0 ns
- Limited Warranty : 2 Year
- Typical Battery Recharge Time : 3 Hour
- Form Factor : Rack/Tower
- Plug/Connector Type : NEMA 5-15P
- Product Type : Double Conversion Online UPS
- Load Capacity : 750 VA/675 W
- Manufacturer : Tripp Lite by Eaton
- Hot Swappable : Yes
- Rack Height : 2U
- Country of Origin : China
- Product Line : SmartOnline
- Environmental Certification : REACH,RoHS
- Software Included : PowerAlert UPS Monitoring Software
- Serial Port : Yes
- USB : Yes
- Manufacturer Website Address : https://tripplite.eaton.com/
- Network Management : SNMP
- Alarm : Remote Shutdown,UPS StartUp,Power Failure,Overload,UPS Fault,Low Battery
- Application/Usage : IT Equipment,Mission Critical Equipment,Government,Healthcare,Education,Military
- Product Model : SU750RTXLCD2U
- Backup/Run Time (Full Load) : 7.90 Minute
- Input Voltage : 120 V AC
- Output Voltage : 100 V AC,110 V AC,115 V AC,120 V AC,127 V AC
- Receptacle Detail : 8 x NEMA 5-15R

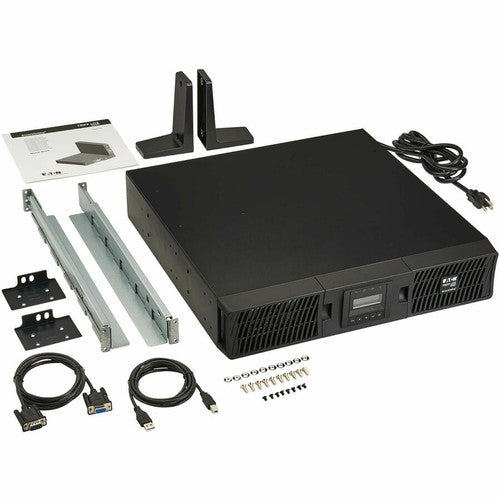

- Package Contents :
- SmartOnline SU750RTXLCD2U 750VA Rack/Tower UPS
- USB cable
- DB9 cable
- Rack-mounting hardware
- Tower support stands
- Safety instructions
- Quick start guide
- Backup/Run Time (Half Load) : 20.90 Minute
- DC System Voltage : 36 V DC
- Energy Saving : High Efficiency Economy Mode Operation; Individually Controllable Load Banks
- Output Frequency : 60 Hz
- Output Power Factor : 0.9
- Input Power Factor : 0.99
- Additional Warranty Information : Connected Equipment Insurance (U.S., Canada & Puerto Rico): $250,000 Ultimate Lifetime Insurance
- Waveform Type : Pure Sine Wave
- Input Frequency : 60 Hz
- Operating Humidity : 0% - 96%
- Replaceable Battery : Yes
- Phase : Single Phase
- Maximum Operating Elevation : 9842.52 ft (3000000 mm)
- Battery Chemistry : Lead Acid
- Maximum Operating Temperature : 104°F (40°C)
- Battery Characteristics : Valve-regulated
- Storage Temperature : 32°F (0°C) - 104°F (40°C)
- Sound Emission : 40 dB
- EMI/RFI Noise Filter : Yes
- Minimum Operating Temperature : 32°F (0°C)
- Overload Protection : Yes
- Surge Energy Rating : 190 J
- Display : LCD
- Status Indicators : 4 status-indicating LEDs
