Description
This on-line double-conversion UPS system maintains perfect output by converting AC input to DC, then reconverting UPS output to fully regulated sine wave AC. Constant on-line operation completely isolates sensitive equipment from every power problem on the AC line. The SmartOnline® SUINT2200LCD2U provides the highest level of power protection and battery backup for education, healthcare, military, government and other mission-critical IT applications where space is limited, but premium power reliability is essential.
Reliable, Expandable Battery Backup Keeps You Operational Through Power Outages
The field-replaceable, hot-swappable VRLA battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. Zero transfer time between on-line and battery modes maintains continuous operation of connected equipment without interruption or rebooting. Extra runtime is available by connecting up to four optional extended battery modules (BP72RT, sold separately).
Optional LX Platform Network Management Card Allows Remote Access 24/7
The WEBCARDLXE network interface (sold separately) enables full remote configuration and management, including load shedding, reboots of connected equipment and safe shutdowns. The IP-based Auto Probe feature ensures continuous network uptime by communicating with other network devices, detecting lost connectivity and automatically rebooting IT equipment. Optional EnviroSense2 modules (E2MT, E2MTDO and E2MTHDI, all sold separately) provide a variety of environmental monitoring and control options.
10 Outlets Protect Your Connected Components
Eight C13 and two C19 outlets provide connected equipment with pure sine wave AC output and allow you to monitor power consumption down to the outlet group level. Power provided by these outlets is filtered to protect connected equipment against damaging surges and line noise. Five outlets are grouped into two load banks that let you shed non-critical loads to extend runtime for critical loads.
Premium Protection from EMI/RFI Line Noise Helps Your Equipment Perform Better
This UPS system filters out disruptive electromagnetic and radio frequency interference that can inflict hardware damage or data loss. This EMI/RFI filtering also helps your connected components perform better and last longer.
Clear LCD Interface Keeps You Informed at a Glance
The menu-driven front-panel LCD provides detailed alarms and notifications to help diagnose any issues. It provides system status, event logs, battery and power module status, usage analytics, serial number, firmware update info and more. Audible alarms can be disabled through the front menu when the UPS goes to battery power. The LCD rotates to accommodate both rack-mount and tower installation.
- 2-year limited warranty
- $250,000 Ultimate Lifetime Insurance
- Menu-driven LCD keeps you up to date with status info and other vital analytics
- Optional WEBCARDLXE network card enables full remote access and control
- Zero transfer time between on-line and battery modes for uninterrupted operation
- Keeps equipment running during outages to allow time for file saves and safe shutdown
- Updated design for 2023
- Protects equipment against blackouts, brownouts, transient surges and line noise
- Receptacle Type : IEC 60320 C19,IEC 60320 C13
- Receptacle Detail : 1 x IEC 60320 C19,8 x IEC 60320 C13
- Environmentally Friendly : Yes
- Input Voltage : 200 V AC,208 V AC,220 V AC,230 V AC,240 V AC
- Limited Warranty : 2 Year
- Typical Battery Recharge Time : 3 Hour
- Form Factor : Rack-mountable

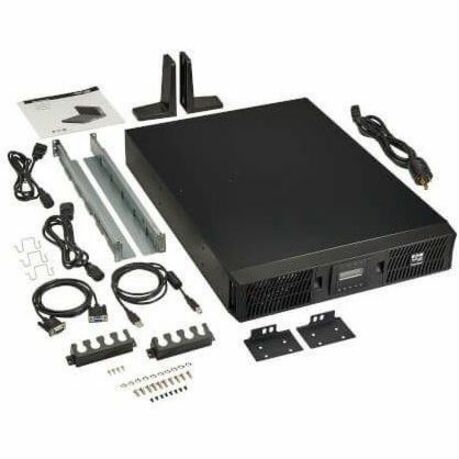

- Package Contents :
- SmartOnline SUINT2200LCD2U 2200VA Rack-mountable UPS
- 4-Post Rack-mount Installation Kit
- USB Cable
- RS-232 Cable
- C19-to-C20 Power Cable
- 2 x C13-to-C14 Power Cables
- Owner's Manual
- Backup/Run Time (Full Load) : 4.30 Minute
- Product Type : Double Conversion Online UPS
- Load Capacity : 2.20 kVA/1.98 kW
- Manufacturer : Tripp Lite by Eaton
- Product Model : SUINT2200LCD2U
- Output Voltage : 200 V AC,208 V AC,220 V AC,230 V AC,240 V AC
- Country of Origin : China
- Product Line : SmartOnline
- Manufacturer Website Address : https://tripplite.eaton.com/
