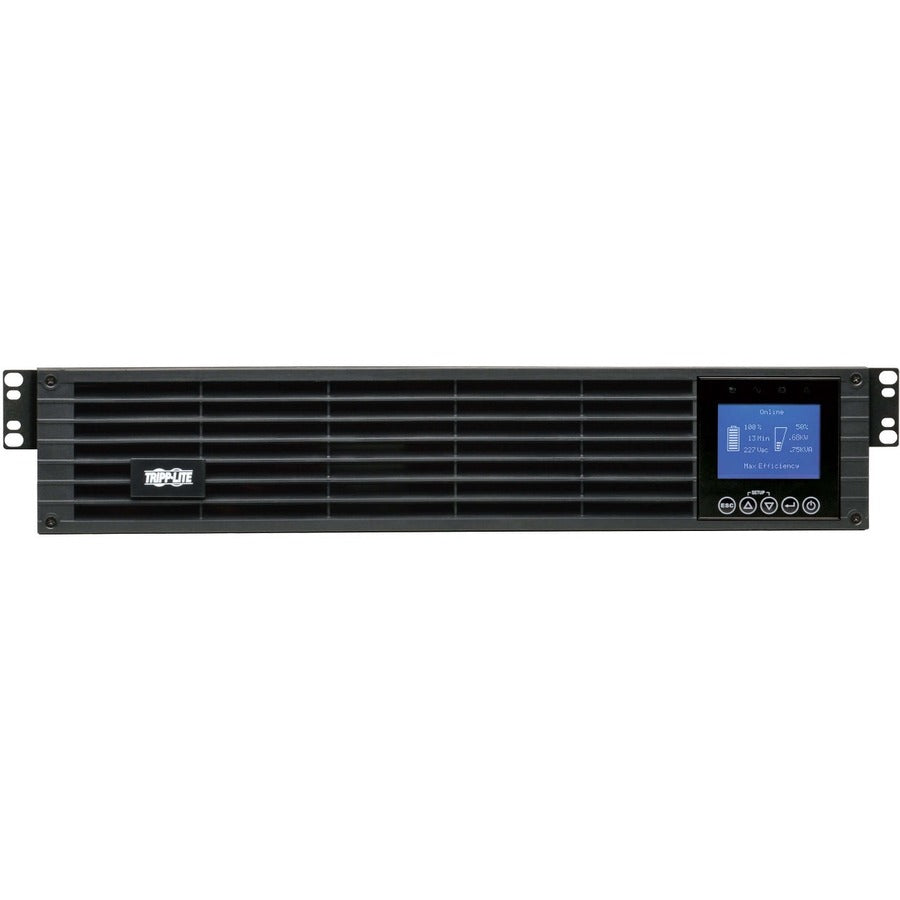

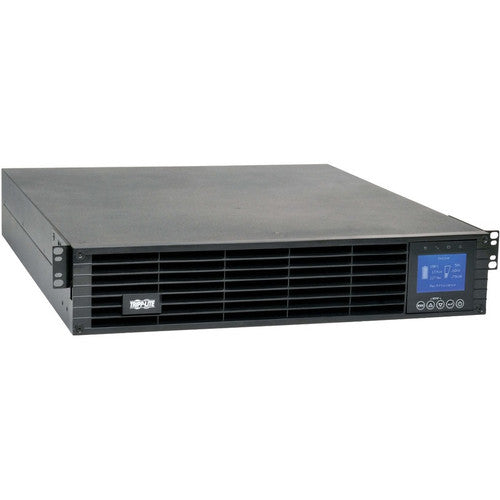

Tripp Lite by Eaton SmartOnline SUINT3000LCD2UN 3000VA Rack-mountable UPS SUINT3000LCD2UN

Save $2,032.03
Tripp Lite by EatonSKU: SUINT3000LCD2UN

Price:
Sale price$3,087.99 Regular price$5,120.02
Stock:
Sold out

Description

Double-Conversion UPS Protects Equipment against Damage, Downtime and Data Loss

This 200/208/220/230/240V 50/60 Hz UPS system maintains perfect output by converting AC input to DC, then reconverting UPS output to fully regulated sine wave AC with +/-2% voltage regulation in online and battery modes. Featuring a 2.7kW capacity, high 0.9 power factor, 570 joules of surge suppression, true on-line operation with pure sine wave output and zero transfer time to battery mode in on-line double-conversion mode, the SmartOnline® SUINT3000LCD2UN double-conversion UPS provides the highest level of AC power protection and battery backup for critical network closet, computer room and data center equipment.

Set Power Strategies to Reflect Your Protection Priorities

Pick your power strategy, from precise power for sensitive systems to the highest possible electrical efficiency, while ensuring 100% uptime. Choose from five selectable strategies: Max Efficiency, Max Quality, Frequency Regulation, Frequency Conversion and Auto Adaptive, which automatically offers increased efficiency when power conditions are good and enhanced power quality when power conditions are poor.

Individually Controllable Load Banks Let You Access and Control Outlets Remotely

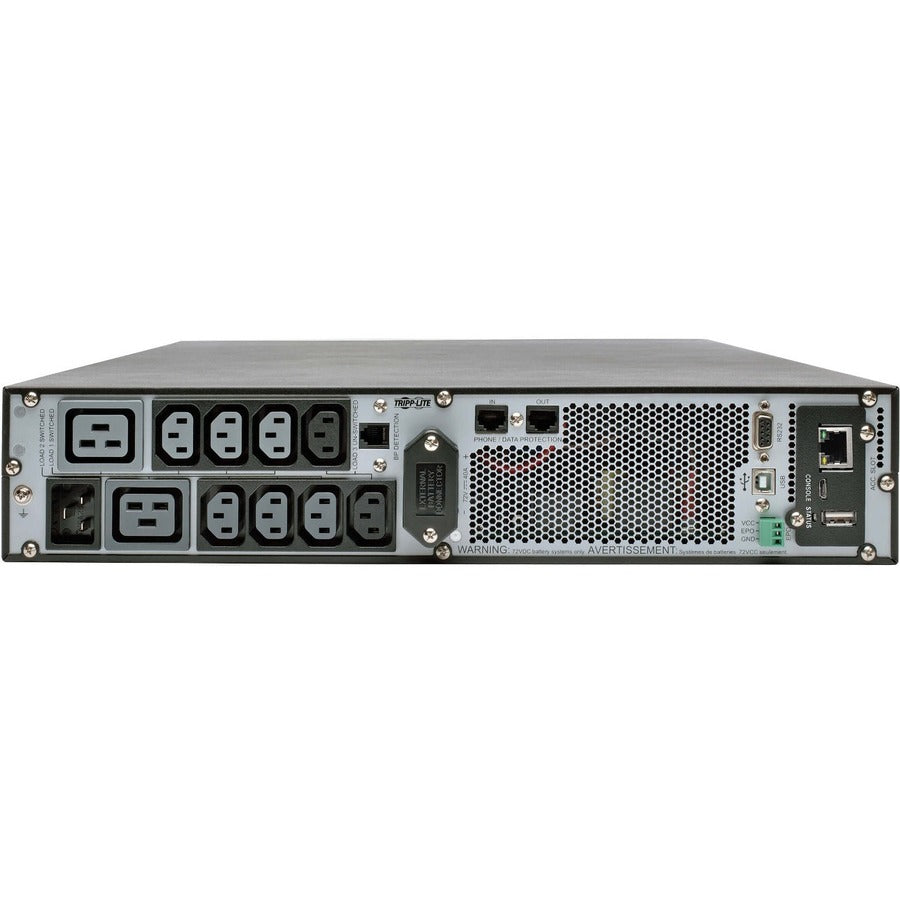

Six C13 and two C19 outlets are split into two switchable load banks, allowing you to reboot select components or shed loads remotely. In addition to those eight outlets, this UPS provides two more C13 outlets in their own unswitched bank for powering critical components.

Reliable, Expandable Battery Backup Keeps You Operational Through Power Outages

The field-replaceable, hot-swappable internal battery (RBC72S) provides 13.5 minutes of support at half load (1350W) and five minutes at full load (2700W), keeping protected equipment operational through power failures. For mission-critical applications demanding scalable extended runtime, the UPS supports "smart" external battery packs, such as Tripp Lite's BP726V18-2US (sold separately). Both the internal and external batteries are automatically sensed and configured during replacement to offer accurate runtime-remaining and battery age notifications during outages. The intelligent battery management system with temperature-compensated charging extends battery life.

Automatic Bypass Maintains Utility Output During Fault Conditions

Auto-bypass mode keeps connected equipment powered and operational, even during UPS fault conditions.

ENERGY STAR-Certified Economy Mode Helps You Save Money and Protect the Environment

By meeting strict EPA efficiency guidelines, this ENERGY STAR-certified UPS system helps you save money and energy. A power-saving Economy mode setting option offers enhanced efficiency and reduced BTU output when utility power is already high quality.

Automatically Turns Back On After Power Is Restored

Battery-independent restart ensures automatic UPS power-up without user interaction after lengthy power outages, even when batteries are expired and require replacement.

Intuitive Front-Panel Interface for Convenient UPS Operation and Monitoring

The front-panel LCD screen reports UPS operating mode, detailed UPS status and site-power information, as well as a variety of advanced UPS setup and configuration options. LEDs indicate AC input/output, battery and fault status.

Advanced Communications Ports Allow for Automatic Saves and Shutdowns

RS-232 and HID-compliant USB ports connect to a computer running Tripp Lite's free downloadable PowerAlert® software to enable safe unattended file saves and system shutdown in case of a prolonged power failure.

  • Offers network-grade protection against power failures and voltage fluctuations
  • Zero transfer time between on-line and battery modes for uninterrupted operation
  • Optional external battery packs provide additional runtime for applications requiring it
  • Included WEBCARDLX network interface allows you 24/7 remote access from anywhere
  • ENERGY STAR-certified to save electricity, lower costs, and protect the environment
  • 2-year limited warranty
  • $250,000 Ultimate Lifetime Insurance
. .
  • Receptacle Detail : 8 x IEC 60320 C13,2 x IEC 60320 C19
  • Phase : Single Phase
  • DC System Voltage : 72 V DC
  • Network Management : SNMP/HTTP Remote Monitoring
  • Serial Port : Yes
  • Form Factor : Rack-mountable
  • Energy Saving : Green Energy-Saving
  • Package Contents :
    • SmartOnline SUINT3000LCD2UN 3000VA Rack-mountable UPS
    • WEBCARDLX Network Interface Card
    • USB Cable
    • RS-232 Cable
    • EPO Cable
    • C19-to-C20 Power Cable
    • 2 x C13-to-C14 Power Cables
    • 4-post Rack-mounting Hardware
    • Owner's Manual
  • Manufacturer Website Address : https://tripplite.eaton.com/
  • Backup/Run Time (Full Load) : 5 Minute
  • Load Capacity : 3 kVA/2.70 kW
  • Energy Star : Yes
  • Manufacturer : Tripp Lite by Eaton
  • Product Model : SUINT3000LCD2UN
  • Maximum Operating Temperature : 104°F (40°C)
  • Backup/Run Time (Half Load) : 13.50 Minute
  • Rack Height : 2U
  • Output Frequency : 60 Hz
  • Storage Temperature : 5°F (-15°C) - 122°F (50°C)
  • Receptacle Type : IEC 60320 C13,IEC 60320 C19
  • Environmentally Friendly : Yes
  • EMI/RFI Noise Filter : Yes
  • EPO Port : Yes
  • Input Voltage : 230 V AC
  • Transfer Time : 0 ns
  • Limited Warranty : 2 Year
  • Typical Battery Recharge Time : 3 Hour
  • Waveform Type : Pure Sine Wave
  • Overload Protection : Yes
  • Plug/Connector Type : IEC 60320 C20
  • Product Type : Double Conversion Online UPS
  • Surge Energy Rating : 570 J
  • Dataline Protection : RJ-11,RJ-45
  • Replaceable Battery : Yes
  • Alarm : UPS StartUp,Power Failure,Low Battery,Overload,UPS Fault,Remote Shutdown
  • Application/Usage : Mission Critical Equipment,Data Center,Computer Room,Network Closet,Server
  • Hot Swappable : Yes
  • USB (HID Compliant) Port : Yes
  • Output Voltage : 200 V AC,208 V AC,220 V AC,230 V AC,240 V AC
  • Country of Origin : China
  • Status Indicators :

    4 Front Panel LEDs:

    • AC input (Green)
    • AC output (Green)
    • Battery (Yellow)
    • Fault (Red)

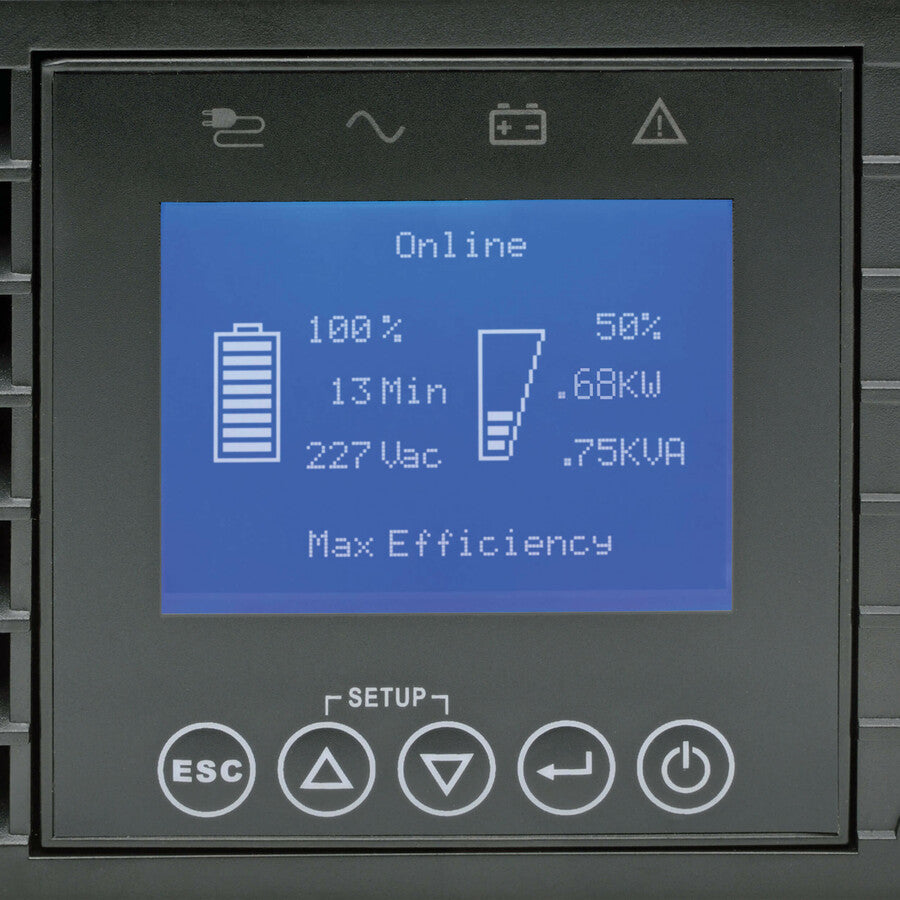

    Front Panel LCD Display:

    • Interactive Front-panel LCD Interface Reports UPS Operating Mode
    • Detailed UPS Status And Site-power Information
    • LCD Interface Also Enables A Variety Of Advanced UPS Setup And Configuration Options
  • Product Line : SmartOnline
