Description

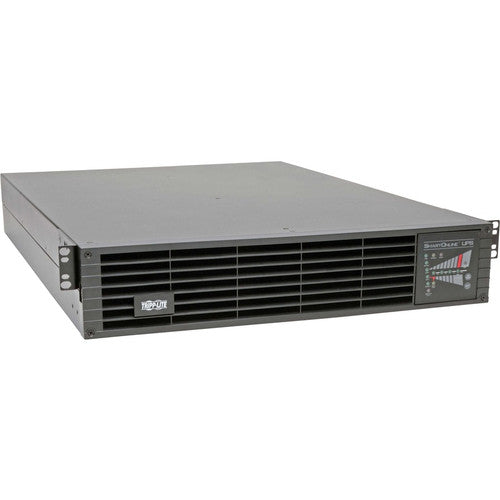

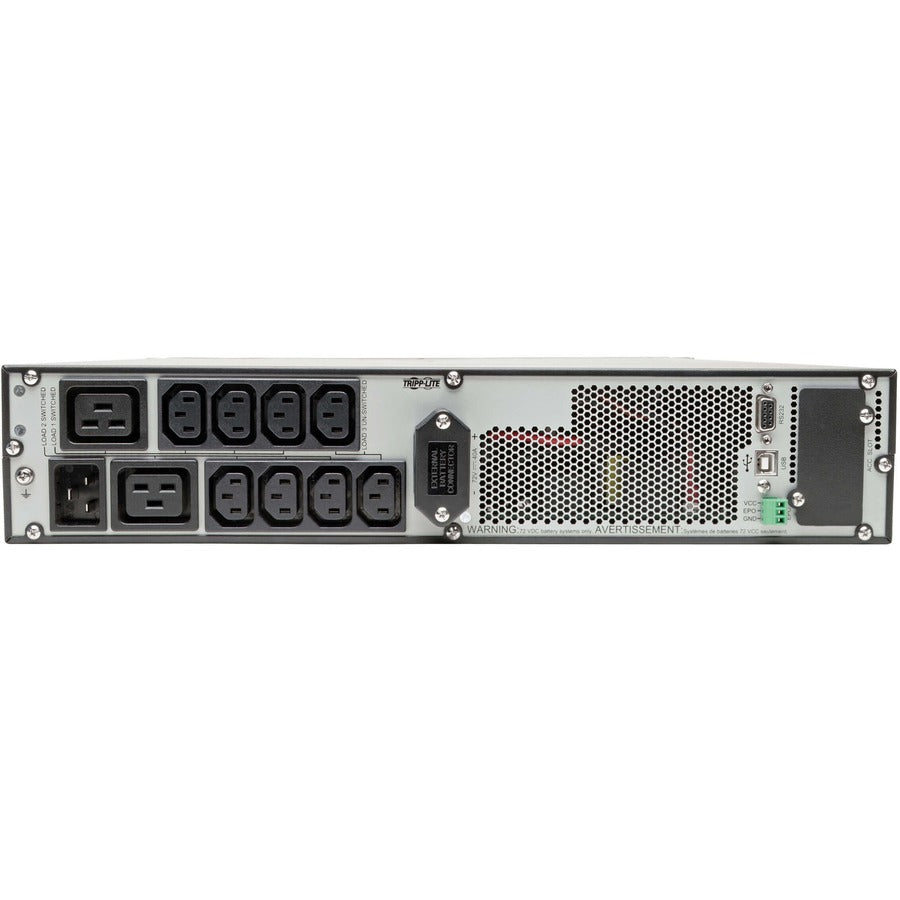

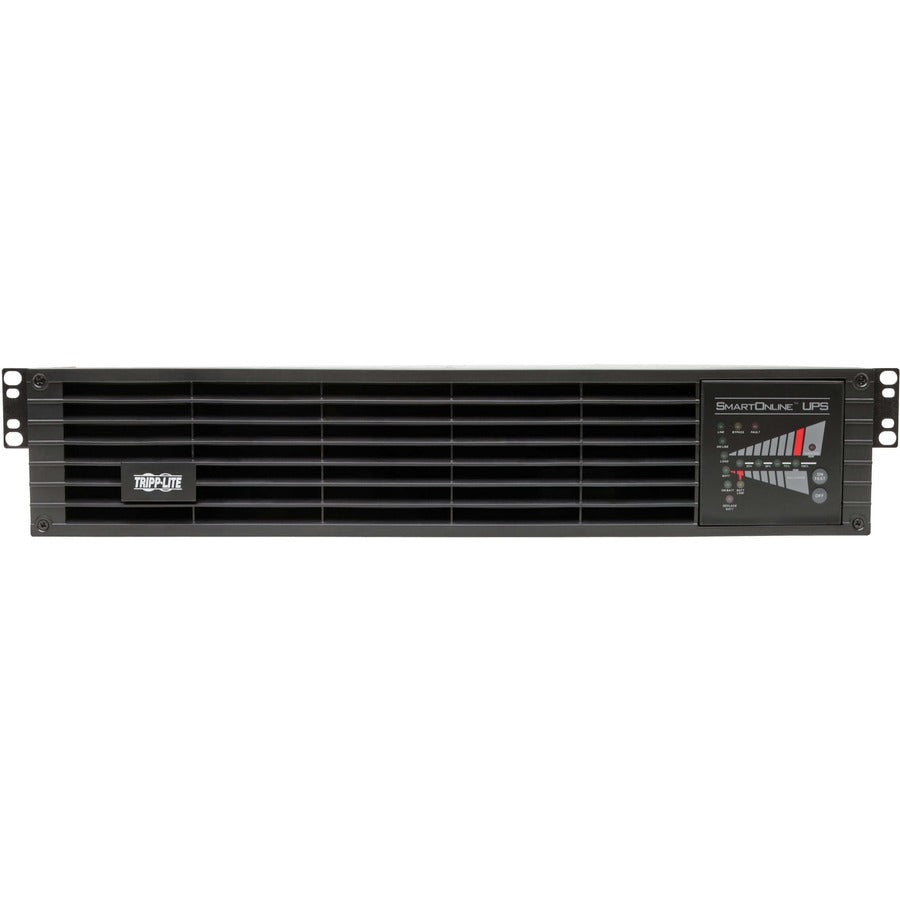

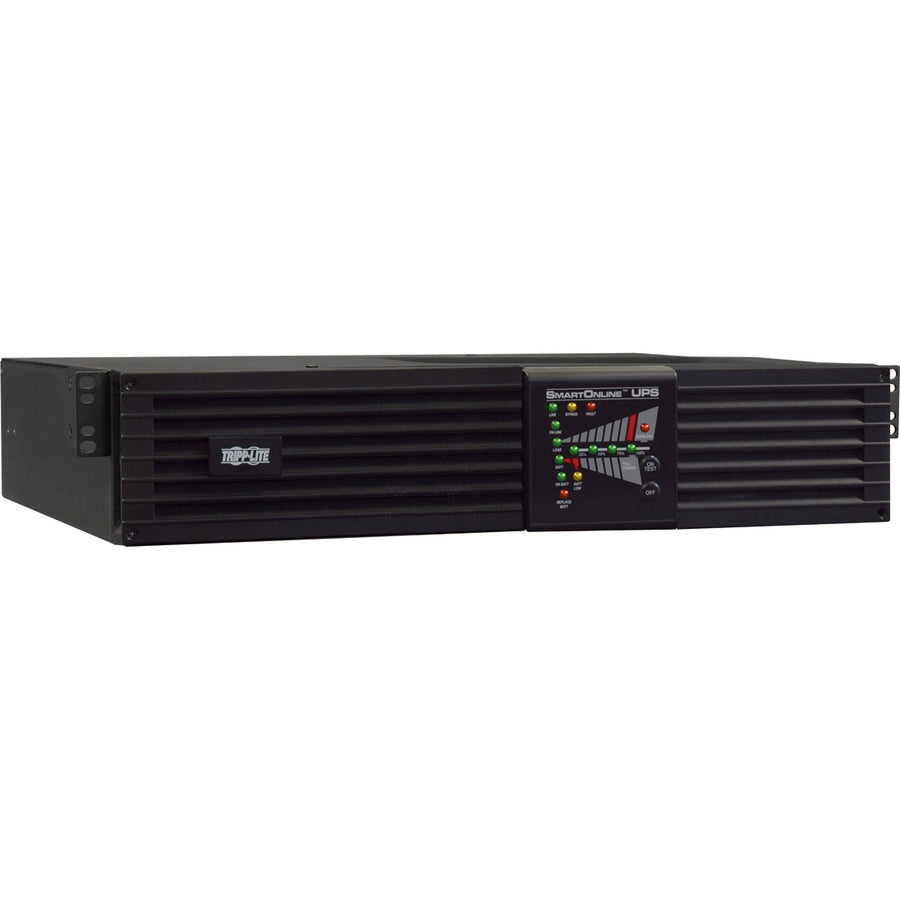

3000VA / 3kVA / 2500 watt on-line, double-conversion UPS system for critical server, network and telecommunications equipment. 2U rackmount form factor with an installed depth of only 66cm (26 inches). Full time sine wave 200/208/220/230/240V output with +/-2% voltage regulation. UPS actively converts raw incoming AC power to DC, then re-converts output back to completely regulated, filtered AC output. Operates continuously without using battery power during brownouts to 120V and overvoltages to 288V. C20 inlet accepts a wide variety of optional cordsets. C19 and C13 output receptacles. Network management interfaces include USB port, DB9 serial port and SNMPWEBCARD slot. Built-in DB9 port offers both enhanced RS-232 enabled monitoring data, plus contact closure monitoring ability. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Multi-stage metered current monitoring and battery charge status LEDs.
- USB, RS232 & EPO ports; support for SNMP/WEB card options
- Expandable runtime; Hot-swap batteries
- 200/208/220/230/240V 50/60Hz output; High efficiency economy mode option
- 3000VA / 3kVA / 2500 watt on-line double-conversion 2U rack / tower UPS
- Receptacle Detail : 10
- Environmentally Friendly : Yes
- Input Voltage : 220 V AC
- Transfer Time : 0 ns
- Limited Warranty : 2 Year
- Typical Battery Recharge Time : 4.80 Hour
- Form Factor : Rack/Tower

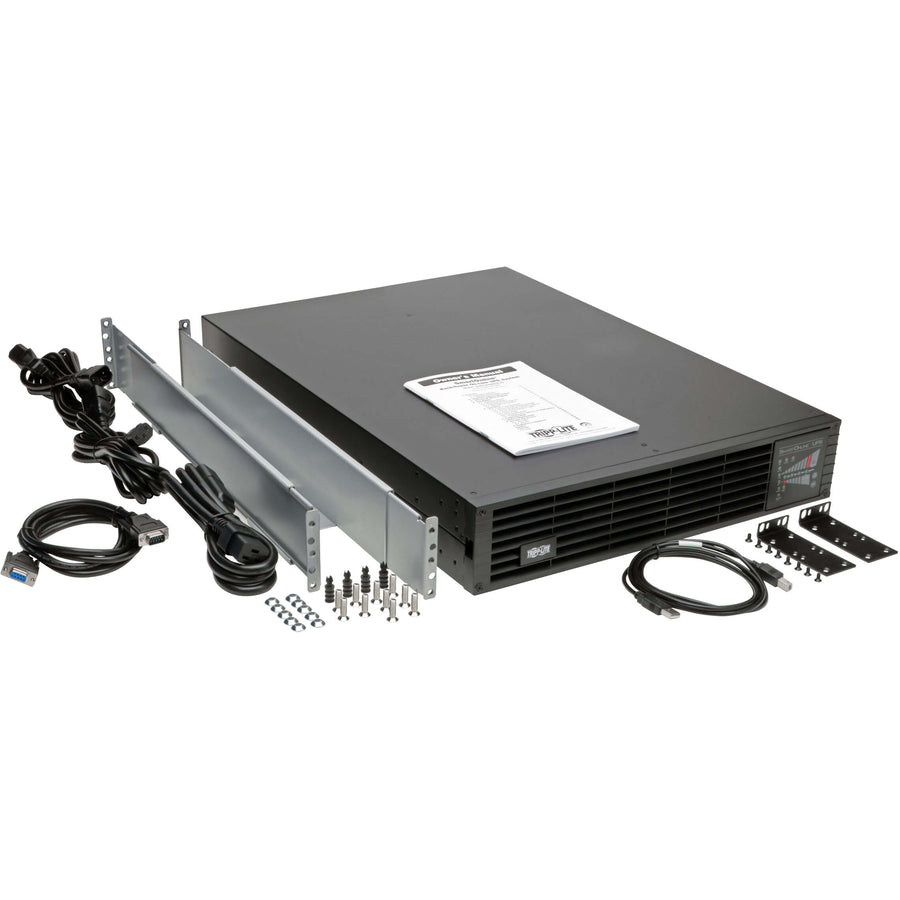

- Package Contents :
- SmartOnline SUINT3000RTXL2U 3000 VA Tower/Rack Mountable UPS

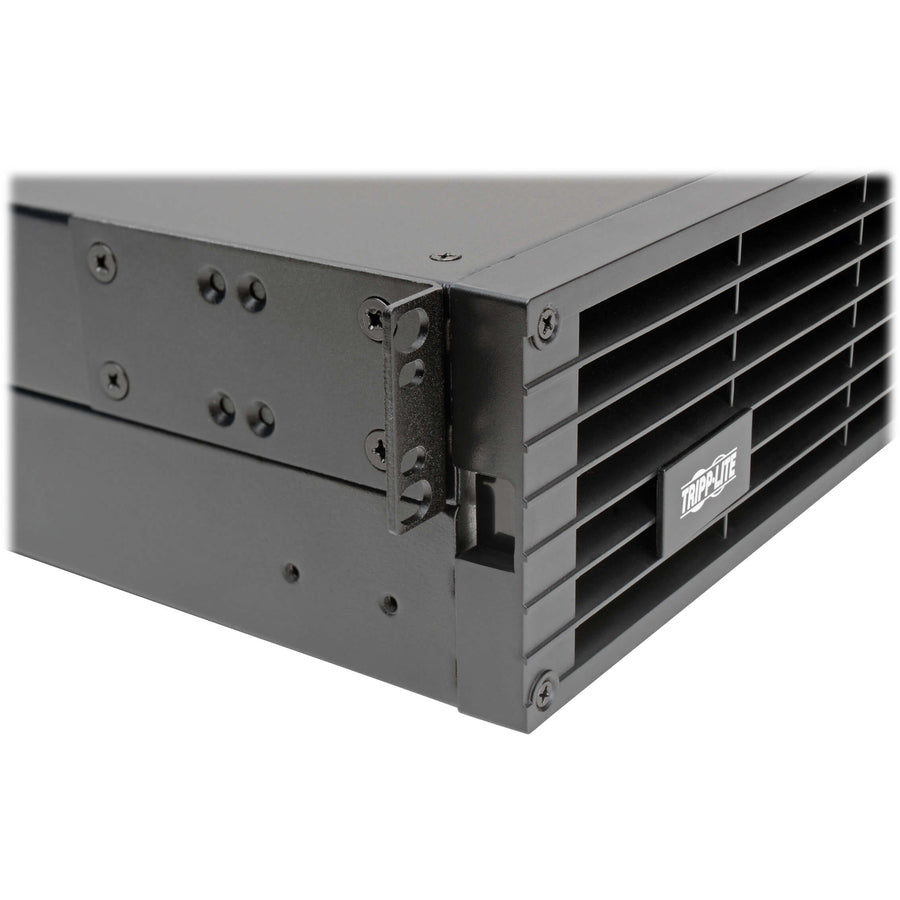

- 4 Post Rackmount Installation Brackets
- C19 to C20 Power Cable
- PowerAlert Software CD
- USB Cable
- Serial Cable
- Owner's Manual with Warranty Information
- Backup/Run Time (Full Load) : 6 Minute
- Product Type : Double Conversion Online UPS
- Load Capacity : 3 kVA/2.50 kW
- Manufacturer : Tripp Lite by Eaton
- Product Model : SUINT3000RTXL2U
- Hot Swappable : Yes
- Output Voltage : 240 V AC,208 V AC,220 V AC,230 V AC
- Backup/Run Time (Half Load) : 15 Minute
- Rack Height : 2U
- Country of Origin : China
- Product Line : SmartOnline
- Software Included : PowerAlert Software
- Network Management : SNMP Manageable
- Serial Port : Yes
- USB : Yes
- Manufacturer Website Address : https://tripplite.eaton.com/
- Input Current : 15 A
