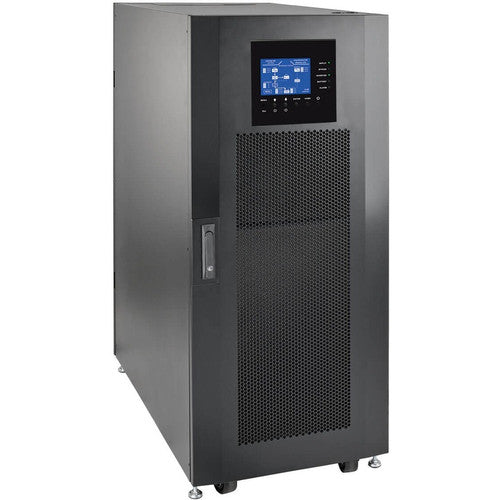

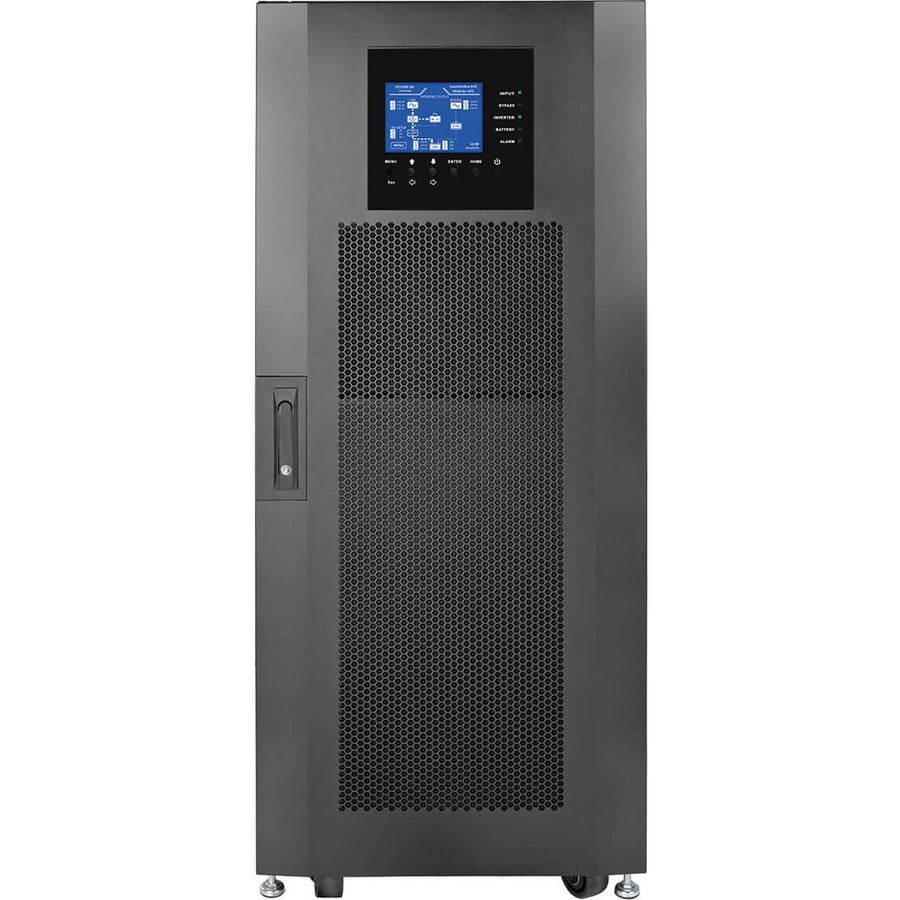

The SV20KS1P1B SmartOnline® SV Series 20kVA Small-Frame 3-Phase On-Line Double-Conversion UPS System delivers true scalability and offers the highest level of secure, uninterrupted power protection. Featuring a modular, scalable design with high-efficiency voltage and frequency independent (VFI) operation, this on-line UPS system with a high 0.9 power factor is ideal for protecting a variety of critical IT systems.

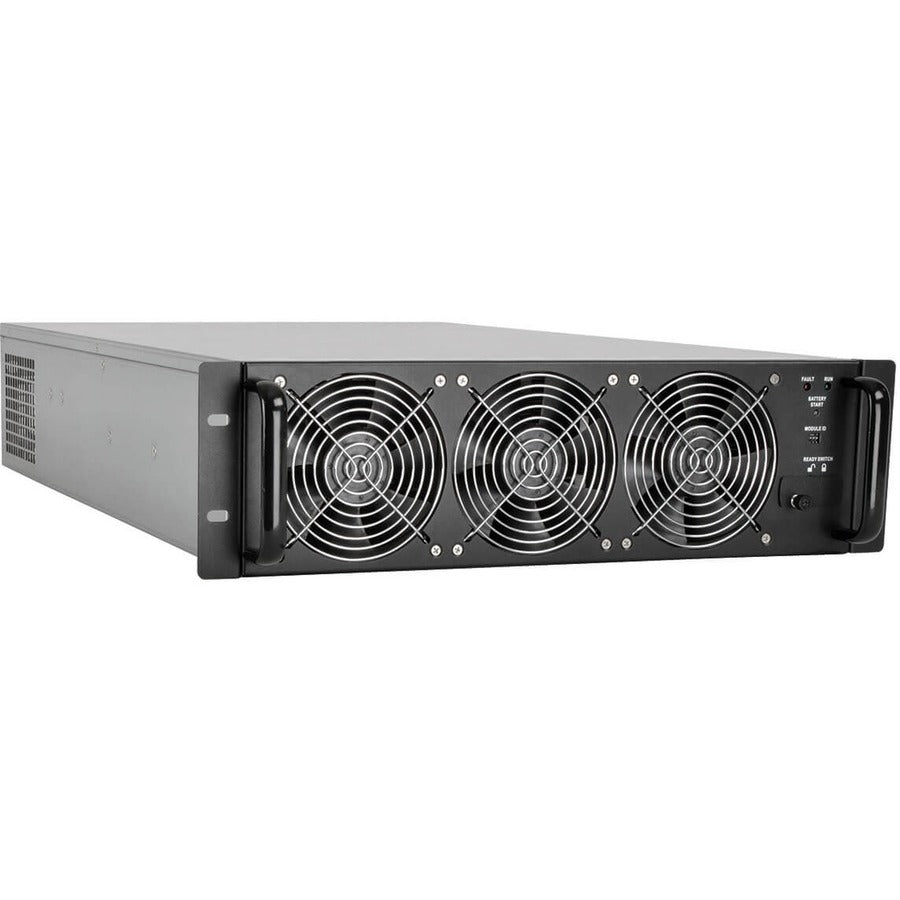

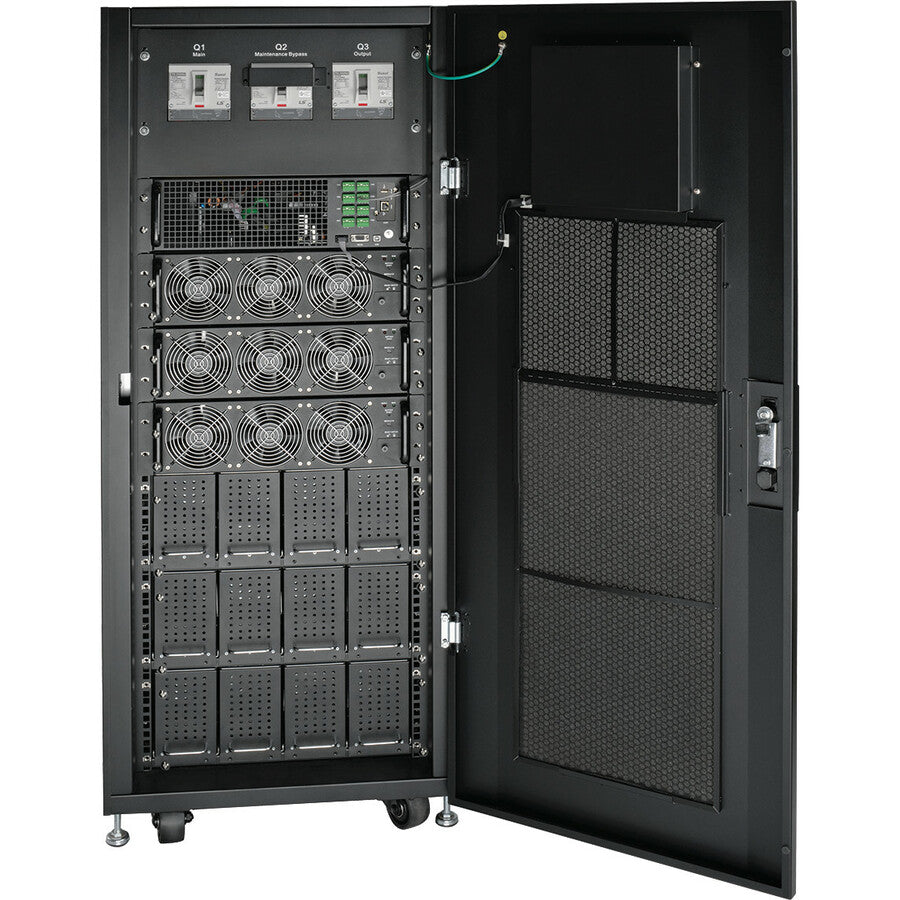

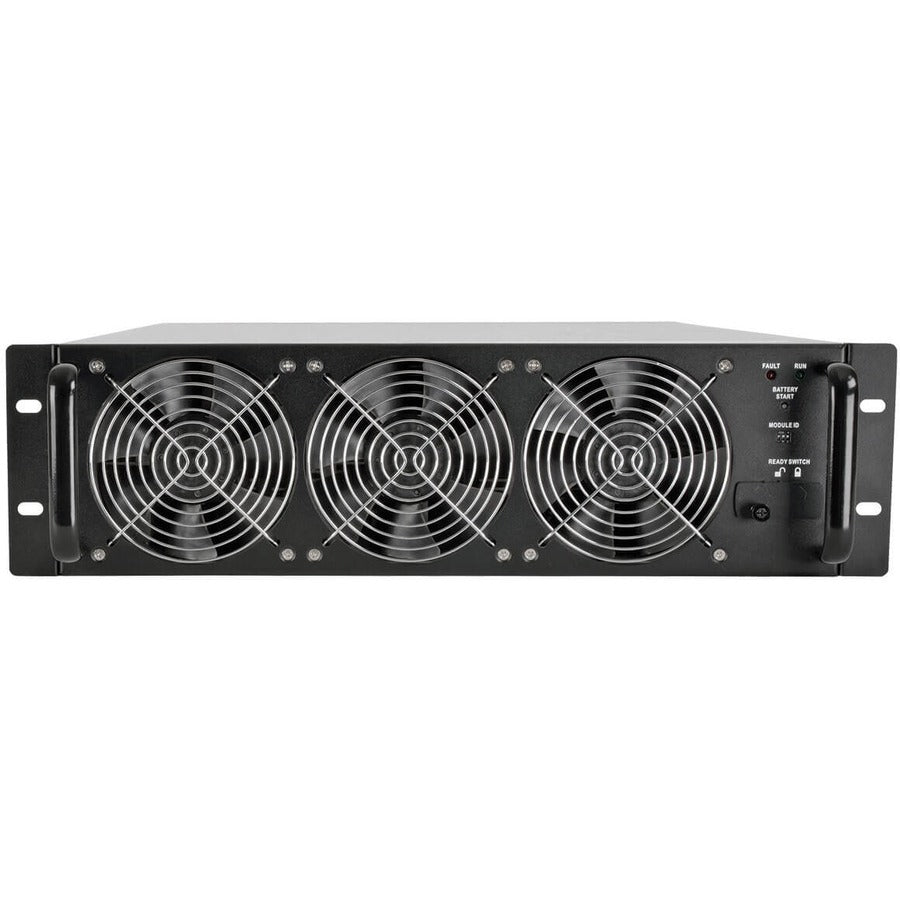

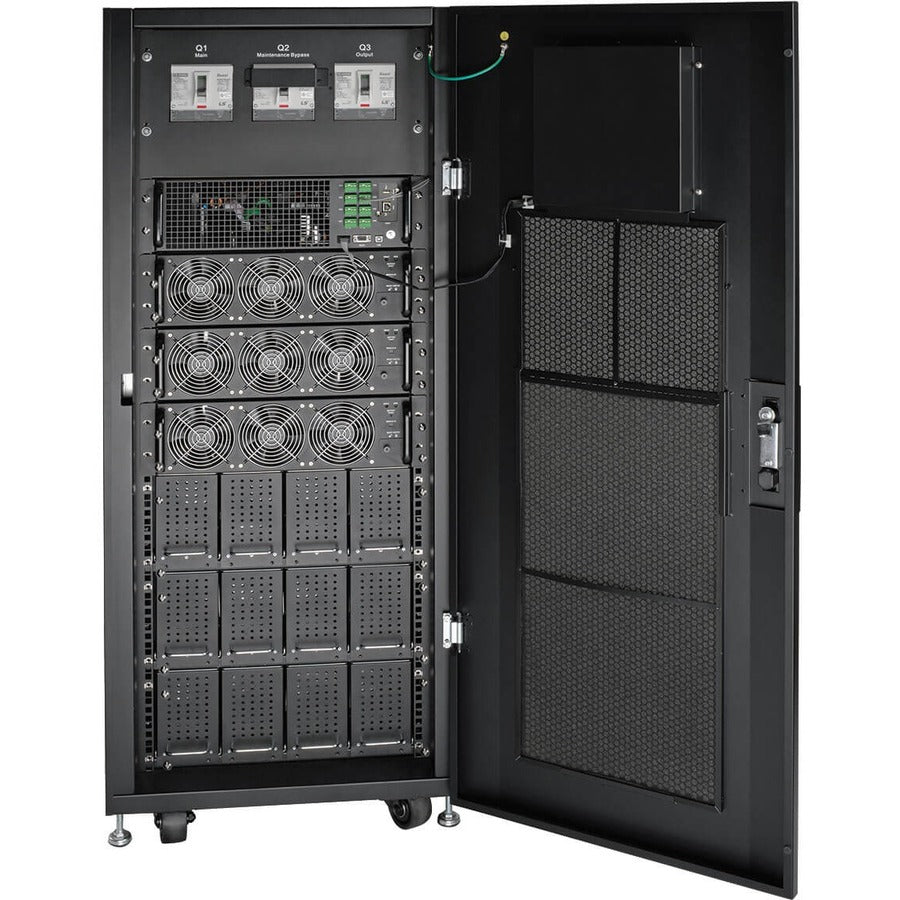

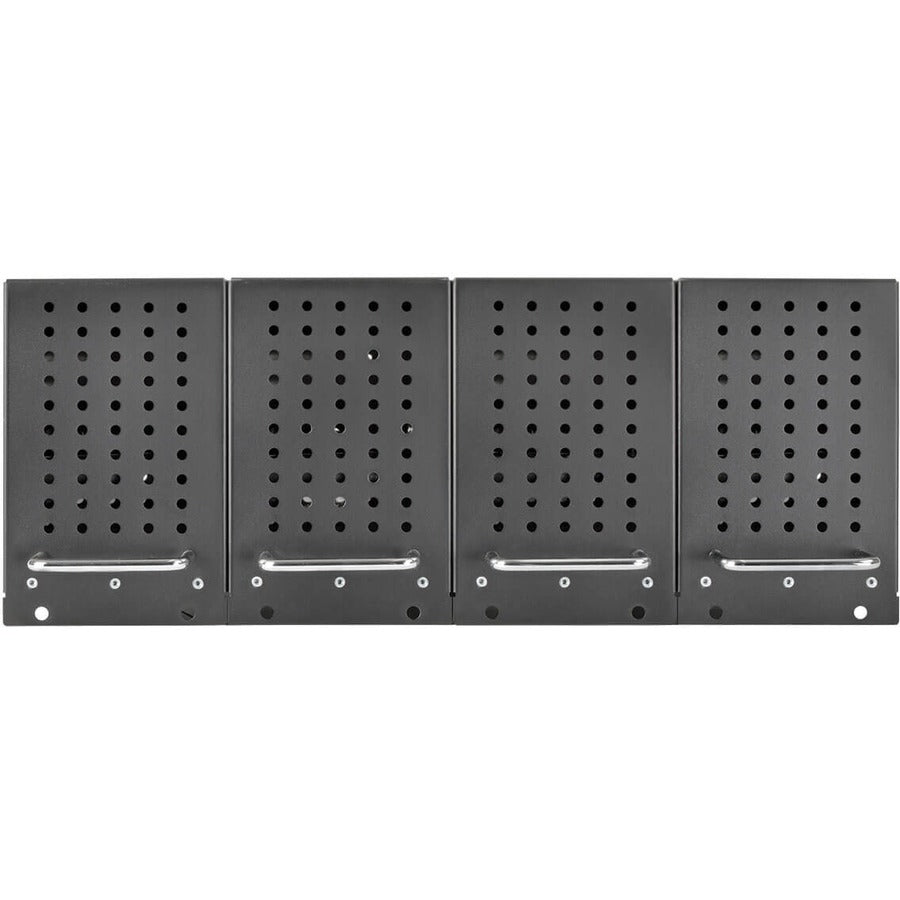

The SV20KS1P1B includes pre-installed input, bypass and output breakers, as well as a static transfer switch (STS), one 20kVA SV20PM power module and one SVBM battery module. Space is included for up to two additional user-installable SV20PM power modules and two SVBM internal battery modules. External ±120VDC battery options, such as BP240V370, are also available from Tripp Lite for even more extended runtime.

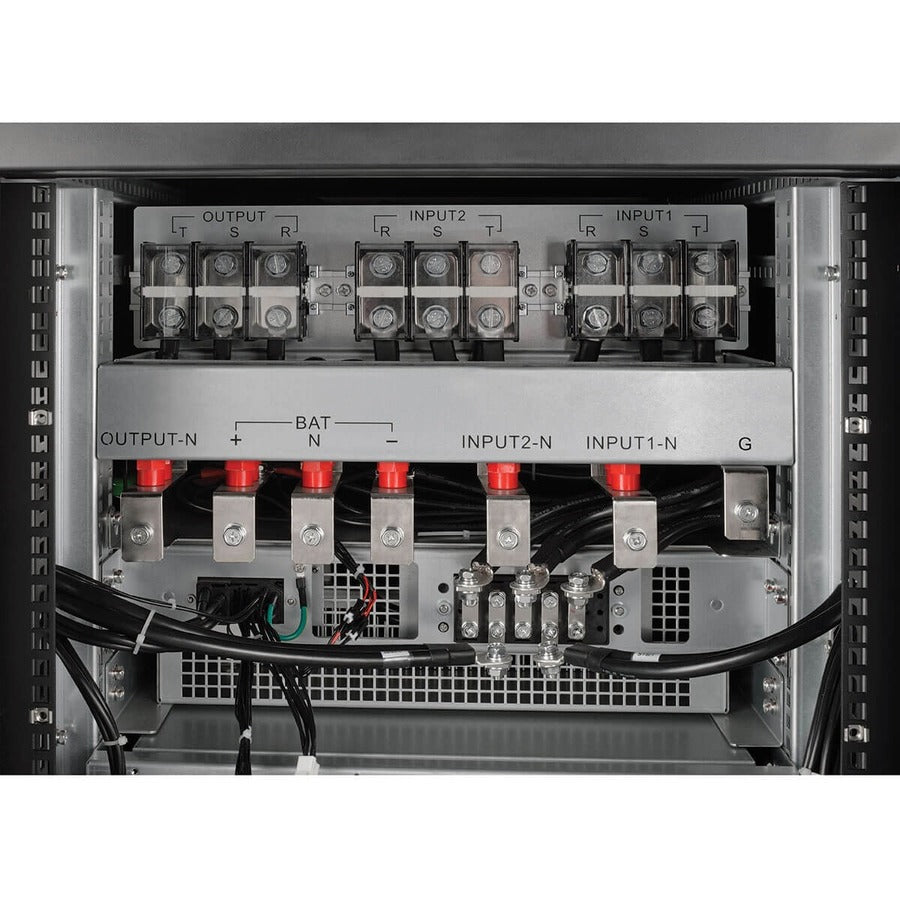

- Receptacle Type : Hard Wire 4-wire (3P + N + E)
- Phase : Three Phase
- Environmentally Friendly : Yes

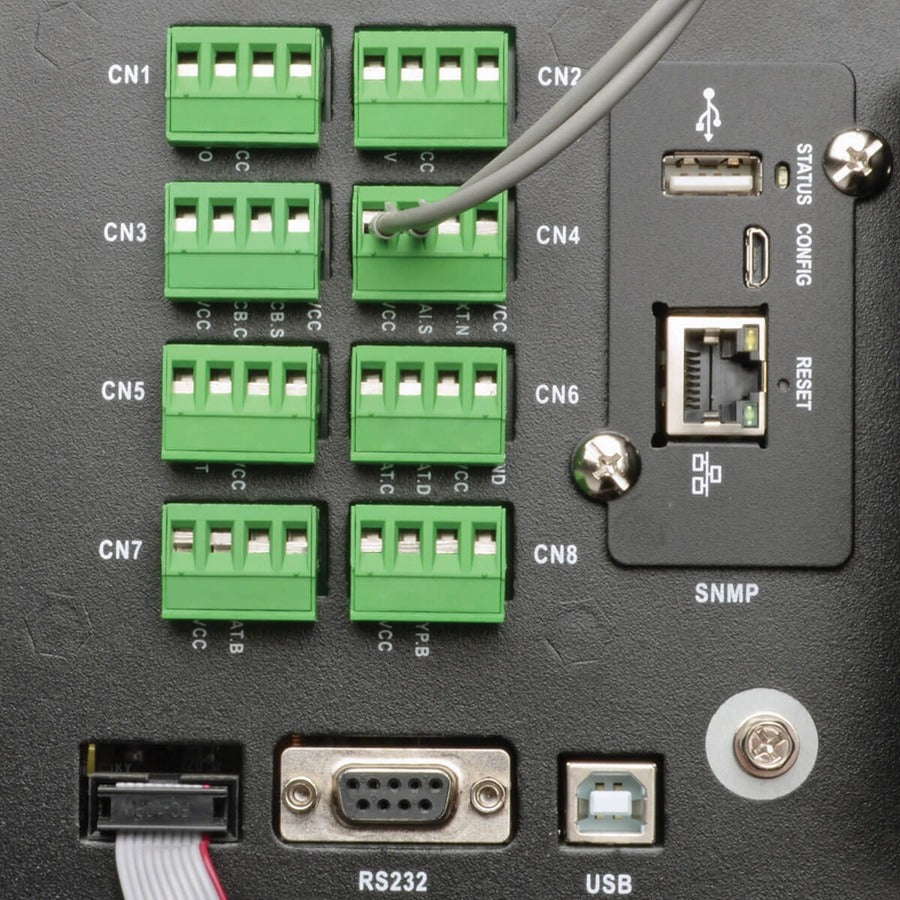

- Network Management : SNMP Manageable,SSH,Telnet
- Input Voltage : 120 V AC,230 V AC
- Product Series : SV
- Limited Warranty : 1 Year
- Waveform Type : Pure Sine Wave
- Form Factor : Tower
- Package Contents :
- SmartOnline SV 20KVA Tower UPS
- Pre-installed WEBCARDLX Network Interface
- 1 x SV20PM 20kVA Power Module

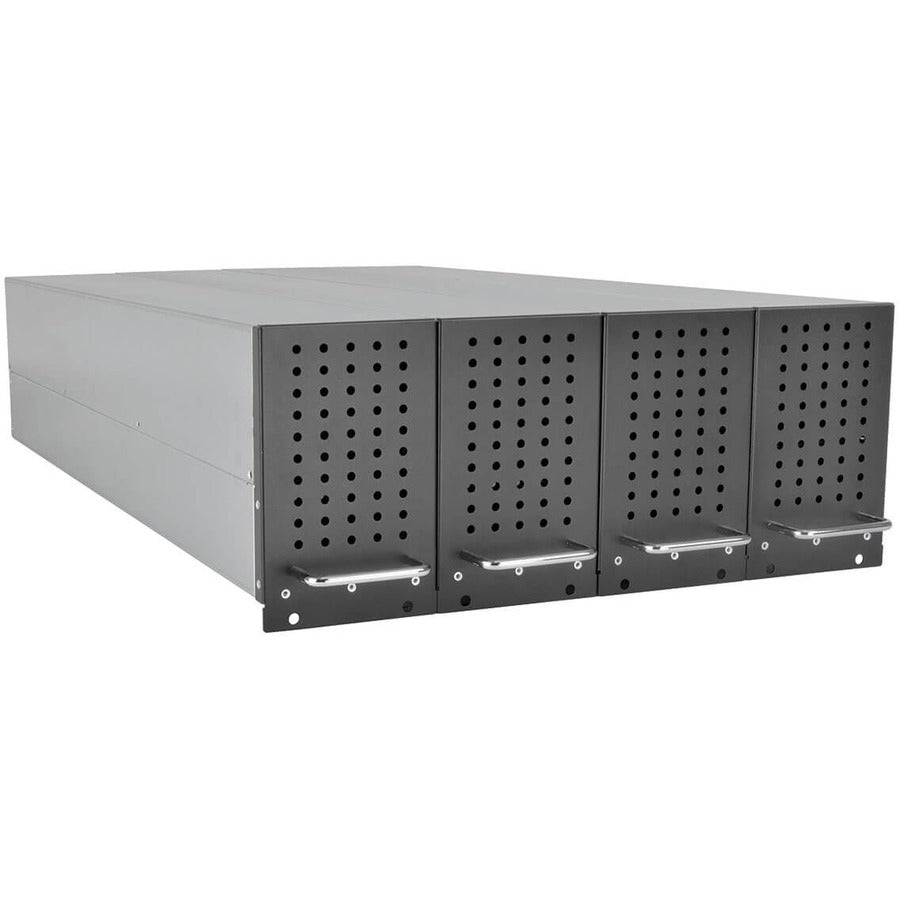

- 1 x SVBM Battery module
- DB9 Cabling
- Owner's Manual
- Backup/Run Time (Full Load) : 3.90 Minute
- Plug/Connector Type : Hardwired
- Product Type : Double Conversion Online UPS
- Load Capacity : 20 kVA
- Manufacturer : Tripp Lite by Eaton
- Input Voltage Range : 120 V AC - 220 V AC
- Output Voltage : 120 V AC,230 V AC
- Backup/Run Time (Half Load) : 8 Minute
- Country of Origin : China
- Product Line : SmartOnline
- Manufacturer Website Address : https://tripplite.eaton.com/
