Description

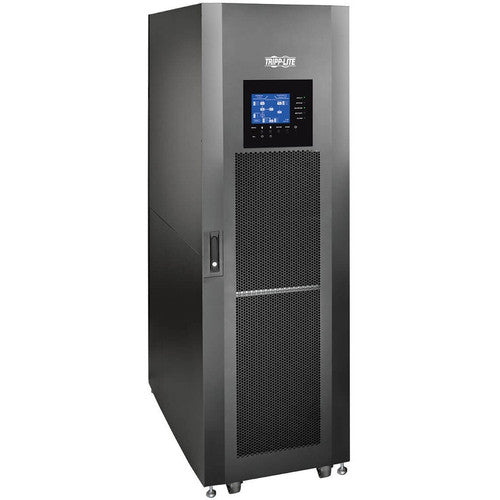

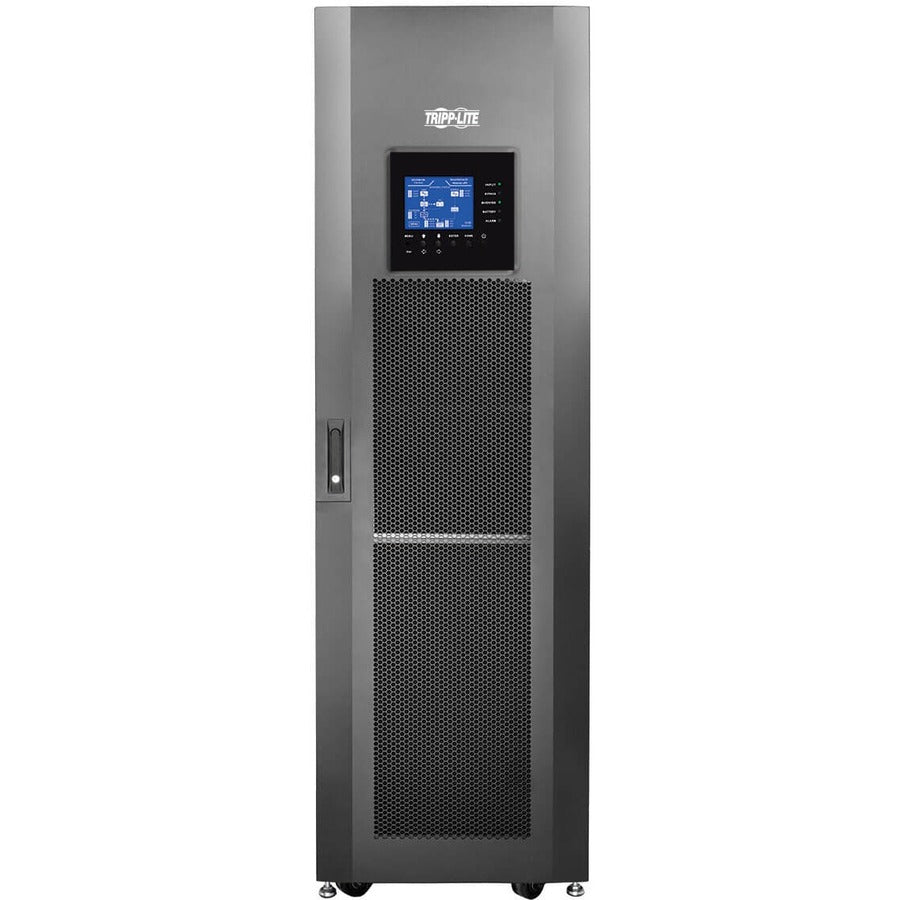

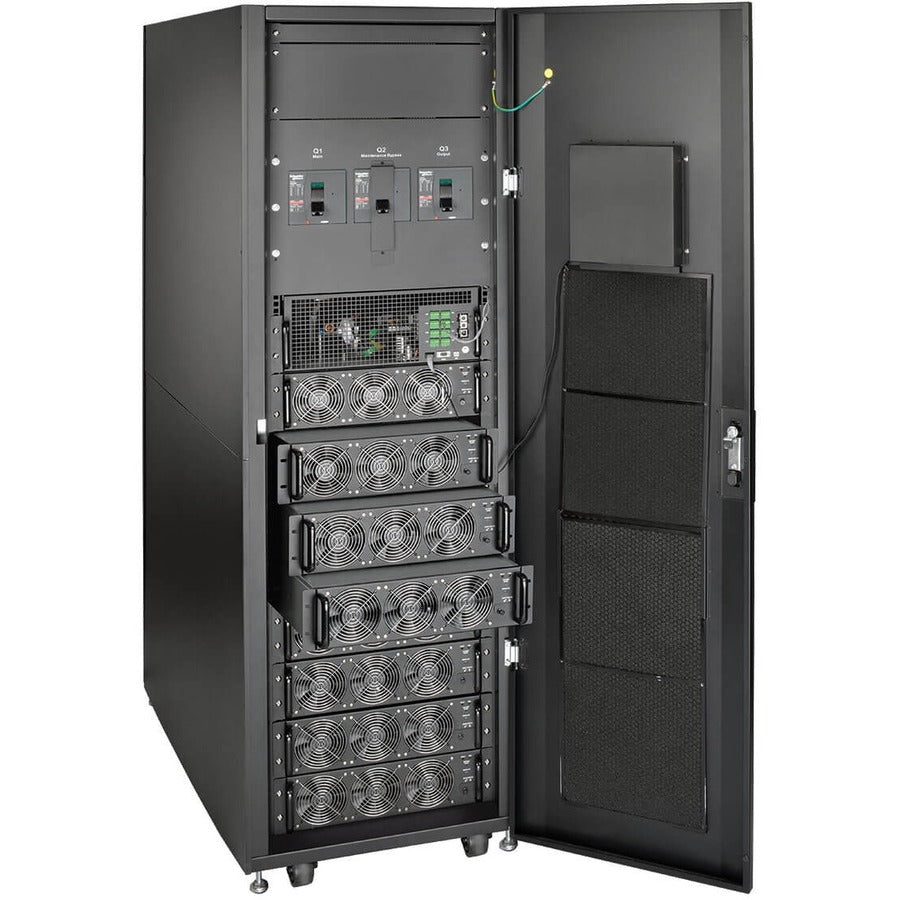

The SV140KL7P SmartOnline® SV Series 140kVA 3-Phase On-Line Double-Conversion UPS System delivers true scalability and offers the highest level of secure, uninterrupted power protection. Featuring a modular, scalable design with high-efficiency voltage and frequency independent (VFI) operation, this on-line UPS system is ideal for protecting a variety of critical IT systems.

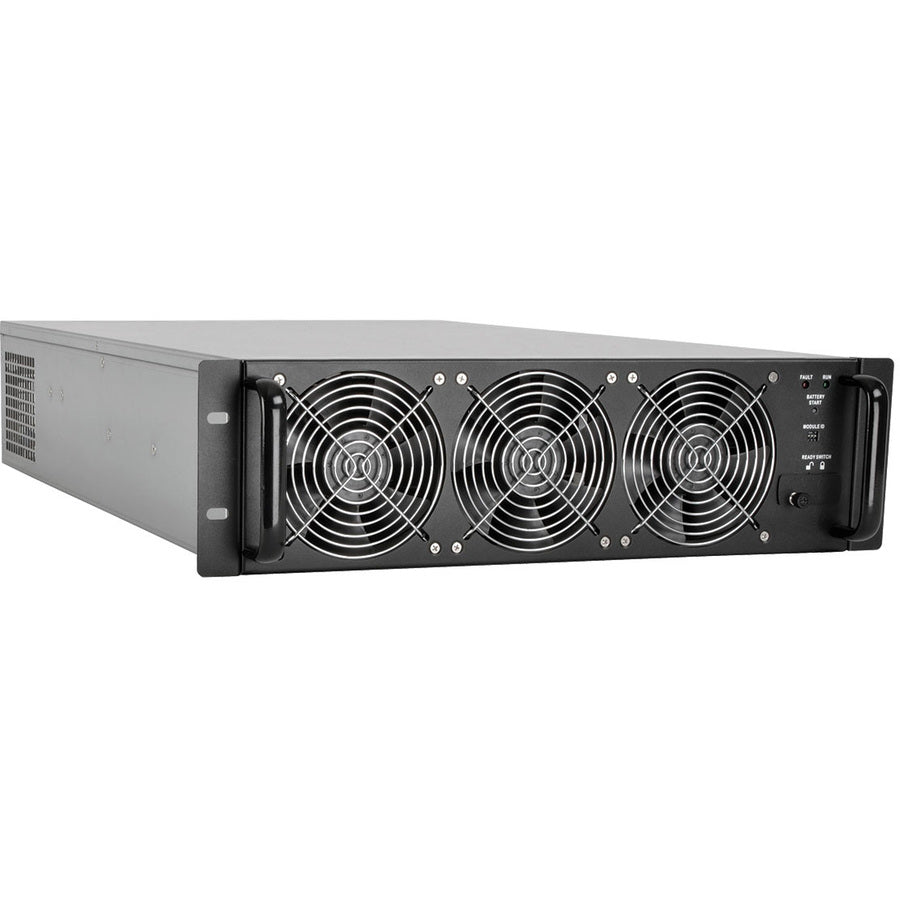

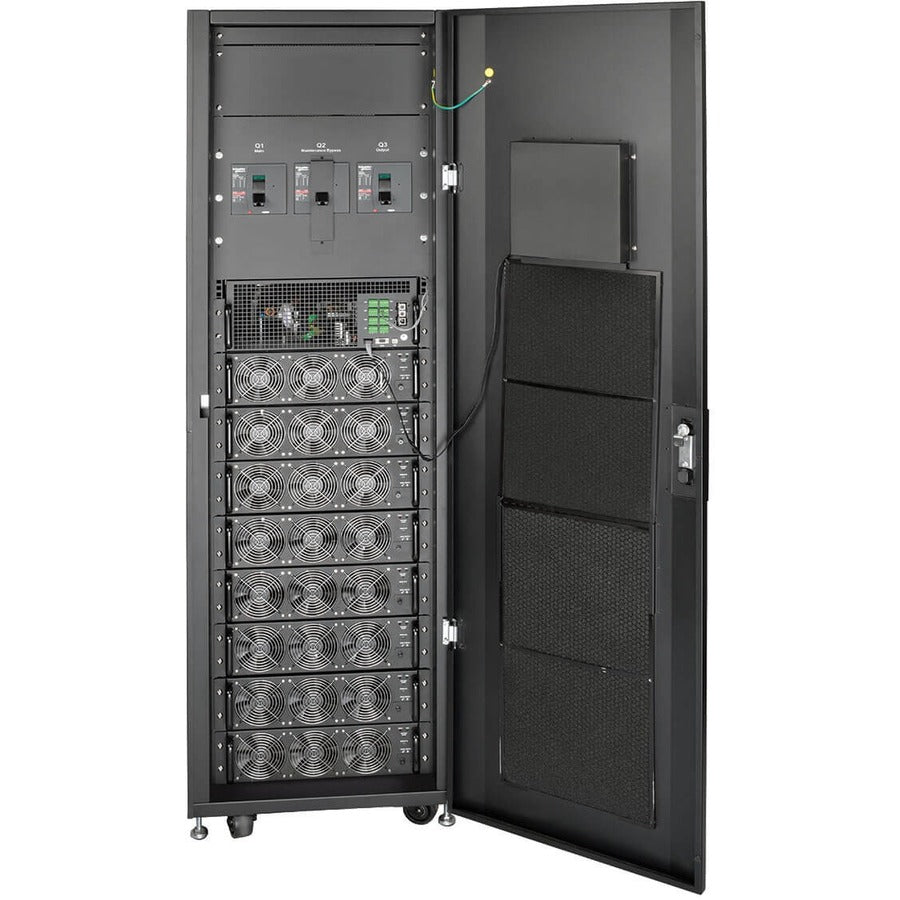

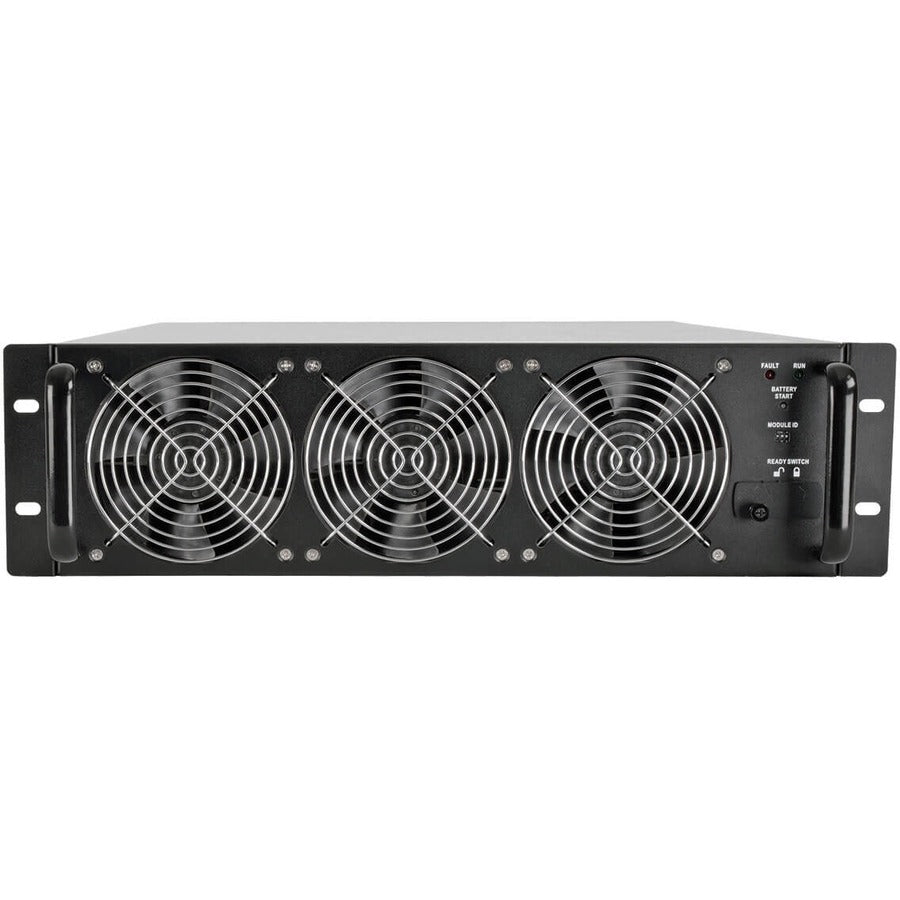

The SV140KL7P includes pre-installed input, bypass and output breakers, as well as a static transfer switch (STS) and seven included 20kVA SV20PM power modules. Space is included for one additional user-installable SV20PM power module for N+1 fault tolerance. Each power module is rated at 0.9 power factor for maximum power to the connected load.

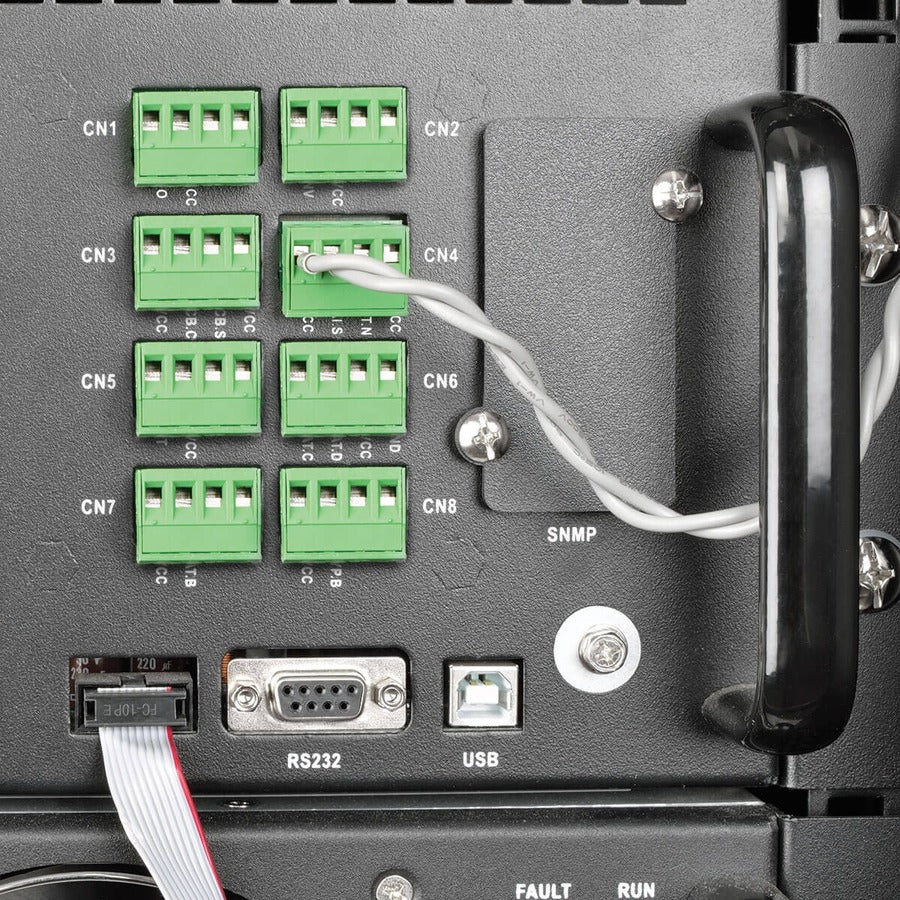

The Java-free HTML5-based WEBCARDLX interface enables full remote access for site power and UPS status monitoring, configuration, control and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network.
With up to 92% efficiency in standard mode and up to 99% efficiency in optional economy mode, this 140kVA UPS system helps you reduce operating and cooling costs. Automatic and manual bypass options keep connected equipment operational during routine maintenance or critical power module failure. Batteries are not included. External ±120VDC battery cabinets, such as Tripp Lite's BP240V370, are sold separately.
- Receptacle Type : Hardwired
- Phase : Three Phase
- Environmentally Friendly : Yes
- Network Management : SNMP Manageable,SSH,Telnet
- Input Voltage : 120 V AC,230 V AC
- Product Series : SV
- Limited Warranty : 1 Year
- Waveform Type : Pure Sine Wave
- Form Factor : Tower
- Package Contents :
- SmartOnline SV140KL7P 140kVA Tower UPS
- Pre-installed network interface
- 7 X SV20PM 20kVA power modules
- Owner's manual
- DB9 Cable
- Plug/Connector Type : Hardwired
- Product Type : Double Conversion Online UPS
- Load Capacity : 140 kVA
- Manufacturer : Tripp Lite by Eaton
- Product Model : SV140KL7P
- Output Voltage : 120 V AC,230 V AC
- Country of Origin : China
- Product Line : SmartOnline
- Manufacturer Website Address : https://tripplite.eaton.com/
