Description

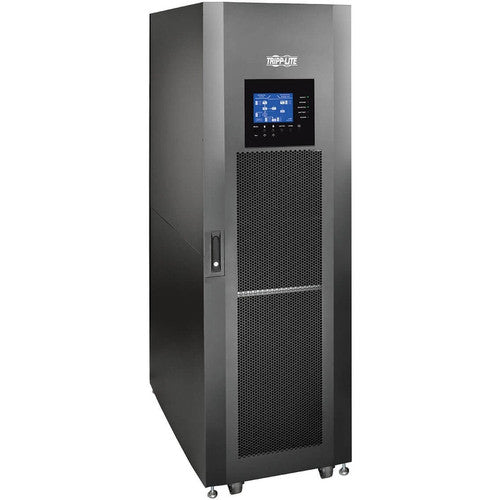

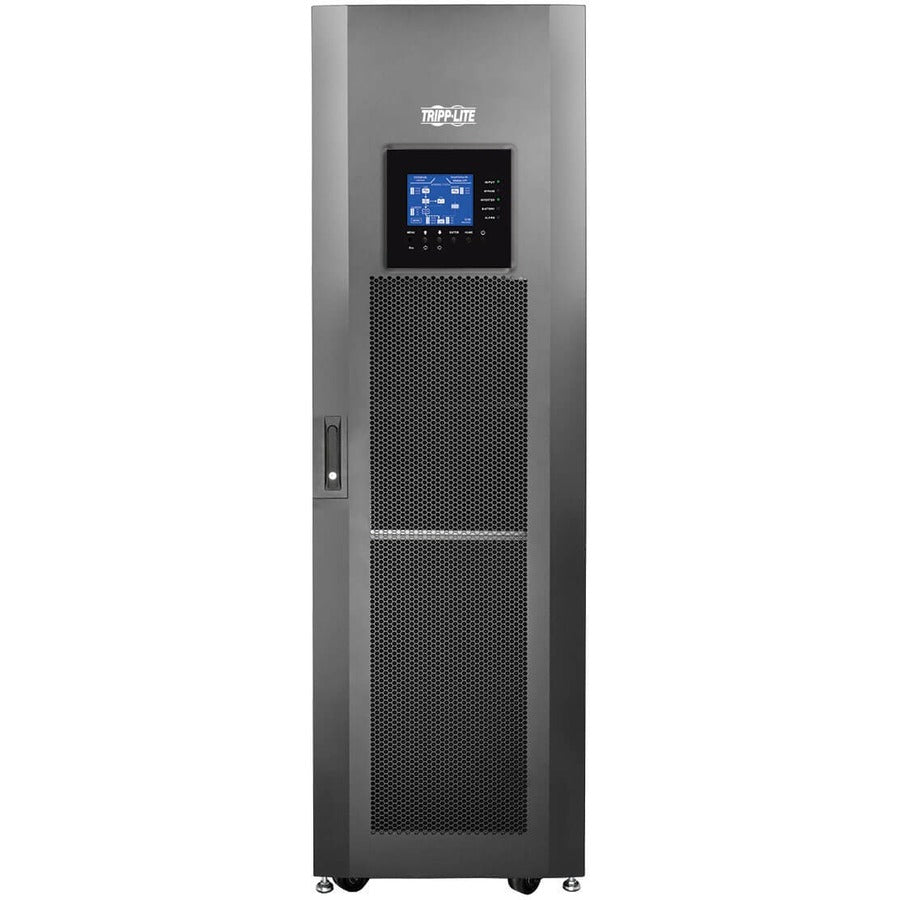

The SV40KM2P4B SmartOnline® SV Series 40kVA 3-Phase On-Line Double-Conversion UPS System delivers true scalability and offers the highest level of secure, uninterrupted power protection. Featuring a modular, scalable design with high-efficiency voltage and frequency independent (VFI) operation, this on-line UPS system is ideal for protecting a variety of critical IT systems.

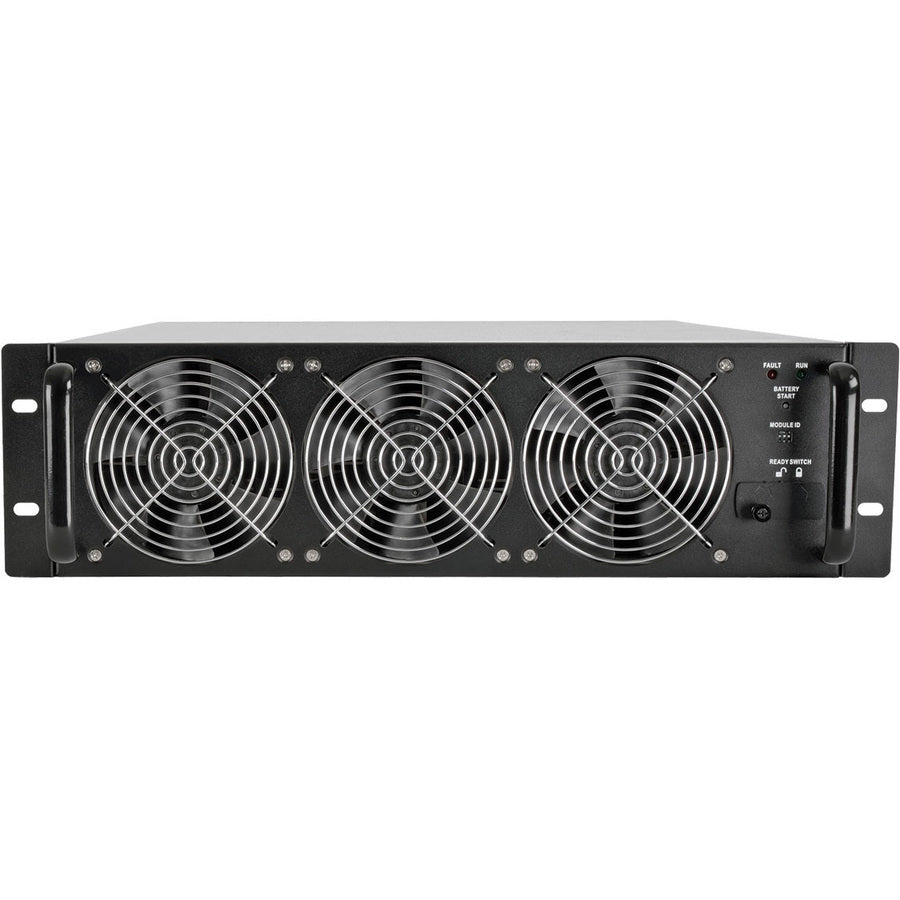

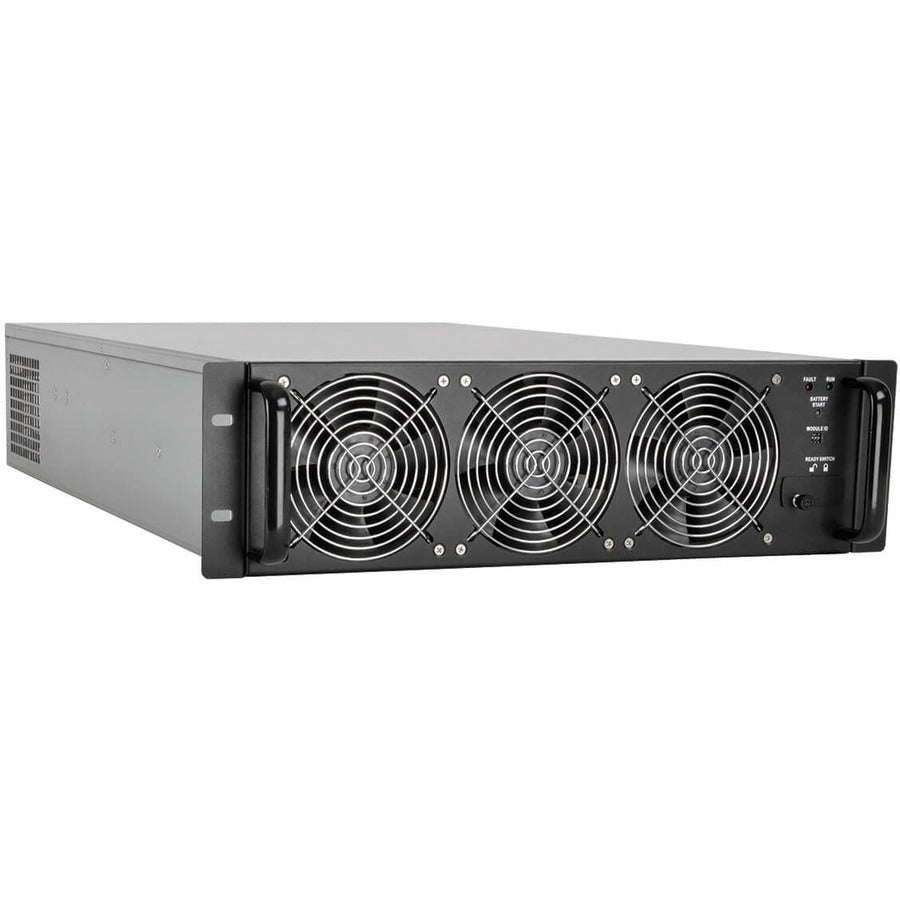

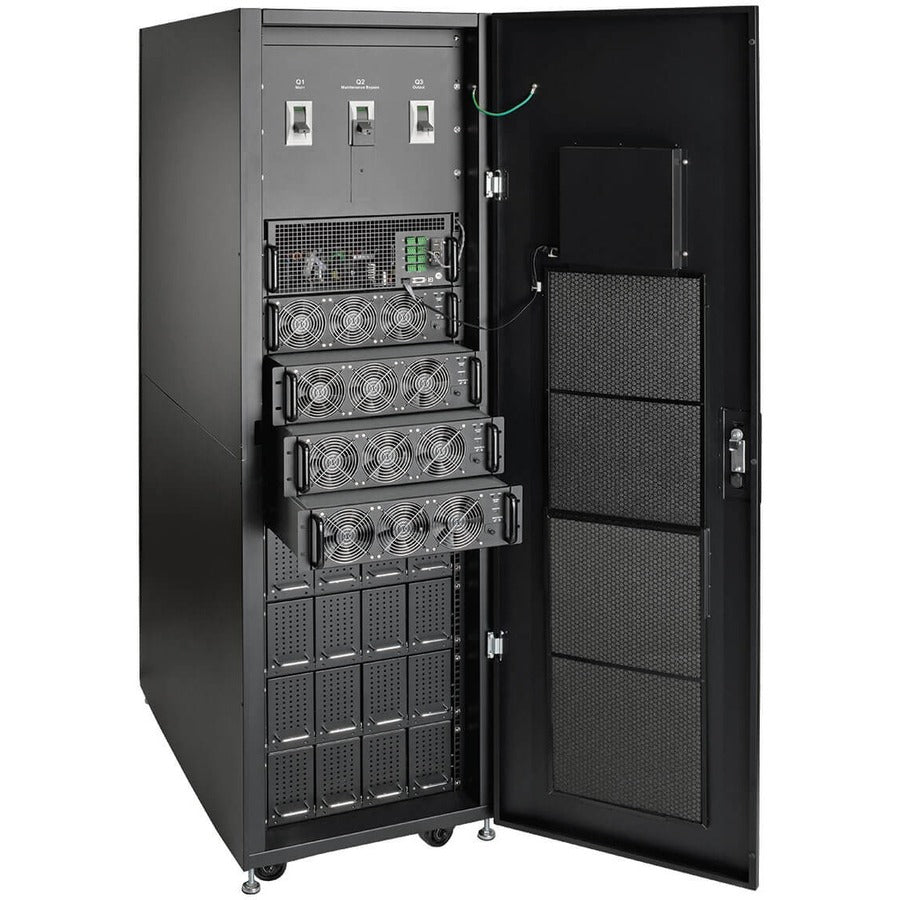

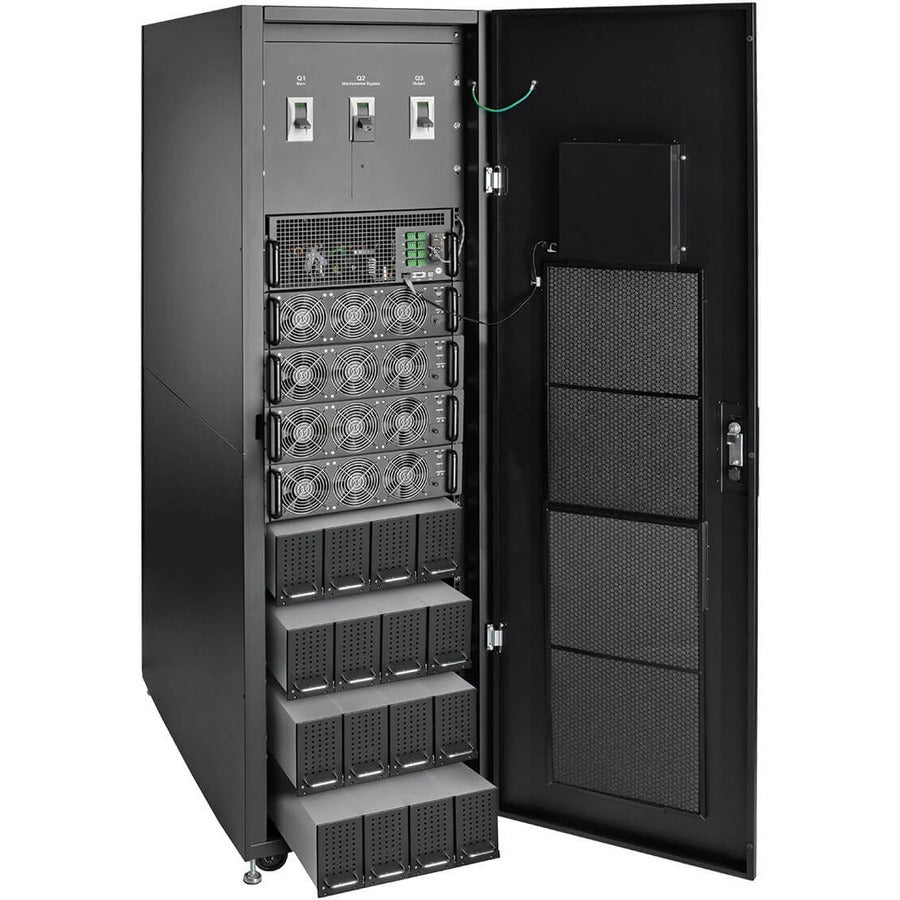

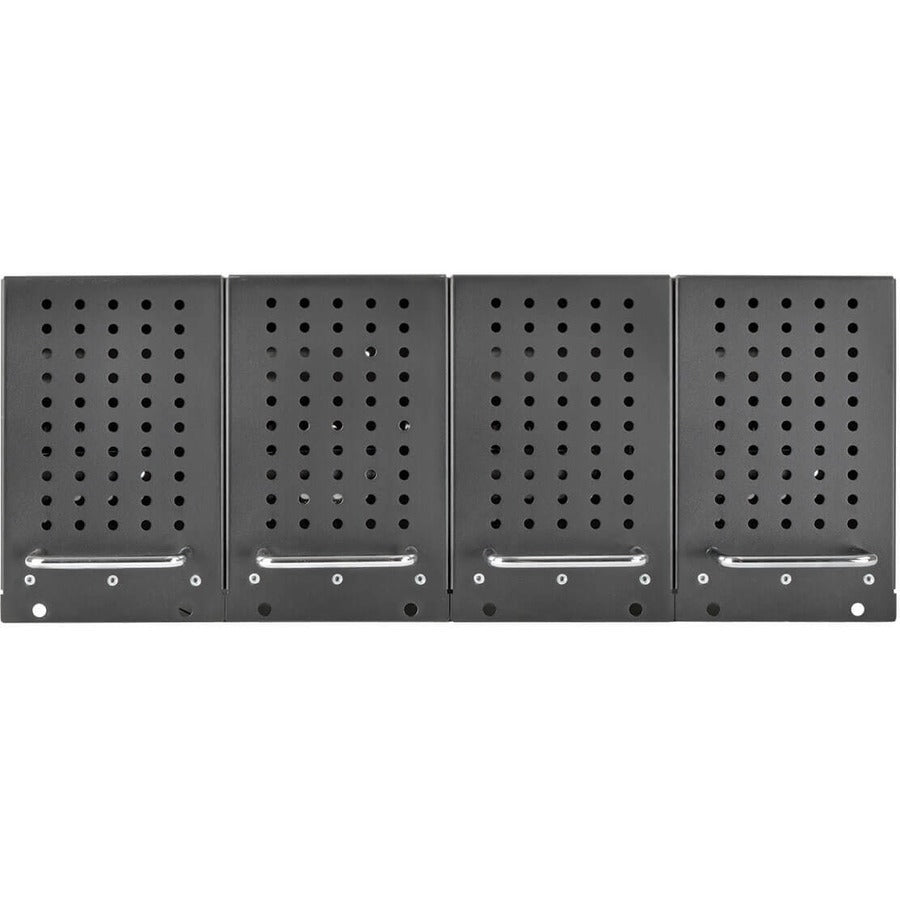

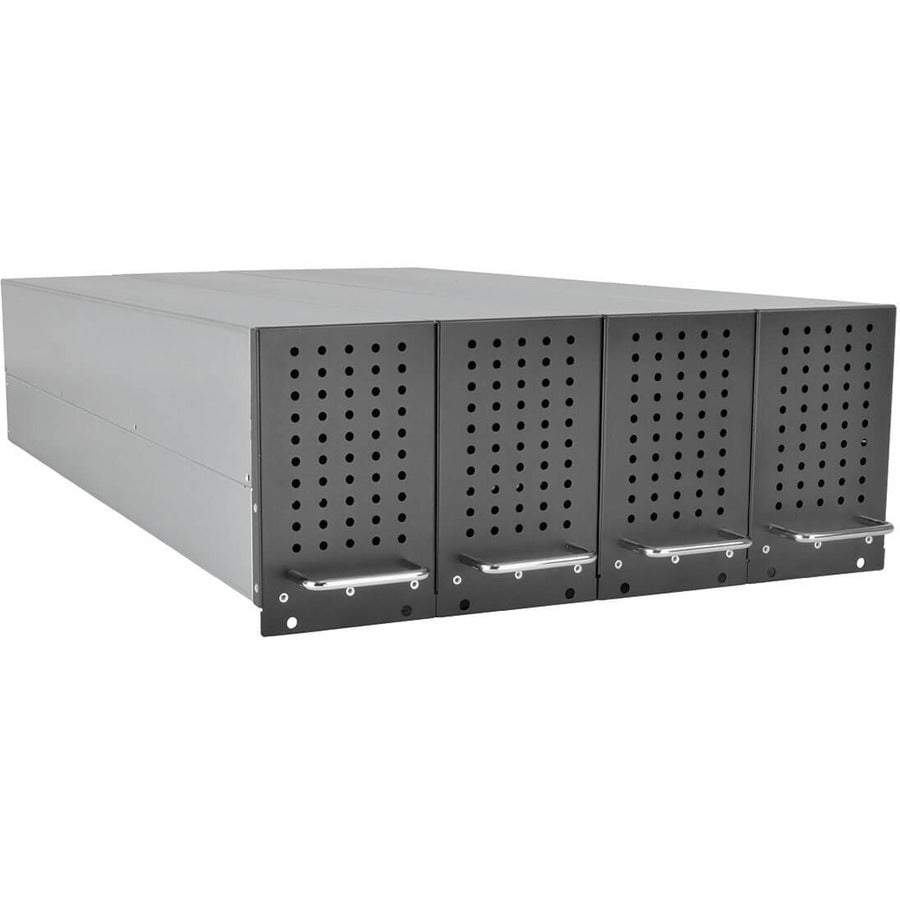

The SV40KM2P4B includes pre-installed input, bypass and output breakers, as well as a static transfer switch (STS), two 20kVA SV20PM power modules and four SVBM battery modules. Space is included for up to two additional user-installable SV20PM power modules. External ±120VDC battery options, such as BP240V370, are also available from Tripp Lite for even more extended runtime.

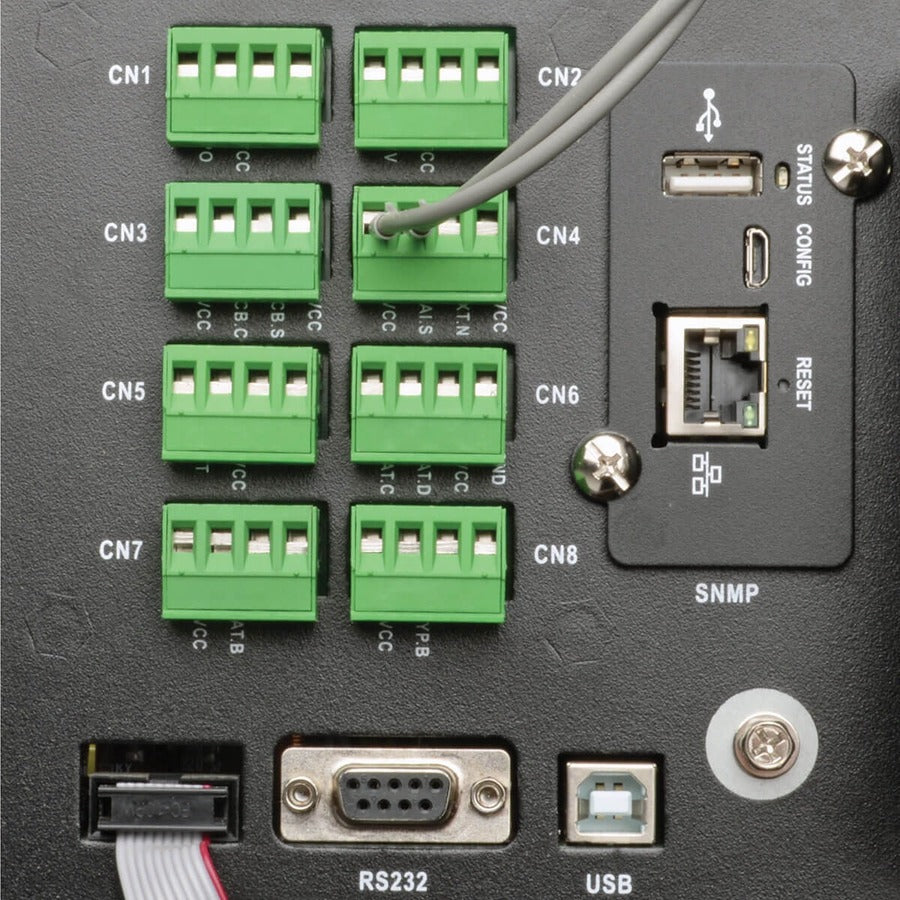

The Java-free HTML5-based WEBCARDLX interface enables full remote access for site power and UPS status monitoring, configuration, control and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network.

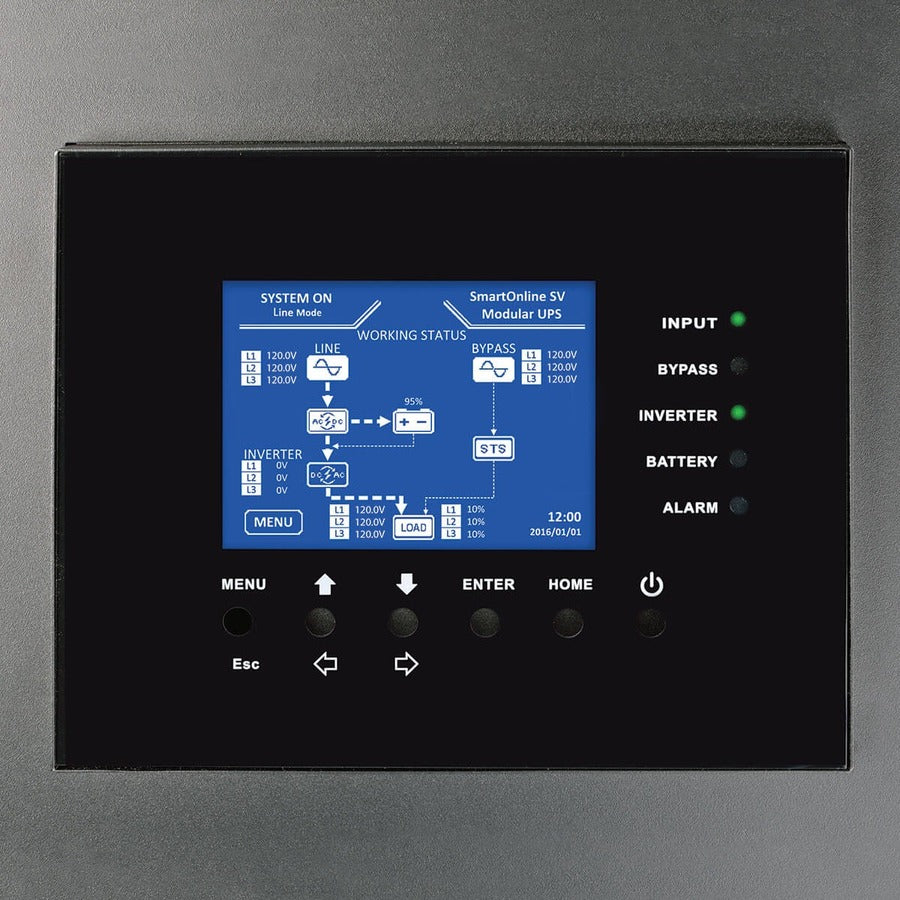

With up to 92% efficiency in standard mode and up to 99% efficiency in optional economy mode, this 40kVA UPS system helps you reduce operating and cooling costs. Automatic and manual bypass options keep connected equipment operational during routine maintenance or critical power module failure. Front-panel display offers full UPS condition and status reporting. .
The SV40KM2P4B includes pre-installed input, bypass and output breakers, as well as a static transfer switch (STS), two 20kVA SV20PM power modules and four SVBM battery modules. Space is included for up to two additional user-installable SV20PM power modules. External ±120VDC battery options, such as BP240V370, are also available from Tripp Lite for even more extended runtime.
The Java-free HTML5-based WEBCARDLX interface enables full remote access for site power and UPS status monitoring, configuration, control and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network.
With up to 92% efficiency in standard mode and up to 99% efficiency in optional economy mode, this 40kVA UPS system helps you reduce operating and cooling costs. Automatic and manual bypass options keep connected equipment operational during routine maintenance or critical power module failure. Front-panel display offers full UPS condition and status reporting. .
- Receptacle Type : Hardwired
- Phase : Three Phase
- Environmentally Friendly : Yes
- Network Management : SNMP Manageable,Telnet,SSH
- Input Voltage : 120 V AC,230 V AC
- Product Series : SV
- Limited Warranty : 2 Year
- Waveform Type : Pure Sine Wave
- Form Factor : Tower
- Package Contents :
- SmartOnline SV40KM2P4B 40kVA Tower UPS
- DB9 Cabling
- Pre-installed WEBCARDLX Network Interface
- 2 x SV20PM 20kVA Power Modules
- 4 x SVBM Battery Modules
- Owner's Manual
- Backup/Run Time (Full Load) : 10 Minute
- Plug/Connector Type : Hardwired
- Product Type : Double Conversion Online UPS
- Load Capacity : 40 kVA
- Manufacturer : Tripp Lite by Eaton
- Product Model : SV40KM2P4B
- Output Voltage : 120 V AC,230 V AC
- Backup/Run Time (Half Load) : 22 Minute
- Country of Origin : China
- Product Line : SmartOnline
- Manufacturer Website Address : https://tripplite.eaton.com/
