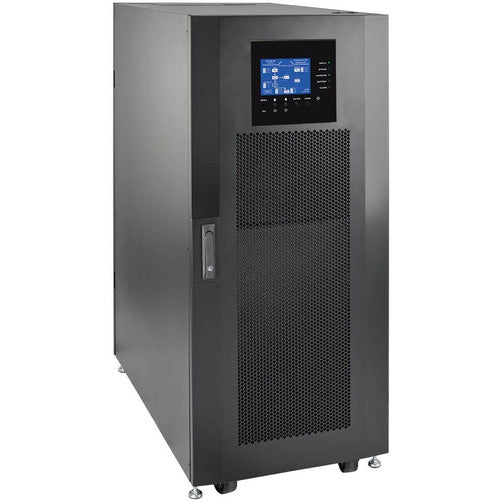

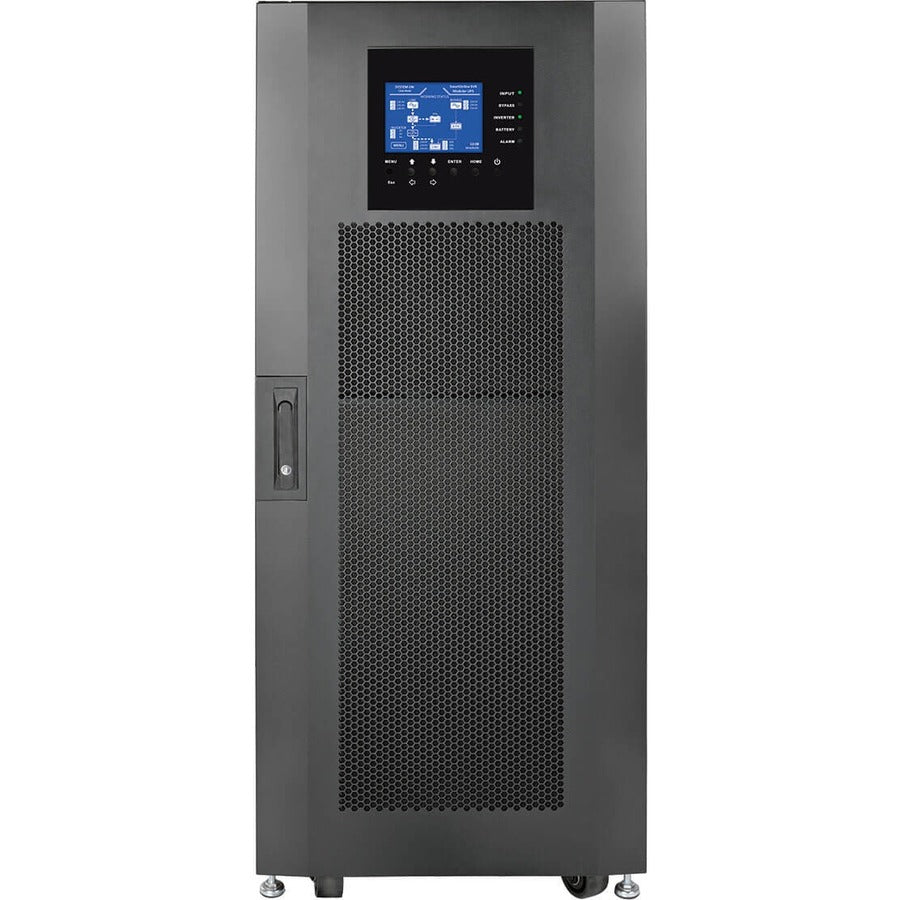

The SV40KS2P3B SmartOnline® SV Series 40kVA Small-Frame 3-Phase On-Line Double-Conversion UPS System delivers true scalability and offers the highest level of secure, uninterrupted power protection. Featuring a modular, scalable design with high-efficiency voltage and frequency independent (VFI) operation, this on-line UPS system with a high 0.9 power factor is ideal for protecting a variety of critical IT systems.

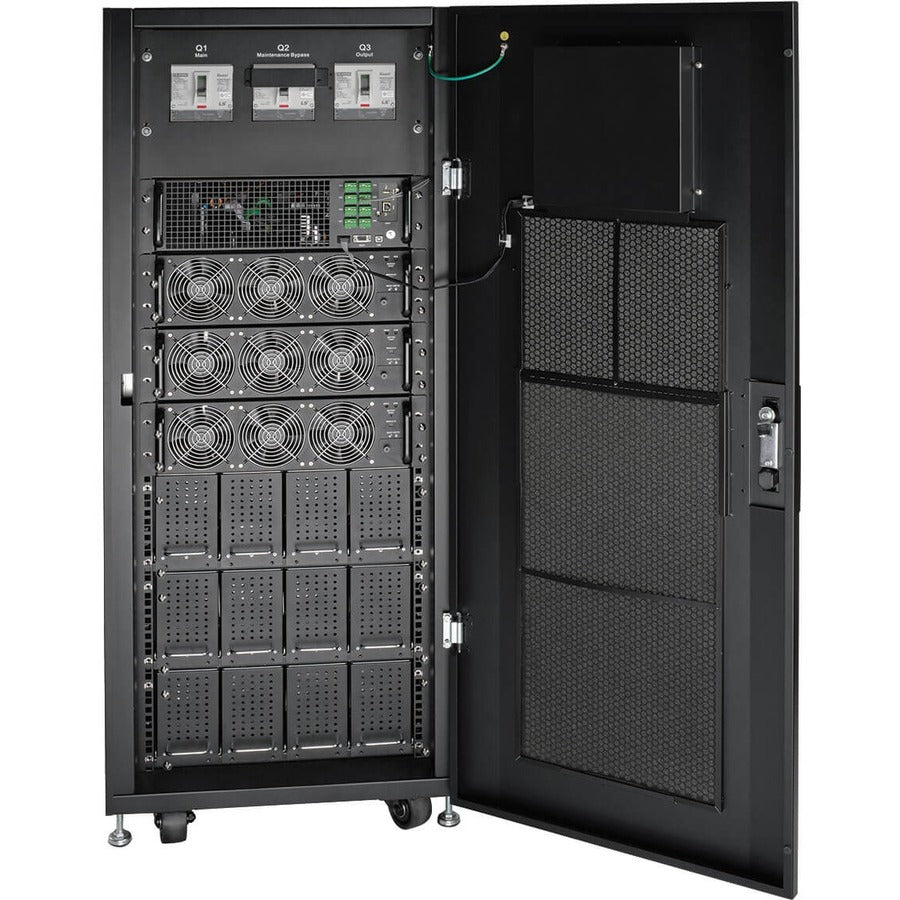

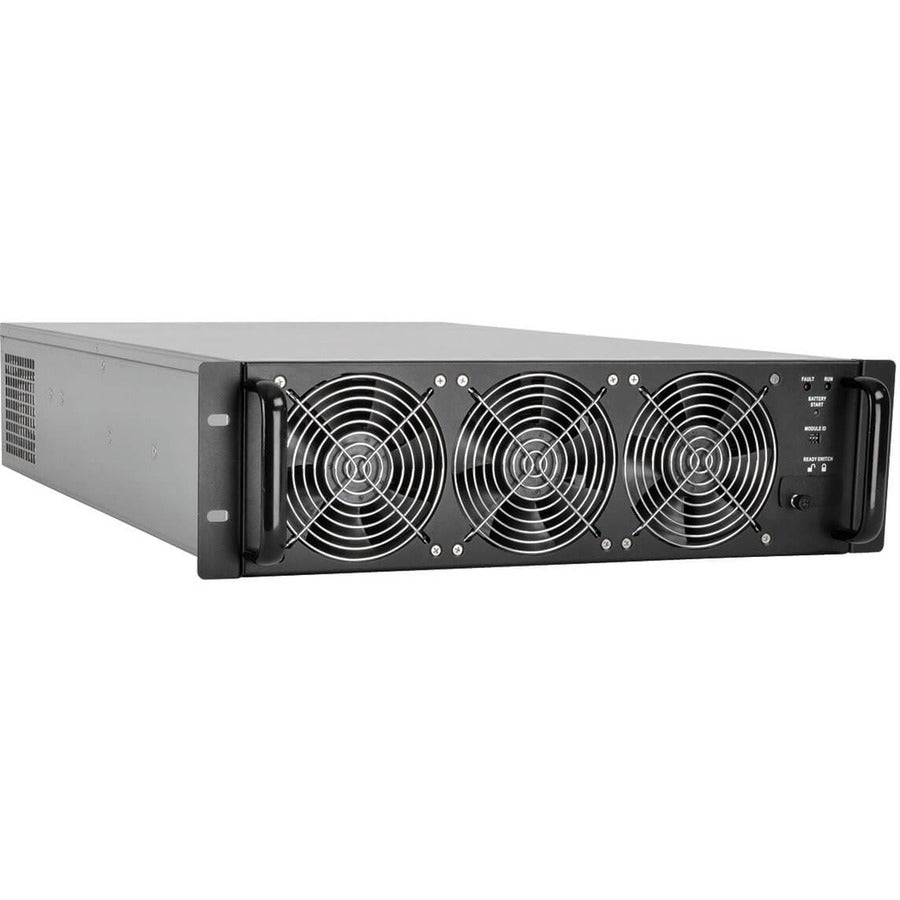

The SV40KS2P3B includes pre-installed input, bypass and output breakers, as well as a static transfer switch (STS), two 20kVA SV20PM power modules and three SVBM battery modules. Space is included for one additional user-installable SV20PM power module. External ±120VDC battery options, such as BP240V370, are also available from Tripp Lite for even more extended runtime. .
The SV40KS2P3B SmartOnline® SV Series 40kVA Small-Frame 3-Phase On-Line Double-Conversion UPS System delivers true scalability and offers the highest level of secure, uninterrupted power protection. Featuring a modular, scalable design with high-efficiency voltage and frequency independent (VFI) operation, this on-line UPS system with a high 0.9 power factor is ideal for protecting a variety of critical IT systems.
The SV40KS2P3B includes pre-installed input, bypass and output breakers, as well as a static transfer switch (STS), two 20kVA SV20PM power modules and three SVBM battery modules. Space is included for one additional user-installable SV20PM power module. External ±120VDC battery options, such as BP240V370, are also available from Tripp Lite for even more extended runtime. .

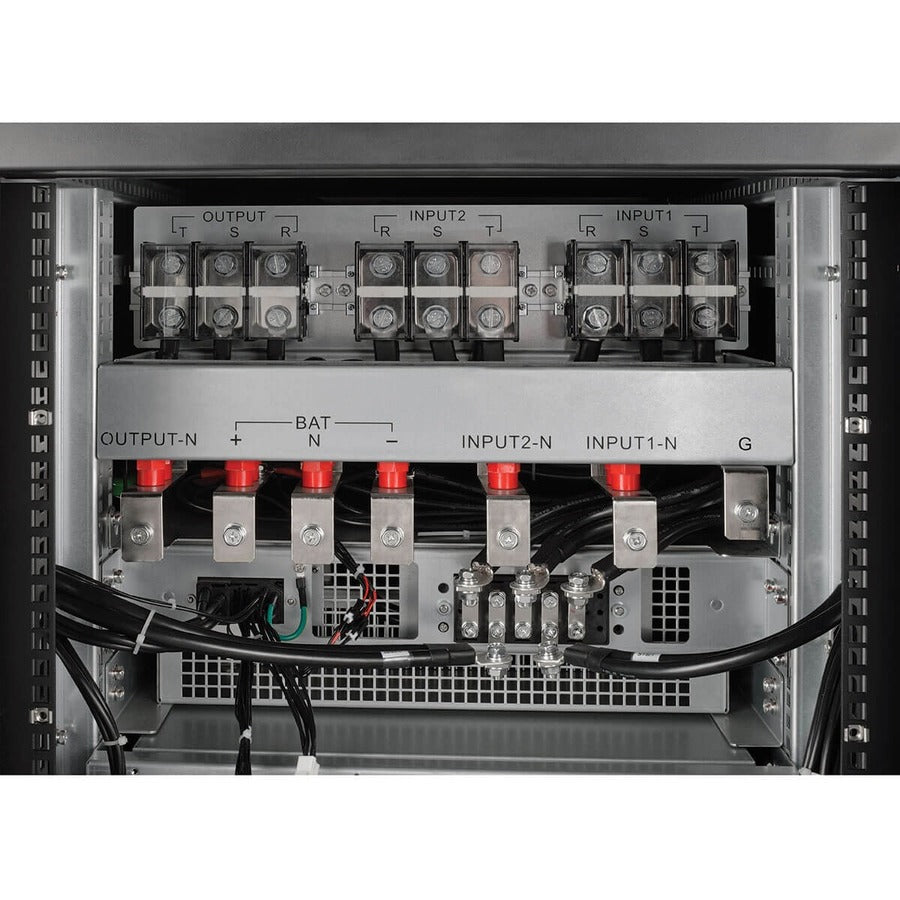

- Receptacle Type : Hard Wire 4-wire (3P + N + E)
- Phase : Three Phase
- Environmentally Friendly : Yes
- Network Management : SNMP Manageable,Telnet,SSH
- Input Voltage : 120 V AC,230 V AC
- Product Series : SV
- Limited Warranty : 1 Year
- Waveform Type : Pure Sine Wave
- Form Factor : Tower
- Package Contents :
- SmartOnline SV40KS2P3B 40KVA Tower UPS

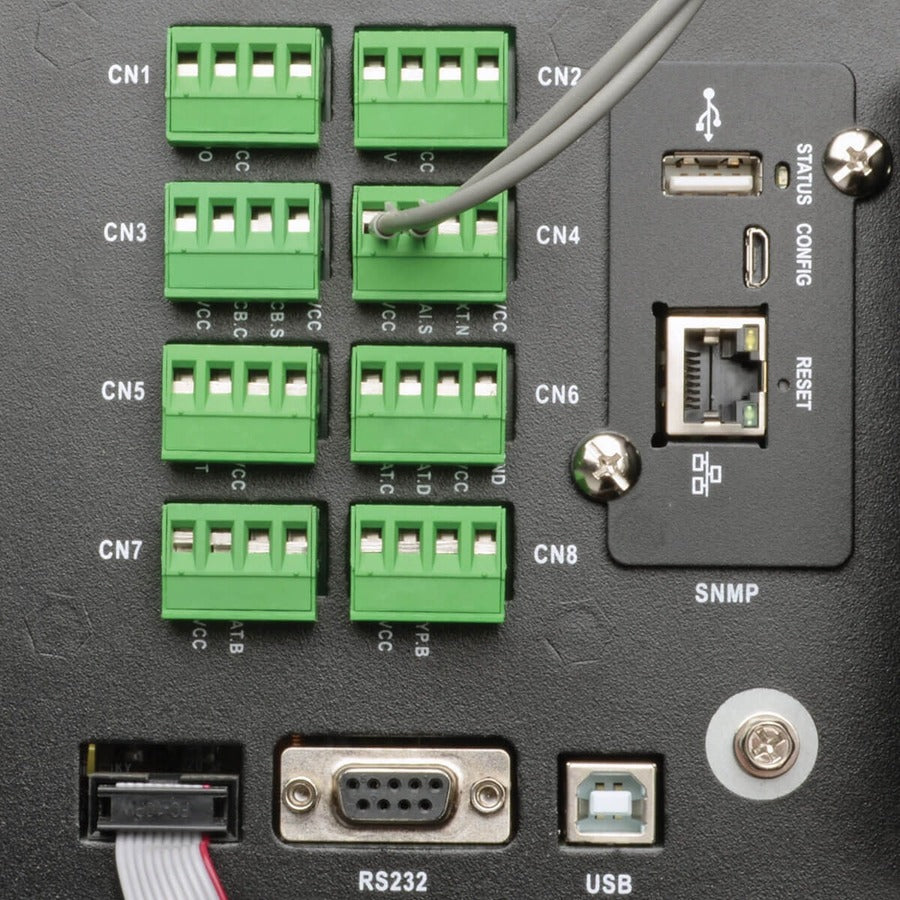

- Pre-installed WEBCARDLX
- network interface

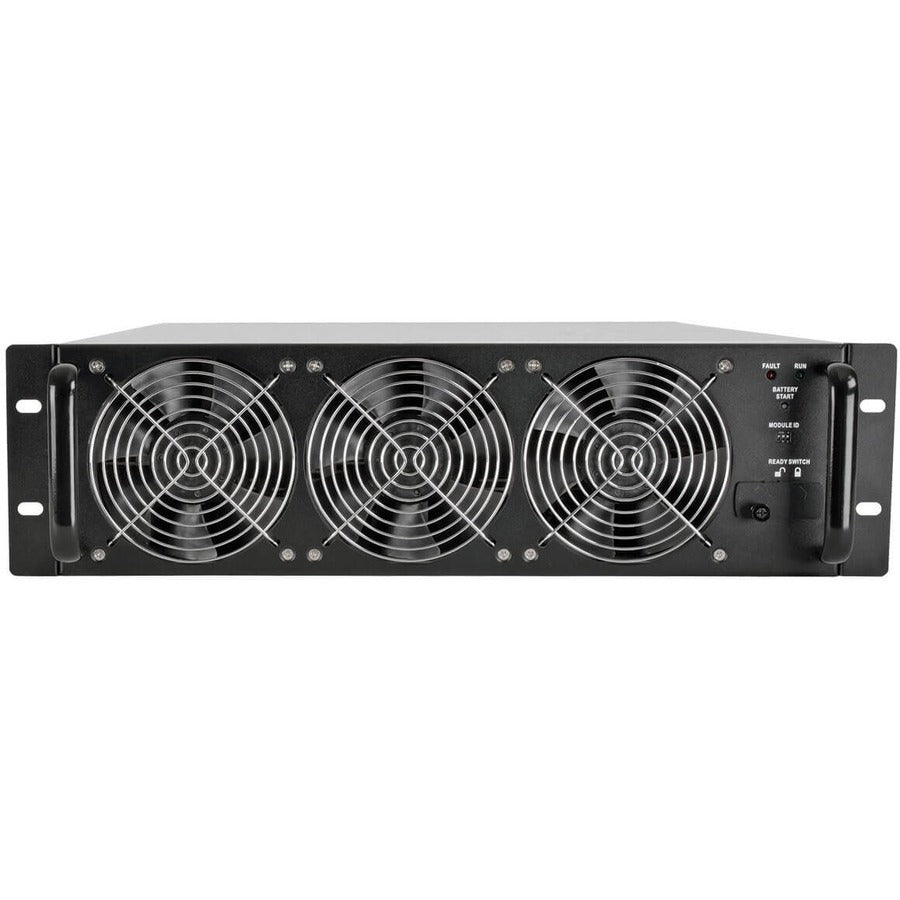

- 2 X SV20PM 20kVA powermodules

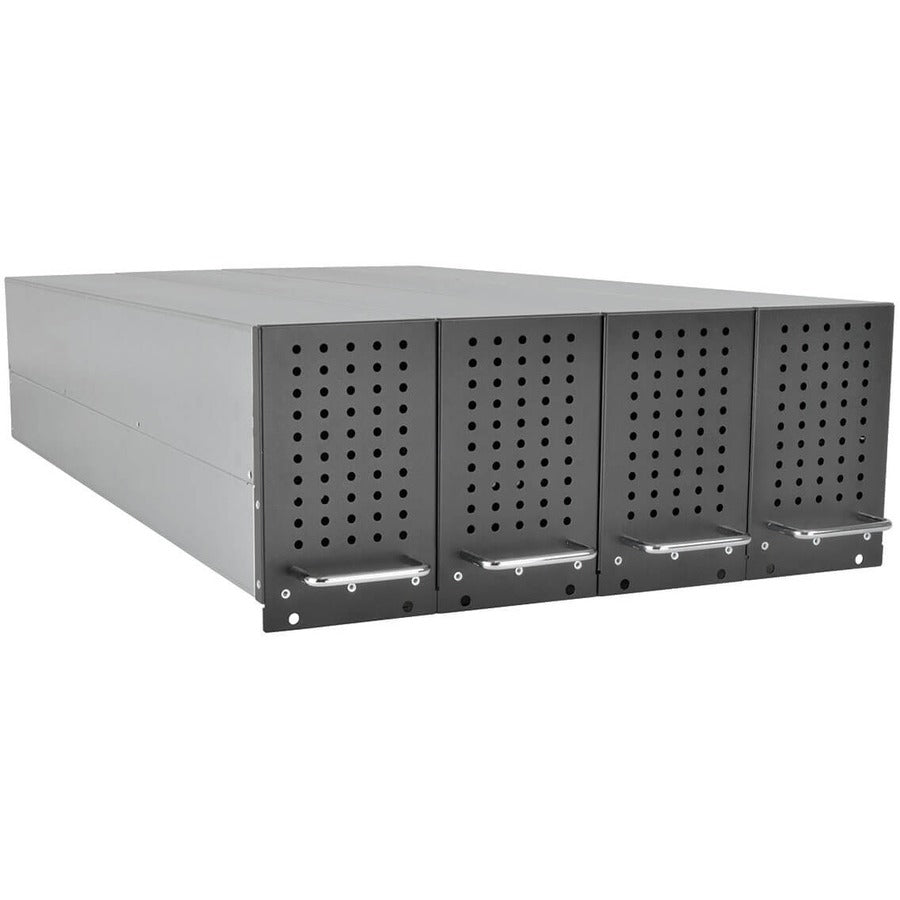

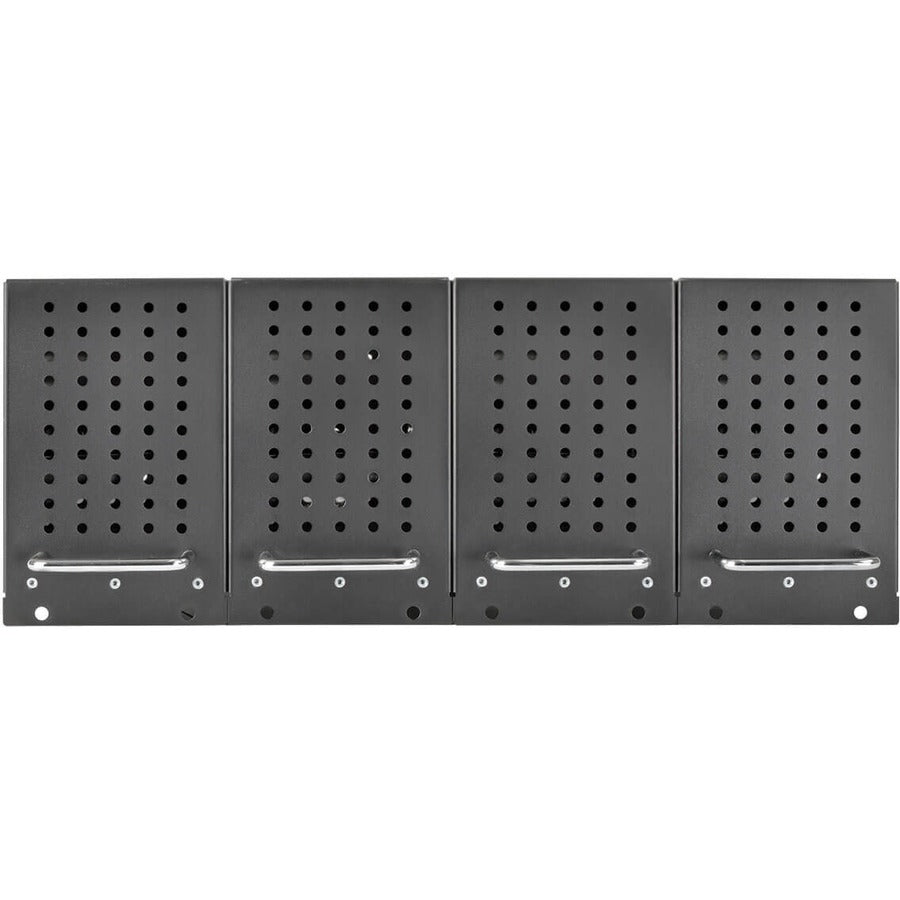

- 3 X SVBM battery modules
- DB9 Cabling
- Owner's manual
- Backup/Run Time (Full Load) : 6.70 Minute
- Plug/Connector Type : Hardwired
- Product Type : Double Conversion Online UPS
- Load Capacity : 40 kVA
- Manufacturer : Tripp Lite by Eaton
- Product Model : SV40KS2P3B
- Input Voltage Range : 120 V AC - 220 V AC
- Output Voltage : 120 V AC,230 V AC
- Backup/Run Time (Half Load) : 15 Minute
- Country of Origin : China
- Product Line : SmartOnline
- Manufacturer Website Address : https://tripplite.eaton.com/
