Description

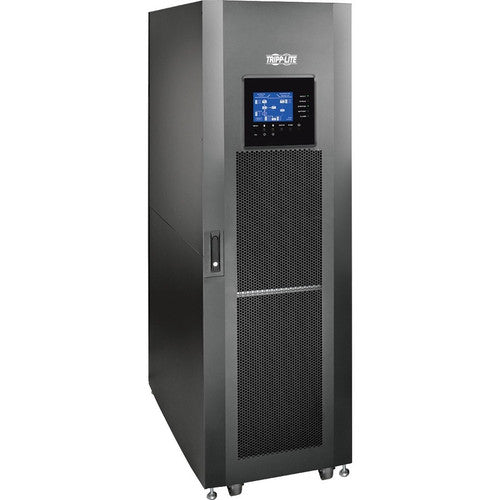

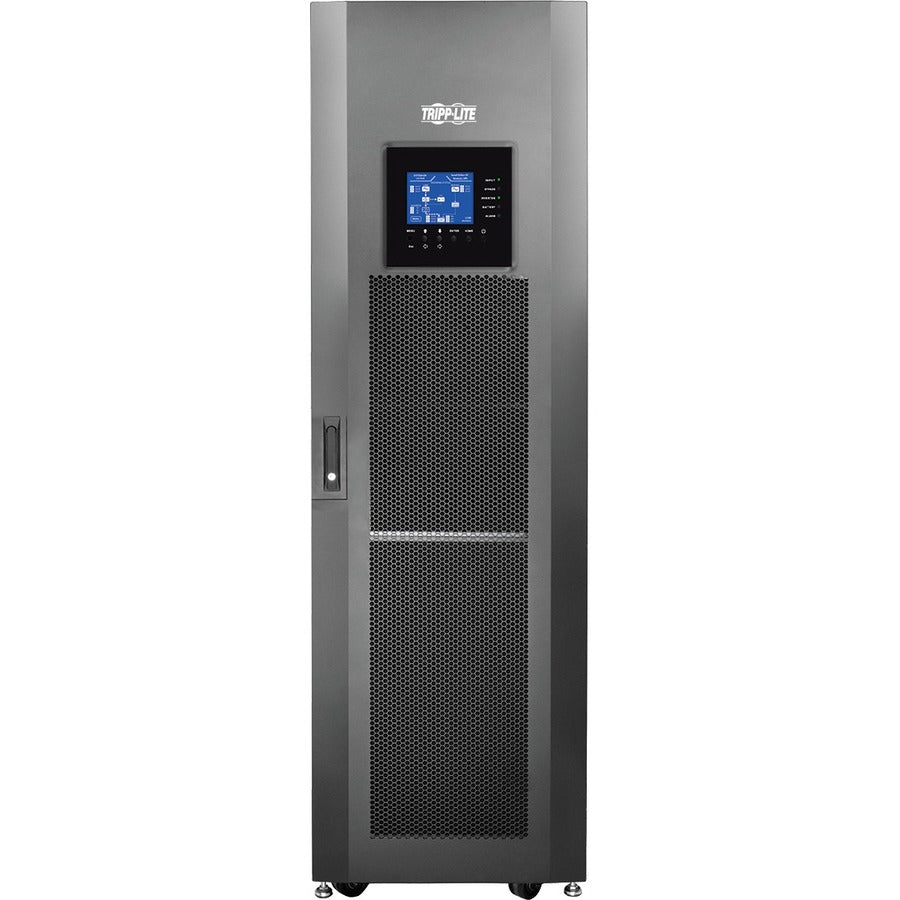

The SV80KM4P0B SmartOnline® SV Series 80kVA 3-Phase On-Line Double-Conversion UPS System delivers true scalability and offers the highest level of secure, uninterrupted power protection. Featuring a modular, scalable design with high-efficiency voltage and frequency independent (VFI) operation, this on-line UPS system is ideal for protecting a variety of critical IT systems.

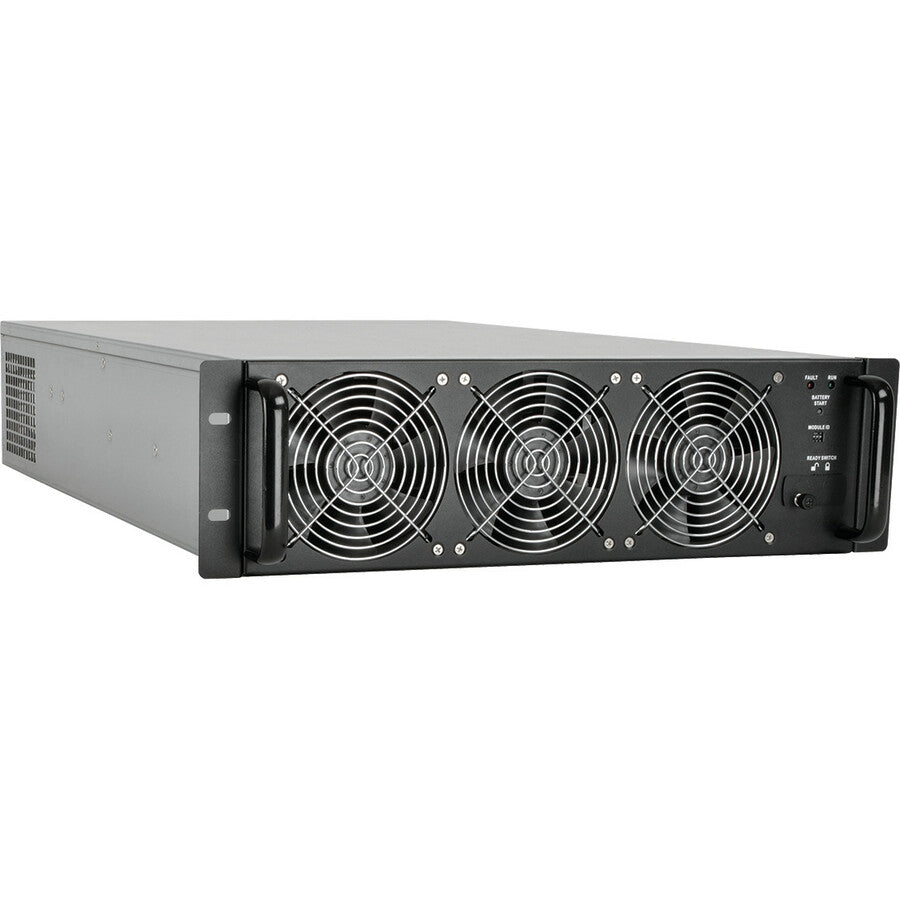

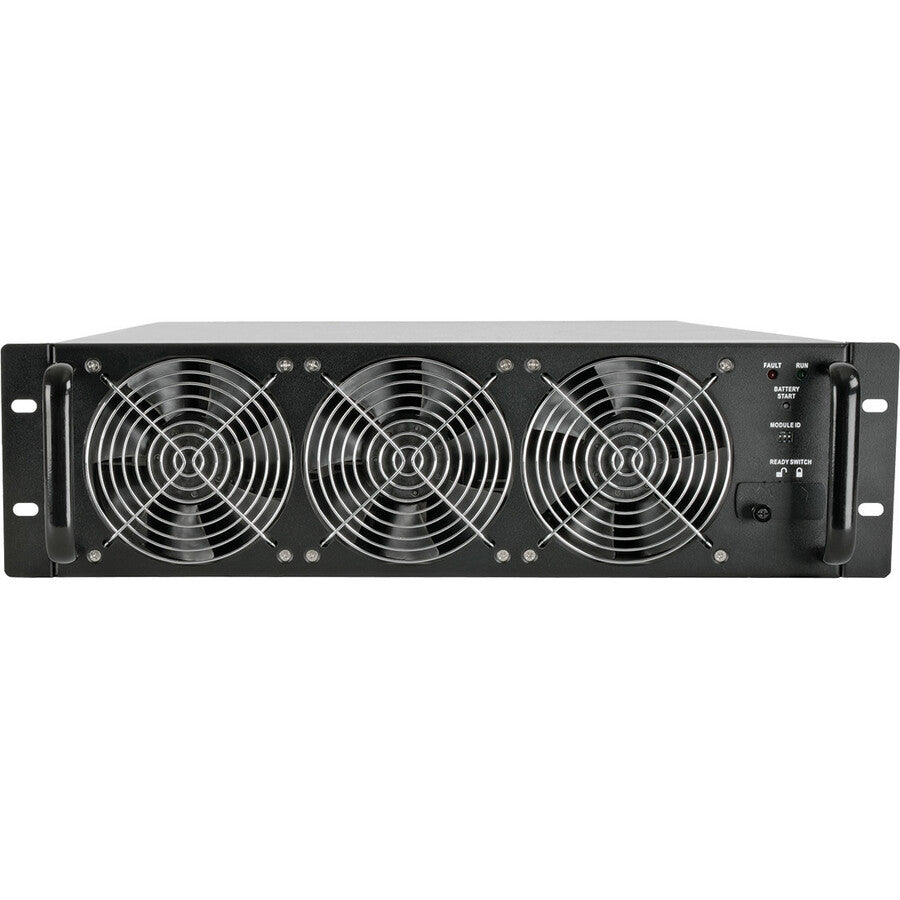

The SV80KM4P0B includes pre-installed input, bypass and output breakers, as well as a static transfer switch (STS) and four 20kVA SV20PM power modules. It comes fully configured for 80kVA total capacity or 60kVA with enhanced N+1 protection. External ±120VDC battery options, such as BP240V370 or EBP240VXXX series battery cabinets, are available from Tripp Lite for extended runtimes.
The Java-free HTML5-based WEBCARDLX interface enables full remote access for site power and UPS status monitoring, configuration, control and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network.
With up to 92% efficiency in standard mode and up to 99% efficiency in optional economy mode, this 80kVA UPS system helps you reduce operating and cooling costs. Automatic and manual bypass options keep connected equipment operational during routine maintenance or critical power module failure. Front-panel display offers full UPS condition and status reporting.
Features
80kVA 72kW 3-Phase Medium-Chassis UPS System
- Supports 208/120V or 220/127V AC 50/60Hz Wye 4-wire plus Earth hardwire input and output wiring
- Dual hardwire input design enables operation from up to 2 power sources
- Network-grade sine-wave AC output with 1% output voltage regulation and less than 1% output total harmonic distortion
- Tested to UL 1778 (U.S.), CSA (Canada) and NOM (Mexico) standards
- High 0.9 power factor for maximum power to the connected load

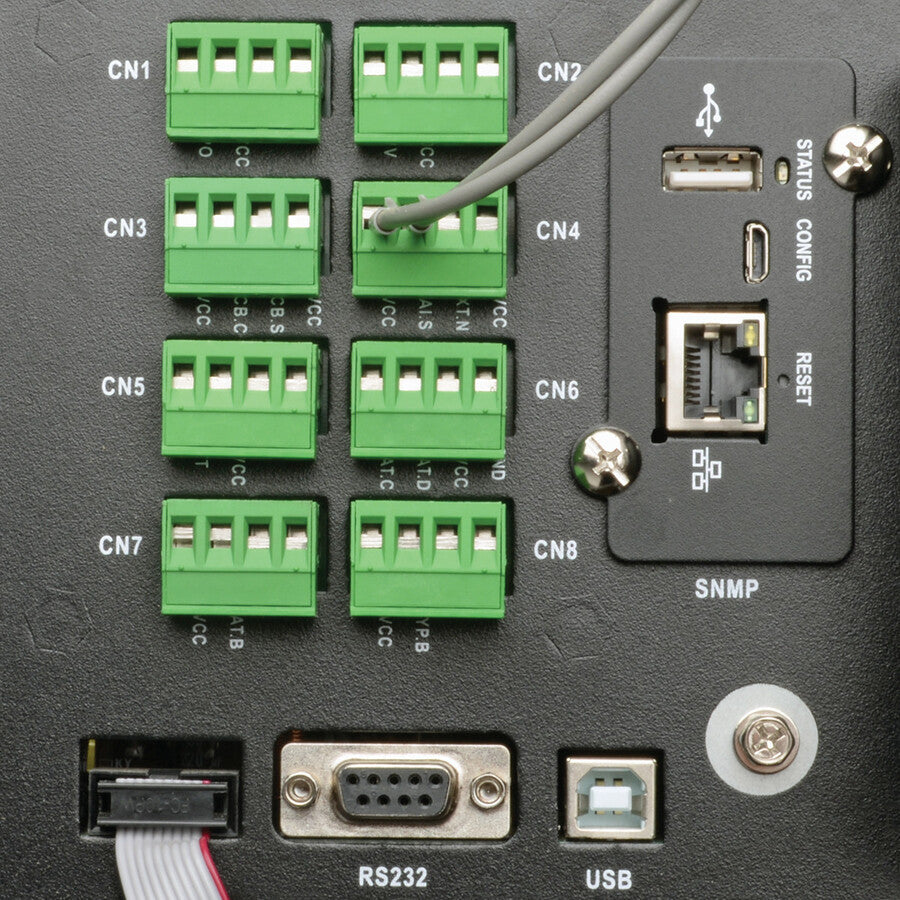

Pre-Installed WEBCARDLX Network Interface
- Allows full remote access for power monitoring, configuration, control and email notifications via secure web browser, SNMP, telnet or SSH
- Supports 10/100 Mbps auto-sensing for communication with an Ethernet network
- Optional EnviroSense2 sensors (sold separately) enable site monitoring of temperature, humidity and contact-closure status
- No Java required
Modular, Scalable Design for Maximum Flexibility
- Modular configuration with hot-swappable power modules, and fast maintenance with zero downtime
- Comes fully configured for 80kVA total capacity or 60kVA with N+1 fault tolerance
- Supports external ±120VDC battery options for extended runtimes
Optional Economy Mode
- Up to 99% efficient in optional economy mode to lower operating and cooling costs
Wide Input/Narrow Output Voltage Operating Range
- Enables full continuous online operation during brownouts as low as 121V and overvoltages up to 253V
- Regulates output voltage within 1% of the selected nominal output voltage in on-line double-conversion mode
Advanced IGBT Inverter with Digital Signal Processor (DSP) Technology
- Provides for less than 2% input total harmonic distortion (THDi) to support 1:1 generator sizing and prevent the need to oversize generator systems relative to UPS capacity
Automatic and Manual Bypass Options
- Keep connected equipment operational during routine maintenance or critical power module failure
- Receptacle Type : Hardwire (3P + N + E)
- Phase : Three Phase
- Environmentally Friendly : Yes
- Network Management : SNMP/HTTP Remote Monitoring
- Input Voltage : 120 V AC,127 V AC,208 V AC,220 V AC
- Product Series : SV
- Limited Warranty : 1 Year
- Typical Battery Recharge Time : 4.60 Hour
- Waveform Type : Pure Sine Wave
- Form Factor : Tower
- Package Contents :
- SmartOnline SV80KM4P0B 80kVA Tower UPS
- Pre-installed WEBCARDLX Network Interface
- 4 x SV20PM 20kVA Power Module (Shipped Separately)
- Owner's Manual
- DB9 Cable
- Plug/Connector Type : Hardwired
- Product Type : Double Conversion Online UPS
- Load Capacity : 80 kVA
- Application/Usage : Critical IT System
- Manufacturer : Tripp Lite by Eaton
- Product Model : SV80KM4P0B
- Output Voltage : 120 V AC,208 V AC,127 V AC,220 V AC
- AVR : Yes
- Country of Origin : China
- Product Line : SmartOnline
- DC System Voltage : 120 V DC
- Serial Port : Yes
- Sound Emission (A-Weighted) : 73 dB(A)
- Maximum Operating Elevation : 3280.84 ft (1000000 mm)
- Energy Saving : Green Energy-Saving
- Thermal Dissipation : 24297 BTU/h
- Maximum Operating Temperature : 104°F (40°C)
- Output Frequency : 60 Hz
- Storage Temperature : 5°F (-15°C) - 140°F (60°C)
- EMI/RFI Noise Filter : Yes
- EPO Port : Yes
- Transfer Time : 0 ns
- Input Frequency : 70 Hz
- Surge Energy Rating : 2496 J
- Alarm : UPS Alarm,Power Off,Power On,Battery Mode,Low Battery,UPS Fault
- Storage Relative Humidity : 0% - 95%
- Status Indicators :

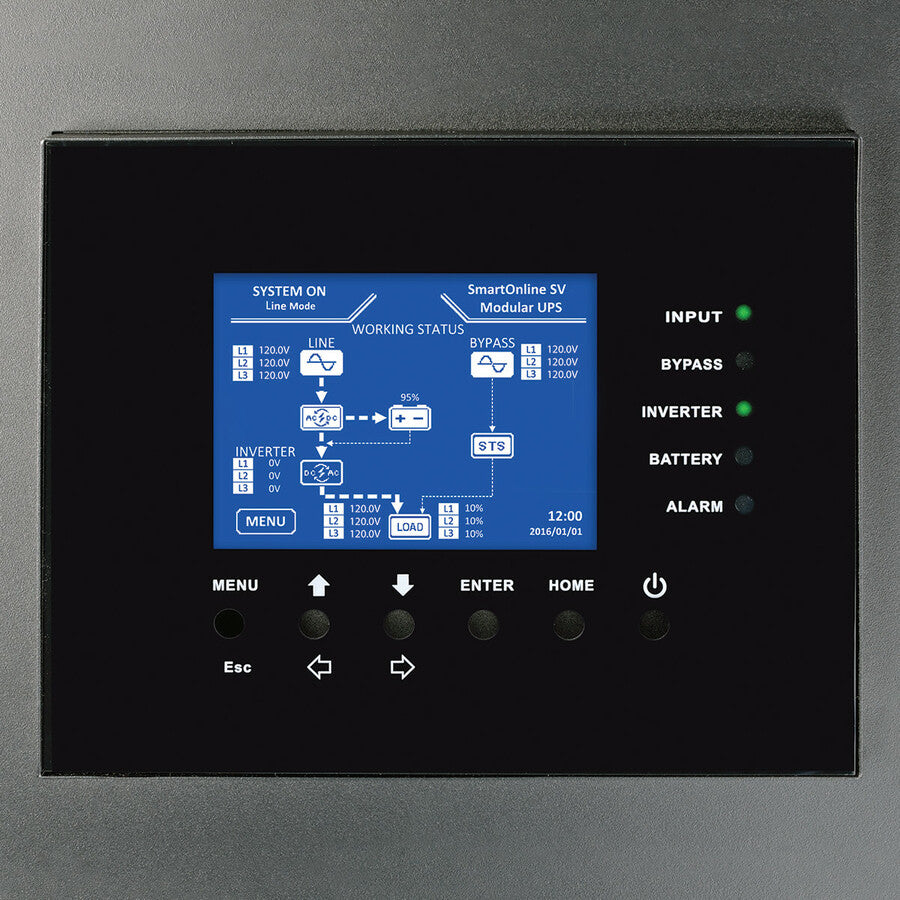

Front Panel LCD Display:
- Complete operating status display
- Setting and selection options for all UPS functions
Front panel LED indicators:
- Input (green)
- Bypass (amber)
- Inverter (green)
- Battery (red)
- Alarm (red)
- Manufacturer Website Address : https://tripplite.eaton.com/
