Description

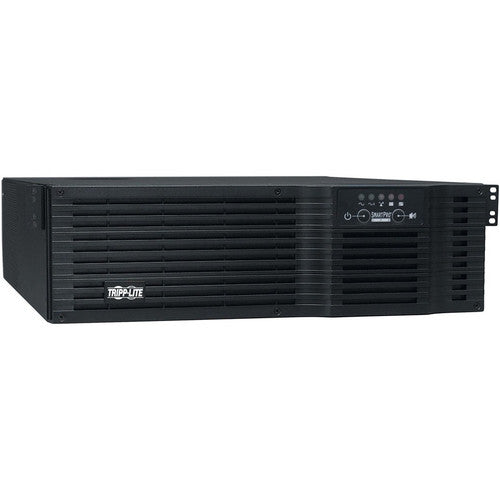

Tripp Lite's dual input voltage SM2200RMDVTAA line interactive UPS system maintains 120V nominal output when powered by North American 120V or International 230V input. 3U rack / tower form factor with an installed depth of only 22.5 inches. Expandable battery runtime with optional BP48V24-2U and BP48V60RT3U external battery packs. Includes C20 power inlet with set of 4 international cordsets and both NEMA 5-15R and 5-15/20R output receptacles. Network-grade AC surge and noise suppression. Network management interfaces support simultaneous communications via USB port, DB9 serial port and SNMPWEBCARD slot. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Integrated 2-bank programmable PDU switching supports load shedding and remote-reboot of up to 2 individual connected devices. 3-stage metered current monitoring and battery charge status LEDs. 95% efficiency in line power mode.
- 95% line-mode efficiency, 2 switched load banks
- C20 inlet & 4 international input line cords, 4 5-15R & 4 5-15/20R outlets
- USB port, RS232, EPO and optional SNMP/WEB card slot; Detailed status LEDs
- Maintains 120V output with 120V or 230V input, Sine wave output
- 2200VA / 2.2kVA / 1920W line interactive 3U rack/tower UPS; 0.9 power factor
- Federal Trade Agreements Act / TAA Compliant for GSA Schedule purchases
- Receptacle Type : NEMA 5-15/20R,NEMA 5-15R
- Receptacle Detail : 4 x NEMA 5-15/20R,4 x NEMA 5-15R
- TAA Compliant : Yes
- Environmentally Friendly : Yes
- Input Voltage : 110 V AC,220 V AC
- Transfer Time : 4 ms
- Limited Warranty : 2 Year
- Typical Battery Recharge Time : 4.50 Hour
- Form Factor : Rack/Tower
- Package Contents :
- SmartPro SM2200RMDVTAA 2200 VA Tower/Rack Mountable UPS
- 5 x International Input Power Cables
- USB Cable
- Serial Cable
- EPO Cable
- PowerAlert Software CD
- Tower Stand Kit
- 4 Post 19 inch Rackmount Mounting Kit
- 2 Post 19 inch Rackmount Mounting Kit
- User Manual
- Backup/Run Time (Full Load) : 12 Minute
- Product Type : Line-interactive UPS
- Load Capacity : 2.20 kVA/1.92 kW
- Manufacturer : Tripp Lite by Eaton
- Product Model : SM2200RMDVTAA
- Hot Swappable : Yes
- Output Voltage : 120 V AC
- Backup/Run Time (Half Load) : 30 Minute
- Rack Height : 3U
- Country of Origin : Taiwan
- Product Line : SmartPro
- Software Included : PowerAlert Software
- Network Management : SNMP Manageable
- Serial Port : Yes
- USB : Yes
- Manufacturer Website Address : https://tripplite.eaton.com/
- Input Current : 16 A
