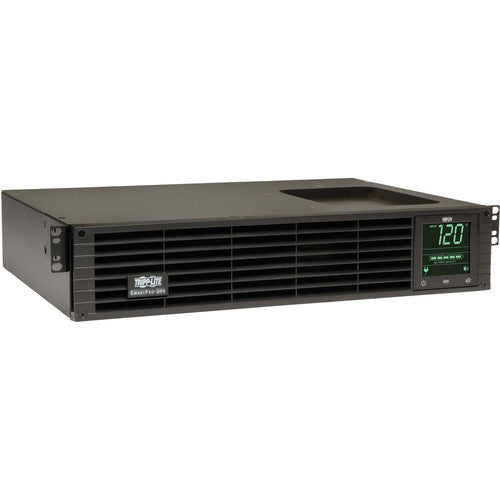

Tripp Lite by Eaton SmartPro SM2200RMXL2UP 2200 VA Tower/Rack Mountable UPS SM2200RMXL2UP

Tripp Lite SmartPro Line Interactive UPS with enhanced LCD interface offers network-grade power protection for critical server, network and telecommunications equipment. Line Interactive Uninterruptible Power Supply(UPS) with built-in Auto-Voltage Regulation(AVR) actively corrects brownouts and overvoltages back to usable levels while maintaining a full battery charge in case of power failure. Tripp Lite's unique configuration excels in exceptionally poor-power environments with two separate levels of voltage boost to correct both slight undervoltages and severe brownout conditions. Interactive LCD interface reports UPS operating mode, detailed UPS and site-power data, plus enables a variety of UPS setup and configuration options. Super-fast switchover from line to battery power occurs within milliseconds to maintain operation of connected equipment without interruption or reboot. 96% line-mode efficiency offers reduced heat emissions and operating costs. Network management interfaces support communications via USB, RS-232 and optional SNMPWEBCARD network interface. HID-compliant USB port enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Network communications ports enable detailed monitoring of equipment load levels, self-test data and utility power conditions. Includes PowerAlert monitoring software and complete cabling. Switched output load banks enable scheduled and real-time remote reboot and load shedding of select outlets. Emergency Power Off(EPO) interface. LCD display panel easily rotates for viewing in rackmount or tower configurations. Audible alarm with push-button momentary alarm-cancel and silent-mode configuration options. Programmable self-test. Field-replaceable, hot-swappable battery modules.

Key features

• USB, RS232, EPO and slot for SNMPWEBCARD option
• 120V NEMA 5-20P input, 4 NEMA 5-15R & 4 NEMA 5-15/20R outlets
• 96% line-mode efficiency, 2 switched load banks
• 4 post compatible mounting accessories
• Extended runtime options up to 1920W
• 0.9 Power Factor, Interactive LCD interface
• 120V output, Corrects brownouts and overvoltages from 83V to 145V
• 2.2kVA / 2200VA / 1920W line interactive 2U rack/tower UPS, Sine Wave
• In the box: SmartPro SM2200RMXL2UP 2200 VA Tower/Rack Mountable UPS, 4 Post 19 inch Rackmount Mounting Rail Kit, PowerAlert Software CD, USB Cable, Serial Cable, EPO Cable

Specifications

• Receptacle Type: NEMA 5-15/20R,NEMA 5-15R
• Receptacle Detail: 4 x NEMA 5-15/20R,4 x NEMA 5-15R
• Environmentally Friendly: Yes
• Input Voltage: 120 V AC
• Transfer Time: 5 ms
• Limited Warranty: 3 Year
• Typical Battery Recharge Time: 4.50 Hour
• Form Factor: Rack/Tower
• Backup/Run Time (Full Load): 4.50 Minute
• Plug/Connector Type: NEMA 5-20P
• Product Type: Line-interactive UPS
• Load Capacity: 2.20 kVA/1.92 kW
• Manufacturer: Tripp Lite by Eaton
• Product Model: SM2200RMXL2UP
• Hot Swappable: Yes
• Output Voltage: 120 V AC
• Backup/Run Time (Half Load): 13 Minute
• Rack Height: 2U
• Country of Origin: China
• Product Line: SmartPro
• Software Included: PowerAlert Software
• Network Management: SNMP Manageable
• Serial Port: Yes
• USB: Yes
• Input Current: 16 A
