Description
1.5kVA/1.2kW/120V Battery Backup for Applications in Low- and High-Temperature Extremes
This SmartPro® line-interactive SMART1548ET UPS system with hardwire AC input/output offers a wide operating temperature range and provides constant and reliable backup power to critical equipment in harsh environments, including outdoor and industrial equipment. It prevents surges, spikes, overvoltage, undervoltage and blackouts from damaging equipment, destroying data and contributing to costly downtime.

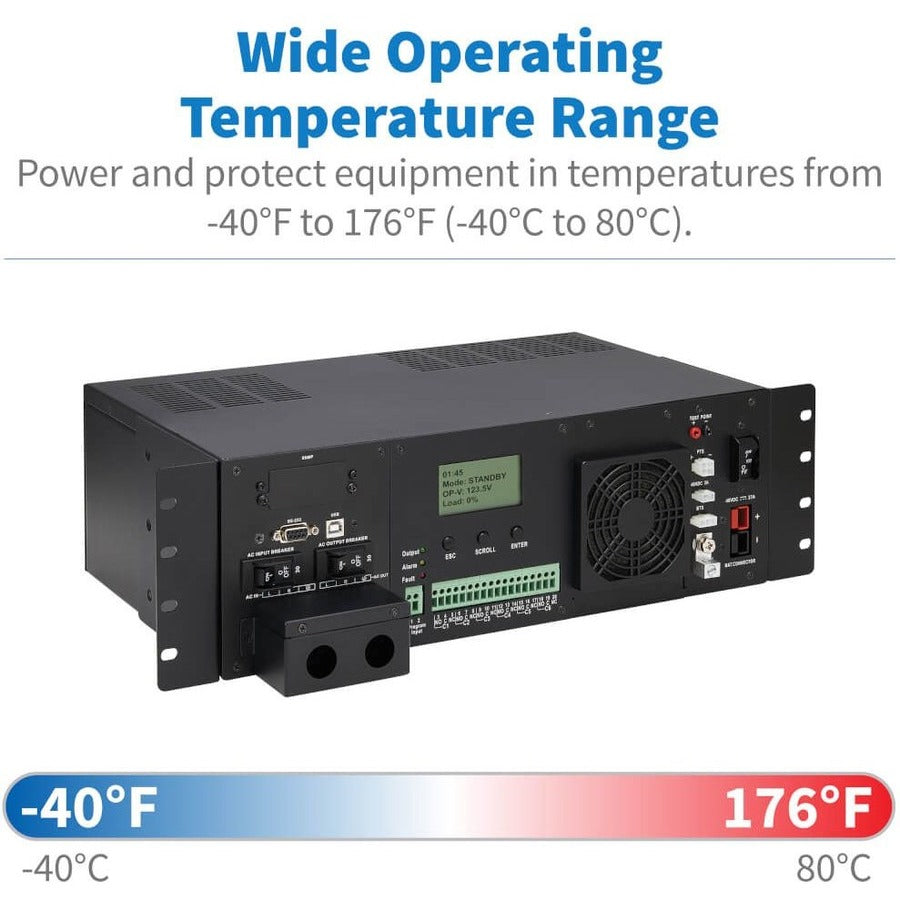

Ideal for Running Networking, Security or Traffic Equipment in -40°C to 80°C Temperatures
The SMART1548ET is ideal protection for a wide variety of industry-specific IT, communications, edge computing, security, surveillance, traffic signage and traffic camera equipment in remote locations where temperatures are typically within -40°C and 55°C (for max output), -40°C and 75°C (for up to 1200W output) or -40°C and 80°C (for up to 1000W output). Internal circuitry is covered with a conformal coating that protects against extreme temperatures. Applications range from oil fields, offshore oil rigs and other industrial locations to remote security and military applications to traffic-related setups involving signals and cameras.

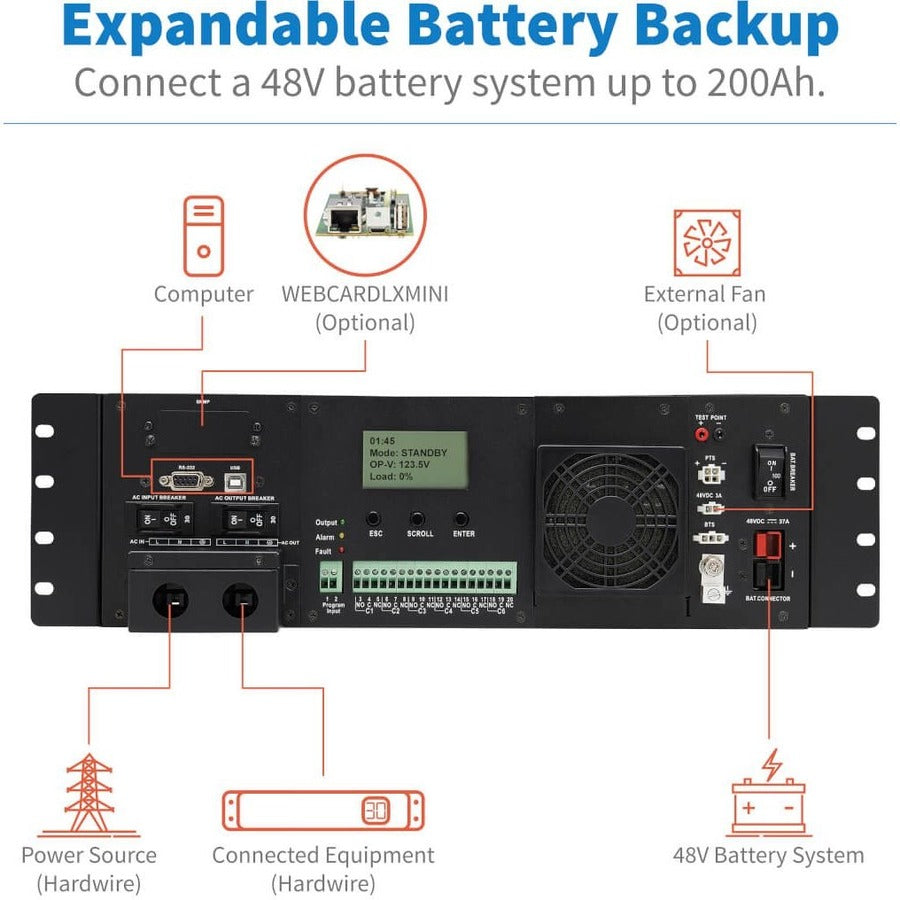

Reliable, Expandable Battery Backup Keeps You Operational Through Power Outages
Backup support allows you to safely maintain the operation of critical traffic/industrial equipment and other applications requiring reliable extended UPS runtime in demanding environments. A battery connector kit with wireable contact pins lets you connect your own 48V battery banks up to 200Ah (batteries and cables not included). A temperature sensor monitors the battery terminals and customizes charging to optimum levels to extend the lifespan of the connected batteries.
Optional WEBCARDLXMINI Network Interface Offers 24/7 Remote Access for Monitoring and Control
The Java-free HTML5-based WEBCARDLXMINI (sold separately) enables full remote access for site power and UPS status monitoring, configuration, control and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Automated alerts help prevent accidental overloads, power loss and downtime. WEBCARDLXMINI allows you to use the Auto Probe feature, which can prevent costly service calls by automatically rebooting non-responsive network devices. Note: WEBCARDLXMINI has a temperature range of 0°C to 70°C, as measured inside the UPS housing.
Built-in Input/Output Dry Contacts and 48V DC Temperature-Controlled Fan Power Outlet

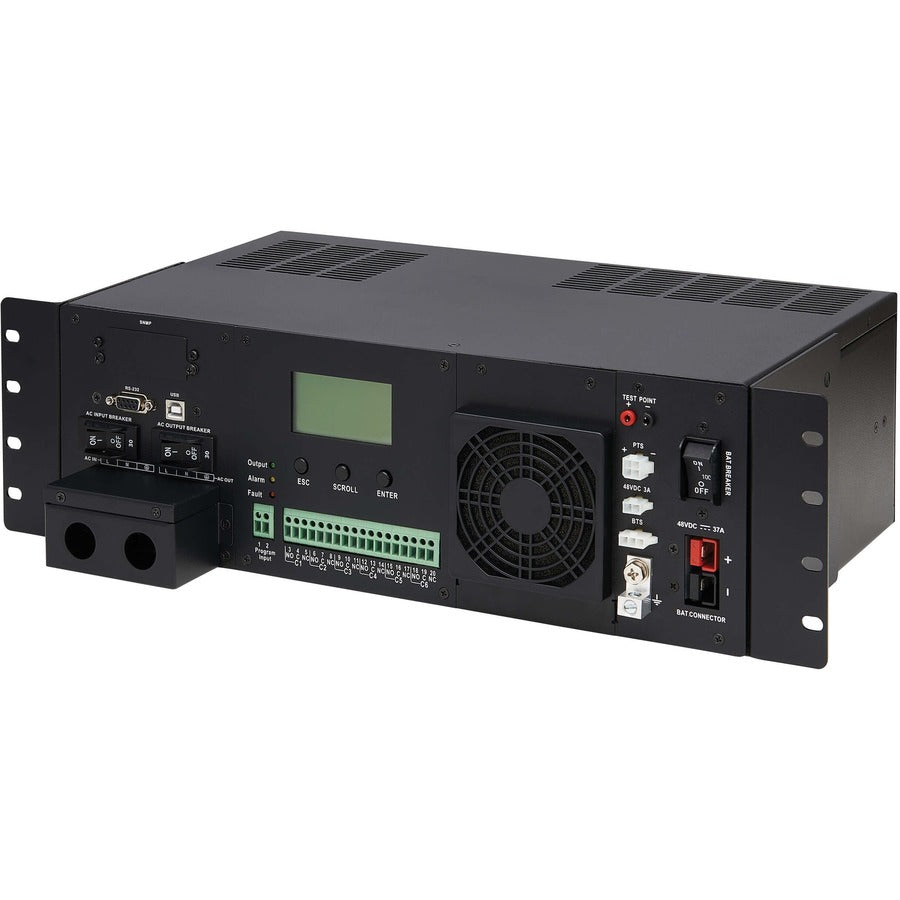

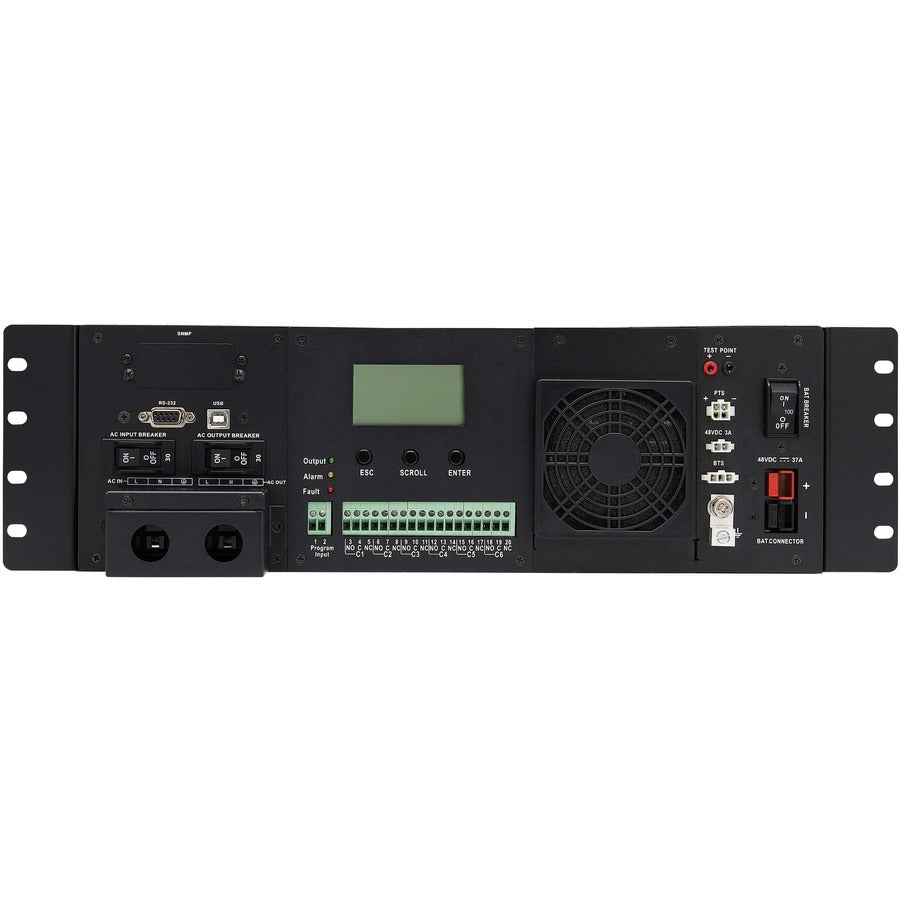

Six sets of output dry contacts support Normally Open (NO) or Normally Closed (NC) signaling of user-configurable UPS conditions, such as On Battery, Low Battery or UPS Fault to other integrated devices. One set of input dry contacts supports the connection of one user-supplied contact-closure sensor for remote notification via WEBCARDLXMINI and local notification via front-panel LCD. A temperature-controlled 48V DC output power jack supports optional user-supplied fan installation to control over-temperature conditions in equipment enclosures.
Automatic Voltage Regulation (AVR) Corrects Low- and High-Voltage Conditions
AVR protects your equipment from incremental hardware damage, data loss and performance problems caused by brownouts and overvoltages. The SMART1548ET can correct brownouts as low as 88V and overvoltages as high as 152V with user-configurable buck-and-boost settings, all while keeping the battery fully charged and ready to take over in case of power failure.
- Recommended for remote locations where temperatures range within -40°C and 80°C
- Protects equipment against blackouts, brownouts, overvoltages, surges and line noise
- Keeps power running during blackouts to allow time for safe system shutdown
- Maintains continuous 120V nominal output during brownouts and overvoltages
- Optional WEBCARDLXMINI network interface supports Auto Probe feature
- 2-year warranty, 3 year with registration. Note: Registration is required for 3-year warranty.a
- $250,000 Ultimate Lifetime Insurance
- Receptacle Type : Hardwired
- TAA Compliant : Yes
- Phase : Single Phase
- Environmentally Friendly : Yes
- Input Voltage : 120 V AC
- Transfer Time : 10 ms
- Limited Warranty : 3 Year
- Waveform Type : Pure Sine Wave
- Form Factor : Rack-mountable

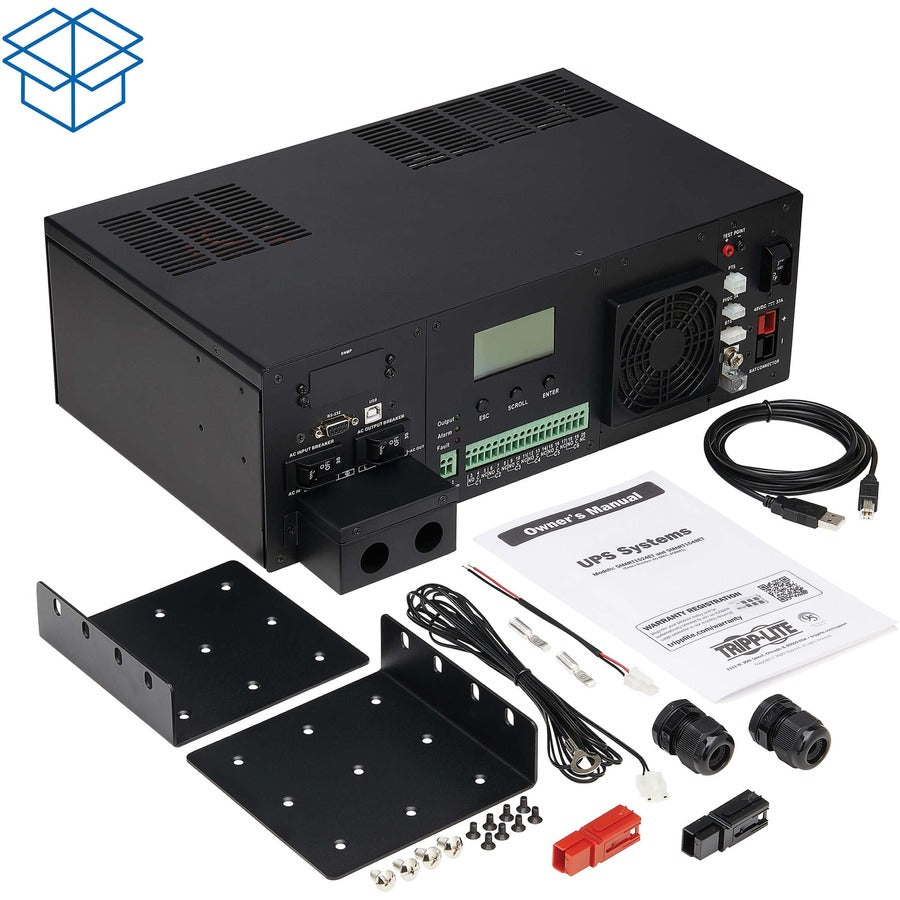

- Package Contents :
- SmartPro SMART1548ET 1500VA Rack-mountable UPS
- External Battery Connection Kit
- Battery Temperature Sensor Cable
- USB Cable
- External Fan Power Adapter Cable
- 2 x AC Hardwire Strain Reliefs
- 8 x M4 Screws
- 4 x M6 Screws
- 2 x Rack-Mounting Brackets
- Instruction Sheet
- Owner's Manual
- Plug/Connector Type : Hardwired
- Product Type : Line-interactive UPS
- Load Capacity : 1.50 kVA/1.20 kW
- Application/Usage : Industry,Military,Network Equipment,Telecommunication,Security System,Network Closet,Mission Critical Equipment,Outdoor,Communication System,Edge Computing,Surveillance System,IT Equipment,Traffic Signage,Traffic Camera
- Manufacturer : Tripp Lite by Eaton
- Product Model : SMART1548ET
- Output Voltage : 120 V AC
- AVR : Yes

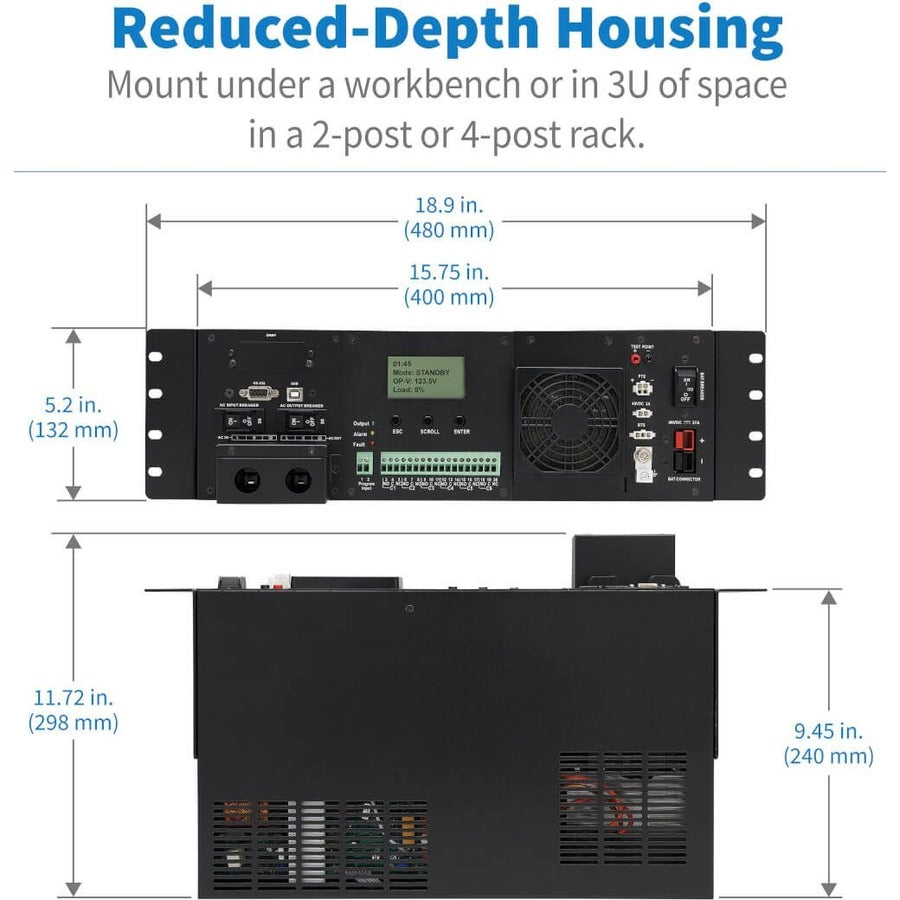

- Rack Height : 3U
- Country of Origin : Taiwan
- Product Line : SmartPro
- DC System Voltage : 48 V DC
- Network Management : SNMP/Telnet/SSH
- Serial Port : Yes
- Maximum Operating Elevation : 3300 ft (1005840 mm)
- Thermal Dissipation : 266 BTU/h
- Environmental Sensors : Temperature Sensor,Contact Closure Sensor
- Maximum Operating Temperature : 176°F (80°C)
- Output Frequency : 60 Hz
- Storage Temperature : -40°F (-40°C) - 176°F (80°C)
- Sound Emission : 52 dB
- EMI/RFI Noise Filter : Yes
- Overload Protection : Yes
- Surge Energy Rating : 474 J
- Alarm : Battery Mode,Low Battery,Overload,UPS Fault
- USB (HID Compliant) Port : Yes

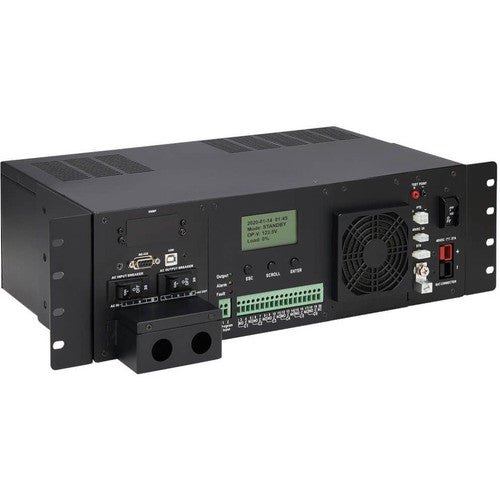

- Status Indicators : Four Line Text-Based Front Panel LCD:
- Provides Full Access To UPS Status
- Alarms
- Faults
- Events
- Settings And Control Options
LED Indicators:
- Set Of 3 Front Panel LEDs Report AC Output Status (Green)
- Alarm Condition (Yellow)
- Fault Condition (Red)
- Manufacturer Website Address : https://tripplite.eaton.com/
