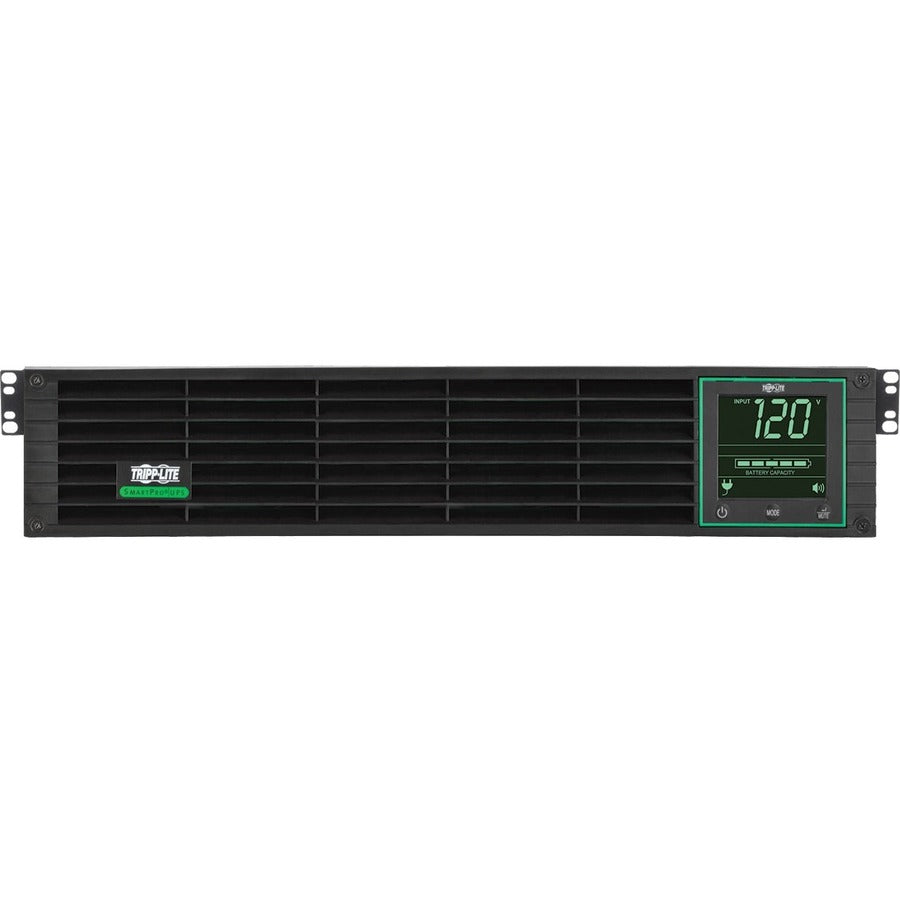

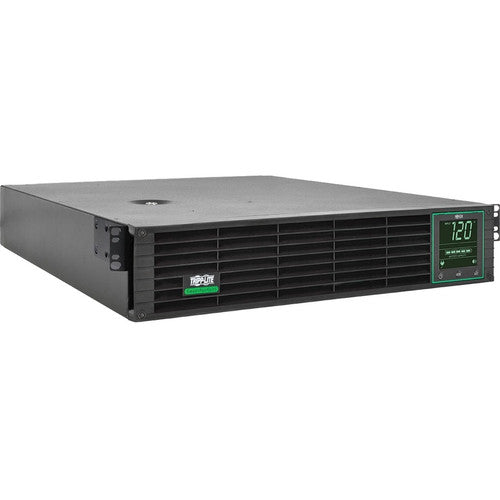

Tripp Lite by Eaton SmartPro SMART2200RM2UL 2200VA UPS SMART2200RM2UL

Protects Mission-Critical Rack-Mounted Equipment

• Provides fully regulated sine wave AC output for servers, network storage devices, telecom hardware and other applications where long battery lifespan is critical
• Audible alarm signals loss of utility power, overload and low battery

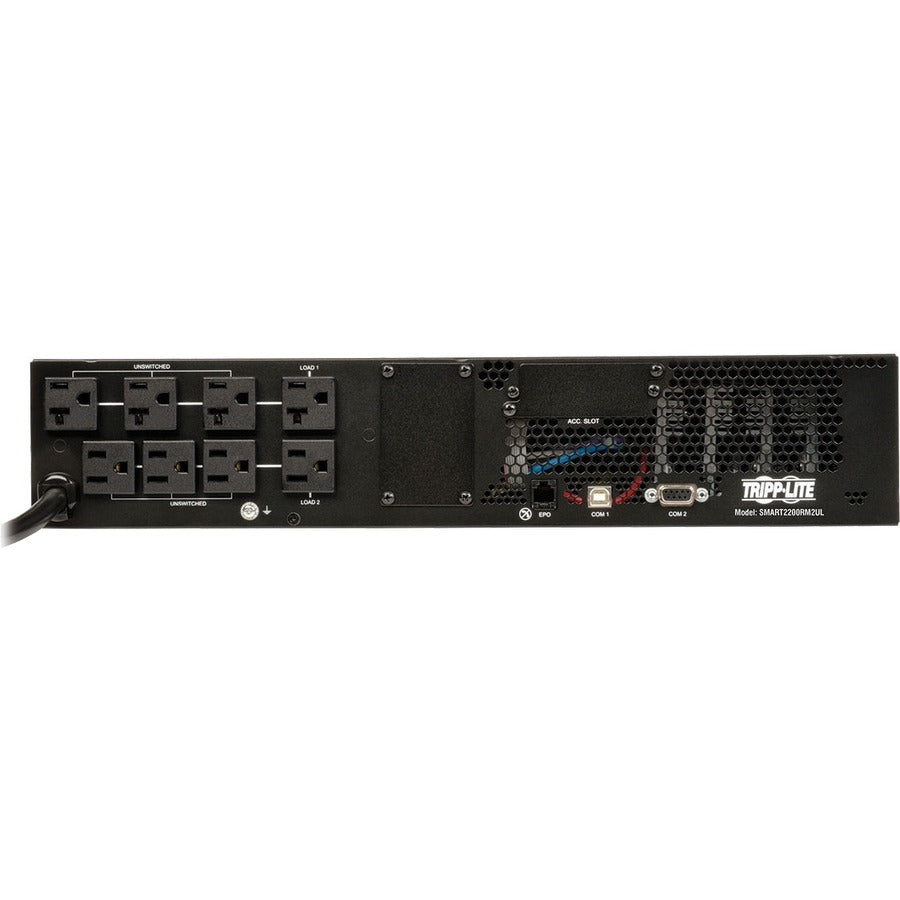

• 4 NEMA 5-15R & 4 NEMA 5-15/20R outlets
• 10-ft. (3.05 m) power cord with 120V NEMA 5-20P input
• 570-joule surge suppression rating
• 0.9 power factor rating
• 97% line-mode efficiency rating saves money in energy costs

Superior LiFePO4 Battery Backup Compared to Equivalent Lead Acid Battery

• More than 2x the service life
• Up to 3x more charge/discharge cycles
• Recharges to 100% capacity in less than 2 hr.
• Weighs 60% less, reducing overall UPS weight
• Supports half load up to 11.7 min. and full load up to 5.1 min.

2 Load Banks with Switchable Outlets

• Can control 2 outlets remotely to reboot equipment or shed nonessential loads

Automatic Voltage Regulation (AVR)

• Maintains 120V nominal output over input range of 83V-145V without using battery power

EMI/RFI Line Noise Filtering

• Removes electromagnetic and radio frequency interference that can disrupt or damage equipment's performance

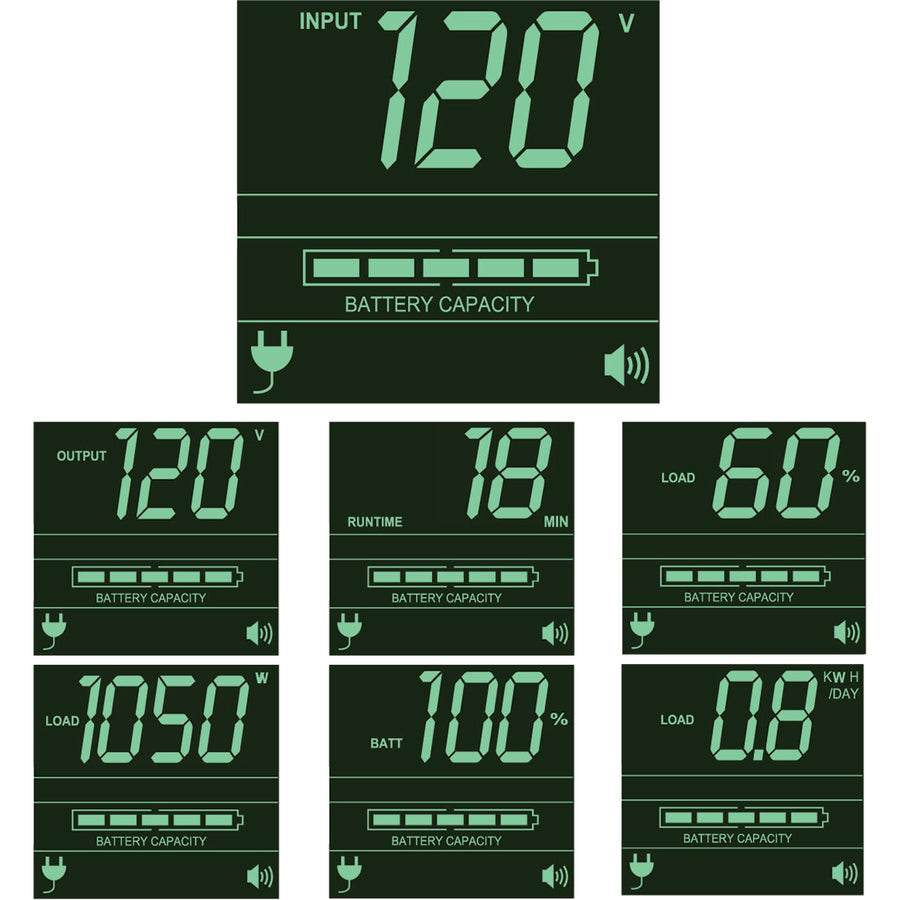

Interactive LCD Screen

• Front-panel LCD with detailed UPS and site power status and operating data
• Rotates for easy viewing in rack-mount or tower configurations

Optional Network Management Cards

• Compatible with Tripp Lite UPS management cards WEBCARDLX, SNMPWEBCARD and RELAYIOCARD

Communications Ports

• USB and DB9 ports enable data-saving unattended shutdown when used with Tripp Lite PowerAlert software (available via free download at <li">www.tripplite.com/poweralert
• <li">EPO port supports emergency shutdown in large facilities

Versatile Installation Options

• Hardware included for 4-post mounting in 2U of EIA-standard 19 in. rack
• Mounts on wall or 2-post rack with optional 2POSTRMKITWM accessory
• Mounts in upright tower position with optional 2-9USTAND accessory

Backed by Tripp Lite's Ultimate Lifetime Insurance

• ,250,000 Ultimate Lifetime Insurance covers any connected components

• Experience higher efficiency with lower energy cost
• Up to 5.10 minute runtime on full load to preserve critical data from power shortage interruptions

. .

• Receptacle Detail : 4 x NEMA 5-15/20R,4 x NEMA 5-20
• Phase : Single Phase
• Form Factor : Rack-mountable

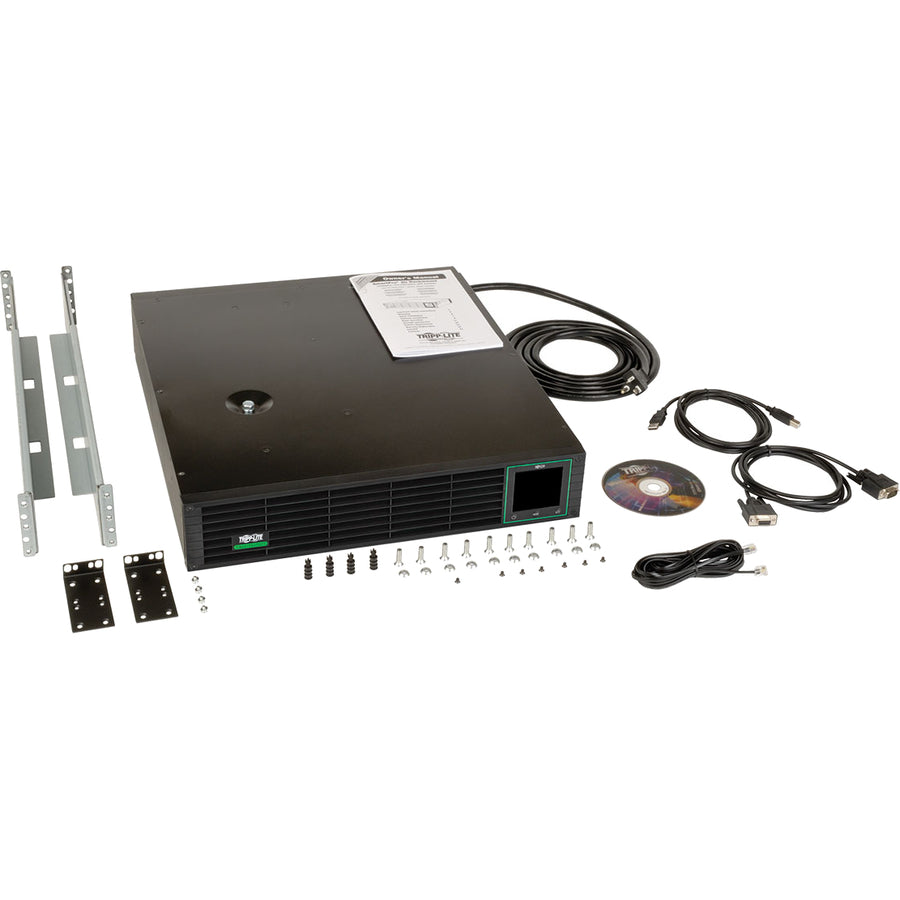

• Package Contents :
  • SmartPro SMART2200RM2UL 2200VA UPS
  • USB cable
  • DB9 cable
  • EPO cable
  • Rack-mounting hardware
  • Owner's manual
• Backup/Run Time (Full Load) : 5.10 Minute
• Load Capacity : 2.20 kVA/1.92 kW
• Manufacturer : Tripp Lite by Eaton
• Product Model : SMART2200RM2UL
• Backup/Run Time (Half Load) : 11.70 Minute
• Rack Height : 2U
• Receptacle Type : NEMA 5-15/20R,NEMA 5-20
• Environmentally Friendly : Yes
• Input Voltage : 120 V AC
• Transfer Time : 5 ms
• Limited Warranty : 5 Year
• Typical Battery Recharge Time : 1.40 Hour
• Waveform Type : Pure Sine Wave
• Plug/Connector Type : NEMA 5-20P
• Product Type : Line-interactive UPS
• Application/Usage : Server,Network Storage Device
• Hot Swappable : Yes
• Output Voltage : 110 V AC,115 V AC,120 V AC
• Country of Origin : United States
• Product Line : SmartPro
• Serial Port : Yes
• Sound Emission (A-Weighted) : 45 dB(A)
• Thermal Dissipation : 1343 BTU/h
• Maximum Operating Temperature : 122°F (50°C)
• USB : Yes
• EMI/RFI Noise Filter : Yes
• Surge Energy Rating : 570 J
• Alarm : UPS StartUp,Power Failure,Low Battery,Overload,UPS Fault,Remote Shutdown
• Manufacturer Website Address : https://tripplite.eaton.com/
• Circuit Breaker : Yes
• Input Current : 16 A
