Description
This rack-mount line-interactive UPS system provides reliable battery backup and AC power protection against blackouts, brownouts, surges and line noise that can damage your valuable IT equipment or destroy data. The SMART2200RM2UN is ideal power management for high-end in-rack networking equipment, including servers, VoIP phones, data storage and PoE switches. Unity power factor ensures the most watts possible at each power rating, so you can connect more equipment.
Reliable, Expandable Battery Backup Keeps You Operational Through Power Outages
The field-replaceable, hot-swappable VRLA battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. Switchover from line to battery power happens within milliseconds to maintain continuous operation of connected equipment without interruption or rebooting.
Pre-Installed LX Platform Network Management Card Allows Remote Access 24/7
The WEBCARDLXE network interface enables full remote configuration and management, including load shedding, reboots of connected equipment and safe shutdowns. The IP-based Auto Probe feature ensures continuous network uptime by communicating with other network devices, detecting lost connectivity and automatically rebooting IT equipment. Optional EnviroSense2 modules (E2MT, E2MTDO and E2MTHDI, all sold separately) provide a variety of environmental monitoring and control options.

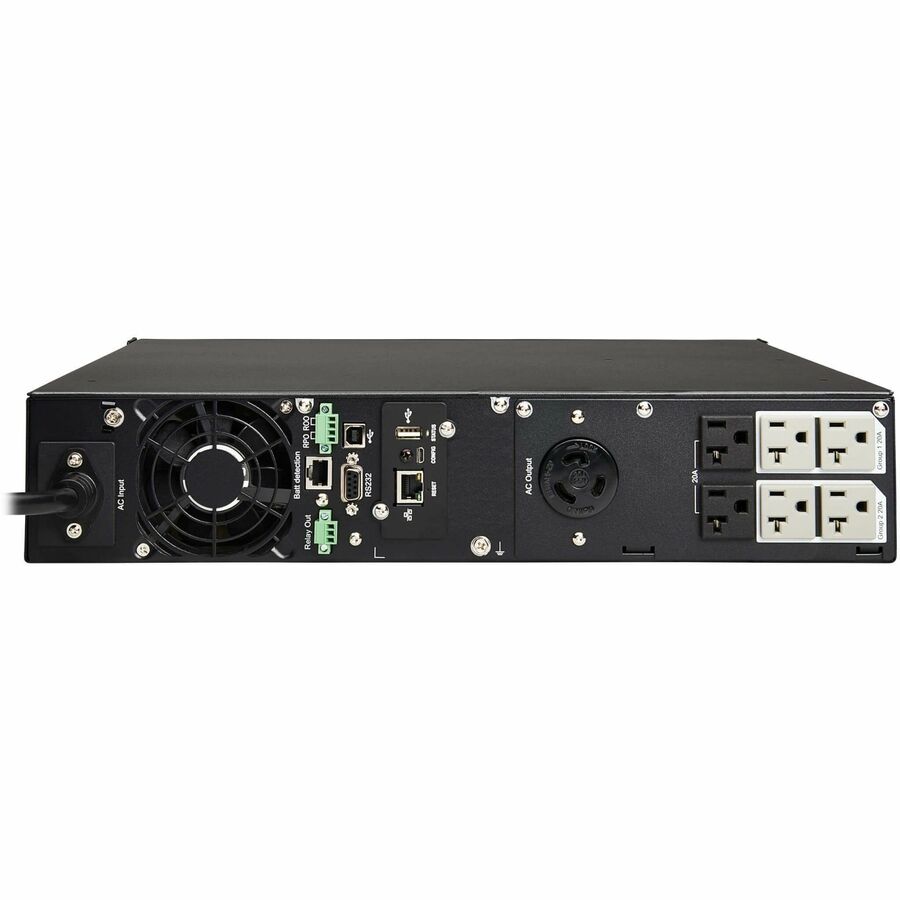

NEMA 5-20R Outlets Protect Your Connected Components
One L5-20R and six managed 5-20R outlets provide connected equipment with pure sine wave AC output and allow you to monitor power consumption down to the outlet group level. Power provided by these outlets is filtered to protect connected equipment against damaging surges and line noise. Four outlets are grouped into two programmable load banks that let you shed non-critical loads to extend runtime for critical loads. Front and rear cooling fans help protect equipment from overheating.
Automatic Voltage Regulation (AVR) Corrects Low- and High-Voltage Conditions
AVR protects your equipment from incremental hardware damage, data loss and performance problems caused by brownouts. The SMART2200RM2UN maintains regulated 120V nominal output during brownouts and overvoltages from 80V to 151V while keeping the battery fully charged and ready to take over in case of power failure.
Premium Protection from EMI/RFI Line Noise Helps Your Equipment Perform Better
This UPS system filters out disruptive electromagnetic and radio frequency interference that can inflict hardware damage or data loss. This EMI/RFI filtering also helps your connected components perform better and last longer.

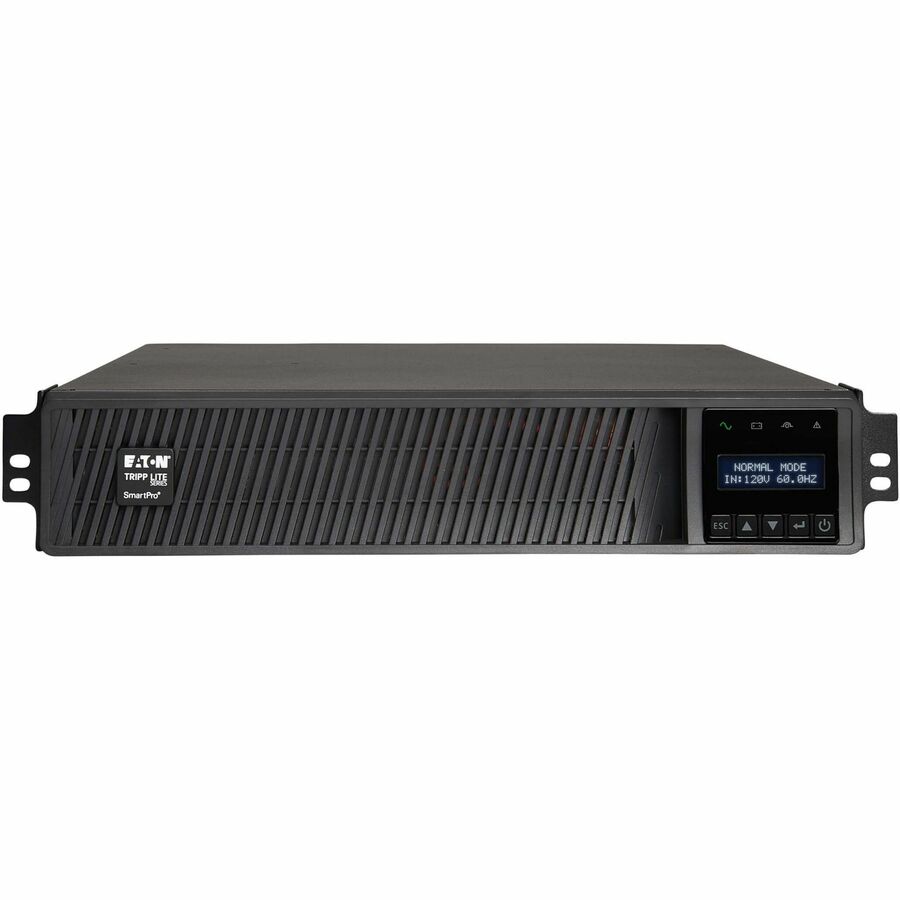

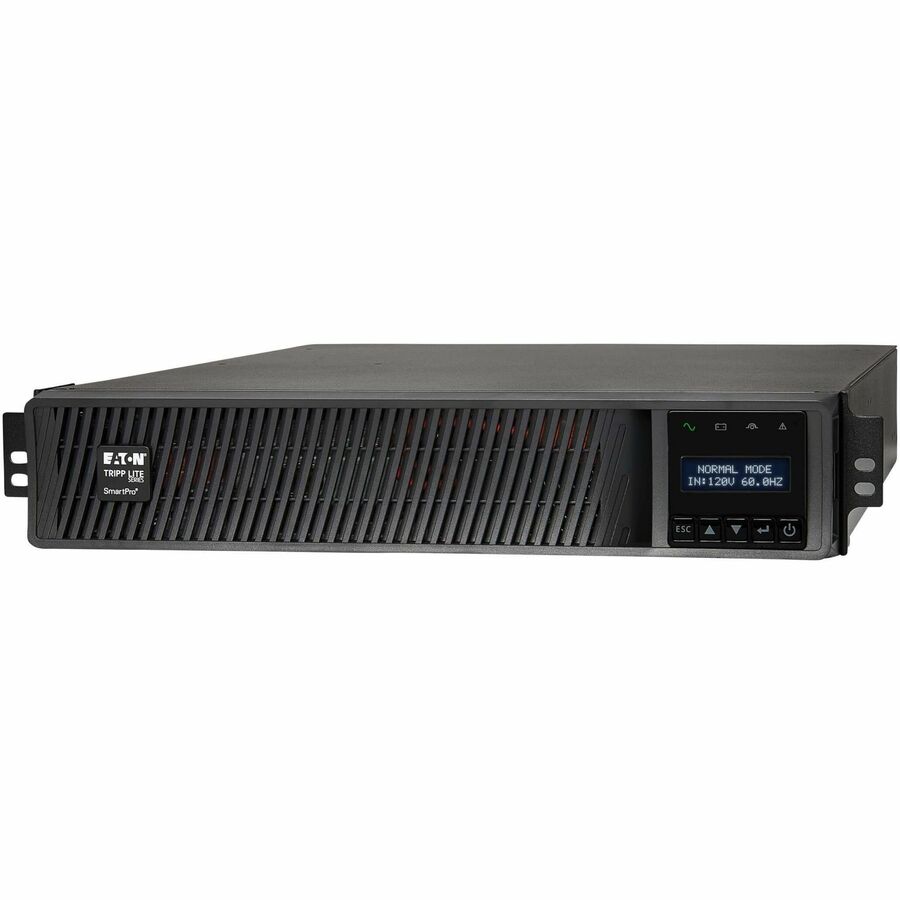

Intuitive Front-Panel Interface for Convenient UPS Operation and Monitoring
The two-line front-panel LCD monitoring screen features ten selectable screens that allow quick access to a wide range of detailed UPS and site power information. LEDs show UPS status: a green light means utility power is on, an orange light means the UPS is in battery mode and a red light indicates an active alarm or fault. The control panel rotates to accommodate both rack-mount and tower configurations.
- NEMA 5-20P input; 4 NEMA 5-15R & 4 5-15/20R outlets
- USB, RS232 & EPO ports, Pre-installed WEBCARDLX Network Interface
- Hot-swap batteries, 96% efficiency, Sine wave output
- Interactive LCD provides UPS status information and advanced configuration options
- 120V nominal output during brownouts to 83V and overvoltages to 145V
- 2.2kVA / 2200VA / 1920W line interactive 2U rack/tower UPS; 0.9 power factor
- Load Capacity : 1.95 kVA/1.95 kW
- Manufacturer Website Address : https://tripplite.eaton.com/
- Receptacle Detail : 4 x NEMA 5-15R,4 x NEMA 5-15/20R
- Software Included : PowerAlert Software
- Network Management : SNMP Manageable
- Serial Port : Yes
- Form Factor : Rack-mountable
- Package Contents :
- SmartPro SMART2200RM2UN 2.2kVA Rack-mountable UPS
- PowerAlert Software CD
- USB Cable
- Serial Cable
- EPO Cable
- 4 Post Rackmount Installation kit
- Instruction Manual
- Network Interface Card
- Backup/Run Time (Full Load) : 4.50 Minute
- Manufacturer : Tripp Lite by Eaton
- Product Model : SMART2200RM2UN
- Backup/Run Time (Half Load) : 12 Minute
- Rack Height : 2U
- Receptacle Type : NEMA 5-15R,NEMA 5-15/20R
- USB : Yes
- Input Voltage : 110 V AC
- Transfer Time : 5 ms
- Limited Warranty : 3 Year
- Typical Battery Recharge Time : 4.50 Hour
- Plug/Connector Type : NEMA 5-20P
- Product Type : Line-interactive UPS
- Hot Swappable : Yes
- Output Voltage : 120 V AC
- Country of Origin : China
- Product Line : SmartPro
