Description
This rack-mount line-interactive UPS system provides reliable battery backup and AC power protection against blackouts, brownouts, surges and line noise that can damage your valuable IT equipment or destroy data. The SMART2200RMXLN is ideal power management for high-end in-rack networking equipment, including servers, VoIP phones, data storage and PoE switches. Unity power factor ensures the most watts possible at each power rating, so you can connect more equipment.
Reliable, Expandable Battery Backup Keeps You Operational Through Power Outages
The field-replaceable, hot-swappable VRLA battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. Switchover from line to battery power happens within milliseconds to maintain continuous operation of connected equipment without interruption or rebooting. Extra runtime is available by connecting up to four optional extended battery modules (BP72VRM2U, sold separately).
Pre-Installed LX Platform Network Management Card Allows Remote Access 24/7
The WEBCARDLXE network interface enables full remote configuration and management, including load shedding, reboots of connected equipment and safe shutdowns. The IP-based Auto Probe feature ensures continuous network uptime by communicating with other network devices, detecting lost connectivity and automatically rebooting IT equipment. Optional EnviroSense2 modules (E2MT, E2MTDO and E2MTHDI, all sold separately) provide a variety of environmental monitoring and control options.
NEMA 5-20R Outlets Protect Your Connected Components

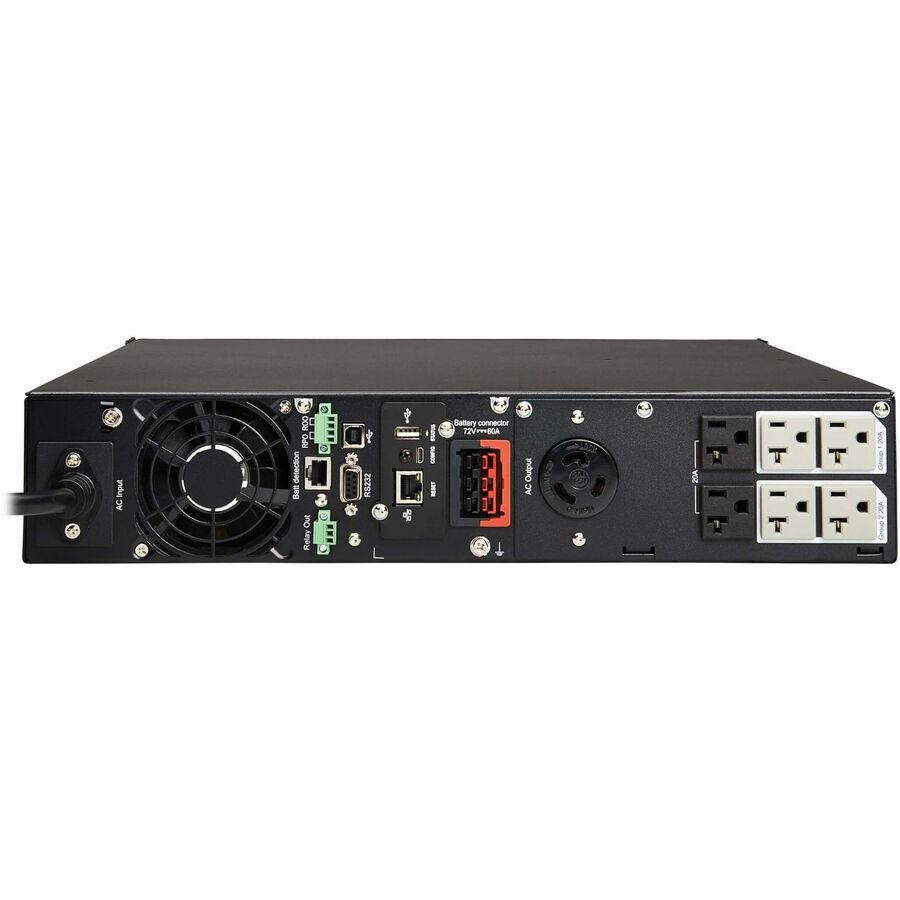

One L5-20R and six managed 5-20R outlets provide connected equipment with pure sine wave AC output and allow you to monitor power consumption down to the outlet group level. Power provided by these outlets is filtered to protect connected equipment against damaging surges and line noise. Four outlets are grouped into two programmable load banks that let you shed non-critical loads to extend runtime for critical loads. Front and rear cooling fans help protect equipment from overheating.
Automatic Voltage Regulation (AVR) Corrects Low- and High-Voltage Conditions
AVR protects your equipment from incremental hardware damage, data loss and performance problems caused by brownouts. The SMART2200RMXLN maintains regulated 120V nominal output during brownouts and overvoltages from 80V to 151V while keeping the battery fully charged and ready to take over in case of power failure.
Premium Protection from EMI/RFI Line Noise Helps Your Equipment Perform Better
This UPS system filters out disruptive electromagnetic and radio frequency interference that can inflict hardware damage or data loss. This EMI/RFI filtering also helps your connected components perform better and last longer.
ENERGY STAR-Certified to Help You Save Money and Protect the Environment
By meeting strict U.S. Department of Energy and U.S. Environmental Protection Agency requirements, this ENERGY STAR 2.0 UPS system provides high operational efficiency to signal a reduction in BTU emissions, save on utility and cooling costs and help protect the environment.

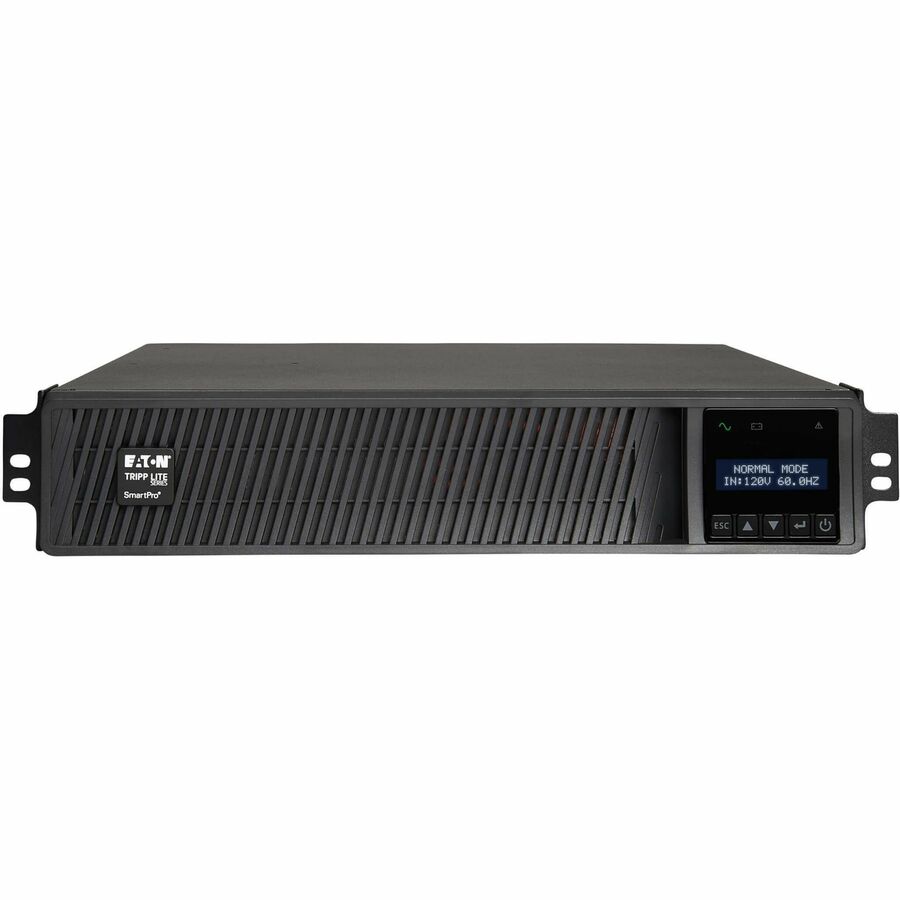

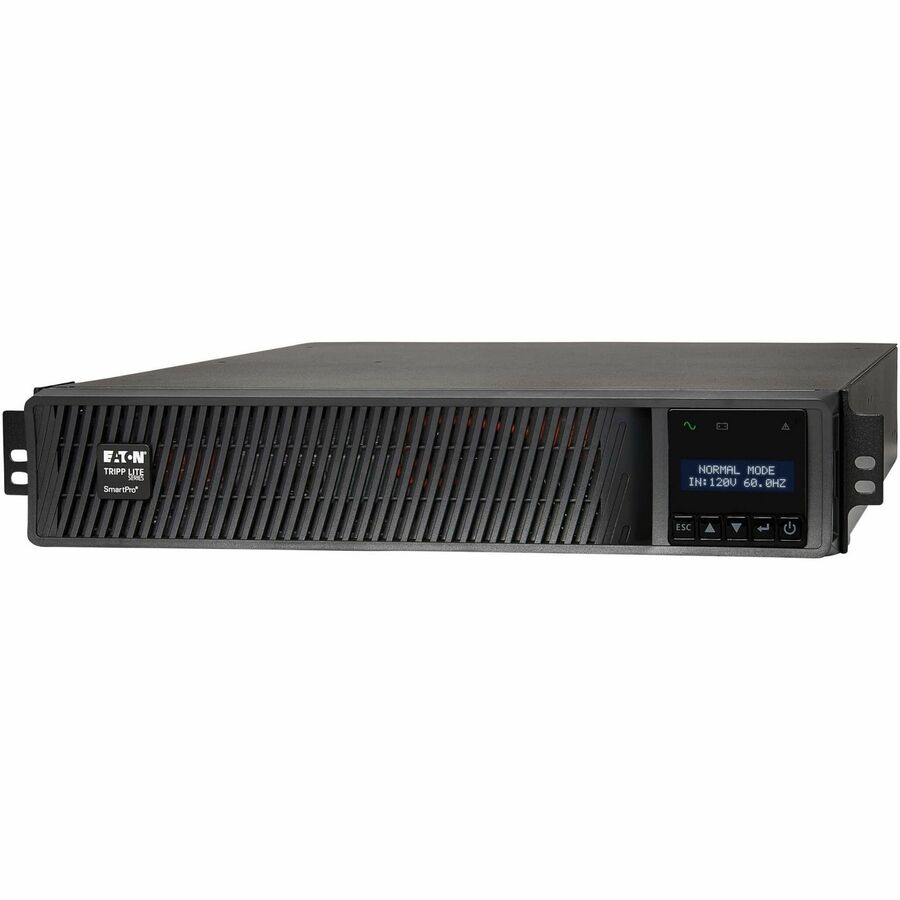

- 2-line front-panel LCD with 10 selectable screens reports detailed UPS and site power info
- Included WEBCARDLXE network interface allows 24/7 remote monitor and control..
- ENERGY STAR 2.0-certified to save electricity, lower costs and protect the environment
- Unity power factor ensures maximum power possible at each power rating
- Keeps equipment running during outages to allow time for file saves and safe shutdown
- Protects equipment against blackouts, brownouts, transient surges and line noise
- Load Capacity : 1.95 kVA/1.95 kW
- TAA Compliant : Yes
- Input Voltage : 120 V AC
- Product Series : SmartPro
- Limited Warranty : 3 Year
- Typical Battery Recharge Time : 4.50 Hour

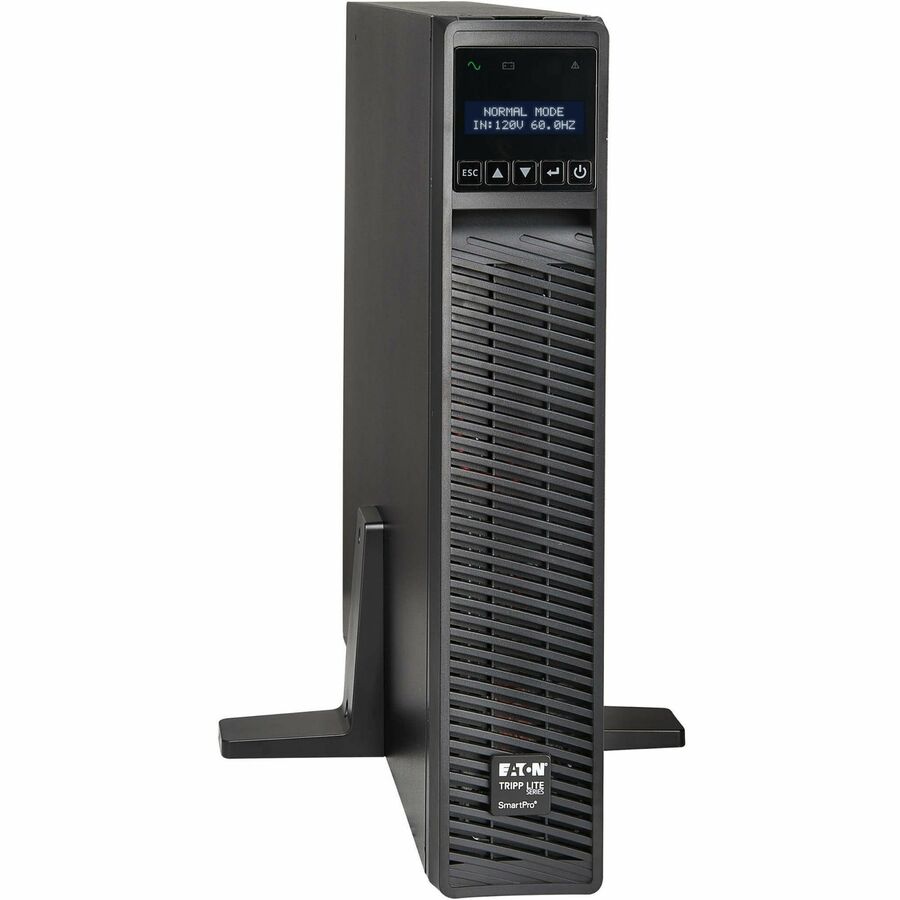

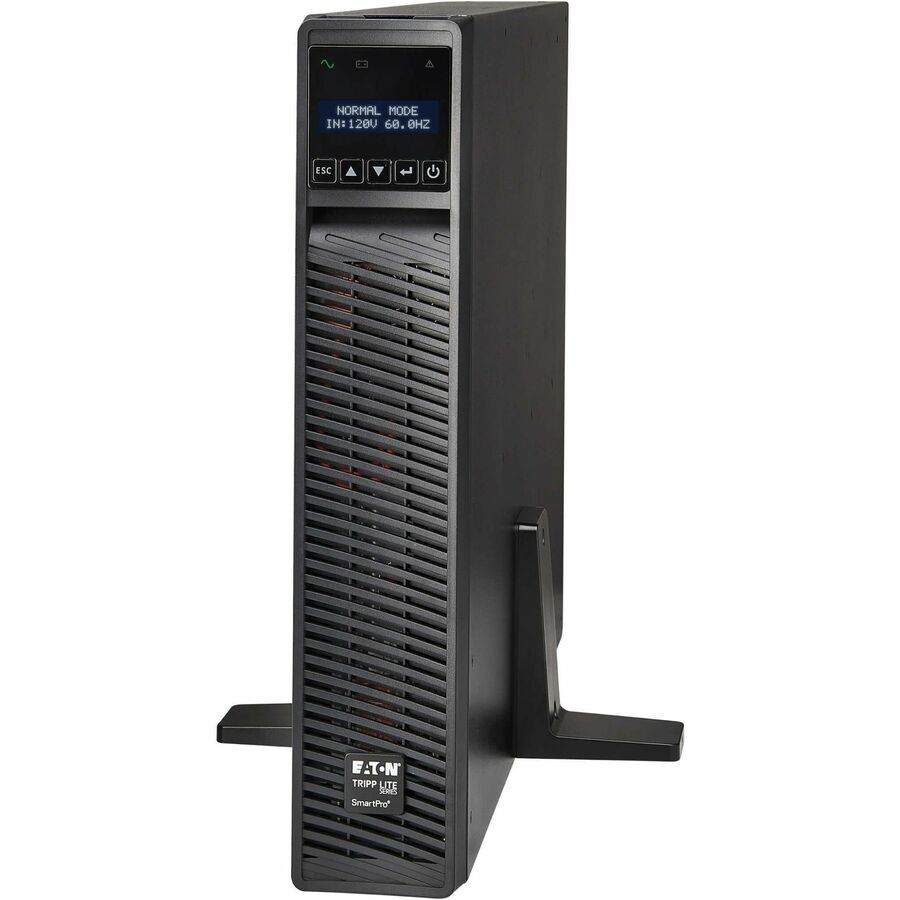

- Form Factor : Rack/Tower

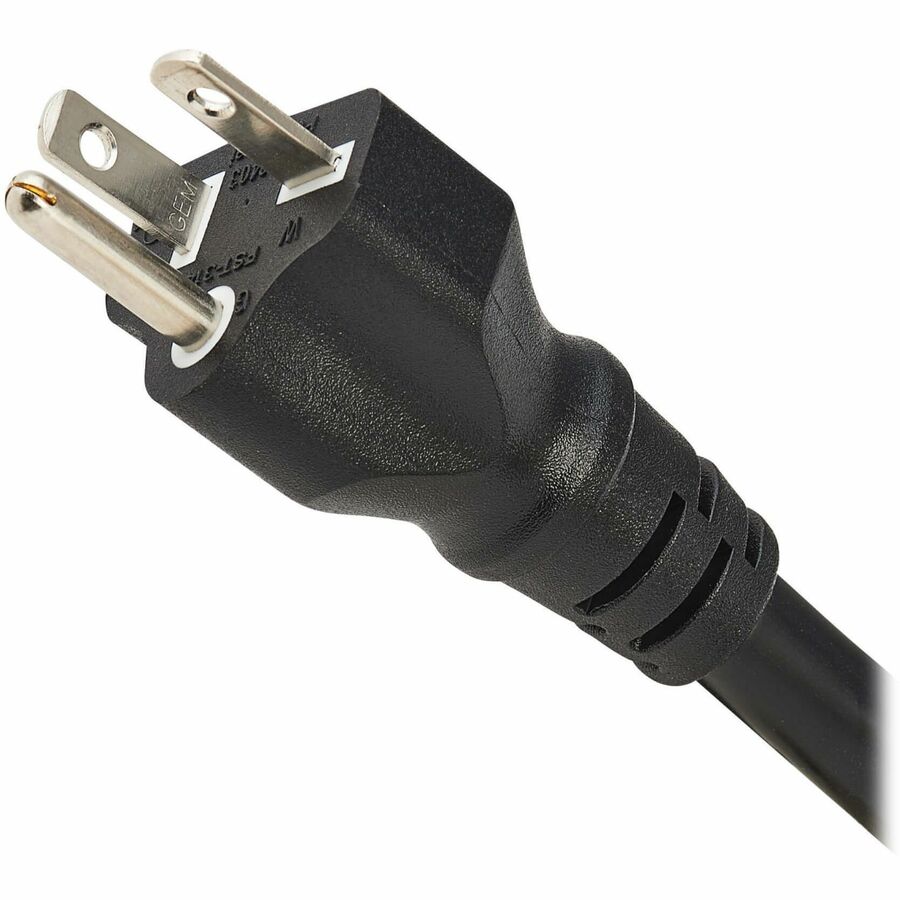

- Plug/Connector Type : NEMA 5-20P
- Product Type : Line-interactive UPS
- Manufacturer : Tripp Lite by Eaton
- Product Model : SMART2200RMXLN
- Hot Swappable : Yes
- Backup/Run Time (Half Load) : 12 Minute

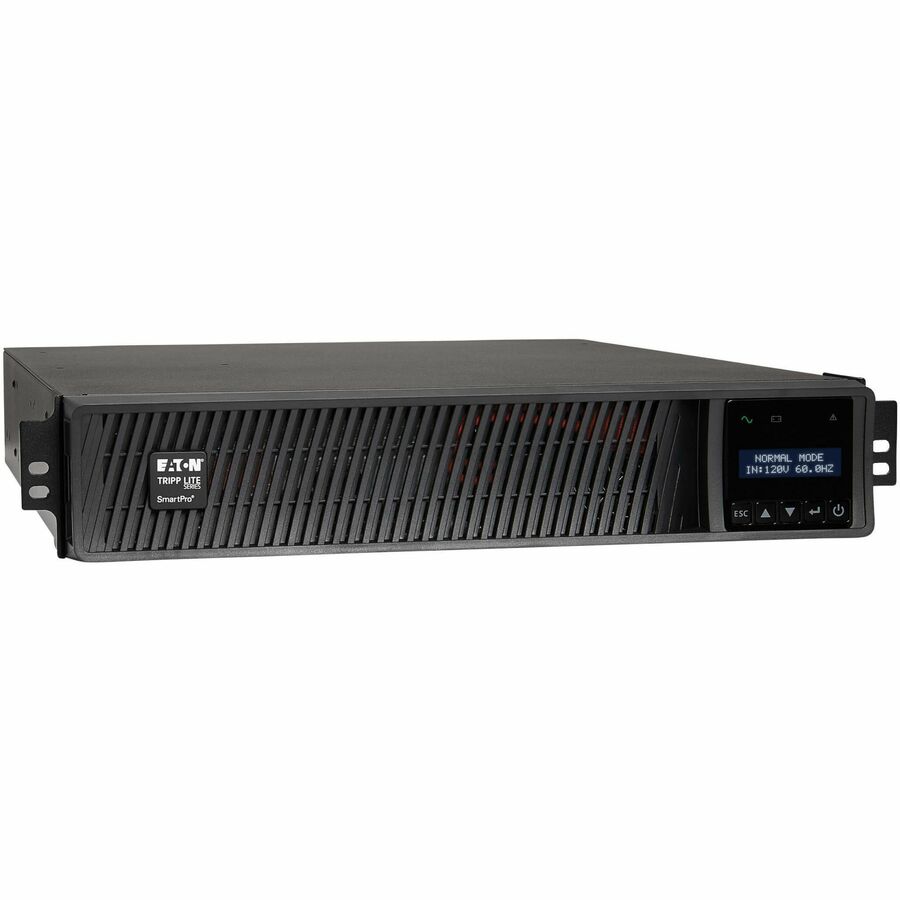

- Rack Height : 2U
- Country of Origin : China
- Software Included : PowerAlert Software
- Serial Port : Yes
- USB : Yes
- Manufacturer Website Address : https://tripplite.eaton.com/
- Receptacle Detail : 6 x NEMA 5-20R,1 x NEMA L5-20R
- Network Management : SNMP/Web

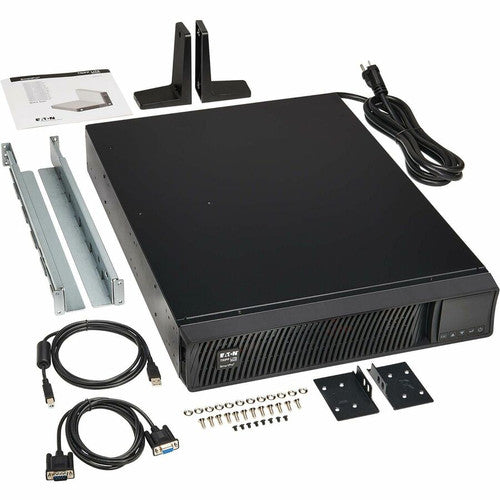

- Package Contents :
- SmartPro SMART2200RMXLN 1950VA Rack/Tower UPS
- WEBCARDLXE Network Management Card
- USB Cable
- DB9 Cable
- Rack-mounting Hardware
- Tower support Stands
- Safety Instructions
- Advanced User Guide
- Backup/Run Time (Full Load) : 4 Minute
- Receptacle Type : NEMA L5-20R,NEMA 5-20R
- Transfer Time : 4 ms
- Output Voltage : 100 V AC,110 V AC,115 V AC,120 V AC
- Phase : Single Phase
- DC System Voltage : 72 V DC
- Maximum Operating Elevation : 10000 ft (3048000 mm)
- Battery Chemistry : Lead Acid
- Maximum Operating Temperature : 104°F (40°C)
- Battery Characteristics : Valve-regulated
- Output Frequency : 60 Hz
- Storage Temperature : 5°F (-15°C) - 122°F (50°C)
- Output Power Factor : 1
- EPO Port : Yes
- Waveform Type : Pure Sine Wave
- Minimum Operating Temperature : 32°F (0°C)
- Overload Protection : Yes
- Surge Energy Rating : 380 J
- Replaceable Battery : Yes
- Alarm : Remote Shutdown,UPS StartUp,Power Failure,Overload,UPS Fault,Low Battery
- Application/Usage : Data Storage,Server,Switch,IT Equipment
- Maximum Storage Elevation : 32808 ft (9999878.40 mm)
- USB (HID Compliant) Port : Yes
- Display : LCD
- Product Line : SmartPro
