Description

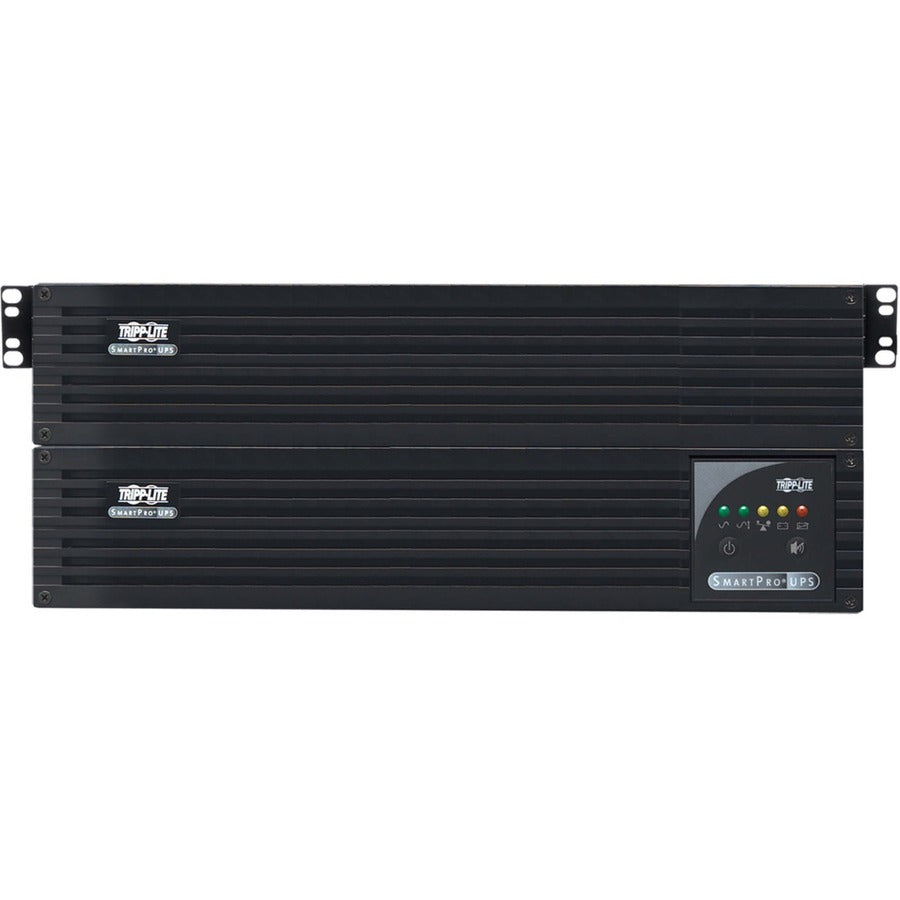

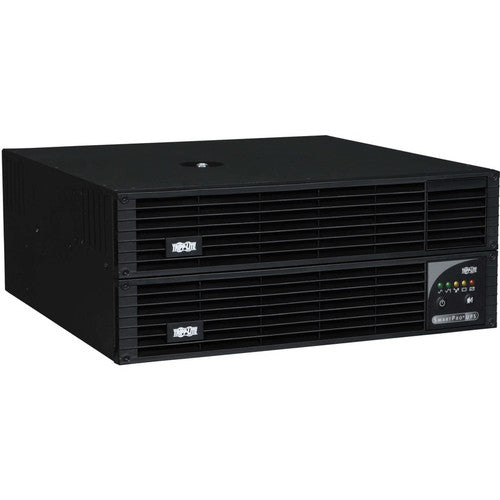

3kVA/2.88kW/120V Battery Backup for PC Networks, Security Systems or Digital Signage
The SmartPro® line-interactive SMART3000CRMXLN UPS system with AVR provides reliable battery backup and AC power protection against blackouts, brownouts, overvoltages, surges and line noise that can damage valuable electronics or destroy data. The nine-outlet 120V battery backup with 0.96 power factor is ideal protection for small networks, wiring closets, security systems, telecom, high-end PC gaming, digital signage equipment and other professional applications, including retail, casino and hotel/motel management.
Reliable, Expandable Battery Backup Keeps You Operational Through Power Outages
Backup support allows you to work through short power failures and gives you enough time to safely save files and shut down your system in case of a prolonged blackout. Backup time varies according to load, but the field-replaceable, hot-swappable internal battery should keep a half load (1440W) powered as long as 19 minutes and a full load (2880W) up to 7.5 minutes. For mission-critical applications demanding scalable extended runtime, the UPS supports external battery packs, such as Tripp Lite's BP48V27-2US (sold separately).
Pre-Installed WEBCARDLX Network Interface Offers 24/7 Remote Access for Monitoring and Control
The Java-free HTML5-based WEBCARDLX enables full remote access for site power and UPS status monitoring, configuration, control and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Automated alerts help prevent accidental overloads, power loss and downtime. WEBCARDLX allows you to use the Auto Probe feature, which can prevent costly service calls by automatically rebooting non-responsive network devices.
9 NEMA Outlets Protect Your Connected Components
One L5-30R and eight 5-15/20R outlets provide battery backup, 570 joules of surge protection and voltage regulation for your crucial components. Three independently switched single-outlet 5-15/20R load banks enable both scheduled and real-time remote rebooting and load shedding.
Automatic Voltage Regulation (AVR) Corrects Low- and High-Voltage Conditions
AVR protects your equipment from incremental hardware damage, data loss and performance problems caused by brownouts and overvoltages. The SMART3000CRMXLN can correct brownouts as low as 83V and overvoltages as high as 145V back to nominal 120V power continuously, all while keeping the battery fully charged and ready to take over in case of power failure.
Premium Protection from EMI/RFI Line Noise Helps Your Equipment Perform Better
This UPS system filters out disruptive electromagnetic and radio frequency interference that can inflict hardware damage or data loss. This EMI/RFI filtering also helps your connected components perform better and last longer.
Designed for High Efficiency to Help You Save Money and Protect the Environment
A 97% efficiency rating reduces BTU emissions, energy consumption and, ultimately, your energy costs.
Audible Alarm and Diagnostic LEDs Keep You Informed Around the Clock
Five front-panel LEDs monitor line power, battery power, overload, voltage regulation and battery low/replace status. The alarm sounds to warn you in case of power failure, overload and low battery.
- Experience higher efficiency with lower energy cost
- Up to 7.50 minute runtime on full load to preserve critical data from power shortage interruptions
- Receptacle Detail : 8 x NEMA 5-15/20R,1 x NEMA L5-30R
- Phase : Single Phase
- Form Factor : Rack-mountable
- Package Contents :
- SmartPro SMART3000CRMXLN 3000VA Rack-mountable UPS
- Pre-Installed WEBCARDLX Network Management Card
- USB Cable
- DB9 Cable
- EPO Cable
- Rack-mounting Hardware
- Owner's Manual
- Backup/Run Time (Full Load) : 7.50 Minute
- Load Capacity : 3 kVA/2.88 kW
- Battery Chemistry : Lead Acid
- Manufacturer : Tripp Lite by Eaton
- Product Model : SMART3000CRMXLN
- Backup/Run Time (Half Load) : 19 Minute
- Rack Height : 4U
- Receptacle Type : NEMA 5-15/20R,NEMA L5-30R
- Environmentally Friendly : Yes
- Input Voltage : 120 V AC
- Transfer Time : 5 ms
- Limited Warranty : 3 Year
- Typical Battery Recharge Time : 7.20 Hour
- Waveform Type : Sine Wave
- Network (RJ-45) : Yes
- Plug/Connector Type : NEMA L5-30P
- Product Type : Line-interactive UPS
- Replaceable Battery : Yes
- Application/Usage : Digital Signage,Security System,Casino,Gaming Console,Network Device,Desktop Computer,Mission Critical Equipment,Retail Building,Wiring Closet,Hotel/Motel Management
- Hot Swappable : Yes
- Output Voltage : 110 V AC,115 V AC,120 V AC
- AVR : Yes
- Country of Origin : China
- Product Line : SmartPro
- DC System Voltage : 48 V DC
- Network Management : SNMP/Telnet/SSH
- Serial Port : Yes
- Sound Emission (A-Weighted) : 45 dB(A)
- Thermal Dissipation : 539 BTU/h
- Maximum Operating Temperature : 104°F (40°C)
- Battery Characteristics : Valve-regulated
- Storage Temperature : 5°F (-15°C) - 122°F (50°C)
- EMI/RFI Noise Filter : Yes
- EPO Port : Yes
- Overload Protection : Yes
- Surge Energy Rating : 570 J
- Dataline Protection : RJ-11
- Alarm : Power Failure,Overload,Low Battery
- USB (HID Compliant) Port : Yes
- Status Indicators :
LED Indicators:
- 5 LEDs Indicate Line Power
- Battery Power
- Overload
- Voltage Regulation
- Battery Low/Replace Status
- Manufacturer Website Address : https://tripplite.eaton.com/
