Description
Featuring eight C13 outlets and a C14 inlet that accepts a user-supplied AC power cord, the SMX1500SLT has an internal battery that provides 20 minutes of support at half load and eight minutes at full load. Front-panel LEDs indicate line power, voltage regulation, load level and battery status. An alarm sounds to indicate power failure or overload.
Automatic voltage regulation (AVR) maintains selectable 220V, 230V or 240V nominal output over an input range of 174V-266V (220V), 182V-278V (230V) or 190V-290V (240V) without using battery power. EMI/RFI noise filtering improves your equipment's performance and prevents damage. A 350-joule surge suppression rating protects your equipment from harmful power surges. With Tripp Lite's downloadable PowerAlert® software, the SMX1500SLT enables safe unattended system shutdown and file saves in case of a prolonged power failure. Adding an optional Network Managment Card permits remote management of the UPS
Protects Mission-Critical Equipment
- Provides fully regulated sine wave AC output for point-of-sale applications, VoIP systems and small business networks
- Audible alarm signals loss of utility power or overload
- 8 C13 outlets
- C14 inlet accepts user-supplied AC power cord with country-specific plug
- 350-joule surge suppression rating
Reliable Battery Backup
- Supports half load up to 20 min. and full load up to 8 min.
- Internal batteries designed for hot-swap field replacement
- Cold-start capability enables turn-on in battery mode during blackouts
Automatic Voltage Regulation (AVR)
- Maintains selectable nominal output without using battery power
- Corrects brownouts and overvoltages from 174V-266V (220V), 182V-278V (230V) or 190V-290V (240V)
EMI/RFI Line Noise Filtering
- Removes electromagnetic and radio frequency interference that can disrupt or damage equipment's performance
LED Indicators
- Front-panel LEDs indicate line power, voltage regulation, load level and battery status
Network Management Cards
- Compatible with Tripp Lite UPS management card options WEBCARDLX, SNMPWEBCARD and RELAYIOCARD
- Optional WEBCARDLX (sold separately) with the latest version of PowerAlert Device Manager firmware (PADM20) provides enhanced remote management capabilities
- PADM20 and PowerAlert Element Manager (PAEM) form a powerful tool for expanding maintenance functions in large installations, including firmware update checks and backup and restoration of device configurations
Communication Ports
- USB & Serial ports enable data-saving unattended shutdown when used with Tripp Lite's PowerAlert software, available via FREE download from
Telephone/Network
- Protect against power surges over telephone/DSL or network Ethernet lines
- 20 min. runtime at half load; 8 min. at full load
- Network power management and control capability
- 8 C13 outlets
- Front-panel LEDs indicate load, power, voltage and battery statuses
- Corrects under- and overvoltages from 182V to 278V (230V)
- Input Voltage : 220 V AC
- Transfer Time : 8 ms
- Limited Warranty : 2 Year
- Typical Battery Recharge Time : 8 Hour
- Form Factor : Tower
- Package Contents :

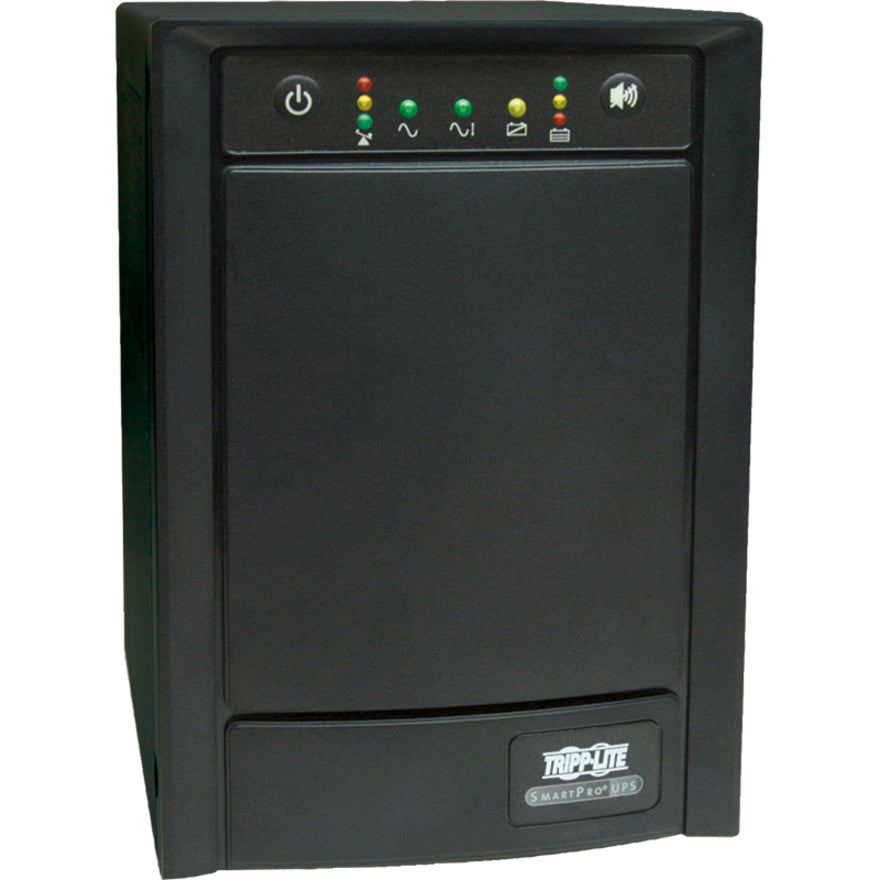

- SmartPro SMX1500SLT 1500VA Tower UPS
- SMX1500SLT UPS System
- PowerAlert Software CD-ROM
- USB and serial cabling
- 2 IEC C13-to-C14 jumper cables
- Owner's manual with warranty information
- Backup/Run Time (Full Load) : 8 Minute
- Plug/Connector Type : IEC 309 C14
- Product Type : Line-interactive UPS
- Load Capacity : 1.50 kVA/900 W
- Manufacturer : Tripp Lite by Eaton
- Product Model : SMX1500SLT
- Hot Swappable : Yes
- Output Voltage : 240 V AC
- Backup/Run Time (Half Load) : 20 Minute
- Country of Origin : China
- Product Line : SmartPro
- Software Included : PowerAlert UPS Software
- Network Management : SNMP Manageable
- USB : Yes
- Serial Port : Yes
- Dataline Protection : RJ-45,RJ-11
- Manufacturer Website Address : https://tripplite.eaton.com/
