Description

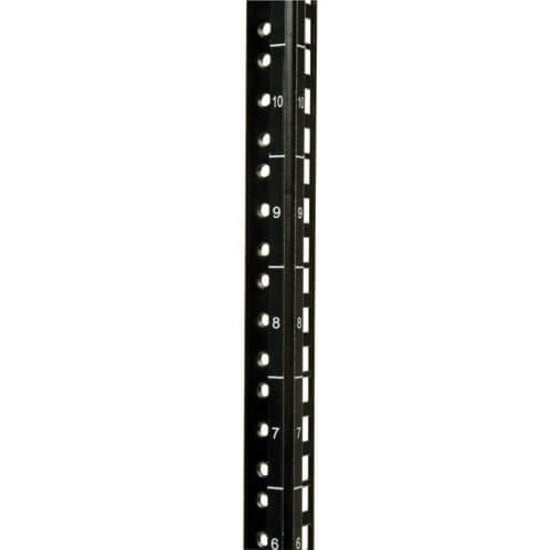

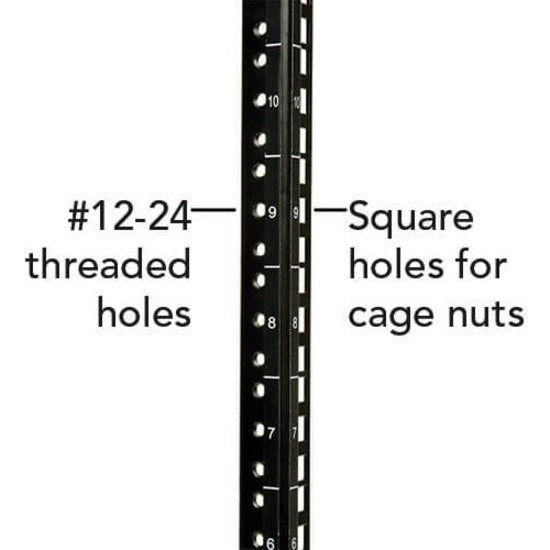

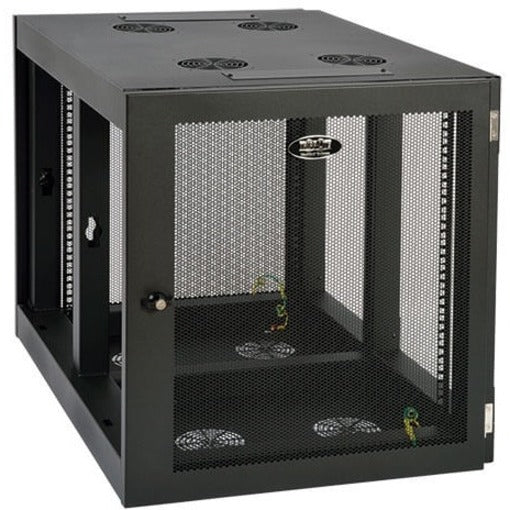

The SRW12UHD SmartRack 12U Heavy-Duty Low-Profile Server-Depth Side-Mount Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 500 pounds.Because the low-profile cabinet mounts sideways, it extends less than 25 inches from the wall while housing equipment up to 32.5 inches deep, including 1U servers, UPS systems, battery packs, network switches and patch panels. The removable front panel and side doors lock securely to help prevent damage, tampering or theft. The top, bottom and sides are vented, which allows air to flow freely and keep equipment cool. Convenient top and bottom ports allow easy cable routing.The SRW12UHD comes fully assembled and ready to mount to the wall. Square and threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments.
- Secures 12U of 19 in. rack equipment up to 32.5 in. deep
- Flow-through ventilation keeps equipment cool
- Locking steel cabinet vented at sides, top and bottom
- Maximum load capacity of 500 lb.
- Environmentally Friendly : Yes
- Rack Width : 19" (482.60 mm)
- Product Color : Black
- Static/Stationary Weight Capacity : 226.80 kg
- Limited Warranty : 5 Year
- Form Factor : Wall Mountable
- Package Contents :
- SmartRack Heavy-Duty Side-Mount Wall-Mount Rack Enclosure Cabinet
- 20 x M6 Cage Nuts
- 20 x M6 Equipment Mounting Screws
- 20 x M6 Washers
- 20 x 12-24 Equipment Mounting Screws
- 1 x Key Set
- Owner's Manual
- Product Type : Rack Cabinet
- Rack Depth : 32.50" (825.50 mm)
- Application/Usage : Server
- Manufacturer : Tripp Lite by Eaton
- Product Model : SRW12UHD
- Features : Vented Top,Removable Door,Removable Side Panel,Adjustable Mounting Rails
- Rack Height : 12U
- Country of Origin : China
- Product Line : SmartRack
- Manufacturer Website Address : https://tripplite.eaton.com/
- Color Family : Black
