Tripp Lite by Eaton SmartRack SR45UBWDVRT Rack Cabinet SR45UBWDVRT

Save $2,103.60
Tripp Lite by EatonSKU: SR45UBWDVRT

Price:
Sale price$3,185.99 Regular price$5,289.59
Stock:
Sold out

Description

SR45UBWDVRT is a WIDE version of our standard 45U SmartRack Enclosure (750mm wide (29.5") compared to the standard 600mm wide) and includes preinstalled SRCABLEVRT3. The SRCABLEVRT3 helps eliminate cable stress by organizing the cables within the enclosure. The vertical cable manager is 6-ft high and 3" wide.

The SR45UBWDVRT houses 3000lbs of standard 19-inch rack equipment in 45U. Its front and rear pairs of vertical rails have square mounting holes that are adjustable in quarter-inch increments from 4 to 37 inches. Adjustment is quick and an easy-view depth index ensures consistent rail placement without requiring time-consuming measurements. Each rack space within the enclosure is numbered for ready reference.

With its locking, reversible, removable front and rear doors and locking, removable side panels, the SR45UBWDVRT provides ultimate equipment safety. The side panels are half size for ease of removal and re-installation. The split rear door design allows the enclosure to be placed closer to a wall. The SR45UBWDVRT meets all requirements toward PCI DSS compliance.

The top panel of the SR45UBWDVRT is vented to help remove warm air from the enclosure and draw in cool air by convection. the top panel includes ports for cable routing, and can be quickly removed without tools.

All components of the SR45UBWDVRT are grounded to the enclosure frame. Front and rear threaded grounding points are provided for connection to the facility earth ground. The removable front and rear doors feature quick-release ground wires.

To simplify deployment, the SR45UBWDVRT comes with preinstalled casters that enable it to be easily maneuvered into the desired location, where it can be secured by adjusting the preinstalled levelers. Note: the casters are intended for minor position adjustments and are not designed for moving enclosures over long distances.

The SR45UBWDVRT comes with a 5-year product warranty. As part of the SmartRack family it is compatible with Tripp Lite's extensive range of rackmount accessories, enabling you to customize your solution to meet any requirements.

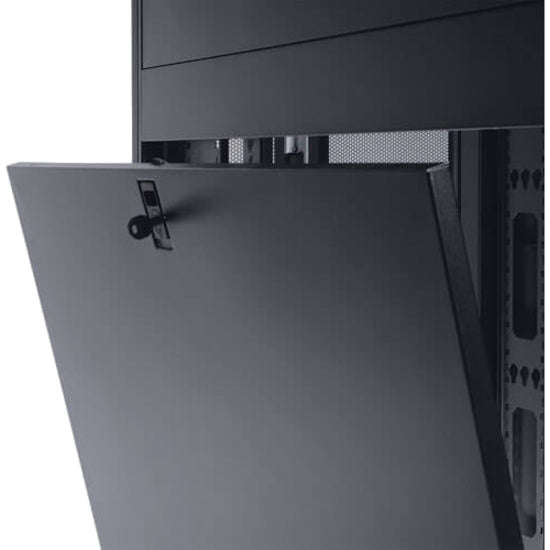

  • Locking, removable side panels keyed alike with doors
  • Locking, removable, reversible front and rear doors
  • 3000 lb stationary / 2250 lb rolling load capacity
  • Massive front to rear ventilation capacity
  • 4 interior vertical posts with unthreaded square hole openings

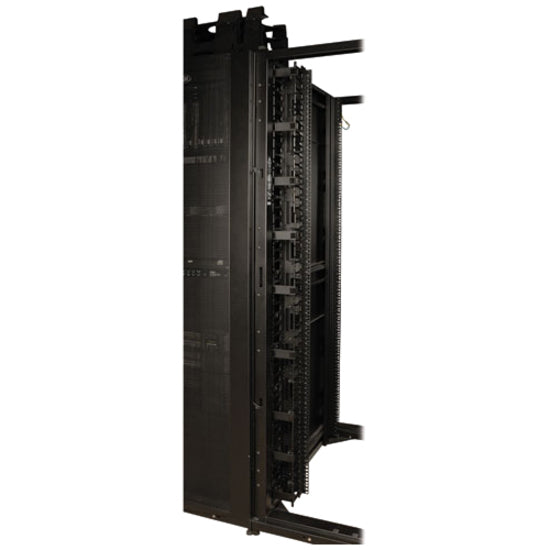

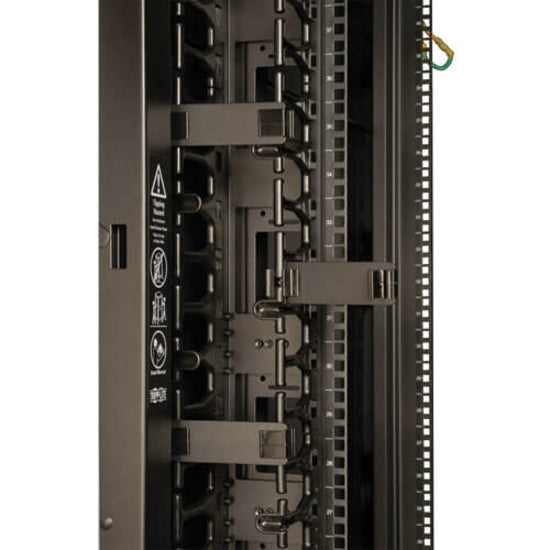

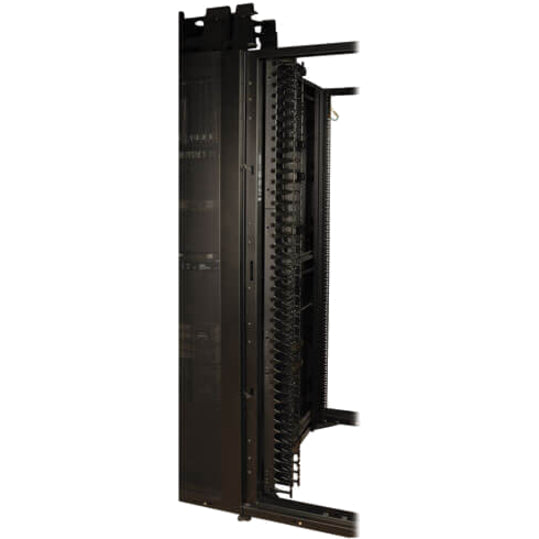

  • Pre-Installed 6-ft vertical cable manager - high capacity for large cable bundles
  • 30" (750mm) width and 42" (1050mm) depth

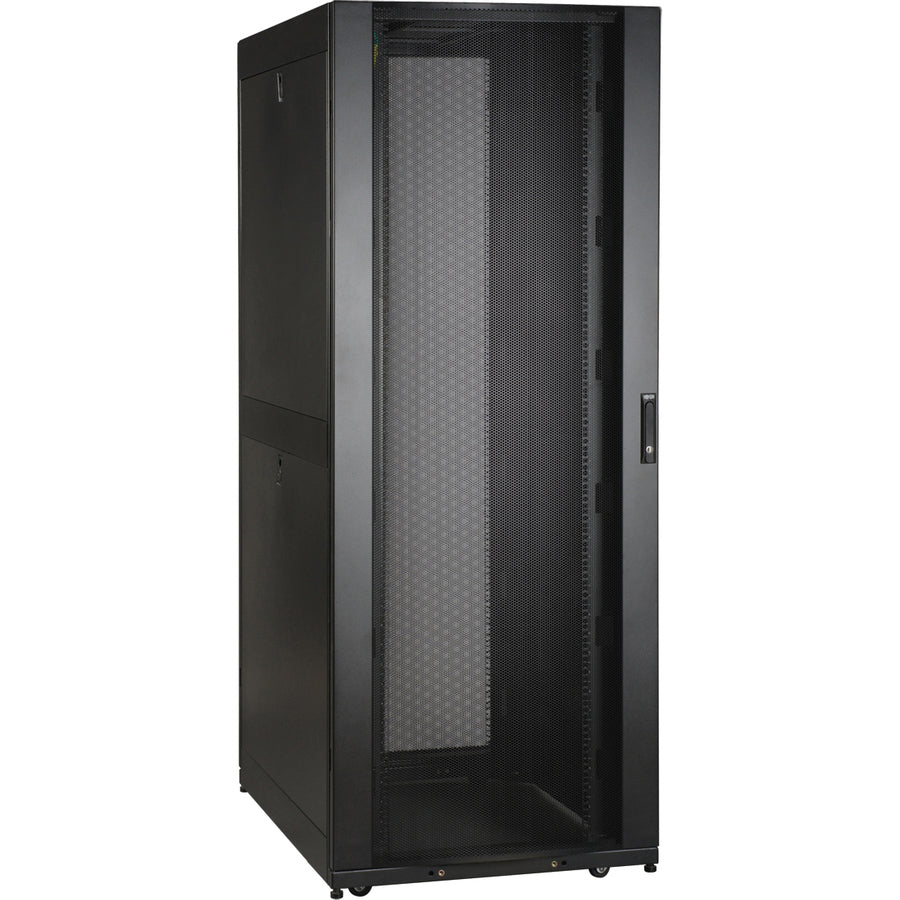

  • 45U SmartRack enclosure with doors and side panels
. .
  • Environmental Certification : RoHS
  • Environmentally Friendly : Yes
  • Rack Width : 19" (482.60 mm)
  • Product Color : Black
  • Static/Stationary Weight Capacity : 1360.78 kg
  • Limited Warranty : 5 Year
  • Package Contents :
    • SmartRack SR45UBWDVRT Rack Cabinet
    • Mounting Hardware
    • 50 x M6 Cage Nuts
    • 50 x M6 Washers
    • 50 x M6 Screws
    • Stabilizing Brackets
    • 4 x Side Panels
    • 4 x Side Panel Locks
    • 2 x Door and Side Panel Keys
    • Owner's Manual
  • Product Type : Rack Cabinet
  • Assembly Required : No
  • Dynamic/Rolling Weight Capacity : 1020.58 kg
  • Manufacturer : Tripp Lite by Eaton
  • Product Model : SR45UBWDVRT
  • Rack Height : 45U
  • Country of Origin : China
  • Product Line : SmartRack
  • Manufacturer Website Address : https://tripplite.eaton.com/
  • Color Family : Black
