Description
Space-Saving Wall-Mount Enclosure Houses Rack Equipment up to 28 in. Deep
This SmartRack® industrial enclosure is designed to house 9U of 19-inch rack-mount equipment, such as network switches and patch panels. Constructed from steel with a durable gray powder-coated finish, the SRN3RG9US has a maximum load capacity of 200 pounds (90.7 kilograms) and is suitable for indoor and outdoor applications.
NEMA 3R Enclosure Designed for Protection Against Harsh Elements
The SRN3RG9US protects its contents against the ingress of water (including rain, sleet and snow), solid foreign objects (including falling dirt) and even ice forming on the outside of the enclosure. It is ideal for a multitude of industrial sites, such as factories, construction areas, utility plants, power stations, transportation terminals, distribution hubs, warehouses and other areas where you need to keep sensitive equipment secure, organized and out of the way.
Locks and Hinged Back Allow Easy Authorized Access to Equipment and Cabling

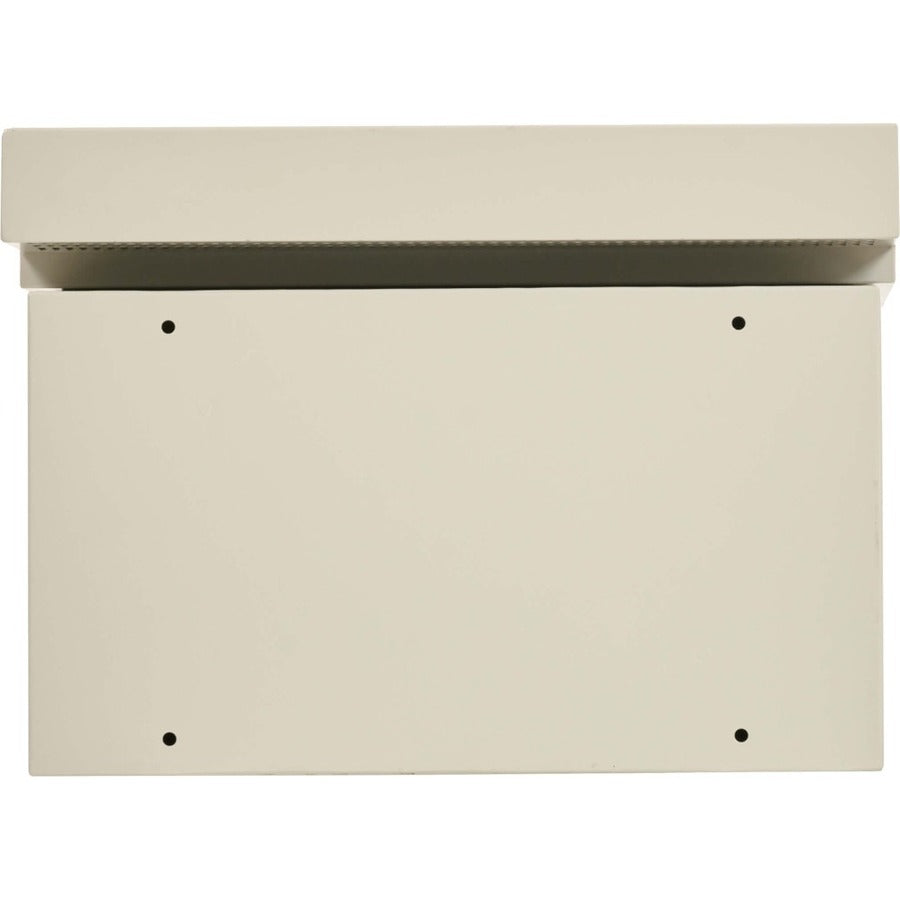

The fully welded steel housing locks securely with the included keys to protect its contents against theft, tampering and unauthorized access. The enclosure swings away from the wall on a sturdy hinge, allowing easy back-door access to equipment and cabling during installation and maintenance. Data and power cables may be routed through a bottom conduit cutout.
Easy Enclosure and Equipment Installation

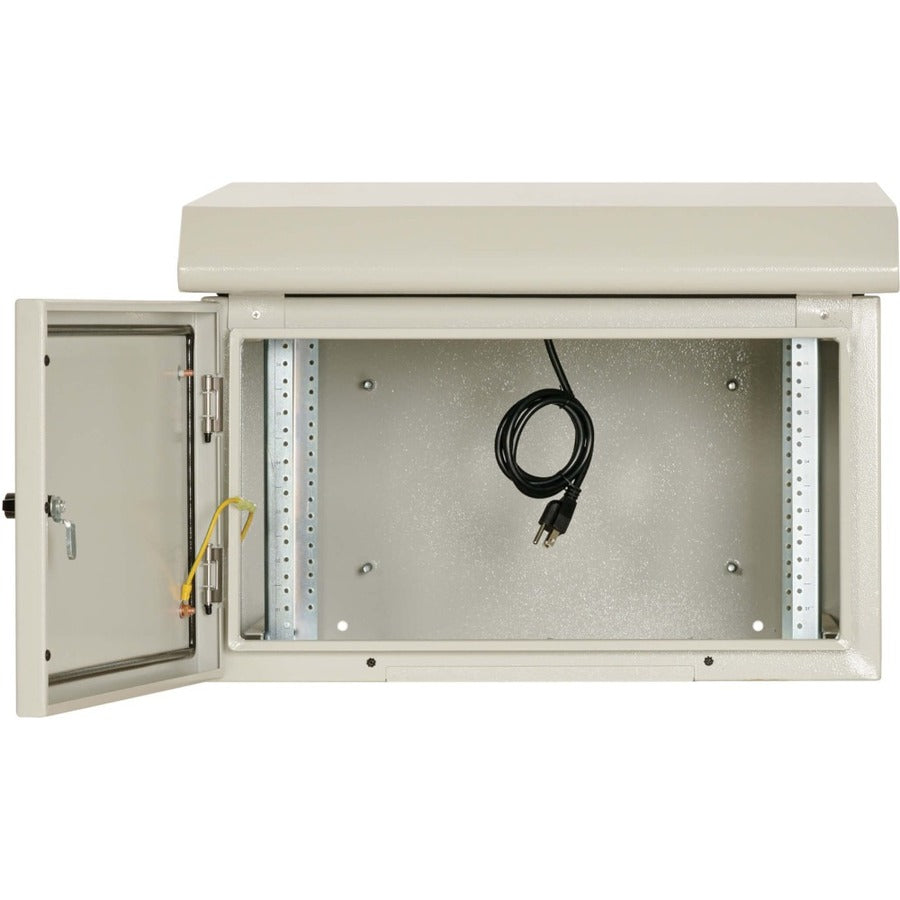

This 9U industrial enclosure comes fully assembled and ready to mount to the wall with user-supplied hardware. Front and rear mounting rails adjust independently to accommodate equipment up to 28 inches deep. Hardware for mounting equipment inside the enclosure is included. Built-in fans help keep mounted equipment cool and lasting longer.
- Manufacturer Website Address : https://tripplite.eaton.com/
- Color Family : Gray
- Environmentally Friendly : Yes
- Rack Type : Enclosed Cabinet
- Product Color : Gray
- Static/Stationary Weight Capacity : 91 kg
- Maximum Weight Capacity : 90.72 kg
- Limited Warranty : 5 Year
- Product Material : Metal,Steel
- Form Factor : Wall Mountable
- Package Contents :
- SRN3RG9US Industrial Enclosure
- 24 x 10-32 screws
- 24 x M6 washers
- 4 x LDPE sheet metal plugs
- 4 x M10 foam washers
- 2 x Keys
- Owner's manual
- Plug/Connector Type : NEMA 5-15P
- Product Type : Rack Mount Enclosure
- Assembly Required : No
- Rack Depth : 28" (711.20 mm)
- Application/Usage : DVR,Switch,PDU,Patch Panel,UPS,Computer,Server
- Manufacturer : Tripp Lite by Eaton
- Product Model : SRN3RG9US
- Features : Snow Resistant,Moisture Resistant,Lockable Door,Damage Resistant,Tamper Resistant,Anti-theft,Cable Management,Adjustable Mounting Rails,Debris Resistant,Heavy Duty,Rain Resistant,Water Resistant
- Rack Height : 9U
- Product Line : SmartRack
