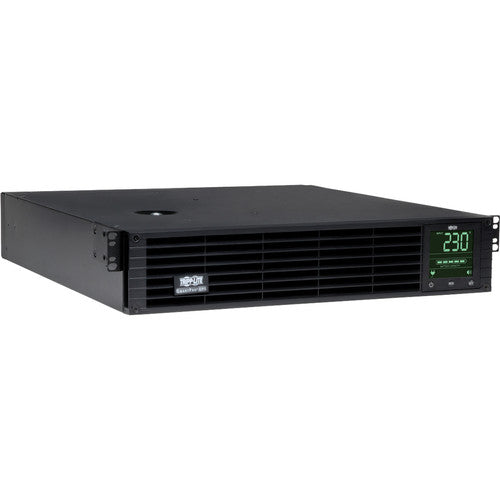

Tripp Lite by Eaton SMX3000XLRT2UA UPS System SMX3000XLRT2UA

Tripp Lite SmartPro Line Interactive UPS with enhanced LCD interface offers network-grade power protection for critical server, network and telecommunications equipment. Line Interactive Uninterruptible Power Supply (UPS) with built-in Auto-Voltage Regulation (AVR) actively corrects brownouts and overvoltages back to usable levels while maintaining a full battery charge in case of power failure. Tripp Lite's unique configuration excels in exceptionally poor-power environments with two separate levels of voltage boost to correct both slight undervoltages and severe brownout conditions. Interactive LCD interface reports UPS operating mode, detailed UPS and site-power data, plus enables a variety of UPS setup and configuration options. Super-fast switchover from line to battery power occurs within milliseconds to maintain operation of connected equipment without interruption or reboot. 98% line-mode efficiency offers reduced heat emissions and operating costs. Network management interfaces support communications via USB, RS-232 and optional SNMPWEBCARD network interface. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Network communications ports enable detailed monitoring of equipment load levels, self-test data and utility power conditions. Includes PowerAlert monitoring software and complete cabling. Switched output load banks enable scheduled and real-time remote reboot and load shedding of select outlets. Emergency Power Off (EPO) interface. LCD display panel easily rotates for viewing in rackmount or tower configurations. Audible alarm with push-button momentary alarm-cancel and silent-mode configuration options. Programmable self-test. Field-replaceable, hot-swappable battery modules.

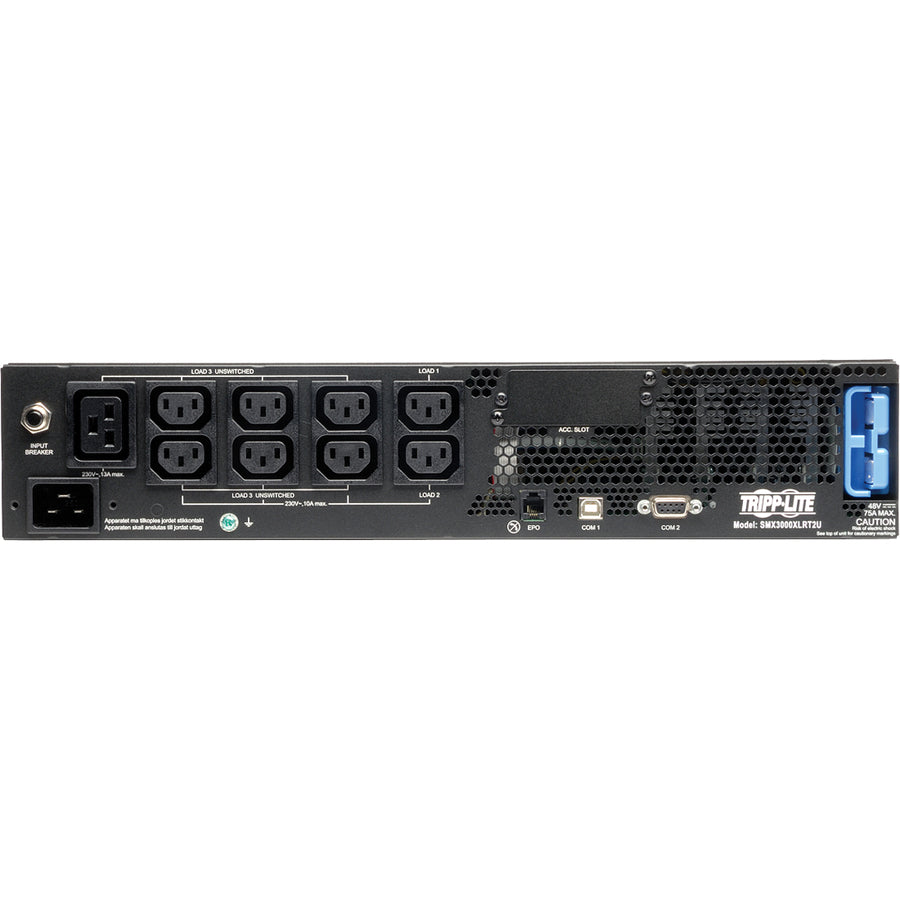

• 230V C20 inlet, 8 C13 & 1 C19 outlets
• USB, RS232, EPO and slot for SNMPWEBCARD option
• 98% line-mode efficiency, 2 switched load banks
• 4 post compatible mounting accessories
• 0.9 Power Factor, Interactive LCD interface
• Extended runtime options up to 2700W
• 230V output, Corrects brownouts and overvoltages from 158V to 278V
• 3kVA / 3000VA / 2700W line interactive 2U rack/tower UPS, Sine Wave

• Receptacle Type : IEC 60320 C13,IEC 60320 C19
• Receptacle Detail : 8 x IEC 60320 C13,1 x IEC 60320 C19
• Environmentally Friendly : Yes
• Input Voltage : 230 V AC
• Limited Warranty : 2 Year
• Typical Battery Recharge Time : 5 Hour
• Waveform Type : Sine Wave
• Form Factor : Rack/Tower
• Package Contents :
  • SMX3000XLRT2UA UPS System
  • PowerAlert Software CD
  • 4 Post Rackmount Installation Kit
  • 3 x C13/C14 Power Cables
  • Instruction Manual
  • USB Cable
  • DB9 Cable
  • EPO Cable
• Backup/Run Time (Full Load) : 3.90 Minute
• Plug/Connector Type : IEC 60320 C20
• Product Type : Line-interactive UPS
• Load Capacity : 3 kVA/2.70 kW
• Manufacturer : Tripp Lite by Eaton
• Product Model : SMX3000XLRT2UA
• Hot Swappable : Yes
• Output Voltage : 230 V AC
• Backup/Run Time (Half Load) : 11.10 Minute
• Rack Height : 2U
• Country of Origin : China
• Product Line : SmartPro
• Software Included : PowerAlert Monitoring Software
• Network Management : SNMP Manageable
• Serial Port : Yes
• Thermal Dissipation : 158 BTU/h
• Maximum Operating Temperature : 104°F (40°C)
• USB : Yes
• Surge Energy Rating : 350 J
• Alarm : Power Failure,Low Battery,Overload,UPS Fault,Remote Shutdown,UPS StartUp

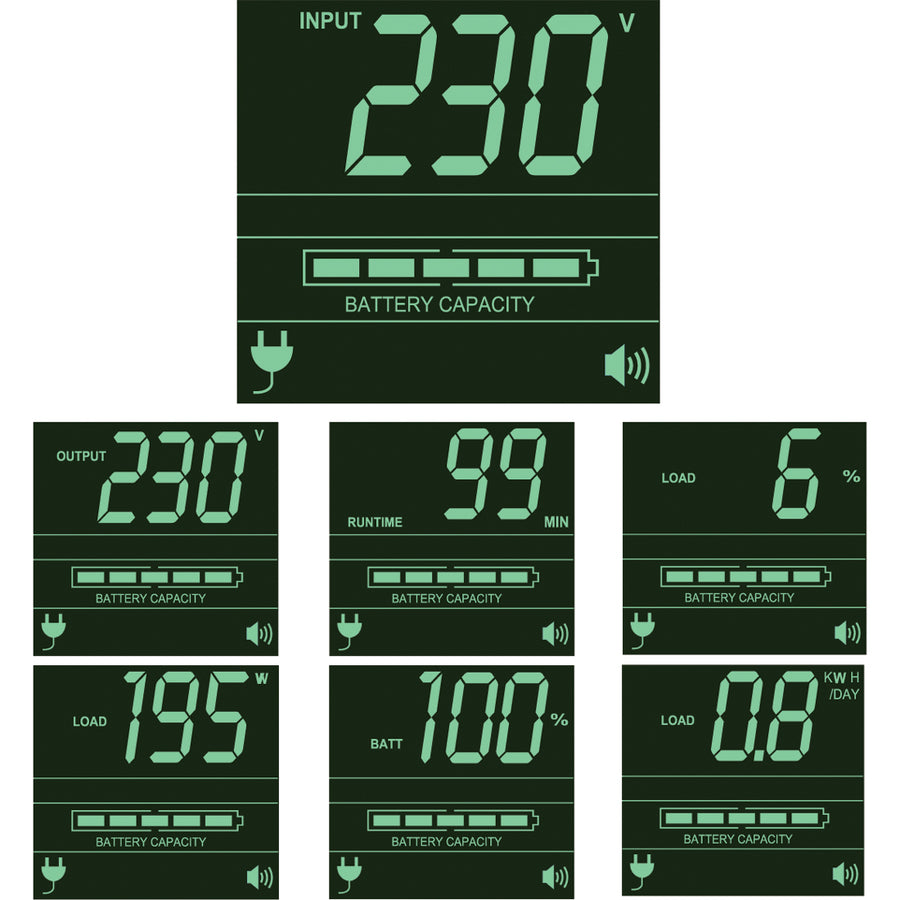

• Status Indicators : Front panel LCD information and configuration screen offers detailed UPS and site power status and operating data, plus configuration of voltage, operating mode, alarm function and a variety of additional options
• Manufacturer Website Address : https://tripplite.eaton.com/
• Input Current : 14.10 A
