Description

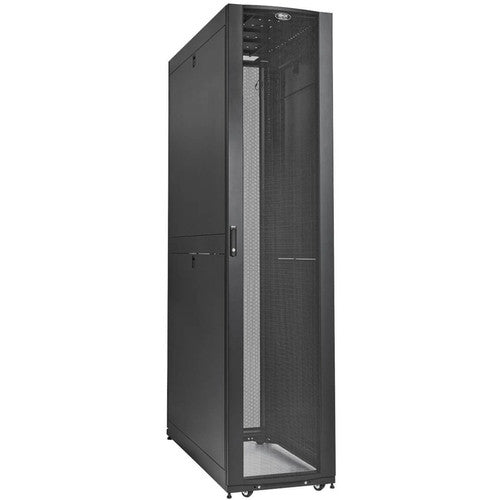

Deep 52U Server Cabinet Accommodates 19 in. Rack Equipment
This SmartRack® 52U rack enclosure is designed for network wiring closets, retail locations, classrooms, back offices and other areas with essential rack-mount IT equipment. It supports mounting of equipment up to 42 inches (1070 millimeters) deep. This allows high-density equipment installations, extra space for cable management, and room for removing hot-swap power supplies from the rear of mounted devices.
Exceptional 52U Height Lets You Make the Best Use of Valuable Floor Space
The extra height allows you to stack more equipment vertically and make optimal use of available floor space. This 52U rack cabinet has a footprint of 24 inches (600 millimeters) wide and 47 inches (1200 millimeters) deep. Constructed from heavy-duty steel with a durable black powder-coated finish, the SR52UBDP has a maximum stationary load capacity of 3000 pounds (1363 kilograms) and a maximum rolling load capacity of 2250 pounds (1022 kilograms).
Keeps Important Equipment Secure and Well Ventilated

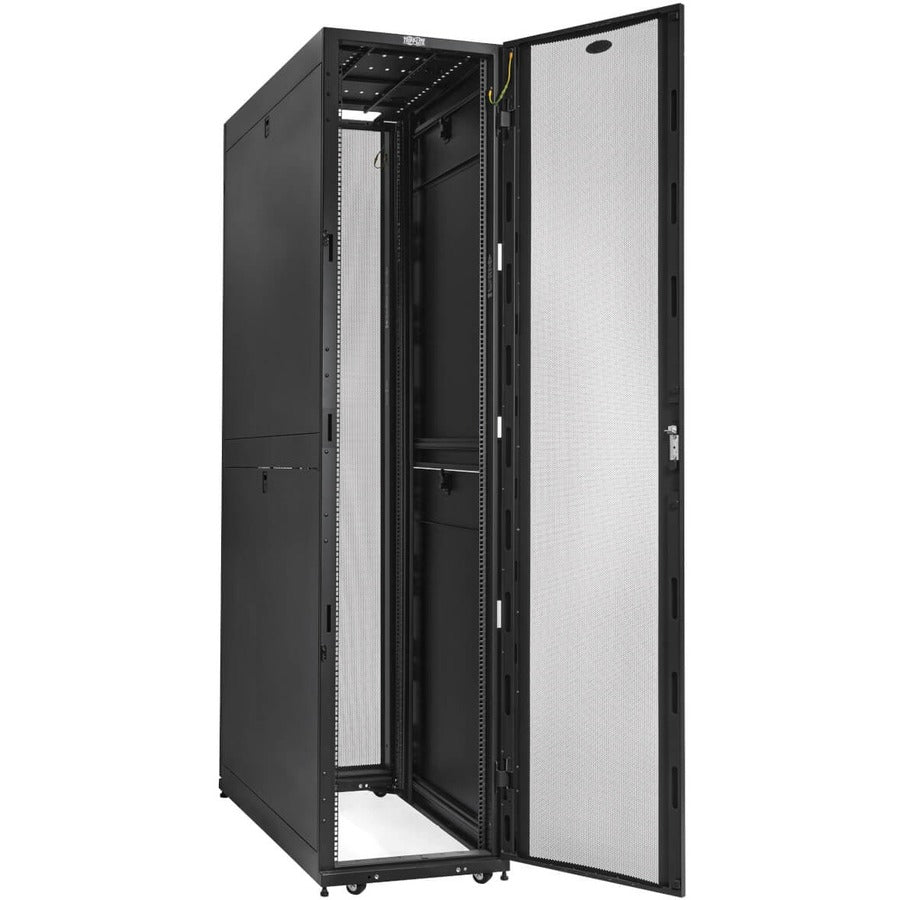

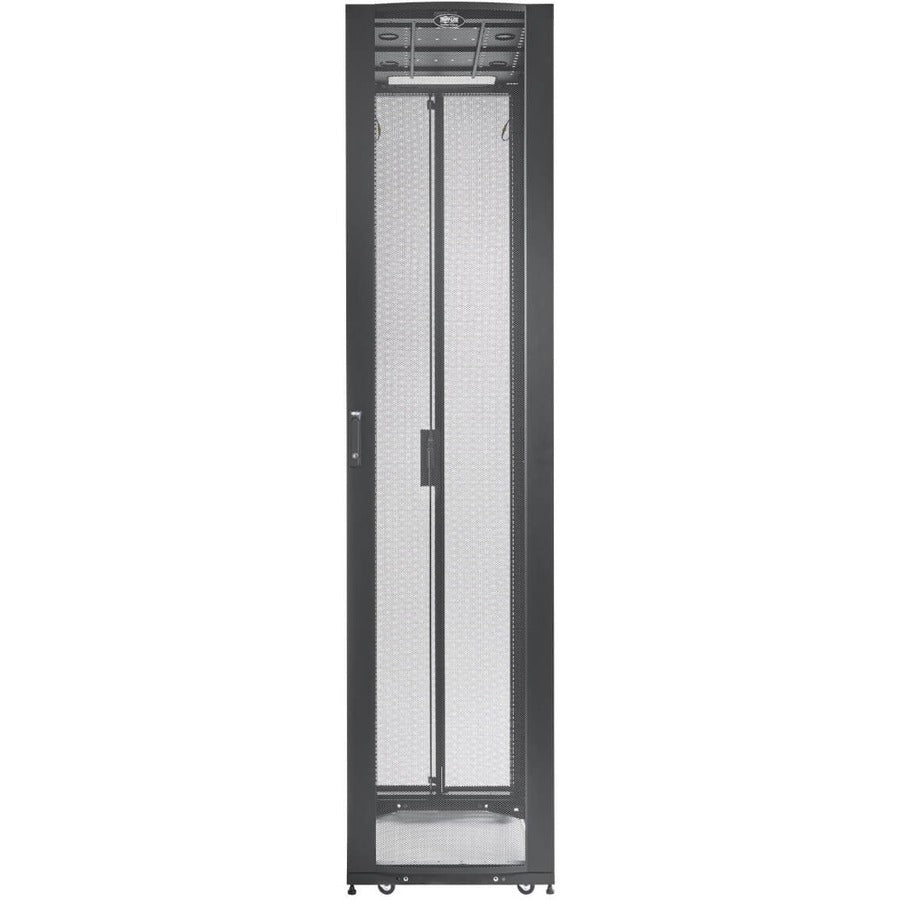

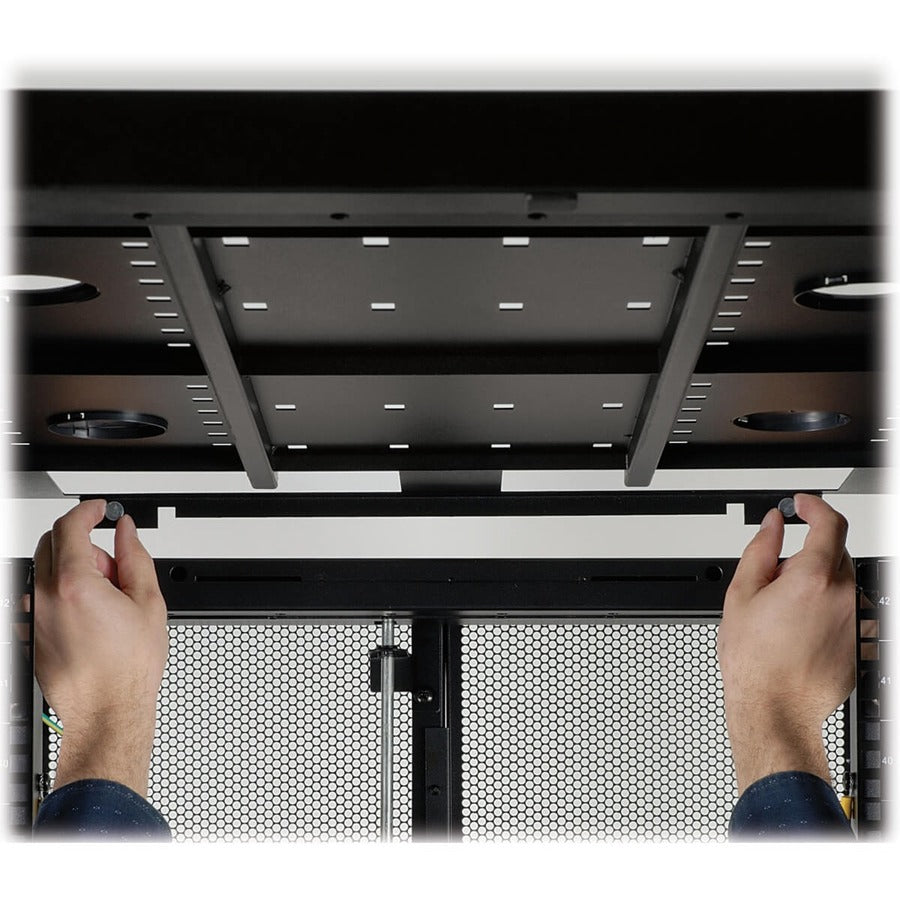

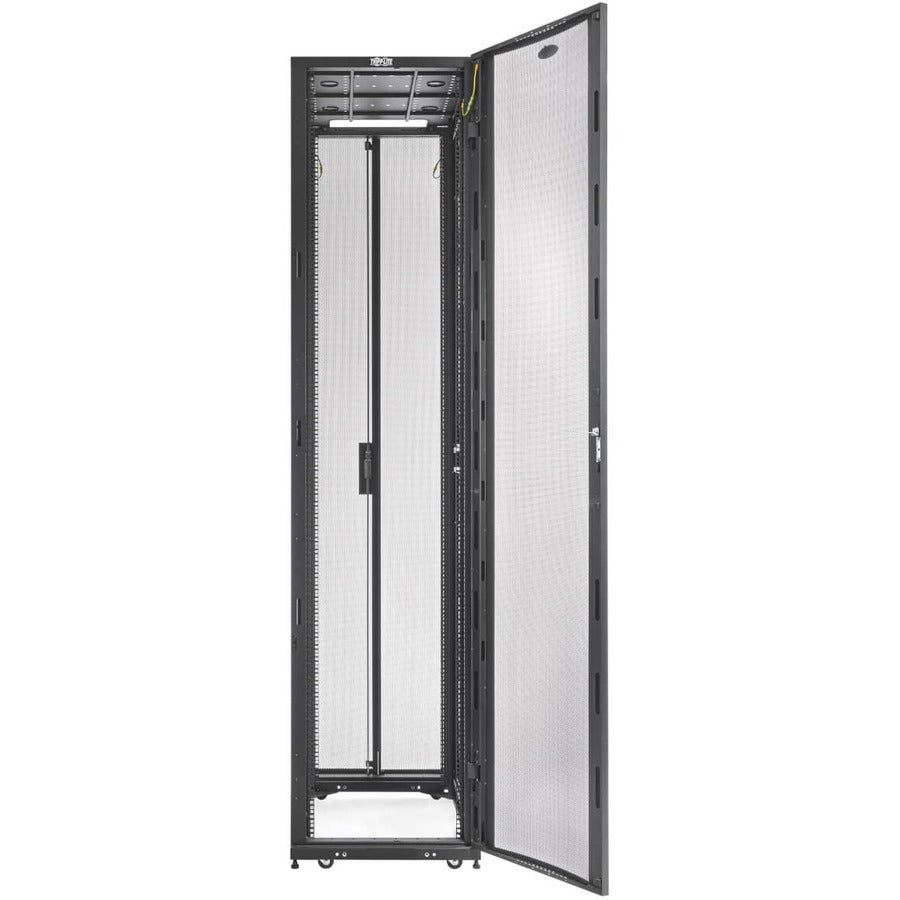

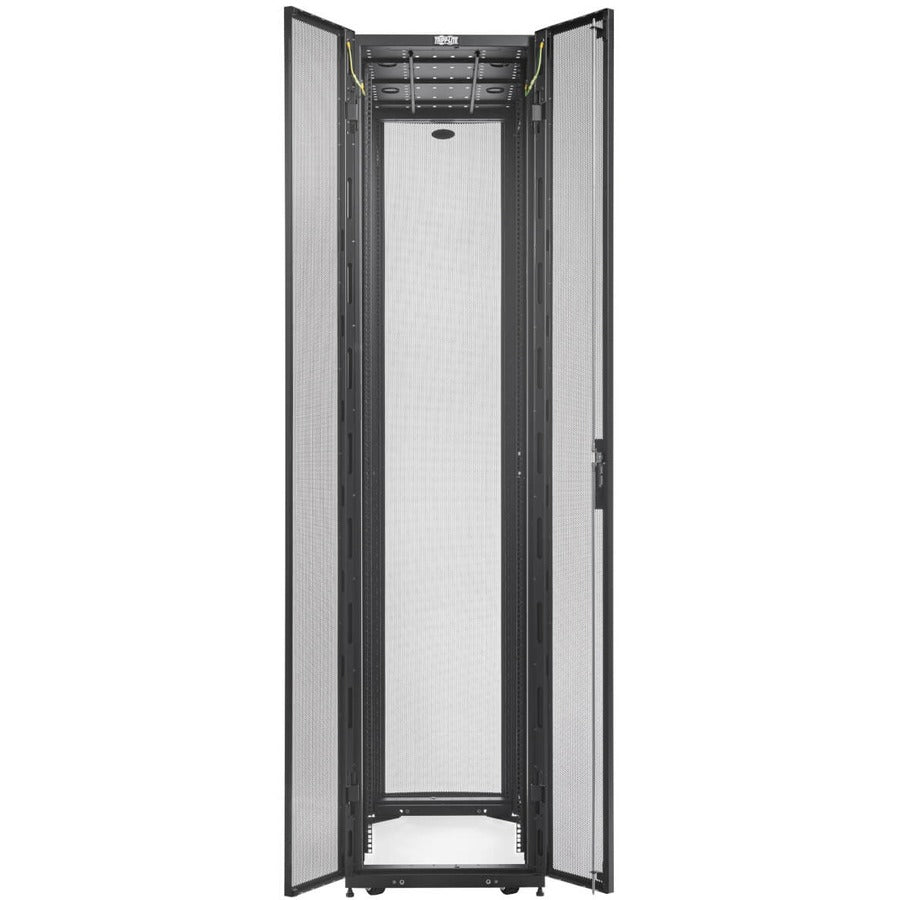

The reversible front door, split rear doors and half-size side panels lock securely to help prevent damage, tampering or theft. The doors, side panels and top panel are designed for quick release, making it easy to access connected equipment and cabling with little effort. Convenient top access ports and an open bottom allow easy cable routing through the cabinet. The vented doors allow generous airflow (more than 65% open space) from front to rear to keep your equipment cool and functioning at their peak.
Easy Enclosure Deployment and Equipment Installation
This deep 52U server rack comes fully assembled for quick and easy deployment with pre-installed (and removable) casters that let you maneuver it over a level, smooth, stable surface and through a standard seven-foot (2.1-meter) doorway into position, where it can be stabilized by adjusting the levelers (also removable). Front and rear mounting rails accept extra-deep rack equipment up to 42 inches (1070 millimeters). Toolless 0U mounting rails allow quick installation of up to four compatible PDUs and vertical cable managers.
Designed for Baying Multiple Enclosures in a Row

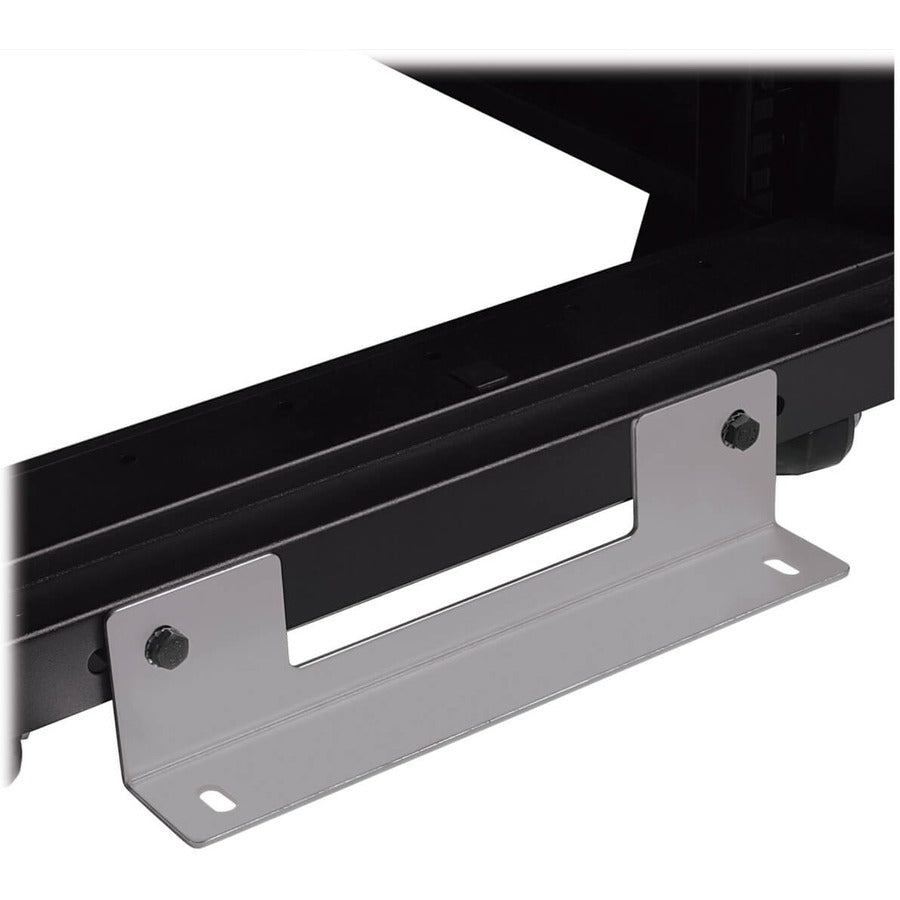

Built-in baying tabs allow the combination of two or more rack cabinets in a row. Center-to-center width can be set at 24 inches (600 millimeters) to match standard data center floor tiles.
Meets Payment Card Industry Standards
The SR52UBDP provides physical equipment and media security required for PCI DSS (Payment Card Industry Data Security Standard) compliance. This is essential for companies that process, store and/or transmit credit card information.
- Environmentally Friendly : Yes
- Rack Width : 19" (482.60 mm)
- Rack Type : Enclosed Cabinet
- Product Color : Black Powder Coat
- Static/Stationary Weight Capacity : 1363 kg
- Limited Warranty : 5 Year
- Product Material : Steel
- Form Factor : Floor Standing
- Package Contents :
- SR52UBDP 52U Server Rack
- 4 x Side Panels
- 4 x Side Panel Locks
- 2 x Keys
- 50 x M6 Screws
- 50 x M6 Washers
- 50 x M6 Cage Nuts
- Owner's Manual
- Product Type : Rack Cabinet
- Assembly Required : No
- Rack Depth : 28.11" (714 mm)
- Dynamic/Rolling Weight Capacity : 1022 kg
- Application/Usage : Server,PDU,UPS,Networking,LAN Switch,Patch Panel
- Manufacturer : Tripp Lite by Eaton
- Product Model : SR52UBDP
- Features : Adjustable Leveling Feet,Casters,Lockable Side Panel,Reversible Door,Removable Side Panel,Cable Management
- Rack Height : 52U
- Country of Origin : China
- Product Line : SmartRack
- Manufacturer Website Address : https://tripplite.eaton.com/
- Color Family : Other
