Extra-Deep Server Cabinet Accommodates 42U of Standard Rack Equipment

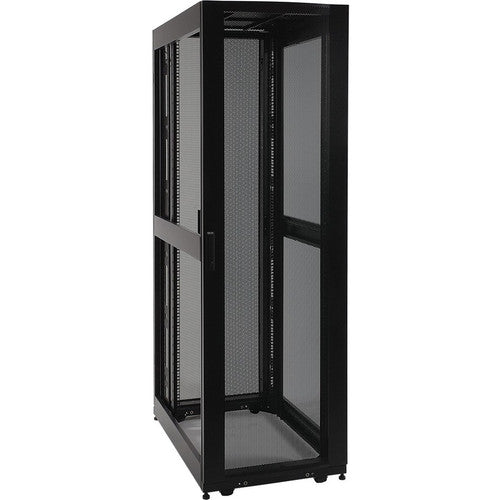

This SmartRack® 42U rack enclosure is designed for network wiring closets, retail locations, classrooms, back offices and other areas with essential rack-mount IT equipment. It is 1200 millimeters deep and supports mounting of equipment up to 1050 millimeters deep. This allows high-density equipment installations, extra space for cable management, and room for removing hot-swap power supplies from the rear of mounted devices. Constructed from heavy-duty steel with a durable black powder-coated finish, the SRX42UBDPEXP has a maximum stationary load capacity of 1360 kilograms and a maximum rolling load capacity of 1020 kilograms
Keeps Important Equipment Secure

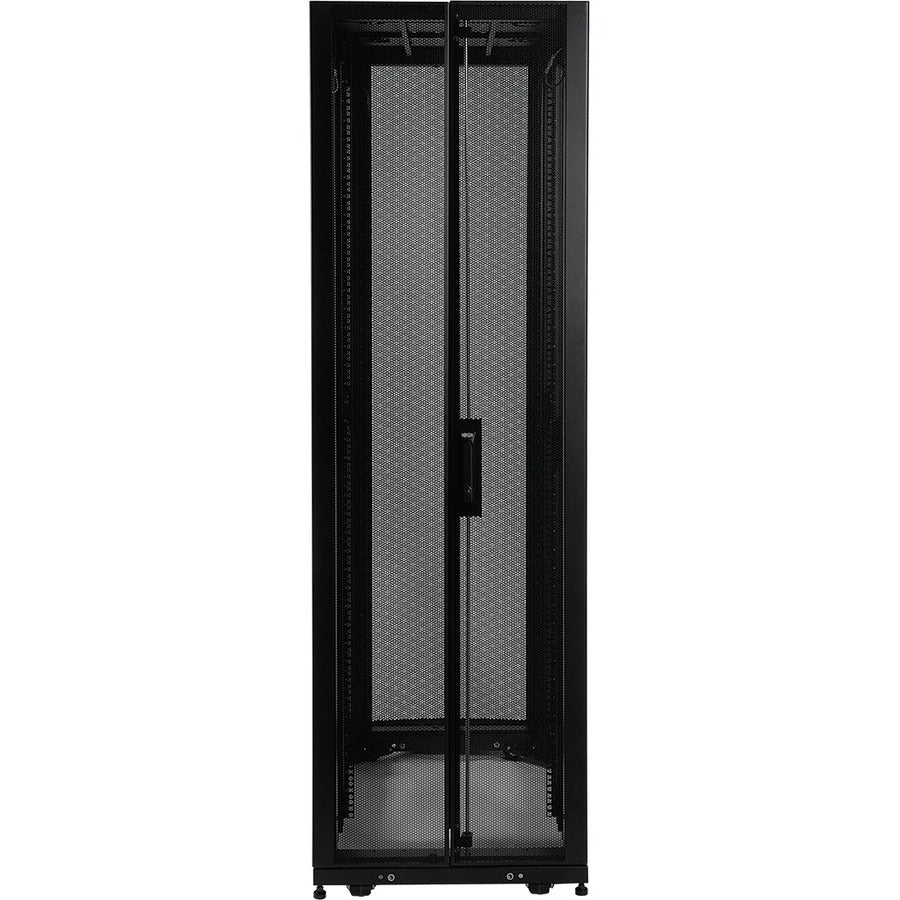

The reversible front door and split rear doors lock securely to help prevent damage, tampering or theft. The doors and top panel are designed for quick release, making it easy to access connected equipment and cabling with little effort. Convenient top access ports and an open bottom allow easy cable routing through the cabinet. The vented doors allow generous airflow from front to rear to keep your equipment cool and functioning at their peak.
Easy Enclosure and Equipment Installation

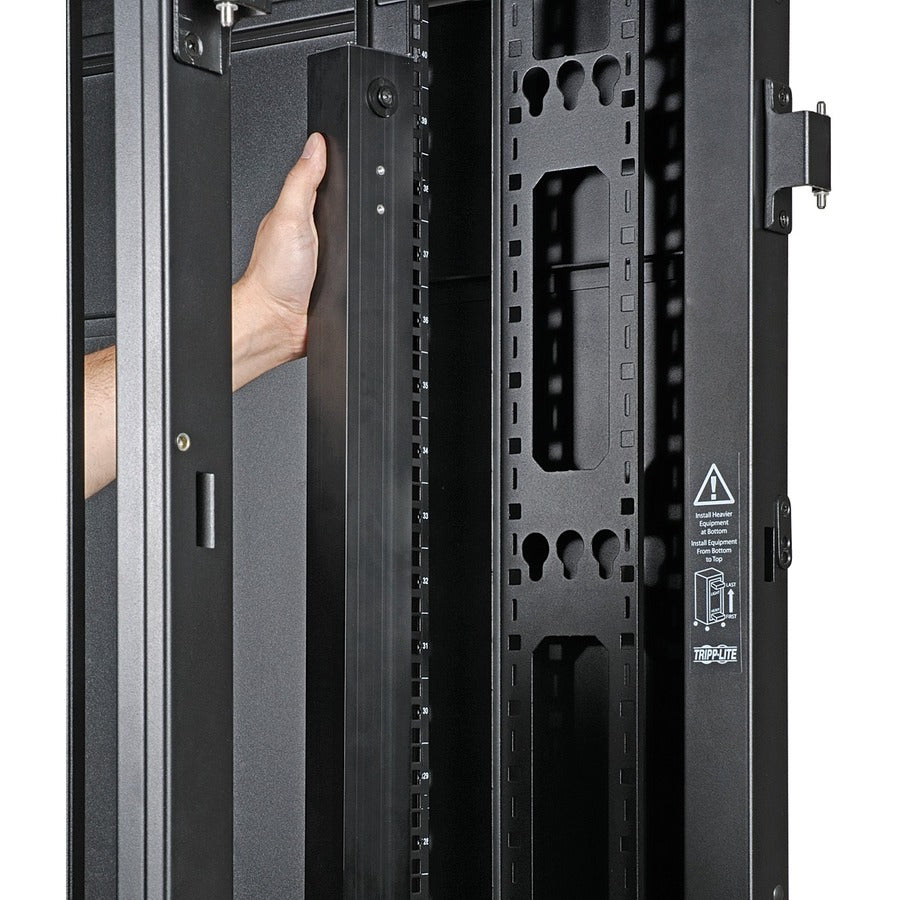

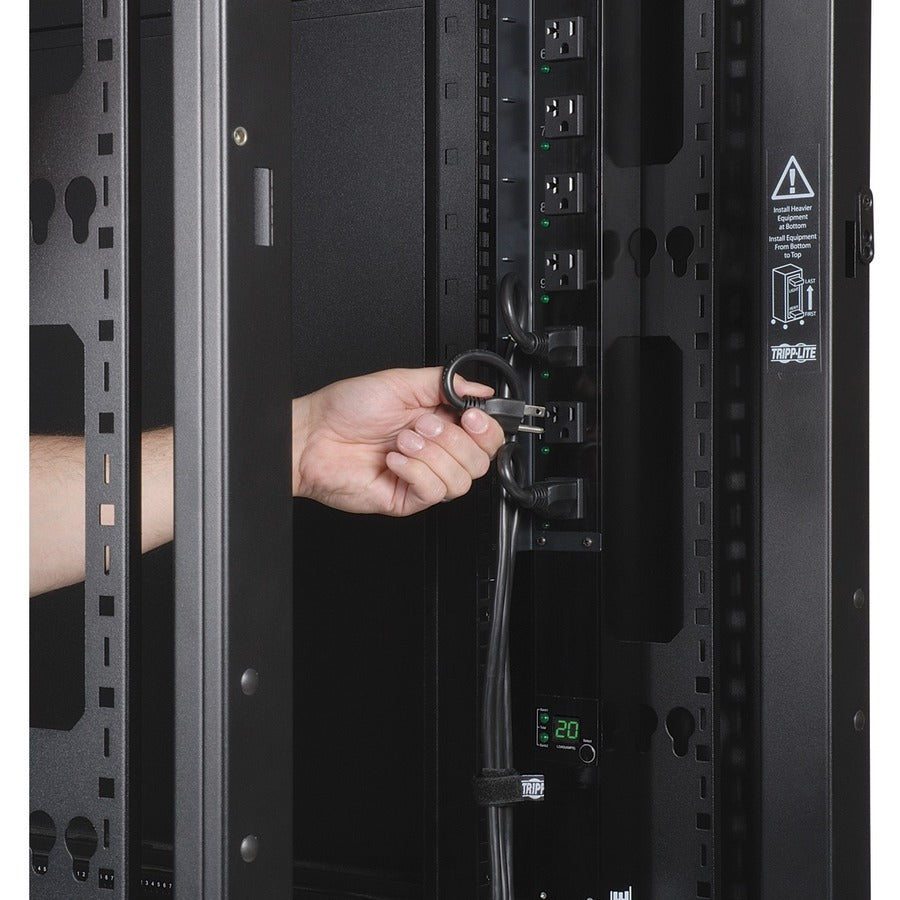

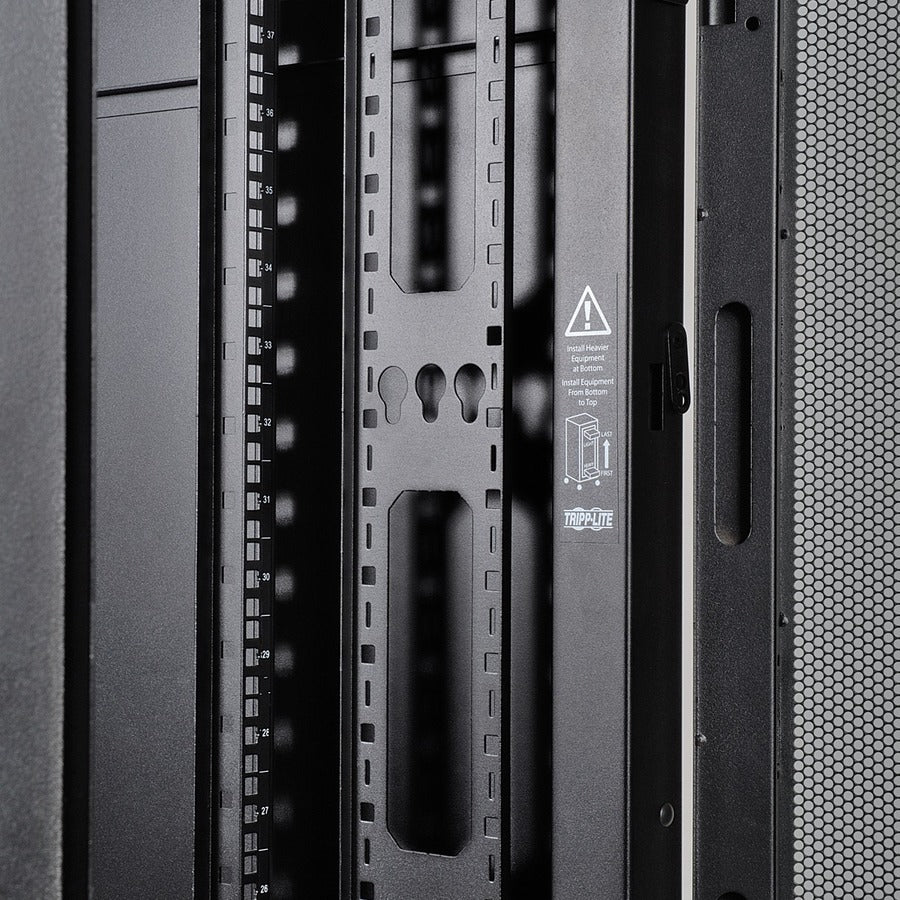

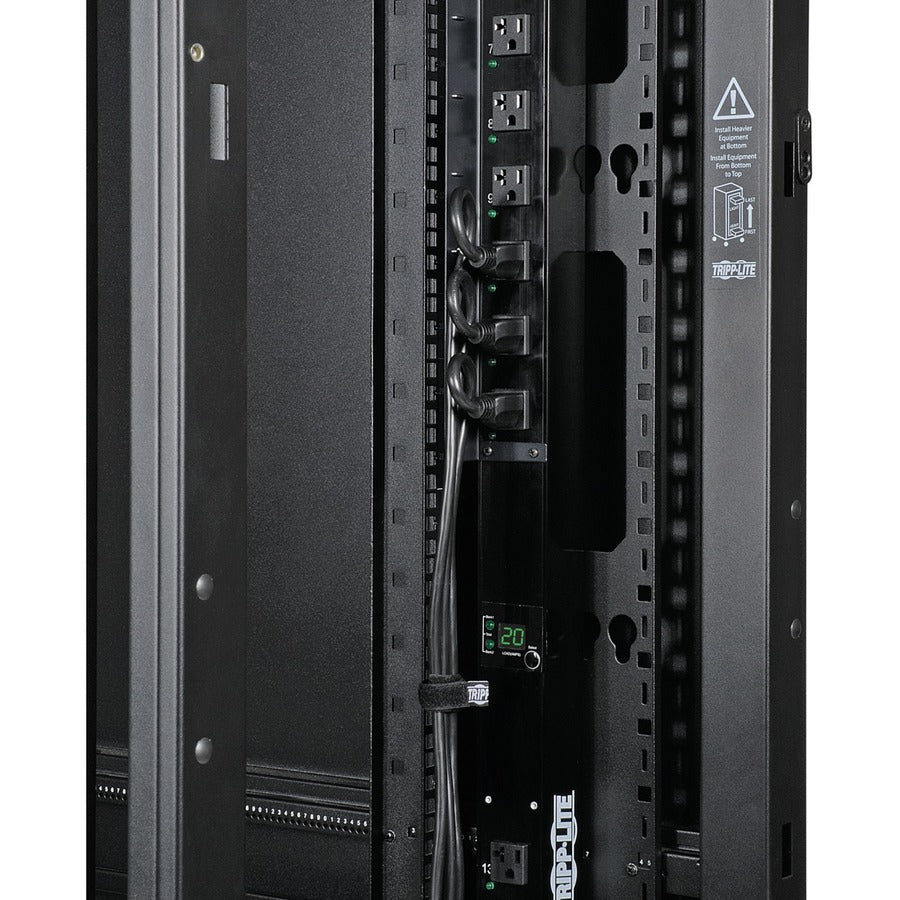

This 42U server rack comes fully assembled for quick and easy deployment with pre-installed casters that let you maneuver it over a level, smooth, stable surface and through a standard two-meter doorway into position, where it can be stabilized by adjusting the levelers. Four mounting rails adjust in 6.35-millimeter increments to accommodate equipment up to 1050 millimeters deep. Toolless 0U mounting rails allow quick installation of up to four compatible PDUs and vertical cable managers.
Designed for Baying Multiple Enclosures in a Row

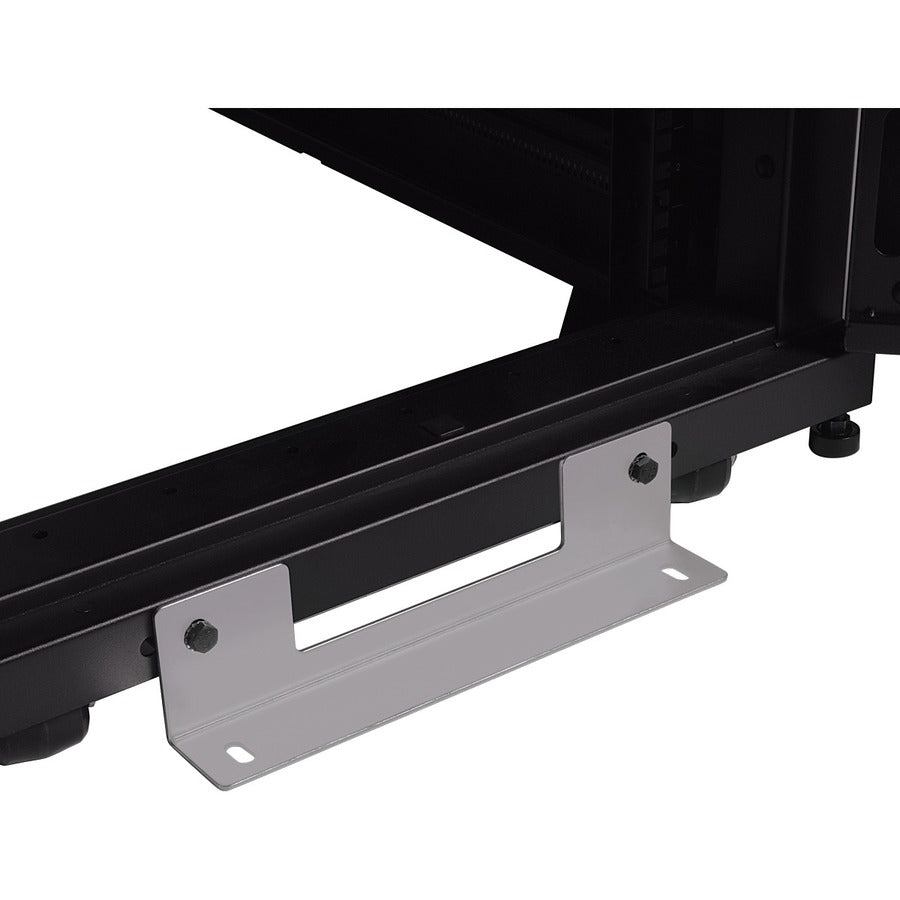

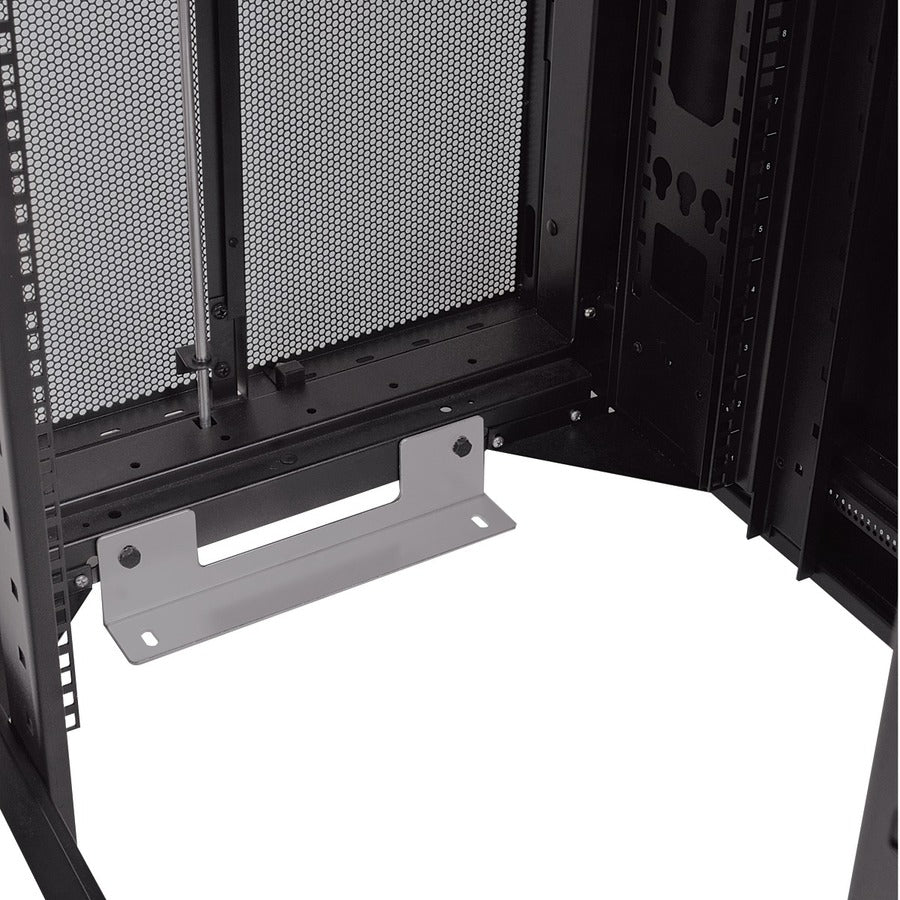

This expansion model comes without side panels for baying with other rack cabinets in a row. Integrated baying tabs make it easy to combine multiple units. This rack is also compatible with hot aisle/cold aisle configurations. Center-to-center width can be set at 600 millimeters to match standard data-center floor tiles. Optional side panels, such as Tripp Lite's SR42SIDE (sold separately), may be added later if desired.
- Environmentally Friendly : Yes
- Product Color : Black Powder Coat
- Static/Stationary Weight Capacity : 1360.78 kg
- Limited Warranty : 5 Year
- Product Material : Steel
- Form Factor : Floor Standing
- Package Contents :
- SRX42UBDPEXP 42U Server Rack
- 2 x Keys
- 50 x M6 Screws
- 50 x M6 Washers
- 50 x M6 Cage Nuts
- Owner's Manual
- Product Type : Rack Cabinet
- Assembly Required : No
- Rack Depth : 41.34" (1050.04 mm)
- Dynamic/Rolling Weight Capacity : 1020.58 kg
- Application/Usage : LAN Switch,Patch Panel,Server,UPS
- Manufacturer : Tripp Lite by Eaton
- Product Model : SRX42UBDPEXP
- Rack Height : 42U
- Product Line : SmartRack
- Manufacturer Website Address : https://tripplite.eaton.com/
- Color Family : Other
