Description

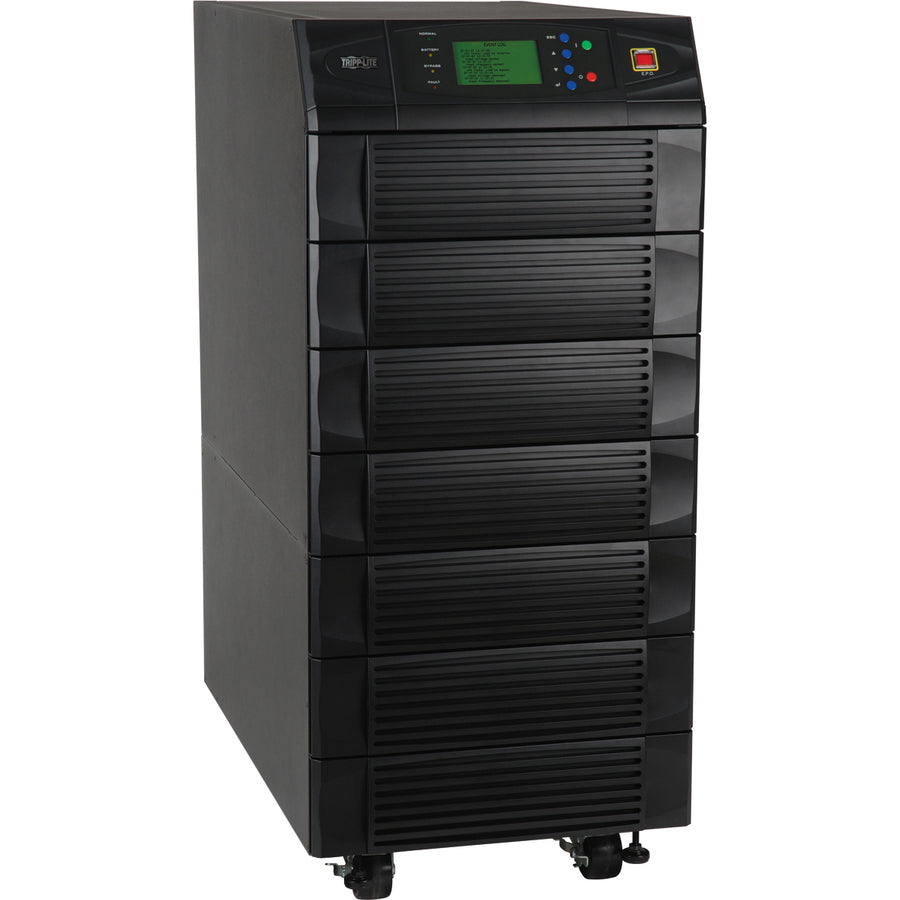

Tripp Lite's SU20KX (20kVA) SmartOnline Modular 3-Phase Intelligent, True On-Line UPS System provides 100% system availability with 1+1 parallel capability. In 1+1 configuration , two SU20KX models connected in parallel can provide fail-safe redundancy (two 20kVA models supporting a 20kVA load) or increased capacity (two 20kVA models supporting an 40kVA load). The SU20KX provides mission-critical equipment with the highest level of power protection available. Large capacity 20,000VA/16,000W UPS continually converts incoming AC power into filtered DC power, and then resynthesizes it back into AC power with a pure sine wave. Hardwire input and output connections support a variety of permanent or PDU-style power connections. The SU20KX features 50 or 60 Hz (auto-selectable) frequency. The SU20KX combines internal power and battery modules in a single small-footprint tower compartment. Typical half-load/full-load runtimes are 13 min./5.5 min.
- Runtime is expandable with the addition of two SURBC2030 internal battery packs or via external battery cabinet options
- IGBT technology and zero transfer time, on-line, double-conversion operation
- 3-phase hardwire (220/380V, 230/400V or 240/415V AC, 3-phase, 4-wire + ground, wye) input/output
- Low THDi reduces installation costs by permitting 1:1 generator sizing
- 20,000 VA (20kVA) 3-phase tower UPS
- 1+1 parallel capability allows for system redundancy or increased capacity
- Receptacle Type : Hardwired
- Environmentally Friendly : Yes
- Network Management : SNMP Manageable
- Input Voltage : 220 V AC
- Limited Warranty : 2 Year
- Form Factor : Tower
- Package Contents :
- SU20KX 20KVA Tower UPS
- DB9 cabling
- PowerAlert Software CD
- Instruction Manual
- Warranty Information
- Backup/Run Time (Full Load) : 5.50 Minute
- Plug/Connector Type : Hardwired
- Product Type : Double Conversion Online UPS
- Load Capacity : 20 kVA
- Manufacturer : Tripp Lite by Eaton
- Product Model : SU20KX
- Output Voltage : 220 V AC,230 V AC,240 V AC,380 V AC,400 V AC,415 V AC
- Backup/Run Time (Half Load) : 13 Minute
- Country of Origin : China
- Software Included : PowerAlert Software
- Serial Port : Yes
- Output Frequency : 50 Hz
- Manufacturer Website Address : https://tripplite.eaton.com/
