Description
Tripp Lite 3 phase Switched PDU / Power Distribution Unit offers advanced network control and monitoring with the ability to turn on, turn off, recycle or lock-out power to each individual receptacle, monitor site electrical conditions and remotely monitor output power consumption per-phase or per-receptacle. PowerAlert interface supports remote control and custom notification of user-specified conditions via email, secure web, SNMP, Telnet or SSH interface. Individually switched outlets can be controlled in real-time to remotely reboot unresponsive network hardware, or be custom programmed for user-defined power-up and power-down sequences to ensure proper startup of interdependent IT systems and prevent inrush-related overloads as network equipment is first energized. Unused PDU outlets can be electronically locked off to prevent the connection of unauthorized hardware. PDU output current consumption in amps per-phase or per-receptacle can be displayed locally via visual meter or remotely via web/network interface to warn of potential overloads before critical IT mains or branch breakers trip. Highly accurate current metering offers +/-1% billing-grade current monitoring and recording ability for each output phase, breakered load bank and individual outlet.
- Reports voltage & load per-outlet or per phase via ethernet interface

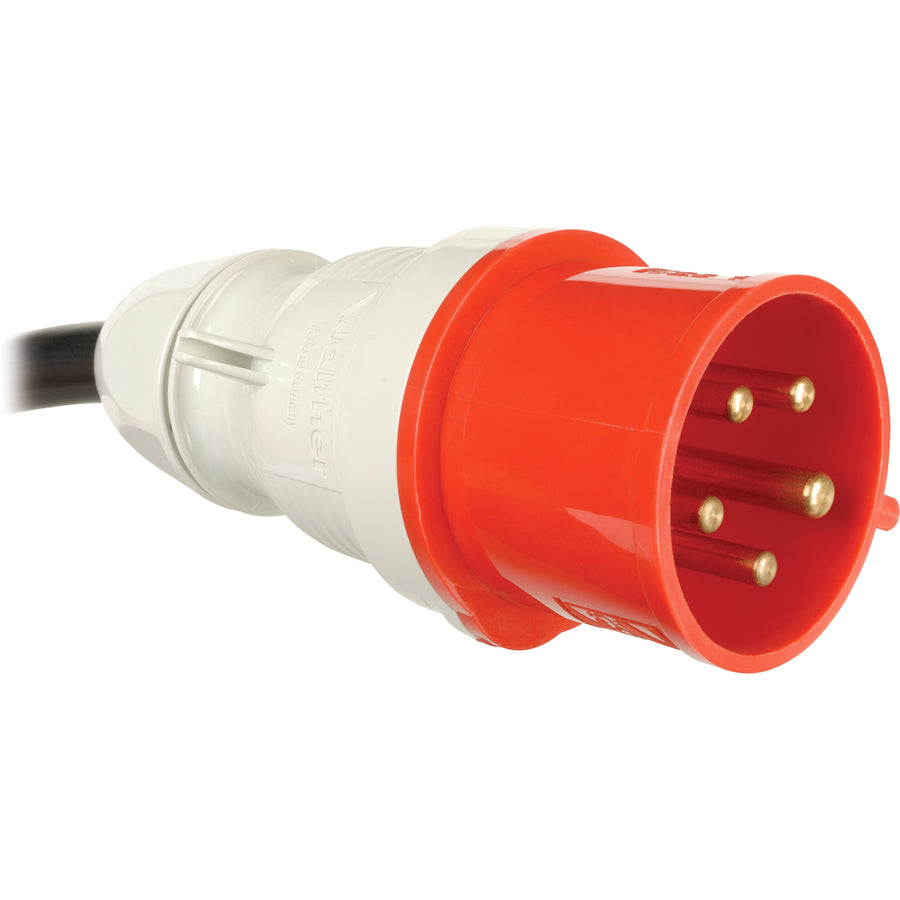

- IEC309 30A Red (3P+N+E) 415V 3 phase input; 6 ft. / 1.8m line cord

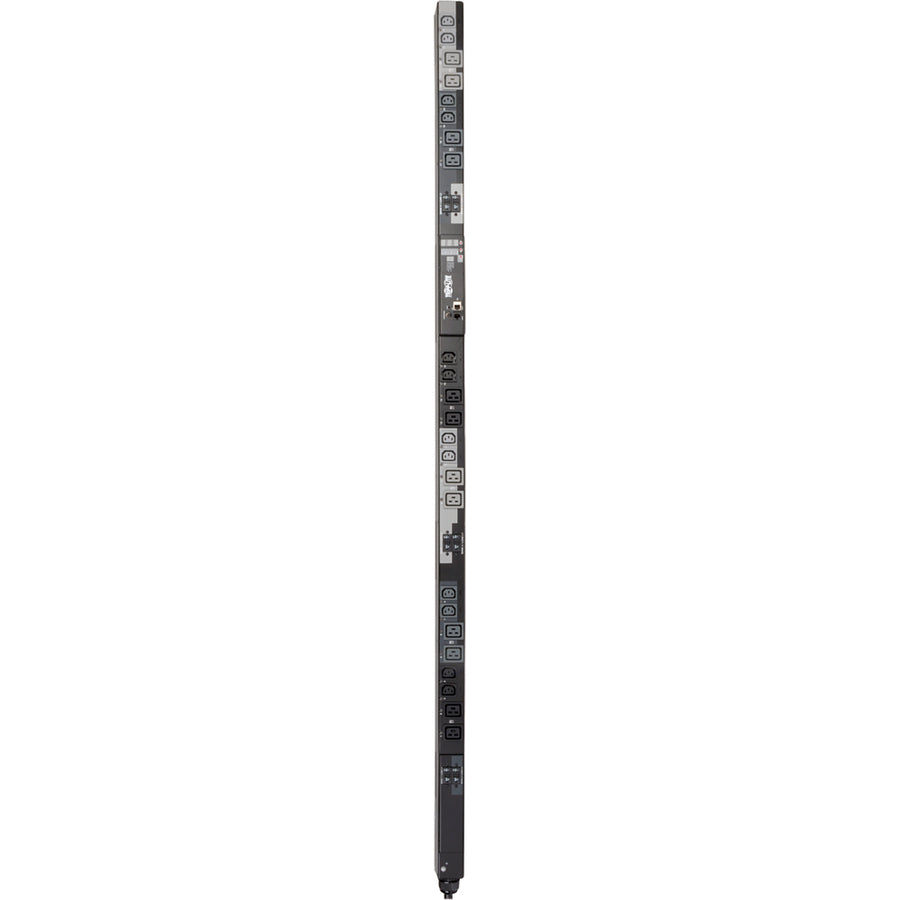

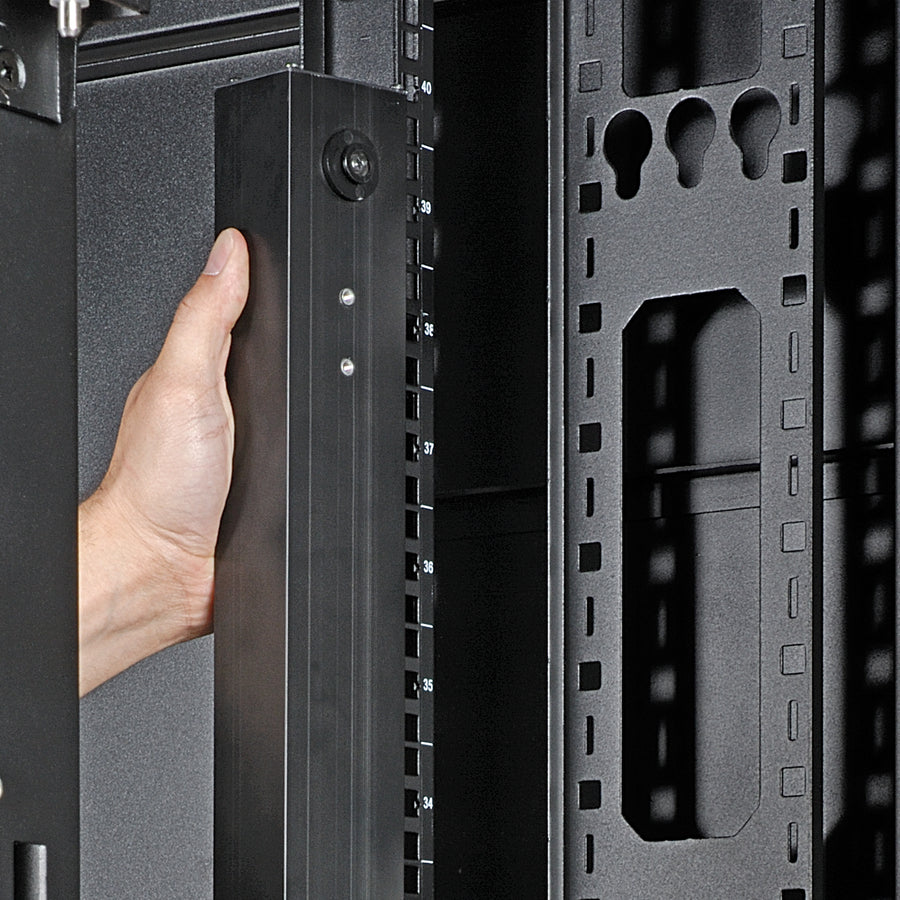

- 70in / 1778mm 0U vertical format; Toolless button-mount installation

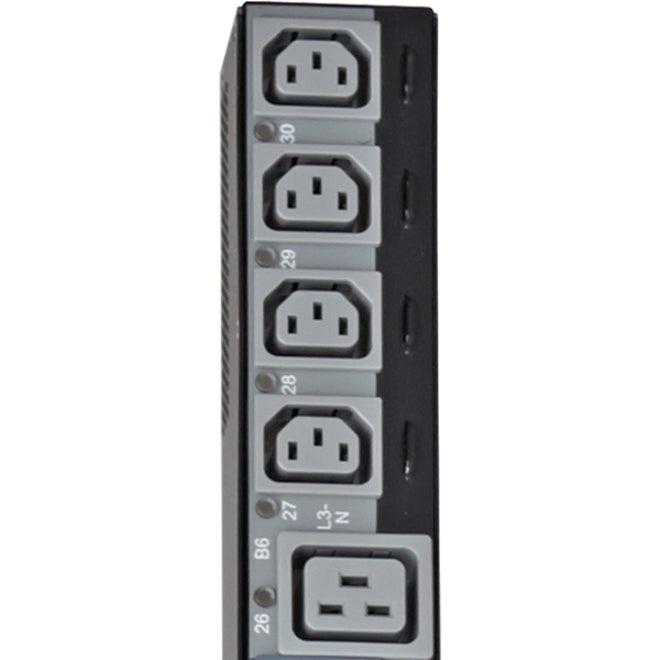

- 12 C13 & 12 C19 single phase outlets; Plug-lock cable retention inserts
- 1% billing-grade accuracy; Digital display reports detailed status information
- Receptacle Type : IEC 60320 C13,IEC 60320 C19
- Receptacle Detail : 12 x IEC 60320 C13,12 x IEC 60320 C19
- Environmentally Friendly : Yes
- PDU Type : Switched
- Power Rating (Watt) : 17.30 kW
- Product Series : Switched
- Management :
Protocols:
- HTTP
- HTTPS
- SMTP
- SNMPv1
- SNMPv2
- Telnet
- SSH
- FTPP
- DHCP
- BOOTP
- NTP
- Limited Warranty : 2 Year

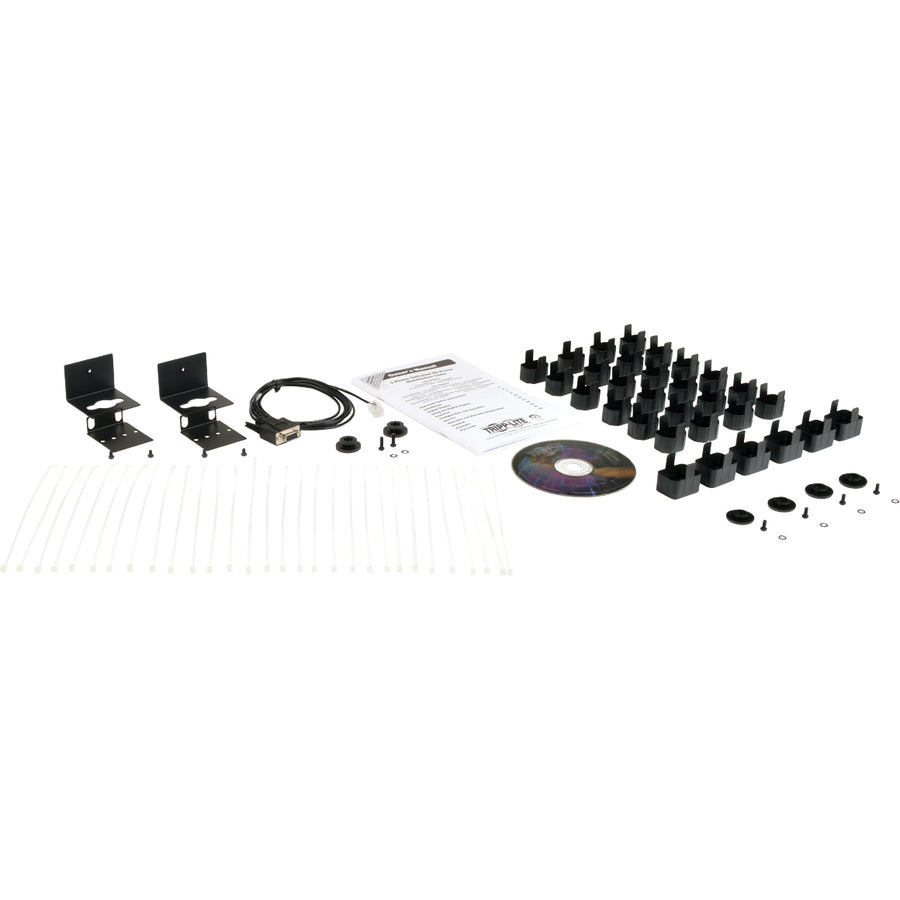

- Package Contents :
- Switched PDU3XVSR6G30A 24-Outlets PDU
- Plug-Lock Cable Retention Inserts
- Spare Installation Buttons (2 9mm / 4 6mm)
- Mounting Brackets
- Configuration Cable
- Owner's Manual
- Plug/Connector Type : IEC 60309 30A RED 3P+N+E
- Product Type : PDU
- Mount Type : Rack-mountable
- Protection Type : Overload Protection
- Manufacturer : Tripp Lite by Eaton
- Product Model : PDU3XVSR6G30A
- Output Voltage : 240 V AC
- Mounting Orientation : Vertical
- Input Current : 24 A
- Rack Height : 0U
- Country of Origin : China
- Manufacturer Website Address : https://tripplite.eaton.com/
- Cord Length : 6 ft
