Description

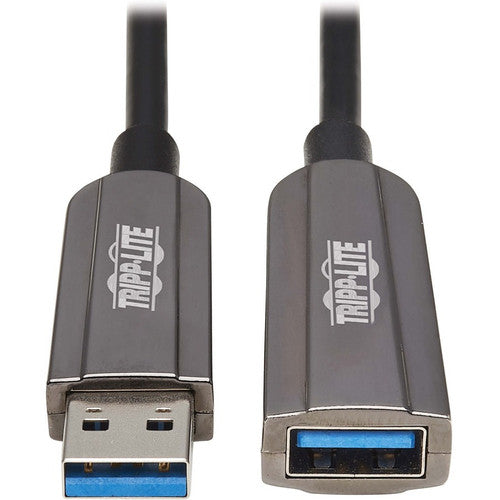

Active Optical Cable Extension Connects Servers, Hard Drives and Other USB Components
This USB 3.2 Gen 1 extension/repeater cable (M/F) attaches to your current USB cable to extend your USB connection by 20 meters (65 feet). The U330F-20M-G1 connects computers, servers, external hard drives, surveillance cameras and other devices with a USB-A port. Note: You must first connect the USB- A male connector, then the USB-A female connector.
Supports USB 3.2 Gen 1 Speeds for Reliably Fast Data Transfers

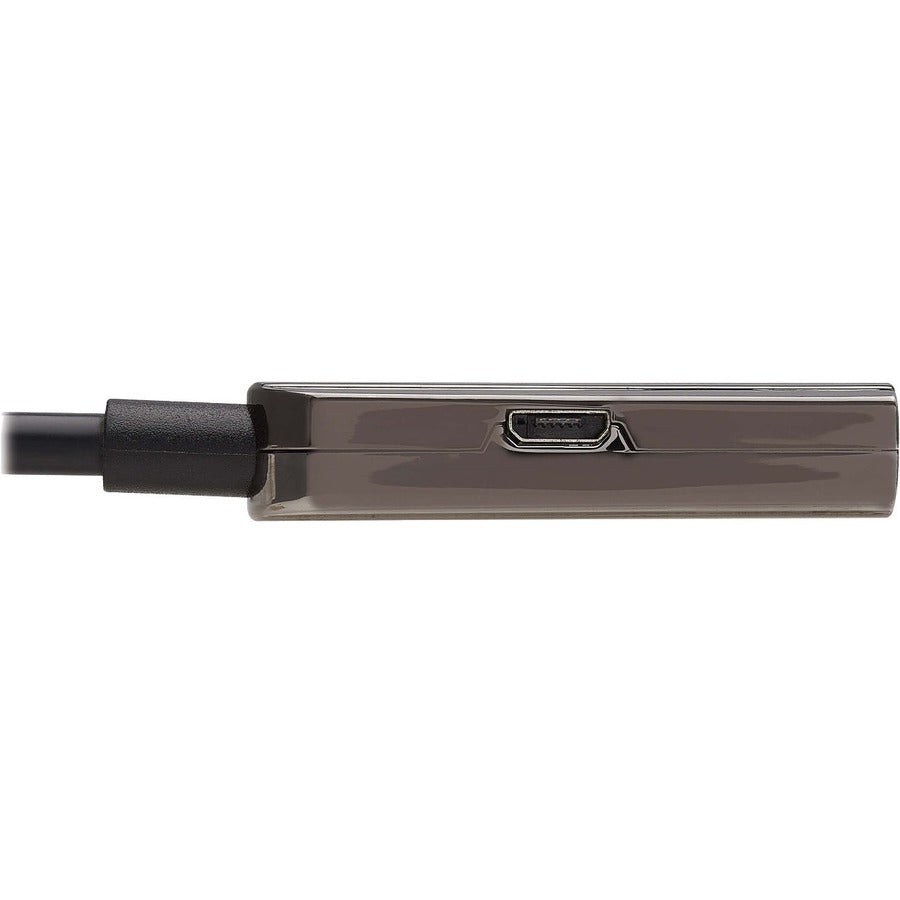

This cable supports USB 3.2 Gen 1 data transfer rates up to 5 Gbps, which is 10 times faster than USB 2.0. If you need an extra signal boost, connect the cable's USB Micro-B port to a laptop, hub or USB wall charger with the included cable. Note: This USB cable is not backward compatible with USB 2.0 or USB 1.1 devices.
Active Optical Cables Are Easier to Install than Copper
Because the fiber cable is slimmer and more flexible than standard copper USB cables, the U330F-20M-G1 is easier to install around corners and in hard-to-reach spaces behind equipment. It also transmits USB signals over longer distances than copper with no signal loss.
20 m (65 ft.) Cable Lets You Design an Application to Your Custom Specifications
This long cable allows you greater flexibility in placing your USB components. For instance, your desktop computer may be connected to a security camera or a server located in a different room away from your office or in a central location where others have access to it.
Premium Construction for Superior Performance
The PVC jacket carries a CL3 rating, making it suitable for in-wall cable installation in residential or commercial settings. Gold-plated contacts provide maximum conductivity and minimum data loss to guarantee a clear transmission free of interference. The plug-and-play U330F-20M-G1 supports all major operating systems, including Windows, macOS and Linux.
- Transfer data in a snap
- Features Fiber Optic cable type
- Features Flexible
- Data Transfer Rate : 5 Gbit/s
- Cable Type : Fiber Optic

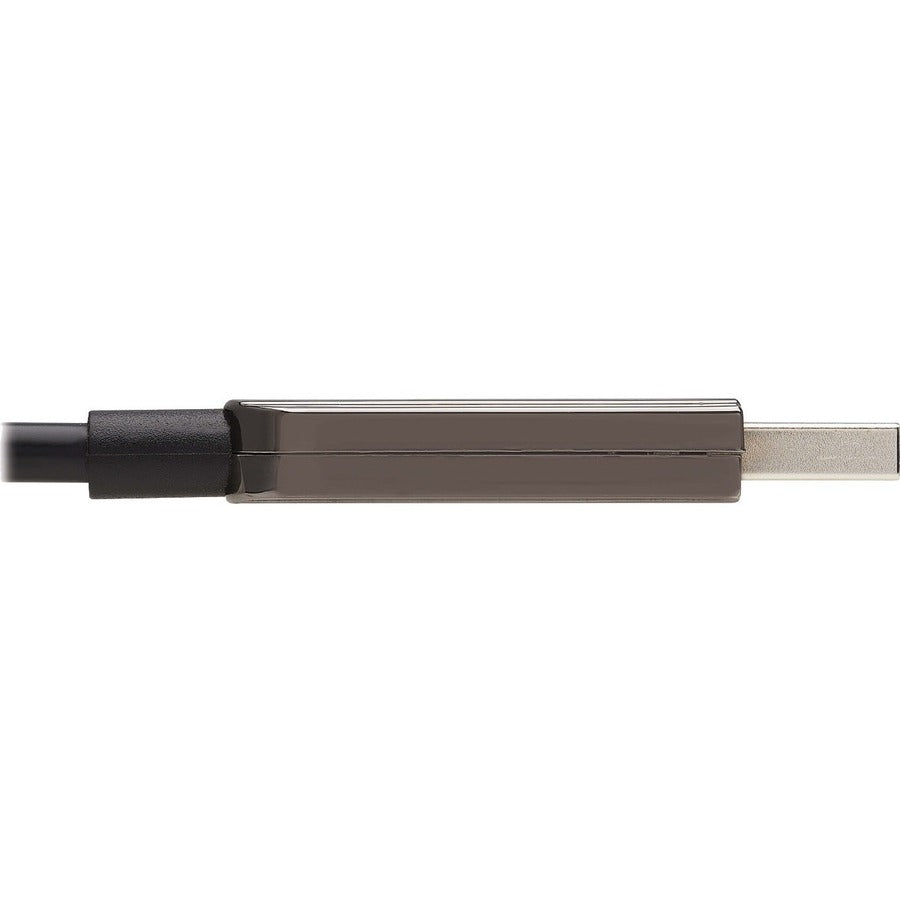

- Connector on First End Details : 1 x USB 3.2 (Gen 1) Type A - Male
- Device Supported : Computer,Server,External Hard Drive,Surveillance Camera,Hub,Wall Charger,Home Theater System,Notebook
- Connector Plating : Nickel
- Package Contents :
- U330F-20M-G1 Fiber Optic Extension Data Transfer Cable
- USB Micro-B to USB-A booster Cable, M/M, 3 ft
- Connector Type on Second End : USB 3.1 (Gen 1) Type A - Female,Micro USB Type B - Female
- Connector Color : Light Gray
- Manufacturer : Tripp Lite by Eaton
- Product Model : U330F-20M-G1
- Cable Length : 65 ft
- Features : Flexible,AOC Technology,Signal Booster,Repeater
- Cable Characteristic : Extension Cable
- Environmentally Friendly : Yes
- Jacket Material : Polyvinyl Chloride (PVC)
- Limited Warranty : 3 Year

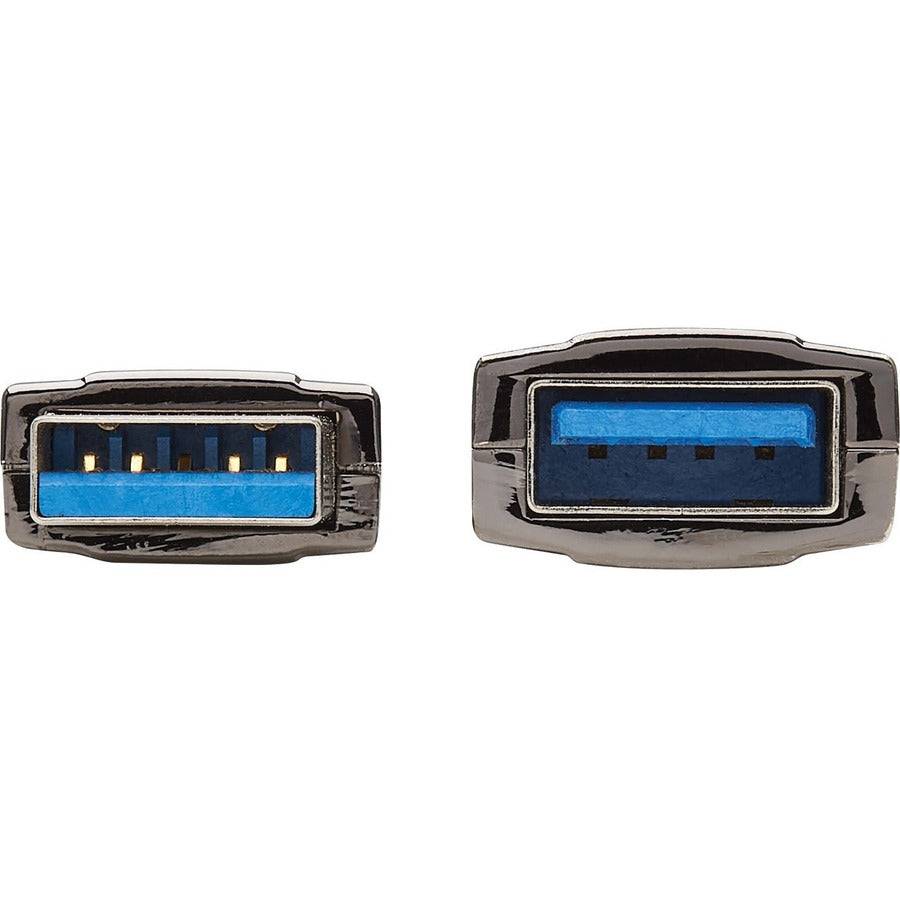

- Connector on Second End Details : 1 x USB 3.1 (Gen 1) Type A - Female,1 x Micro USB Type B - Female
- Connector Type on First End : USB 3.2 (Gen 1) Type A - Male
- Product Type : Data Transfer Cable
- Contact Plating : Gold
- Jacket Type : CL3
- Jacket Color : Black
- Country of Origin : Vietnam
- American Wire Gauge : 24 AWG
- Manufacturer Website Address : https://tripplite.eaton.com/
