Description
USB-C Docking Station Turns Your Device's USB-C or Thunderbolt 3 Port into a Multiport Workstation
The U442-DOCK2-S expands the potential of your tablet, laptop, Chromebook, MacBook, smartphone or PC's USB-C or Thunderbolt 3 port. It's ideal for transmitting digital audio and video to a large display, adding a thumb drive or other USB peripheral, powering and charging a PD Charging-compliant mobile device, connecting to a Gigabit Ethernet network and a lot more-all at the same time.
Supports USB DisplayPort Alternate Mode for Transmitting Audio/Video Signals
With a source device that also supports USB DisplayPort Alt Mode, you can extend video from your primary display to another, duplicate the same video on both displays, or change the second display to your primary.

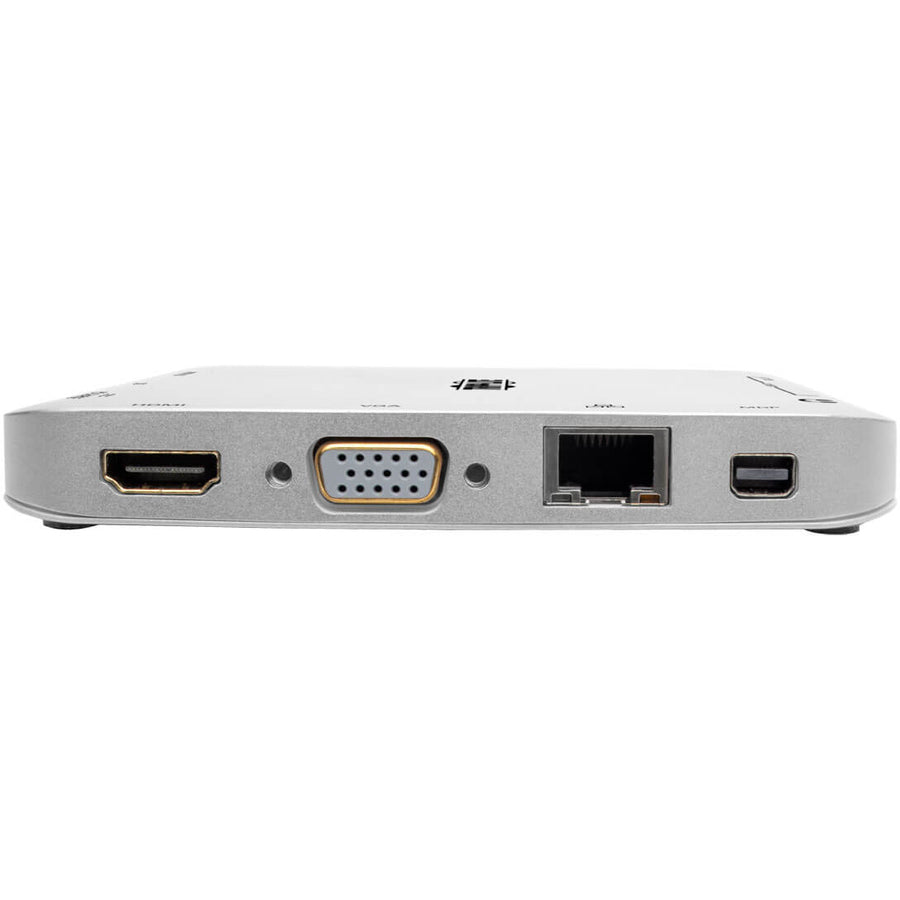

Transmits Crystal-Clear 4K Video and Digital Audio
To send digital audio and Ultra High Definition video to a 4K-ready HDMI or Mini DisplayPort television, projector or monitor, connect the corresponding port to the display using an HDMI or mDP cable (sold separately). The Mini DisplayPort and HDMI ports support UHD video resolutions up to 3840 x 2160 (4K x 2K) @ 30 Hz. The VGA port supports high-definition resolutions up to 1920 x 1200, including 1080p, at 60 Hz. Only one display can be connected at a time. A DisplayPort or DVI display may also be connected using an mDP to DP or HDMI to DVI adapter (adapters sold separately).

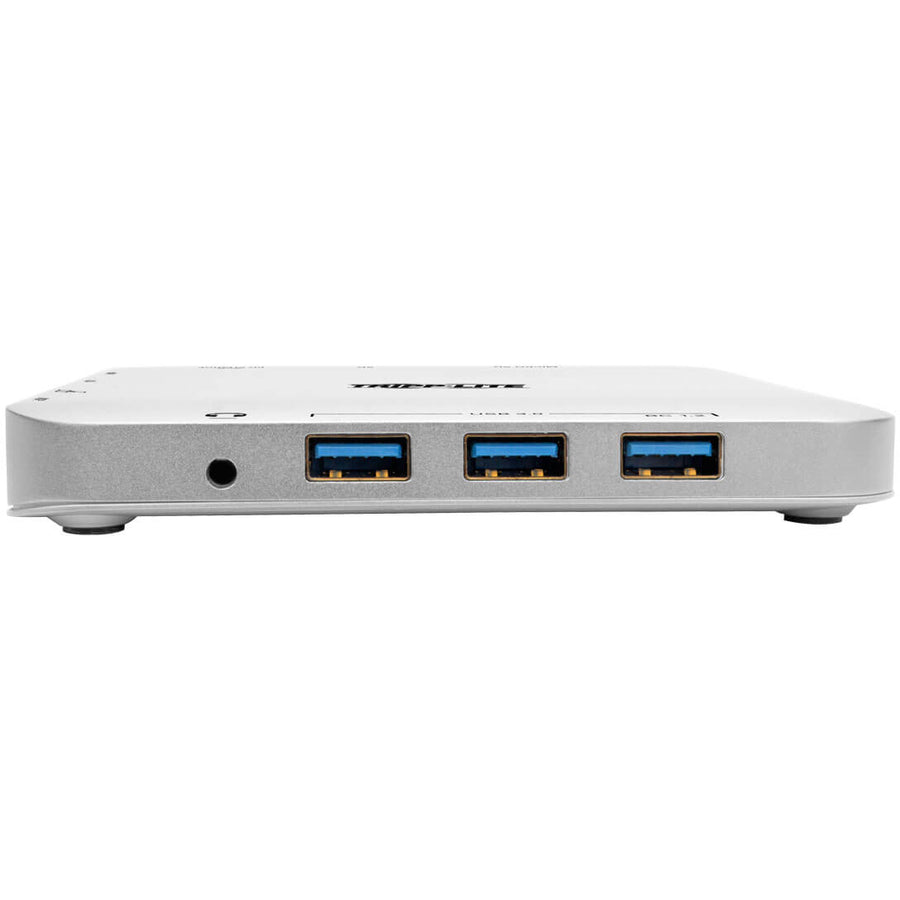

Connects Keyboards, Thumb Drives and Other USB Peripherals
The USB-A hub ports accept up to three USB peripherals, such as flash drives, mice, keyboards and printers. They support fast USB 3.1 Gen 1 data transfer rates up to 5 Gbps and are backward compatible with USB 2.0 and USB 1.1 devices. A BC 1.2-compliant port provides up to 1.5A of fast-charging power to mobile devices.
Charges the Connected Laptop, Smartphone or Other Device
The USB-C Power Delivery (PD) port provides power and charging to the PD Charging-compliant device (such as a MacBook, Chromebook or Android smartphone) the U442-DOCK2-S is connected to. Connect the device's AC wall charger to the USB-C PD port, which supports power input up to 60W-45W for the USB-C device and 15W dedicated to the U442-DOCK2-S and its USB-A hub ports.
Accesses a Wired Gigabit Ethernet Network
The RJ45 port offers access to a Gigabit Ethernet network when no Wi-Fi is available or when a wired connection offers faster speeds. Connect using a UTP cable (sold separately), and enjoy true 10/100/1000 Mbps Ethernet speeds for fast data transfers.
Connects Audio Equipment
The USB-C hub's 3.5 mm mini stereo jack is convenient for connecting speakers, headphones or a microphone to your workstation. You can listen to music or record the latest episode of your podcast.
Allows External Memory Access
The memory card slots support Micro SD and SD/MMC cards for transferring data to and from your connected computer, laptop or tablet.

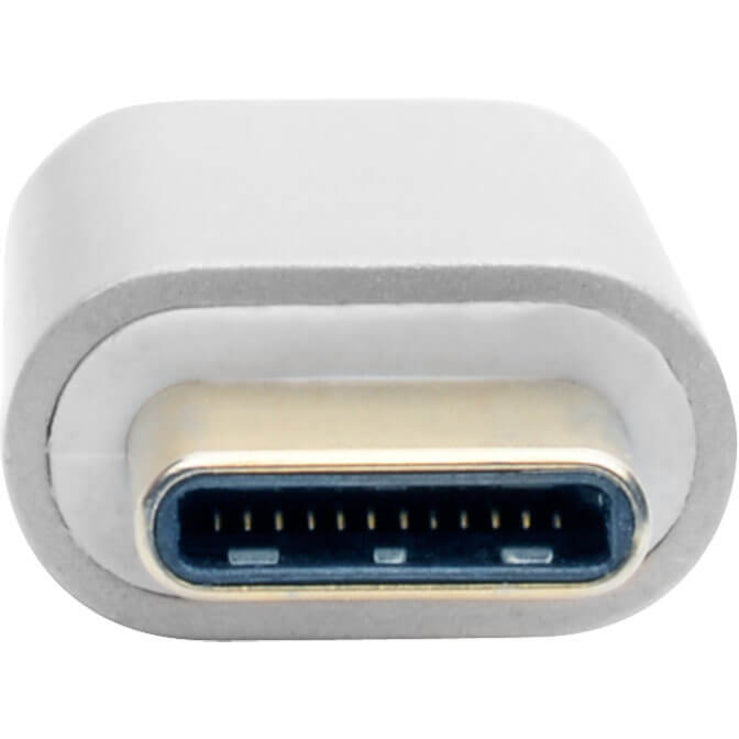

Built-In USB-C Cable Connects in Either Direction
Connect the reversible USB-C plug to your source device's USB-C or Thunderbolt 3 port. The fumble-free USB-C plug connects in either direction to ensure fast, easy connection every time.
Ready to Use Right Out of the Package
The plug-and-play USB-C dock requires no software, drivers or external power. The compact unit fits easily into a pocket, briefcase or laptop bag for connecting on the go.
. .- Microphone : Yes
- USB Type-C Detail : USB C (Male)
- Maximum Power Supply Wattage : 60 W
- Device Supported : Notebook/Tablet PC/Desktop PC/Smartphone
- Total Number of USB Ports : 4
- Number of USB 3.0 Ports : 3
- USB Type-C : Yes

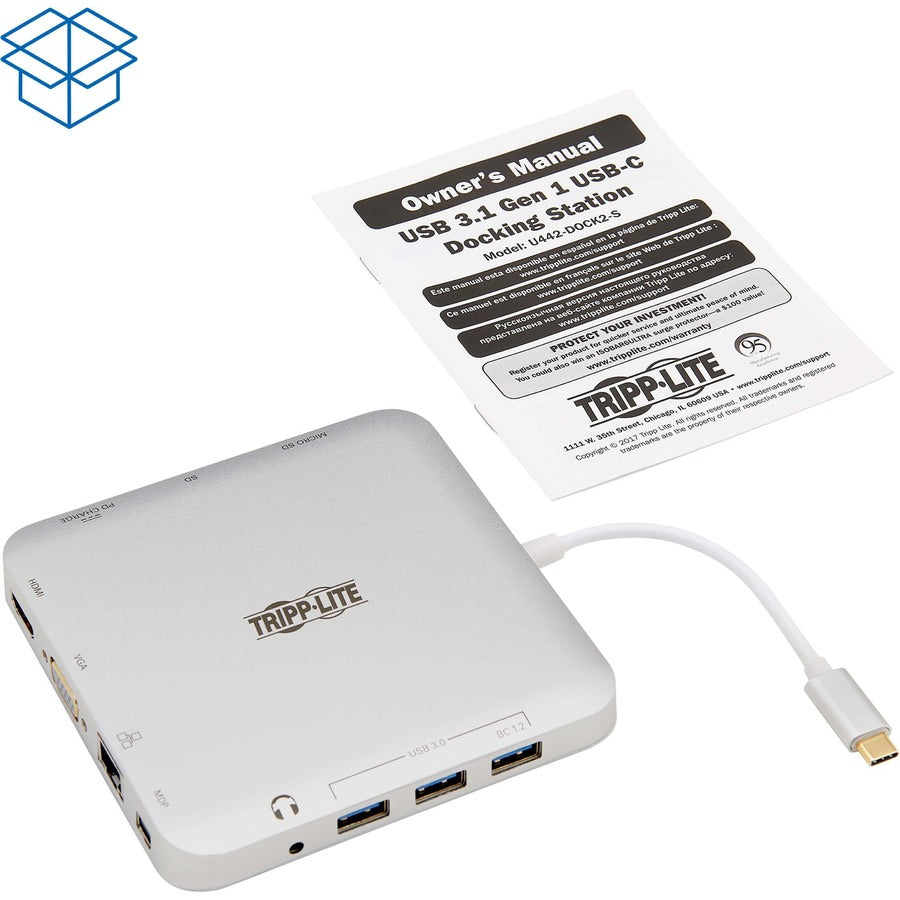

- Package Contents :
- U442-DOCK2-S Docking Station
- Owner's Manual
- Manufacturer : Tripp Lite by Eaton
- Audio Line In : Yes
- Product Model : U442-DOCK2-S
- Environmentally Friendly : Yes
- Mini DisplayPort : Yes
- Limited Warranty : 3 Year
- VGA : Yes
- Network (RJ-45) : Yes
- Host Interface : USB Type C
- Product Type : Docking Station
- HDMI : Yes
- Compatibility :
Notebooks:
- Apple MacBook
- Google Chromebook
- Thunderbolt : Yes
- Country of Origin : China
- Connectivity Technology : Wired
- Manufacturer Website Address : https://tripplite.eaton.com/
