Description
Bypass an SUT60K UPS to Perform Maintenance

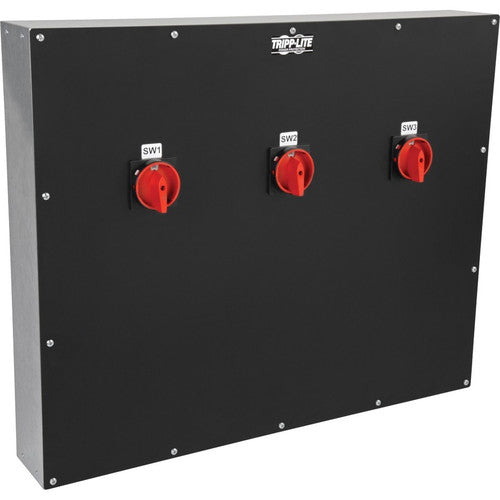

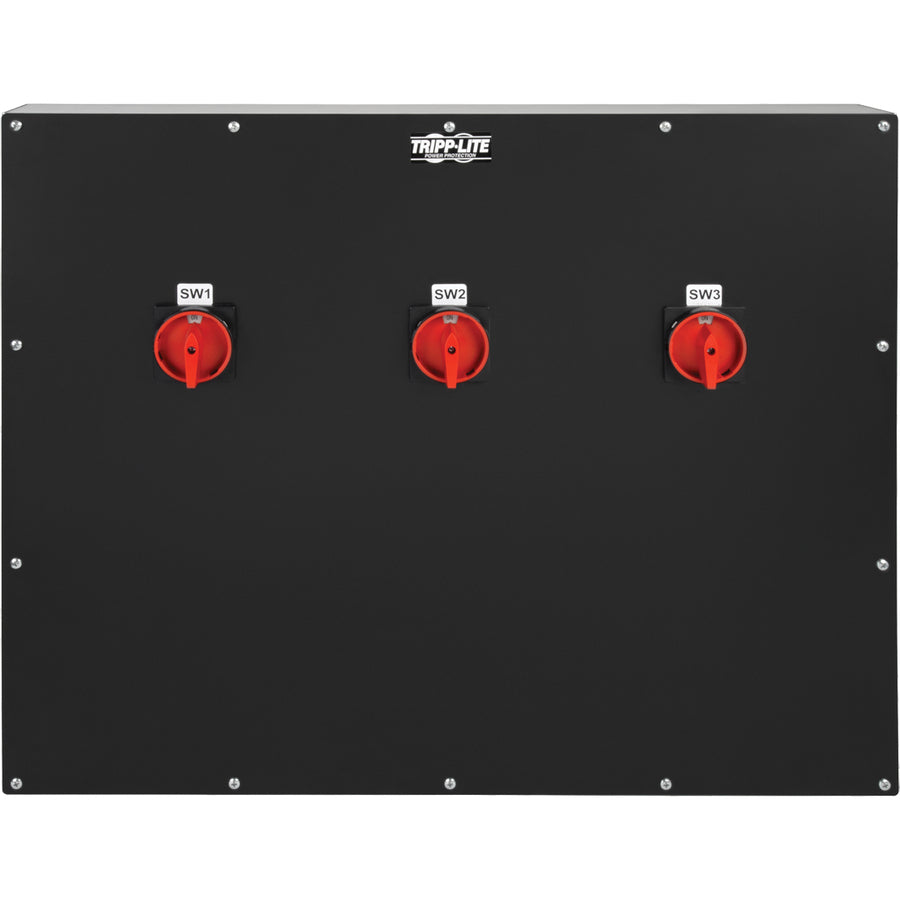

For use with Tripp Lite's SUT60K 3-phase UPS system, the SUT60KMBP maintenance bypass panel (MBP) maintains total continuity of power to connected load circuits when bypass of the UPS is required for regular service and maintenance. This UPS maintenance bypass panel has three 4-pole circuit breakers for Input, Bypass and Output. The breakers have removable handles to allow the panel's trim cover to be removed for internal access. Maximum current capacity is 225A.
Convenient Wall-Mount Installation
Made of galvanized steel, the service bypass panel has rear mounting holes for installation on a smooth and solid wall (mounting hardware not included).
One-Year Warranty
The SUT60KMBP is backed by a one-year limited warranty, ensuring reliability and performance.
. .- TAA Compliant : Yes
- Environmentally Friendly : Yes
- Input Voltage : 120 V AC,230 V AC
- Limited Warranty : 1 Year
- Form Factor : Wall-mountable
- Package Contents :
- UPS Maintenance Bypass Panel for SUT60K - 3 Breakers
- Installation and Operation Manual
- Plug/Connector Type : Hard Wire 4-wire (3P + N + E)
- Product Type : Bypass Panel
- Manufacturer : Tripp Lite by Eaton
- Product Model : SUT60KMBP
- Compatibility :
Tripp Lite SUT60K 3-phase UPS System
- Current : 225 A
- Country of Origin : Germany
- Manufacturer Website Address : https://tripplite.eaton.com/
