Description

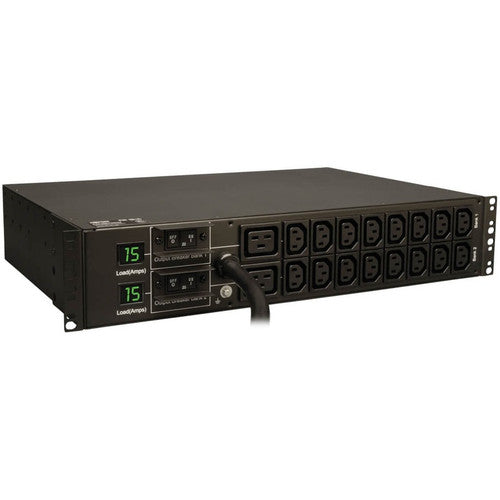

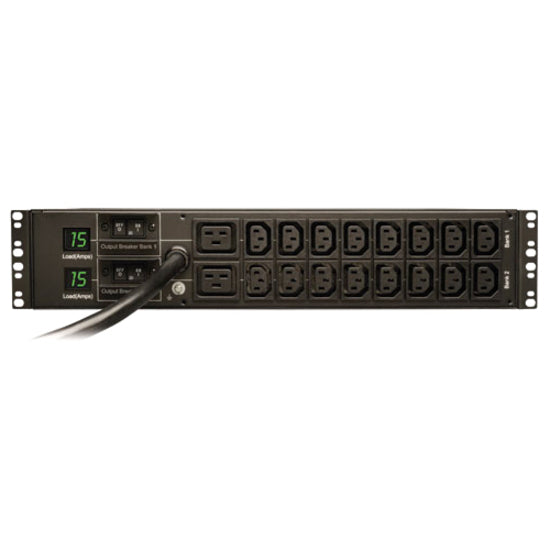

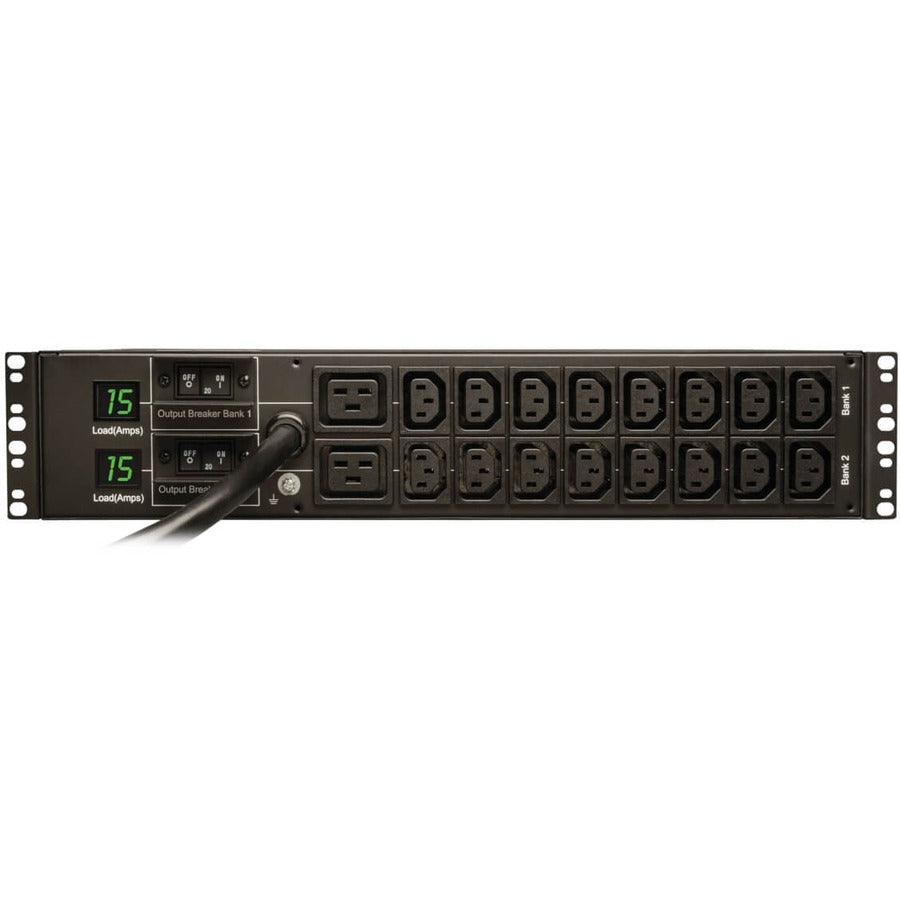

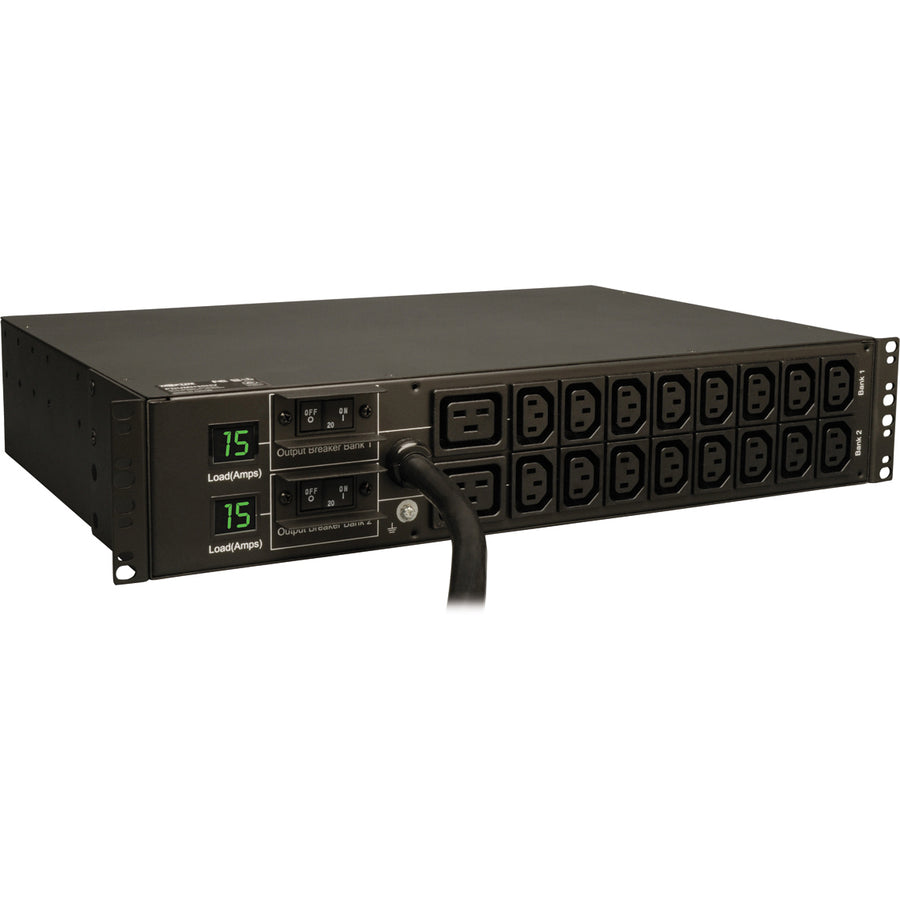

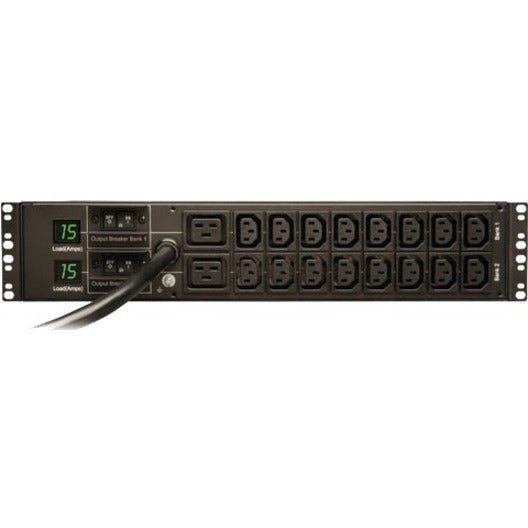

PDUMH30HV horizontal 2U metered rack PDU supports 30A maximum capacity at 208/240V (agency derated to 24A continuous). Includes 12 ft / 3.6m attached line cord with L6-30P input plug and 18 output receptacles (16 C13, 2 C19). Outlets are arranged in two separately breakered 9 outlet load banks. Set of two visual current meters tracks the output current of each load bank separately. Supports 2U rackmount installation in 19 inch racks. Included cord retention brackets keeps vital network equipment plugged in and continuously powered.
- TAA Compliant
- Reversible housing, 2U 208/240V rackmount metered PDU
- 18 total outlets (16 C13, 2 C19)

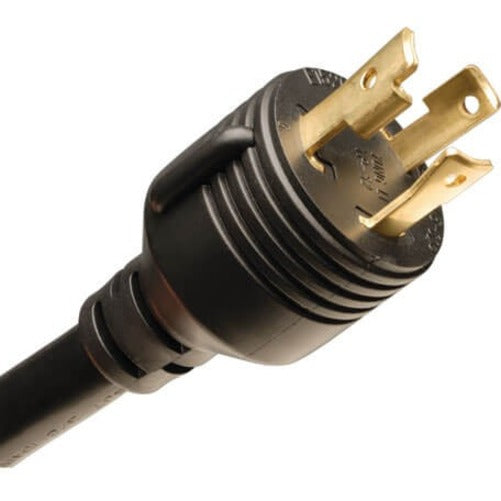

- Attached 12ft / 3.6m cord with NEMA L6-30P input plug
- Two built-in meters report output current in amps for each load bank
- Metered single phase 30A 208/240V 2U horizontal rackmount PDU
- Environmental Certification : RoHS
- Manufacturer Website Address : http://www.tripplite.com
- Receptacle Type : IEC 60320 C19,IEC 60320 C13
- Receptacle Detail : 2 x IEC 60320 C19,16 x IEC 60320 C13
- TAA Compliant : Yes
- Environmentally Friendly : Yes
- Product Series : Metered
- Input Voltage : 230 V AC
- Limited Warranty : 2 Year

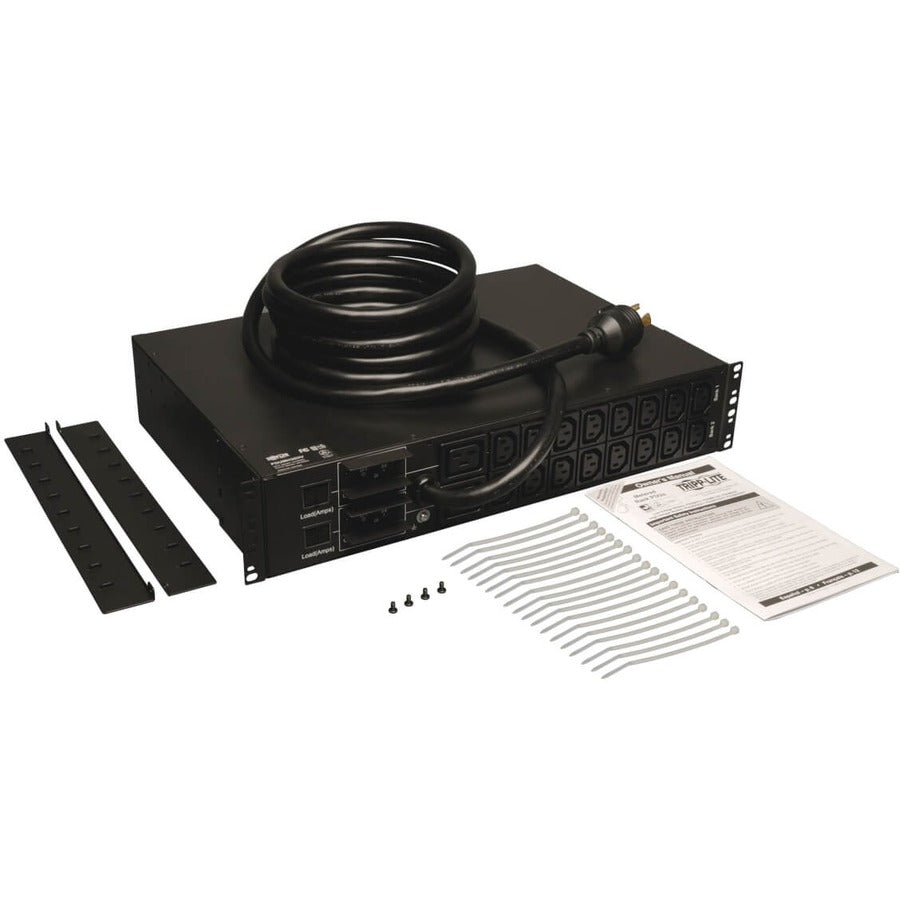

- Package Contents :
- Metered PDUMH30HV 18-Outlets PDU
- Mounting Brackets
- Plug Retention Plates
- User Manual
- Plug/Connector Type : NEMA L6-30P
- Product Type : PDU
- Mount Type : Rack-mountable
- Protection Type : Overload Protection
- Manufacturer : Tripp Lite by Eaton
- Input Voltage Range : 208 V AC - 240 V AC
- Product Model : PDUMH30HV
- Mounting Orientation : Horizontal
- Output Voltage : 208 V AC,240 V AC
- Country of Origin : Taiwan
- Rack Height : 2U
