Description
Line-Interactive Digital UPS System offers voltage regulation, surge suppression and long-lasting battery support for personal computers and more. Internal UPS circuits support entry-level PCs for up to 40 minutes or individual VCR/DVR components for as long as 2 hours during power failures. Prevents data loss, viewing interruptions and loss of programming. AVR circuits regulate brownouts as low as 89v back to usable levels without consuming battery power. Includes four battery-supported/surge-protected outlets, plus four additional surge suppression-only outlets for items not requiring battery support. USB port enables optional unattended system shutdown. Includes cable. HID-compliant USB interface enables full integration with built-in power management and auto shutdown of Windows, Mac OS X and Linux. Offers three-minute battery runtime with full load of 650VA/350W and 12 minute with half load of 325VA/175W.

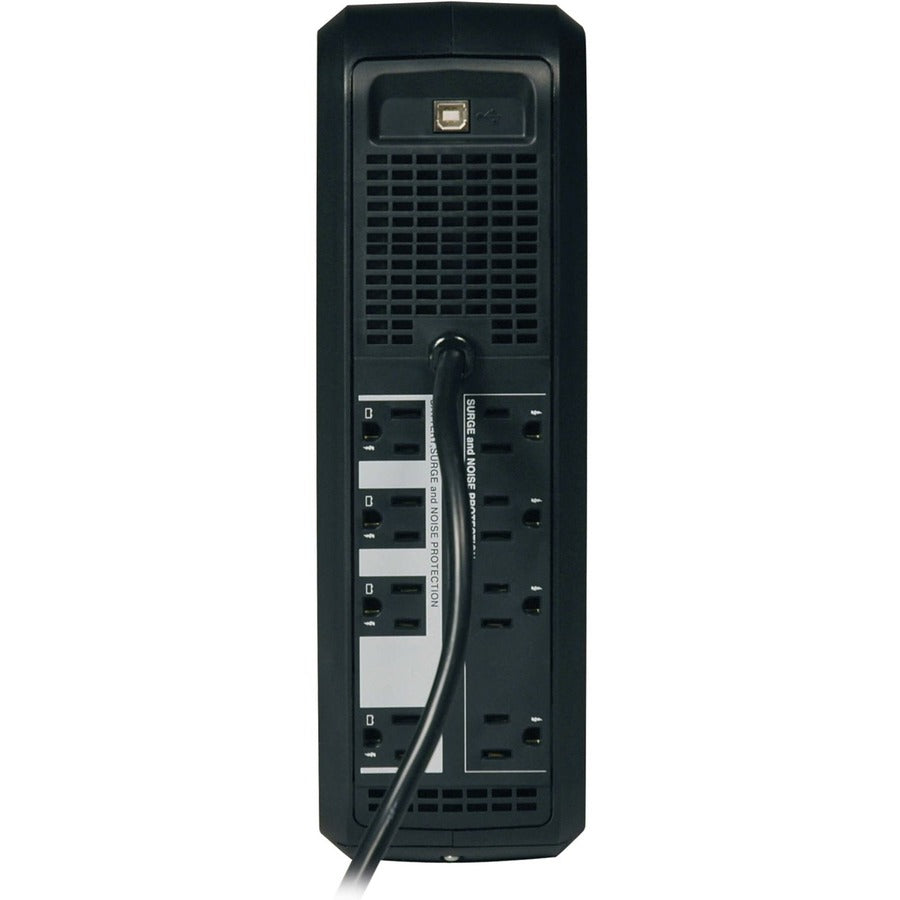

- NEMA 5-15P input plug and 8 NEMA 5-15R outlets
- USB port, Surge-only outlets, 97% efficiency
- LCD screen reports input voltage, battery charge and UPS status

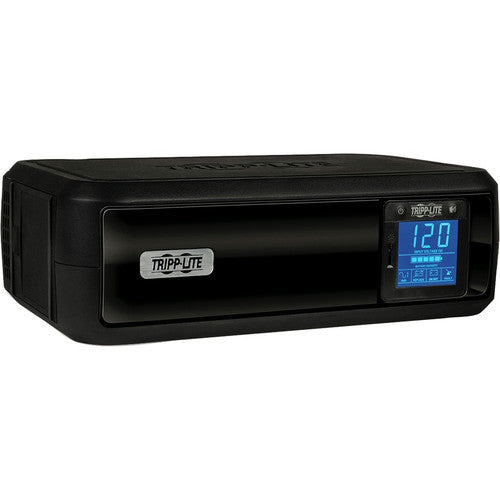

- 650VA tower 120V line interactive UPS with LCD display
- Corrects brownouts as low as 89V without using battery power
- Manufacturer Website Address : http://www.tripplite.com
- Receptacle Type : NEMA 5-15R
- Receptacle Detail : 8 x NEMA 5-15R
- Input Voltage : 110 V AC
- Typical Battery Recharge Time : 8 Hour
- Limited Warranty : 3 Year
- Packaged Quantity : 1 Each
- Backup/Run Time (Full Load) : 3.20 Minute

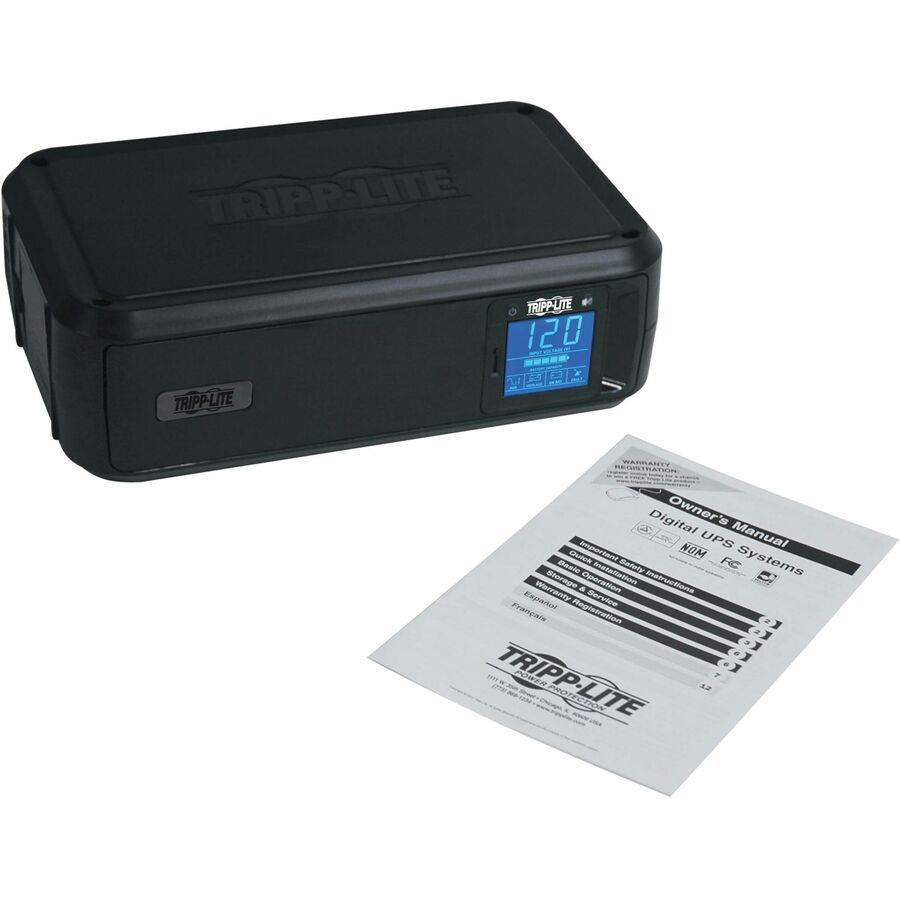

- Package Contents :
- OmniSmart 650 VA Digital UPS
- OMNI650LCD Digital UPS System
- Manual with warranty information
- Plug/Connector Type : NEMA 5-15P
- Product Type : Line-interactive UPS
- Load Capacity : 650 VA/350 W
- Manufacturer : Tripp Lite by Eaton
- Product Model : OMNI900LCD
- Output Voltage : 120 V AC
- Country of Origin : China
- Product Line : OmniSmart
- Waveform Type : Pulse-width Modulated Sine Wave
- Backup/Run Time (Half Load) : 12 Minute
- Product Color : Black
- Additional Warranty Information :
2-year warranty; $200,000 connected equipment insurance (USA & Canada Only).
- Maximum Operating Temperature : 122°F (50°C)
- USB : Yes
- Surge Energy Rating : 480 J
- Alarm : Self-test Operation
- Status Indicators :
- Input Voltage : Shows actual incoming voltage in real time
- Battery Charge : Shows approximate charge available on the battery
- Automatic Voltage Regulation (AVR) : Illuminates to indicate the UPS is automatically regulating incoming voltage without draining battery power
- Battery Recharge/Replace : Illuminates to indicate the UPS batteries need to be recharged or replaced (following a self-test)
- Battery Backup : Illuminates to indicate that the UPS is supplying battery power to connected equipment
- Output Load Level : Illuminates when the electrical load of connected equipment exceeds the capacity of the UPS
