Description
Tripp Lite 3 phase Metered PDU / Power Distribution Units offer real-time local reporting of current levels in amps via set of 3 built-in digital meters. Enables visual monitoring of PDU current levels to preserve proper loading balance and prevent circuit overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.
- Toolless button-mount installation, TAA Compliant

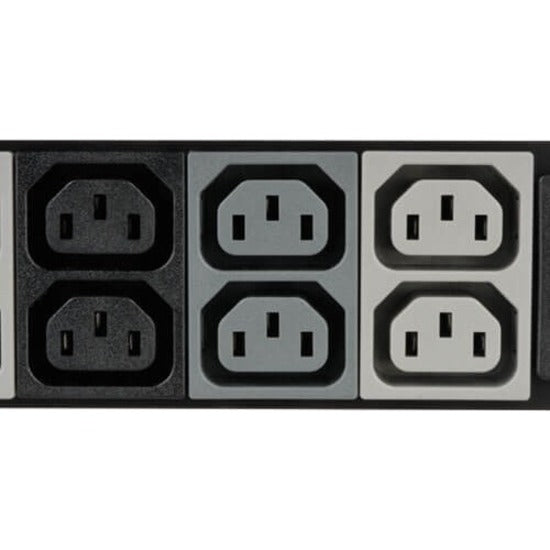

- 45 208V outlets (36 C13, 9 C19) with included plug-lock cord retention sleeves

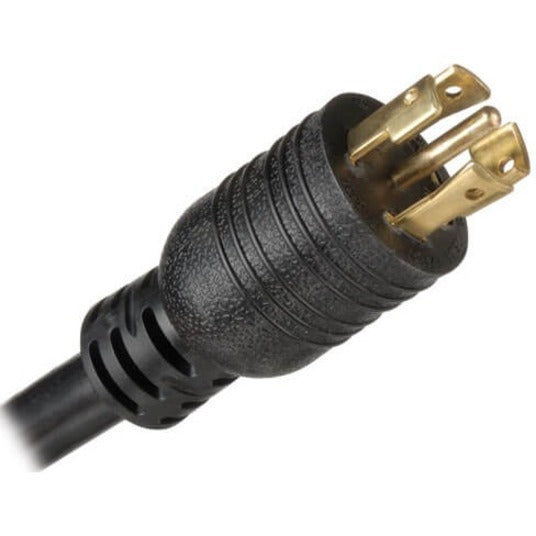

- NEMA L21-30P (3P+N+E) 208V 3 phase input, 6 ft. / 1.8m line cord

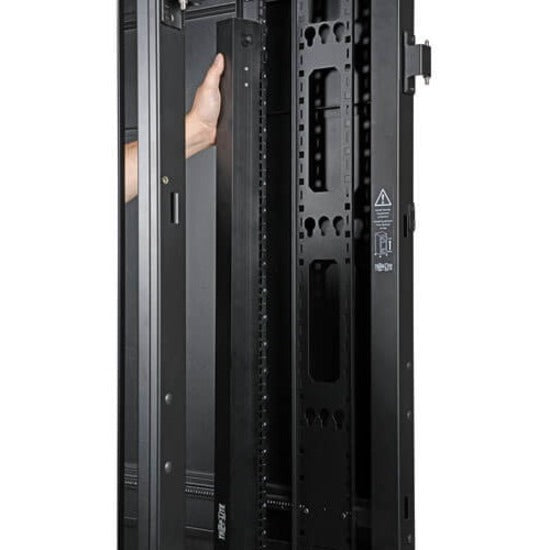

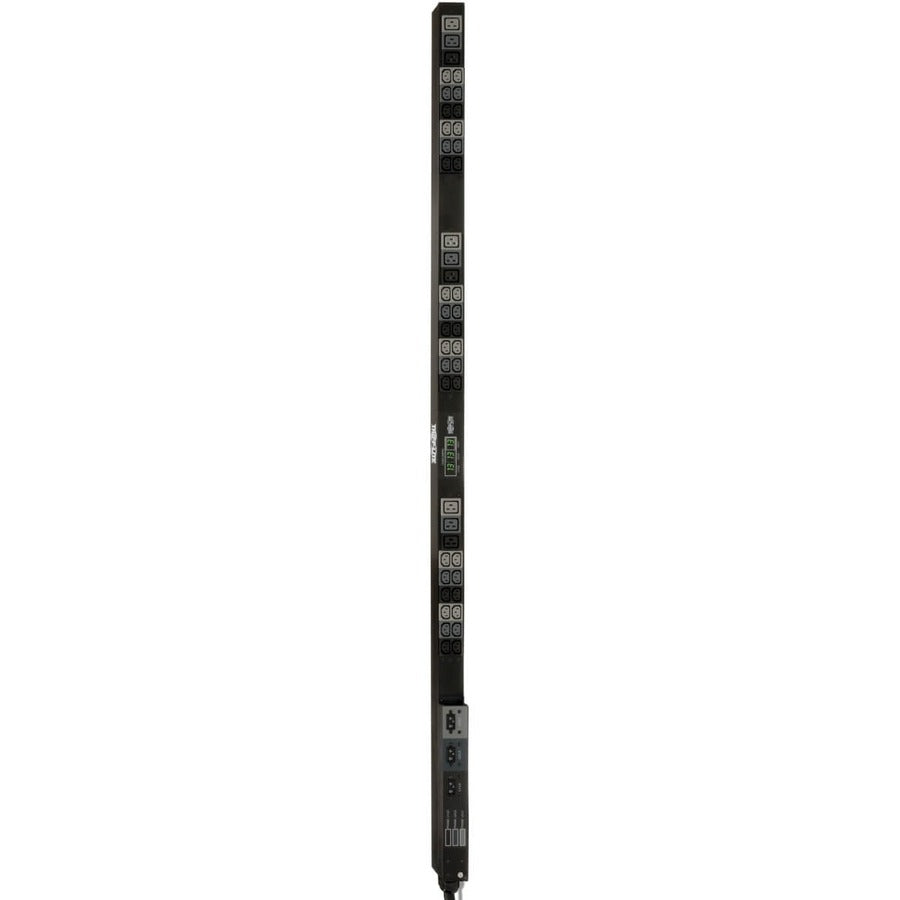

- Metered 8.6kW 3 Phase 208V PDU; 70 in. / 178cm 0U vertical rackmount

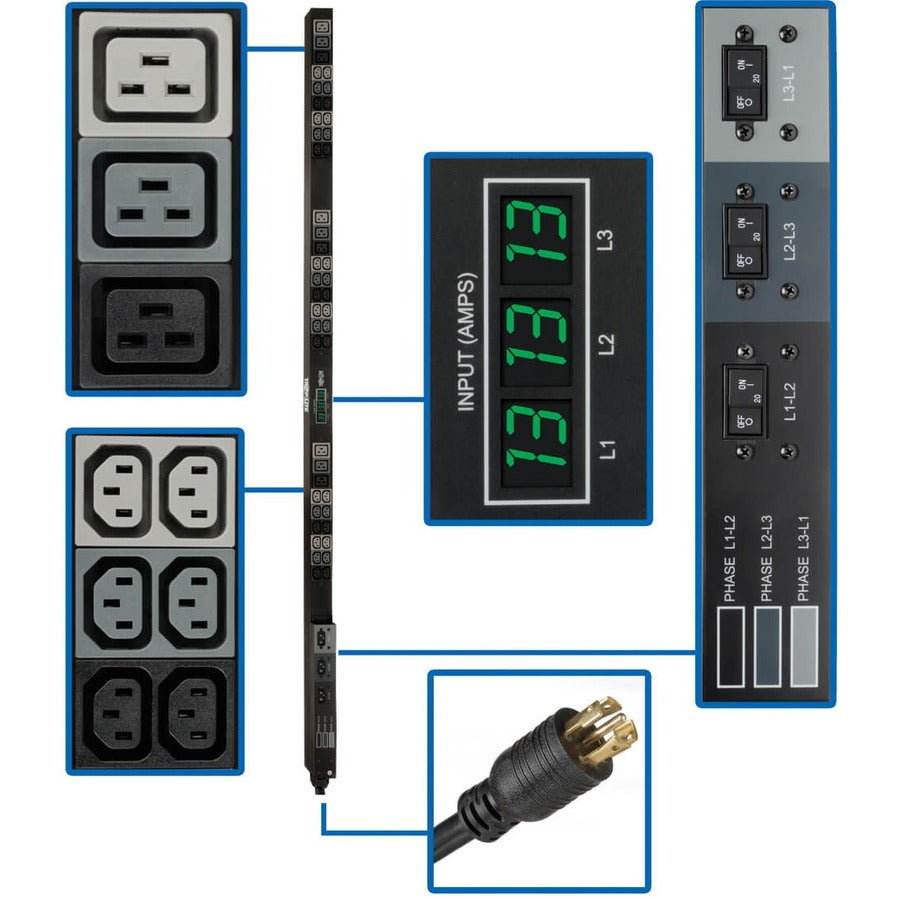

- Reports voltage and load per-phase via set of 3 digital current displays
- Receptacle Type : IEC 60320 C13,IEC 60320 C19
- Receptacle Detail : 36 x IEC 60320 C13,9 x IEC 60320 C19
- TAA Compliant : Yes
- Environmentally Friendly : Yes
- Power Rating (Watt) : 8.60 kW
- Input Voltage : 230 V AC
- Product Series : Metered
- Limited Warranty : 2 Year

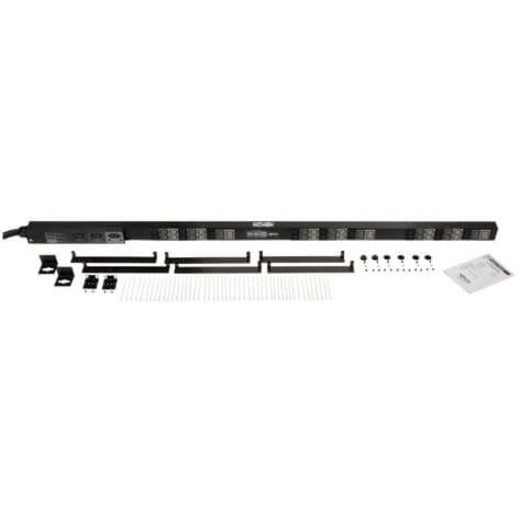

- Package Contents :
- Metered PDU3MV6L2130A 45-Outlets PDU
- Cord Retention Sleeves (36 C14, 9 C19)
- Spare Installation Buttons (2 9mm / 4 6mm)
- Rack Mounting Brackets
- Owner's Manual
- Plug/Connector Type : NEMA L21-30P
- Product Type : PDU
- Mount Type : Rack-mountable
- Protection Type : Overload Protection
- Manufacturer : Tripp Lite by Eaton
- Product Model : PDU3MV6L2130A
- Output Voltage : 208 V AC
- Mounting Orientation : Vertical
- Input Current : 24 A
- Rack Height : 0U
- Country of Origin : Taiwan
- Manufacturer Website Address : https://tripplite.eaton.com/
